3 bore x 36 stroke hydraulic cylinder, welded clevis double acting cylinder | Magister Hydraulics

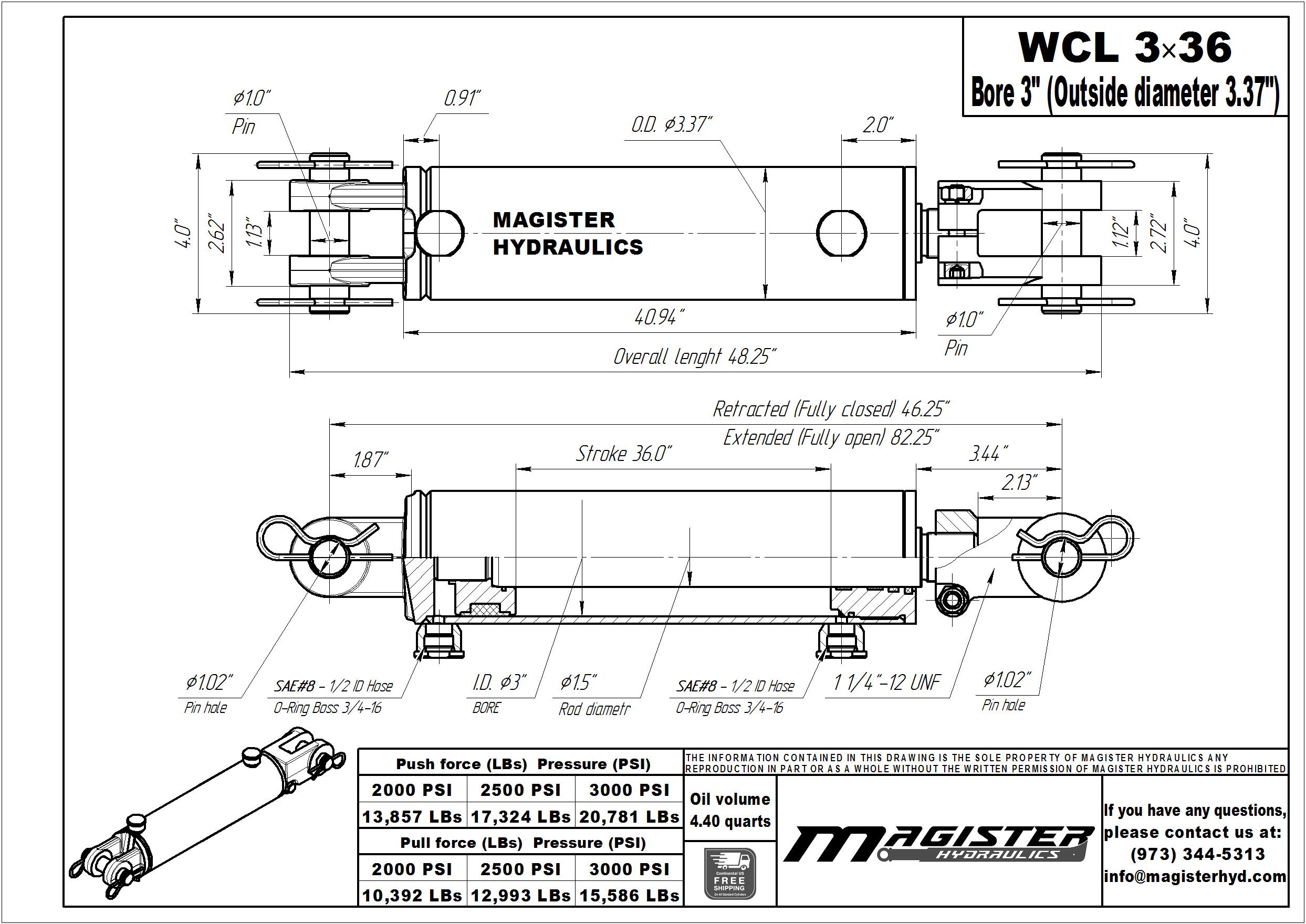

3" bore x 36" stroke clevis hydraulic cylinder


Pay in 4 interest-free payments of $92.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCL 3x36
Bore :3” Bore Hydraulic Cylinders
OD :3.37"
Stroke :36"
Rod :1.5"
Port Size :SAE 8
Pin :1"

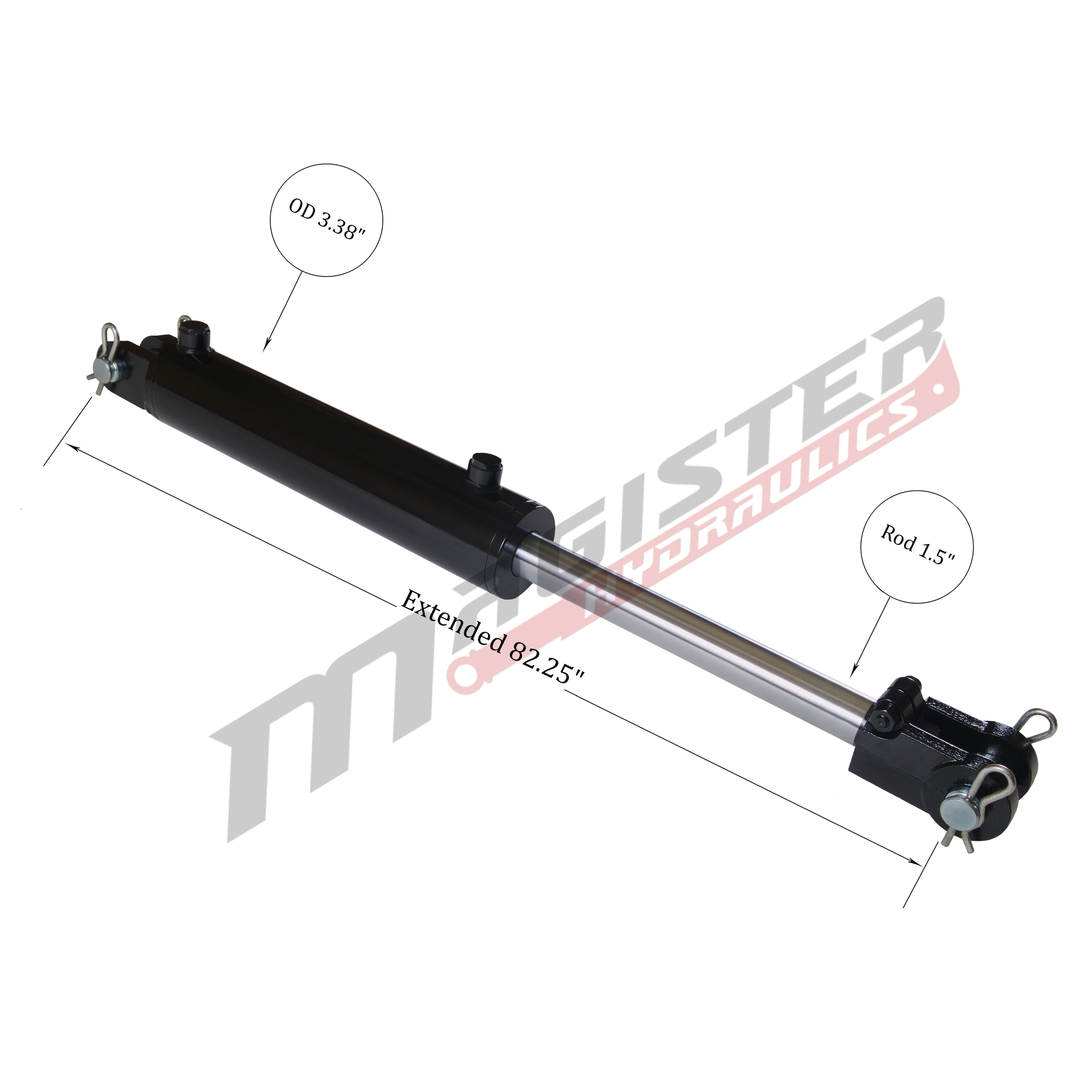

Extended :82.25"

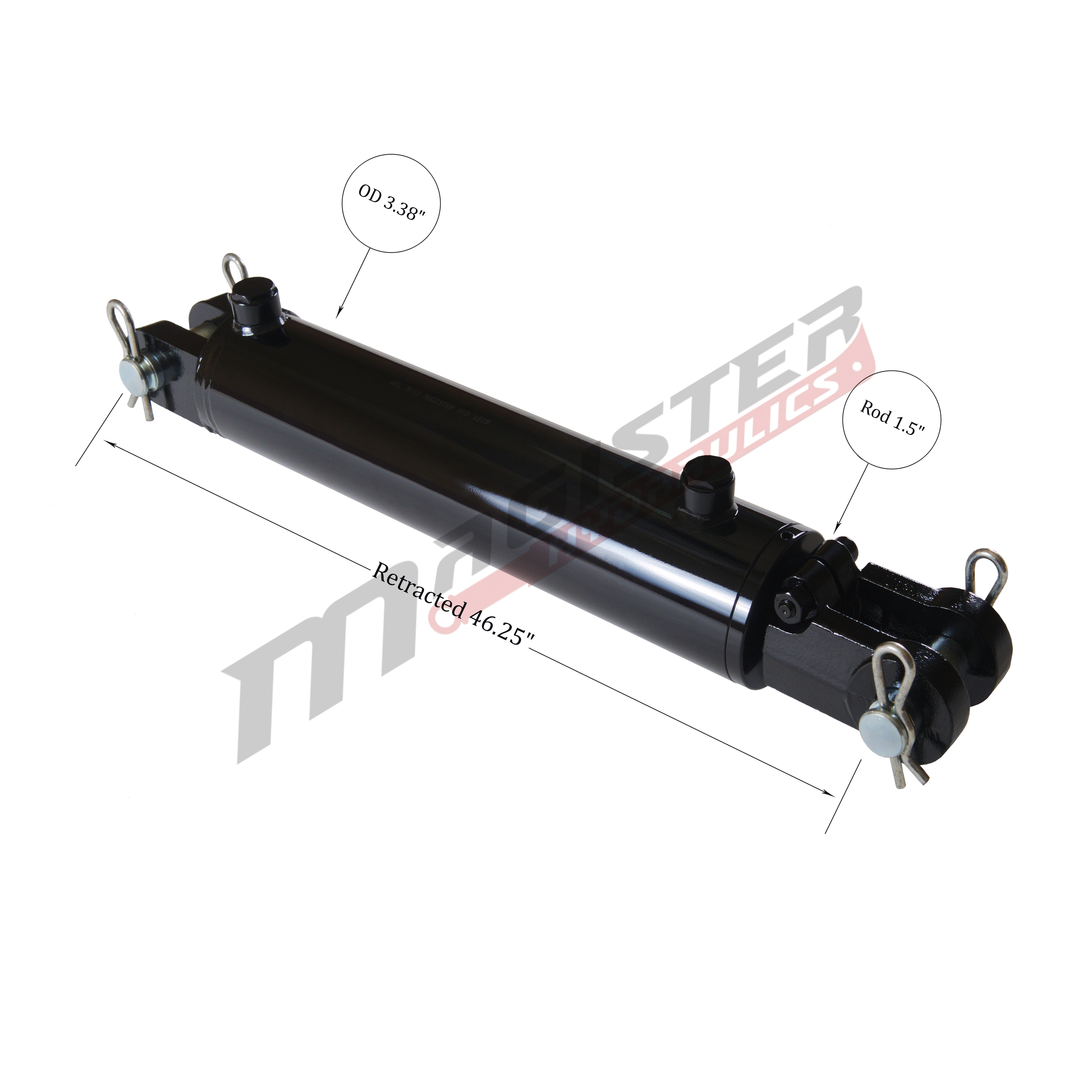

Retracted :46.25"
Overall length :48.25"
Pressure :3500 PSI
Column Load (LBs) :8,200
Oil Volume (quarts) :4.4
Brand :Magister Hydraulics
GTIN :850597006905
SKU: WCL 3x36 Categories: ,
4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

146 in stock

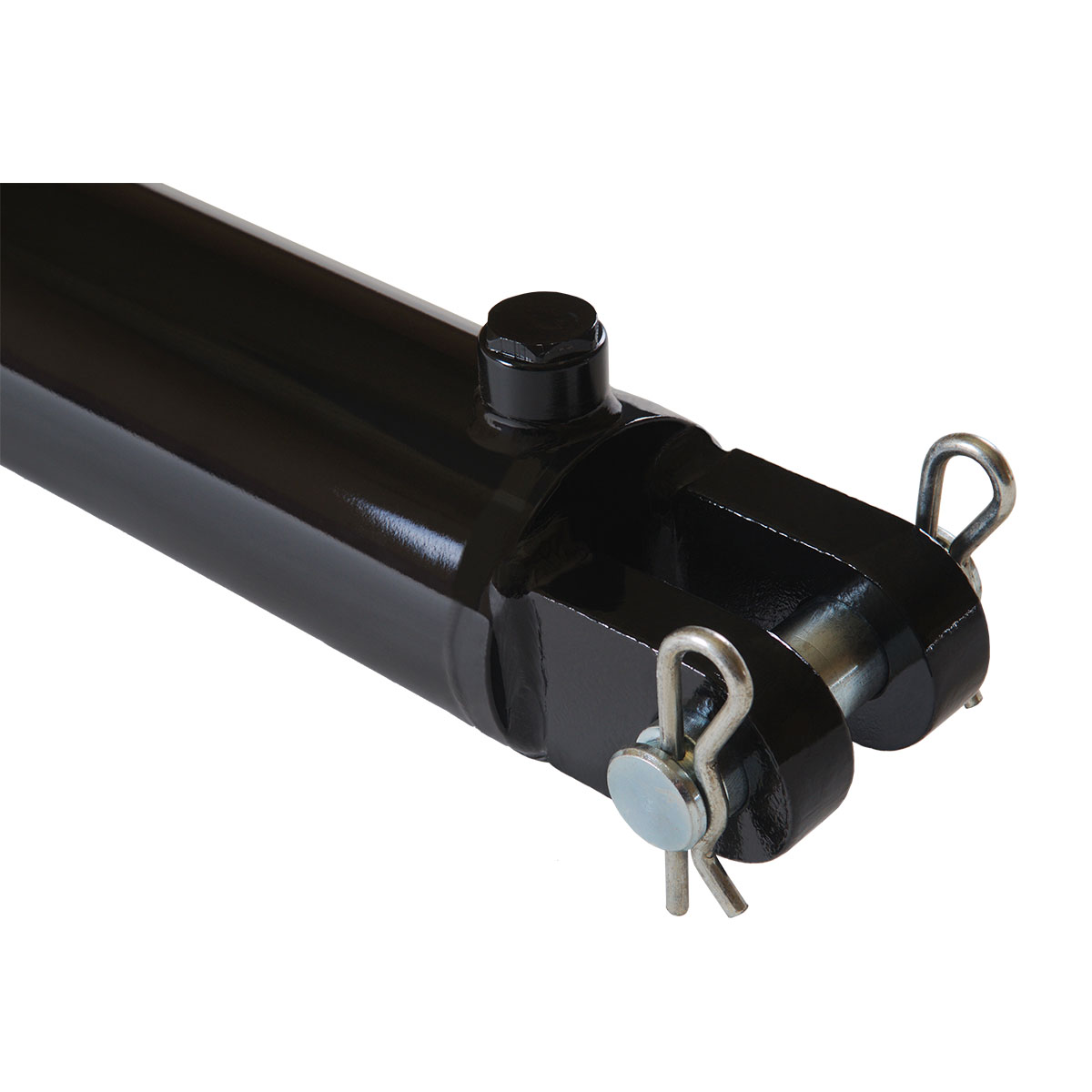

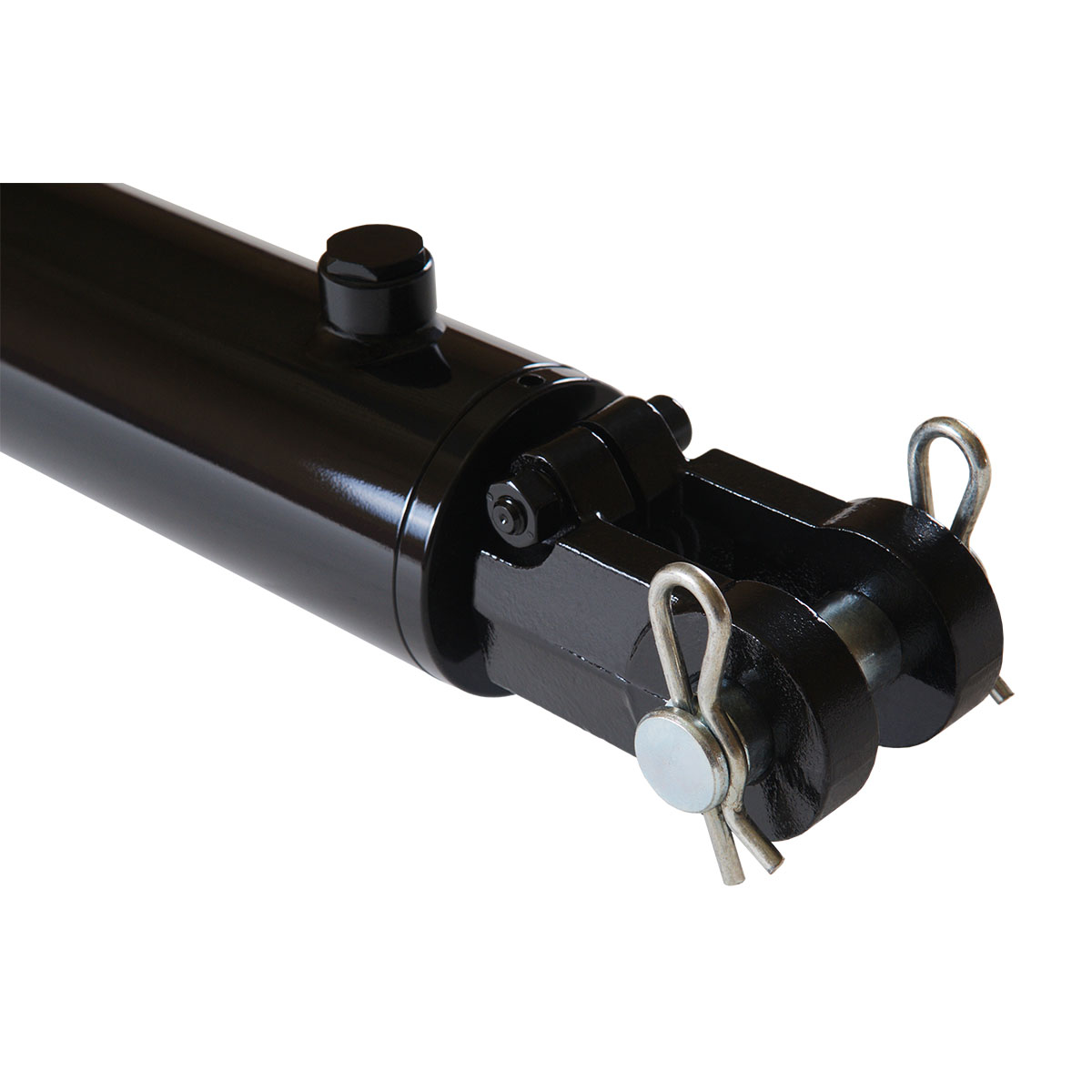

  • 3″ bore x 36″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
