3" bore x 12" stroke clevis hydraulic cylinder

Name: 3" bore x 12" stroke clevis hydraulic cylinder
Brand: Magister Hydraulics
SKU: WCL 3x12
Price: 248.00 USD
Availability: InStock
Rating: 5 (10 reviews)

$248.00

Pay in 4 interest-free payments of $62.00

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WCL 3x12

Product SKU	Maxim part number	Chief part number	Prince-Wolverine part number	Prince-Magnum part number	Eagle part number
WCL 3x12	288431	287034	WWCL3012-S	PC3012CL	HTG3012-ORB

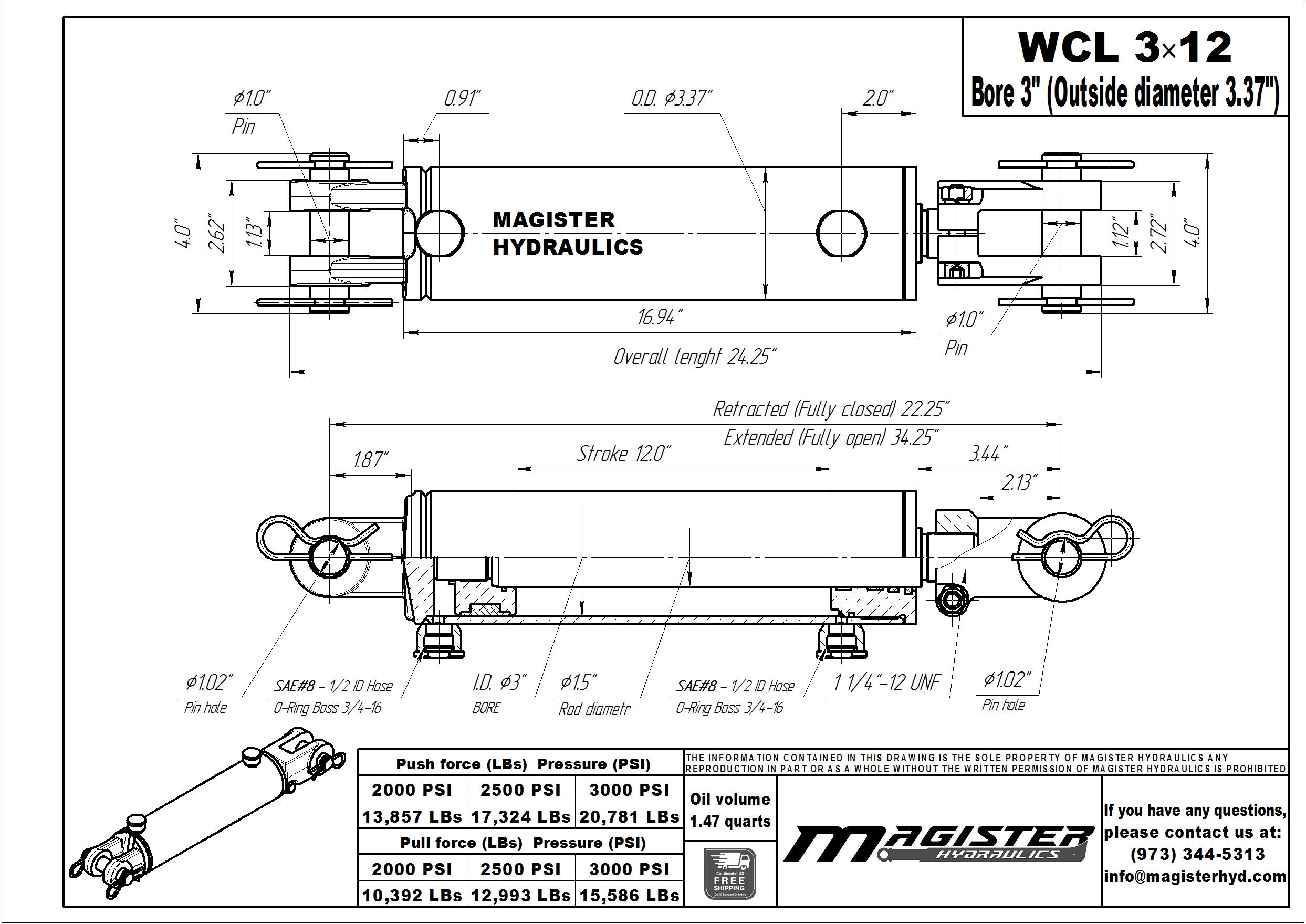

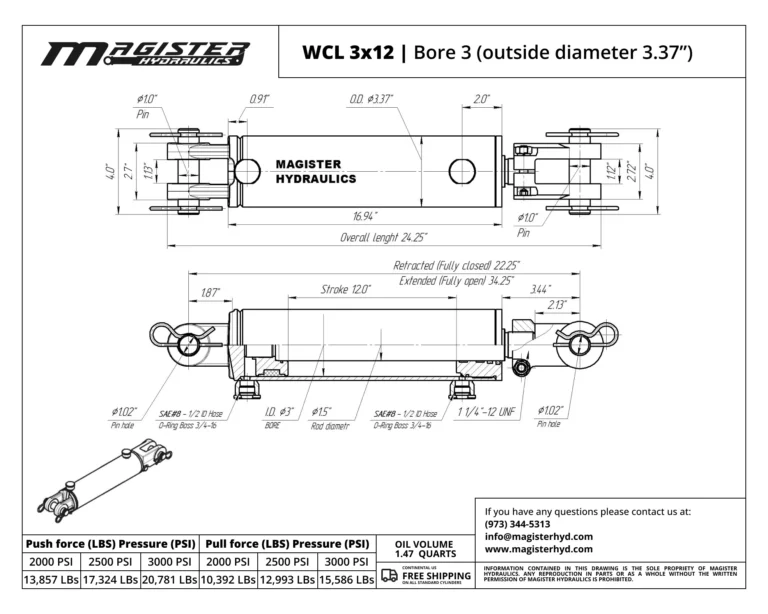

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	3” Bore Hydraulic Cylinders
OD :	3.37"
Stroke :	12” Stroke Hydraulic Cylinders
Rod :	1.5"
Port Size :	SAE 8
Pin :	1"

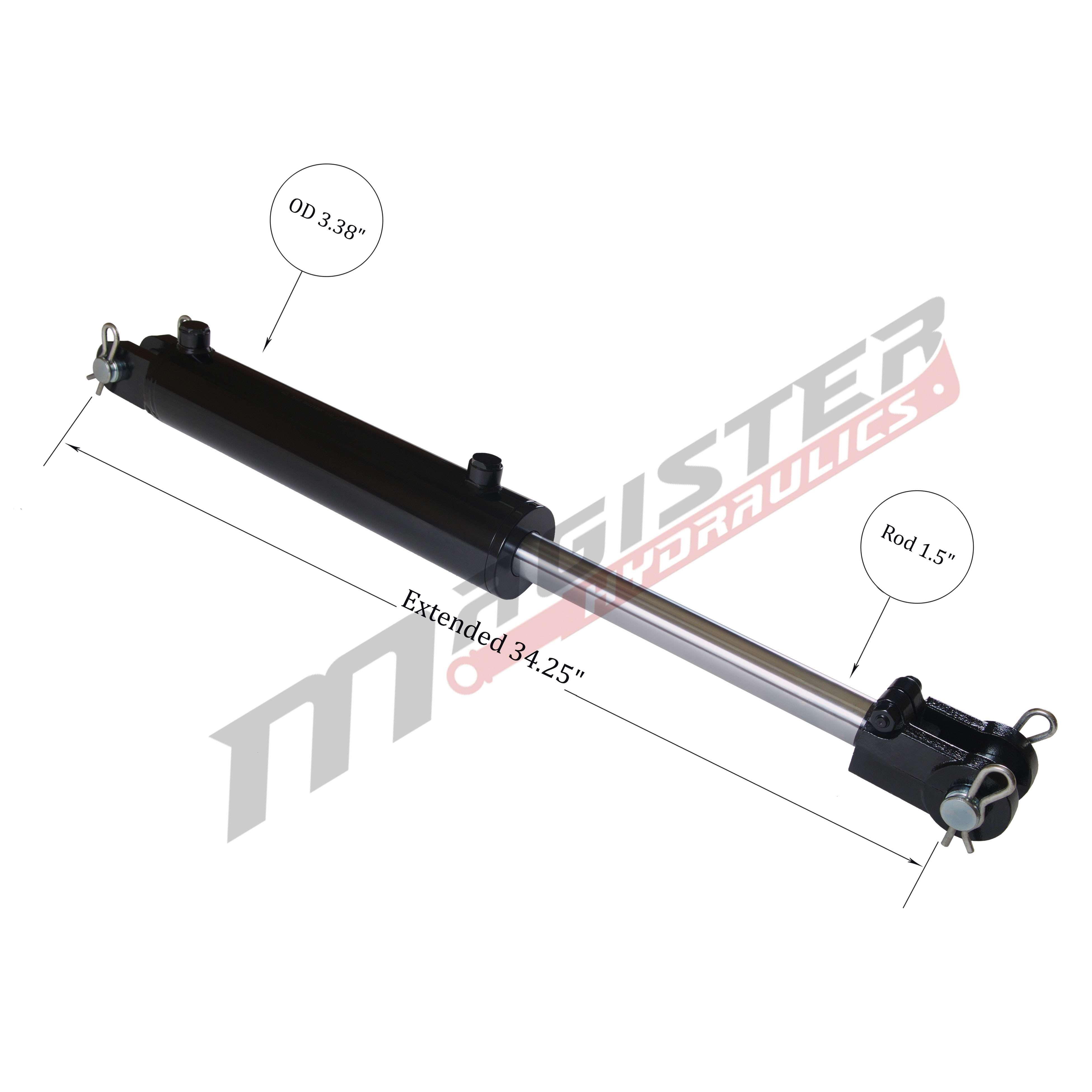

Extended :	34.25"

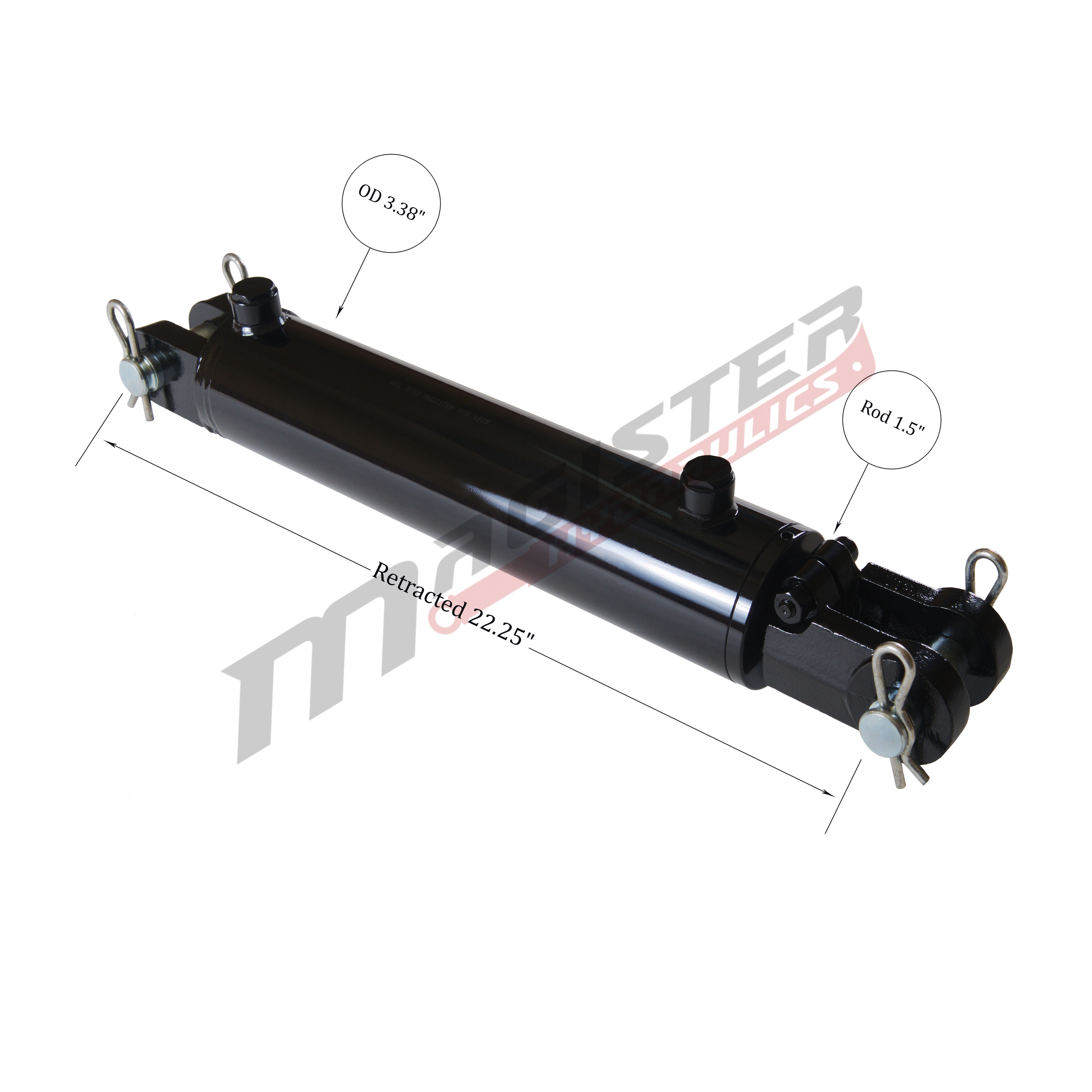

Retracted :	22.25"
Overall length :	24.25"
Pressure :	Hydraulic Cylinders 3500 PSI
Column Load (LBs) :	21,200
Oil Volume (quarts) :	1.47
Brand :	Magister Hydraulics
GTIN :	850597006523

SKU: WCL 3x12 Categories: 3" Bore Clevis, Hydraulic Cylinders

1+ PRICE EA

$248.00

4+ PRICE EA -5%

$235.60

8+ PRICE EA -10%

$223.20

In stock

69 in stock

DESCRIPTION

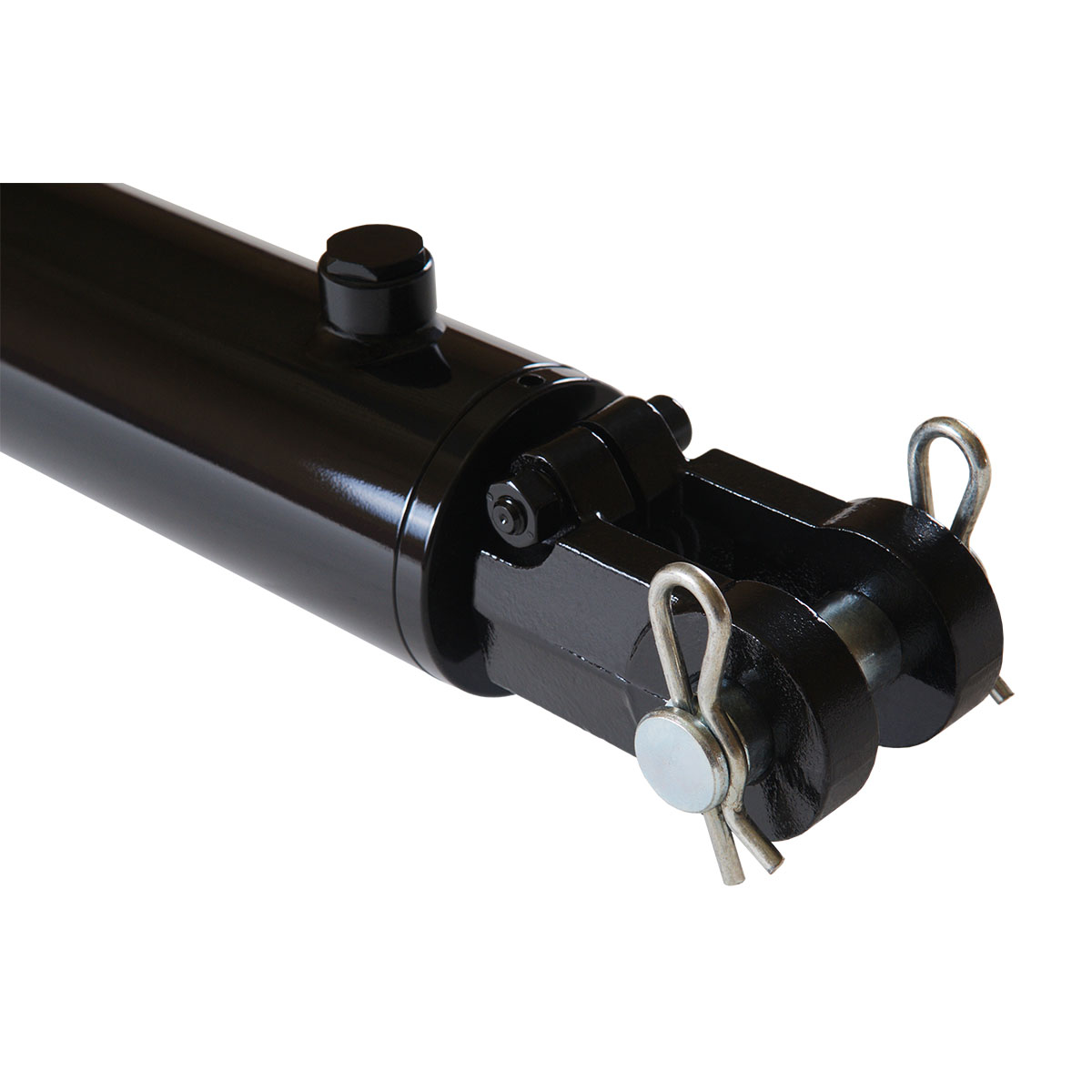

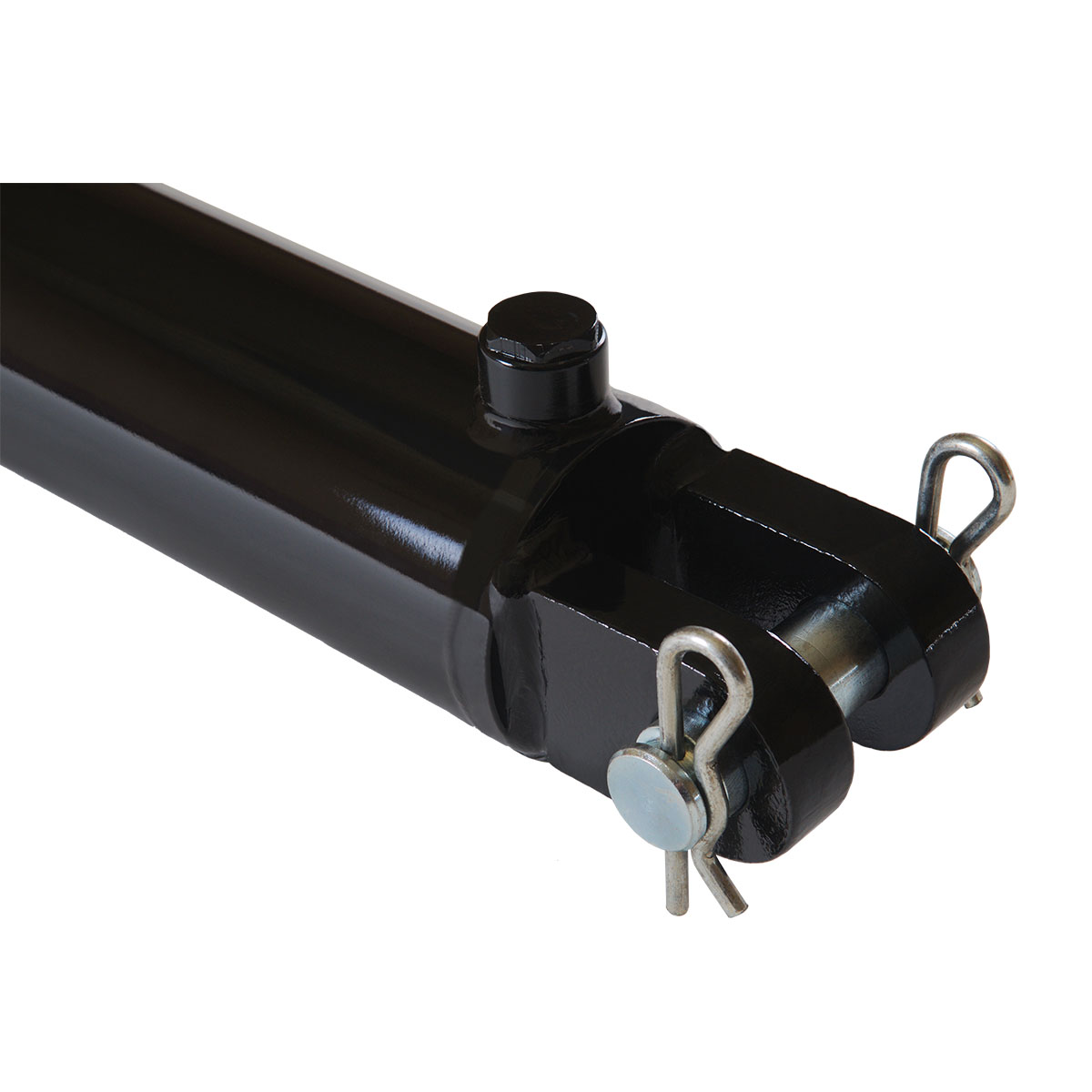

3″ bore x 12″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.
FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
