3" bore x 6" stroke clevis hydraulic cylinder
$219.00
* Wholesale Discount is available for this product if you purchase 4 or more products.SKU: WCL 3x6
Bore :
3 inch
OD :
3.37"
Stroke :
6 inch
Rod :
1.5"
Port Size :
SAE 8
Pin :
1"

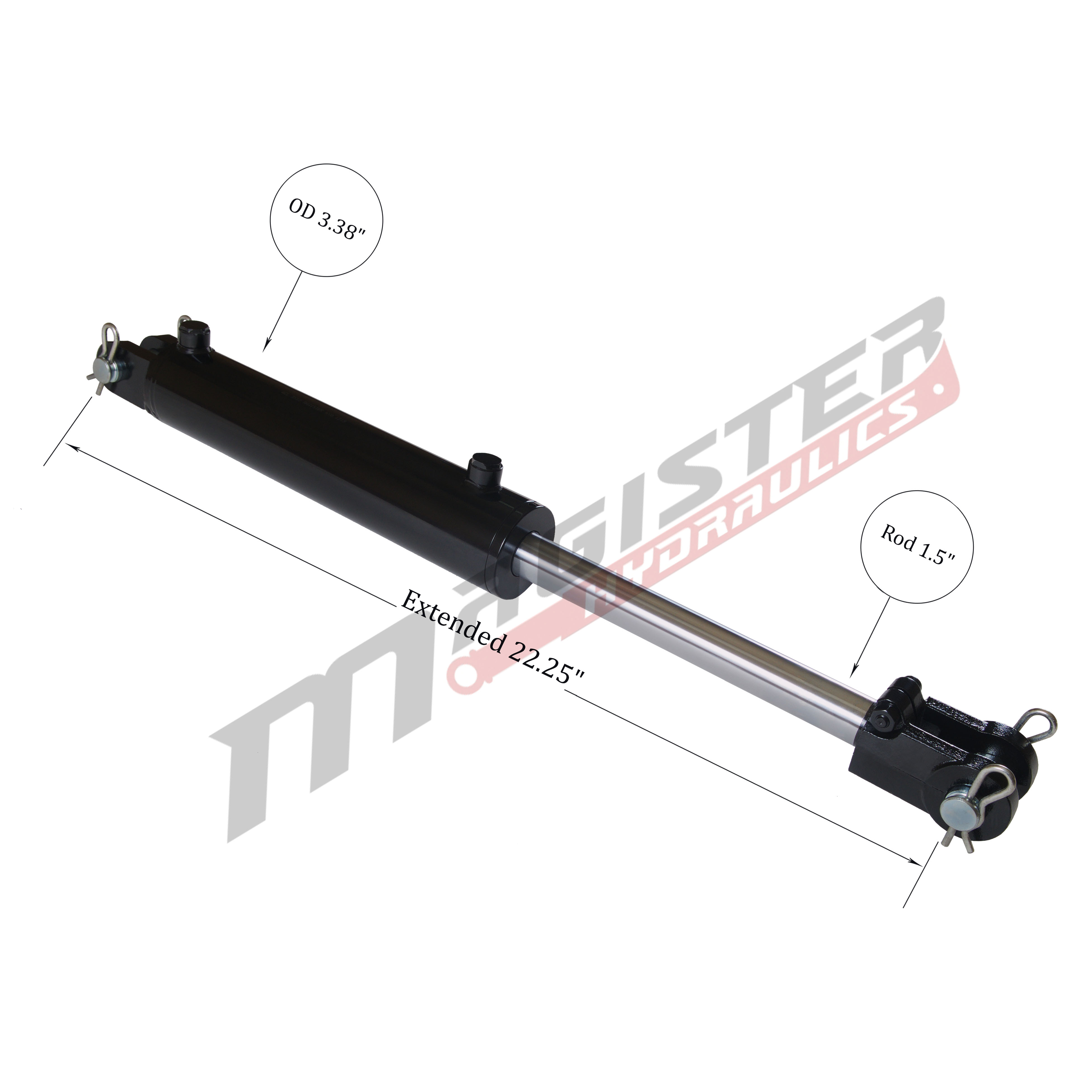

Extended :
22.25"

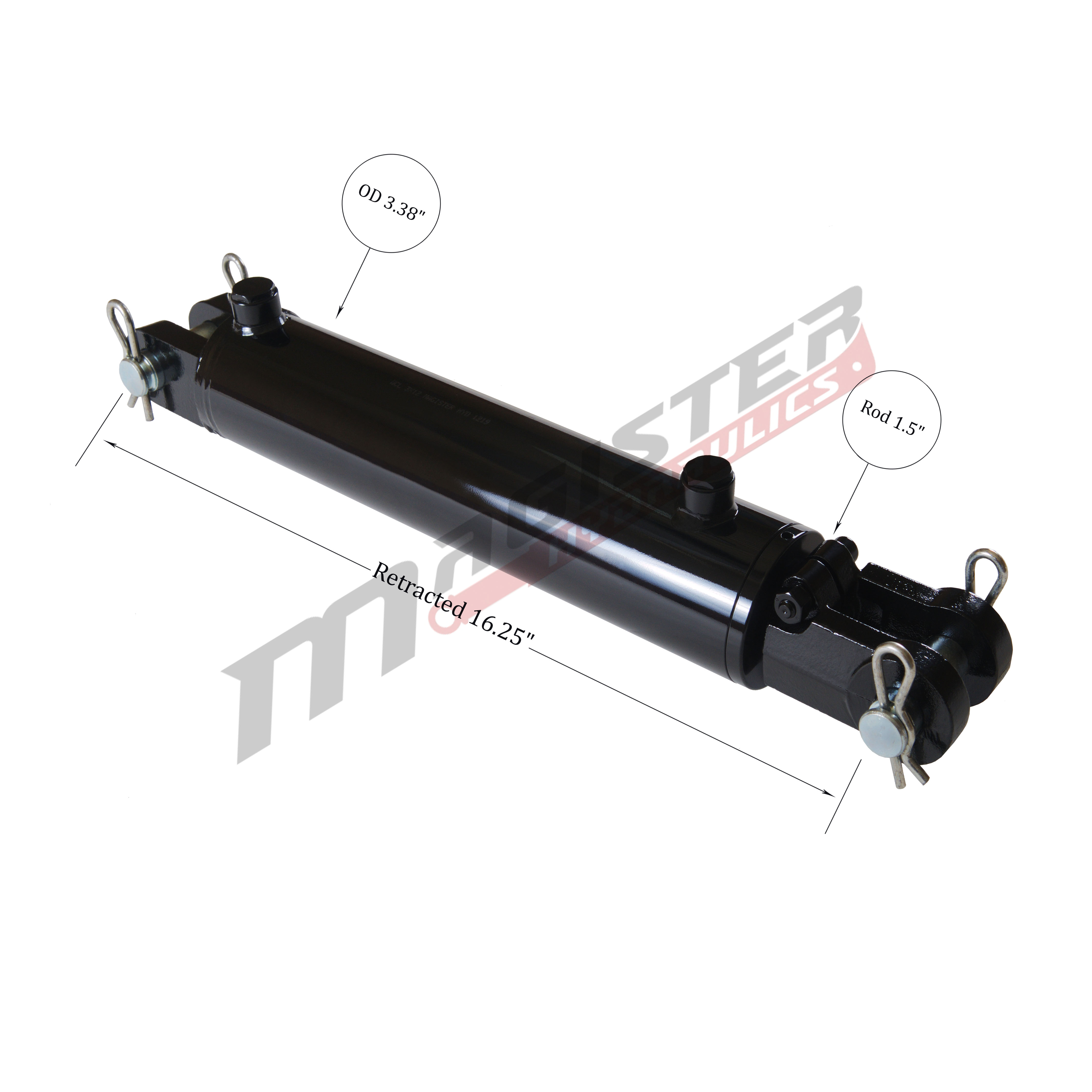

Retracted :
16.25"
Overall length :
18.25"
Pressure :
3500 PSI
Column Load (LBs) :
21,200
Oil Volume (quarts) :
0.73
Brand :
Magister Hydraulics
GTIN :
857743006192
1+
PRICE EA
$219.00
4+
PRICE EA -5%
$208.05
10+
PRICE EA -10%
$197.10
In stock
10 in stock
DESCRIPTION

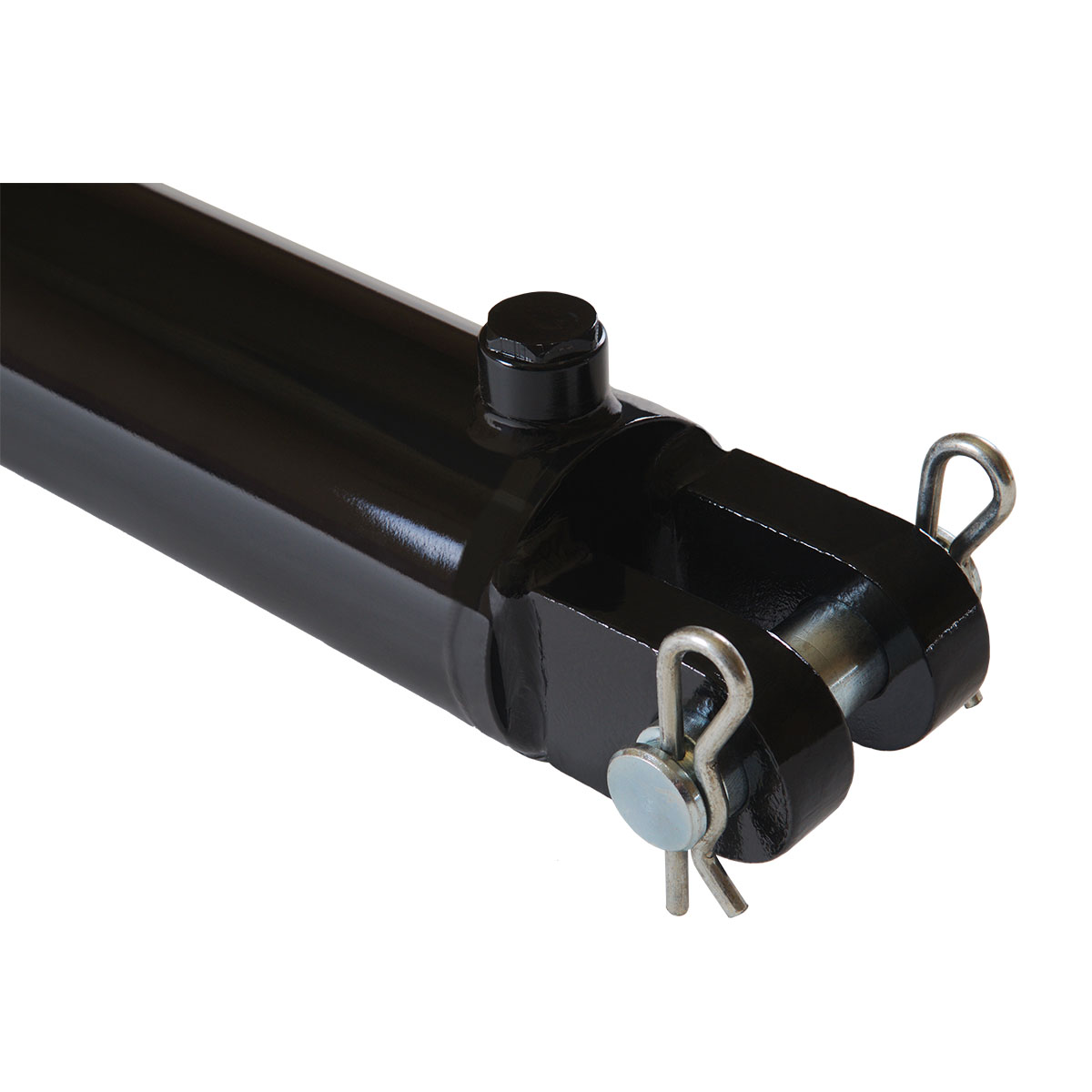

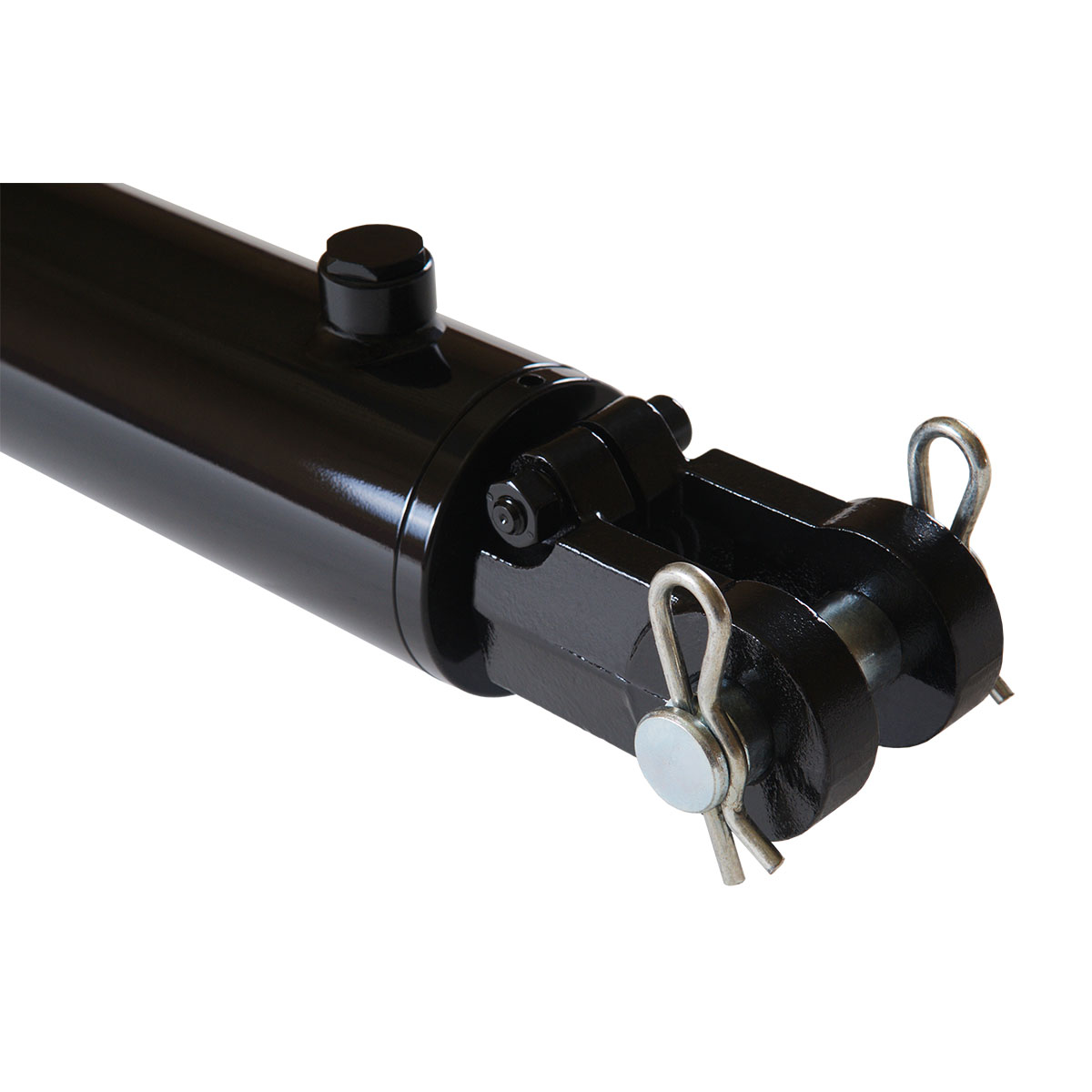

- 3″ bore x 6″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
FREE SHIPPING
We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
