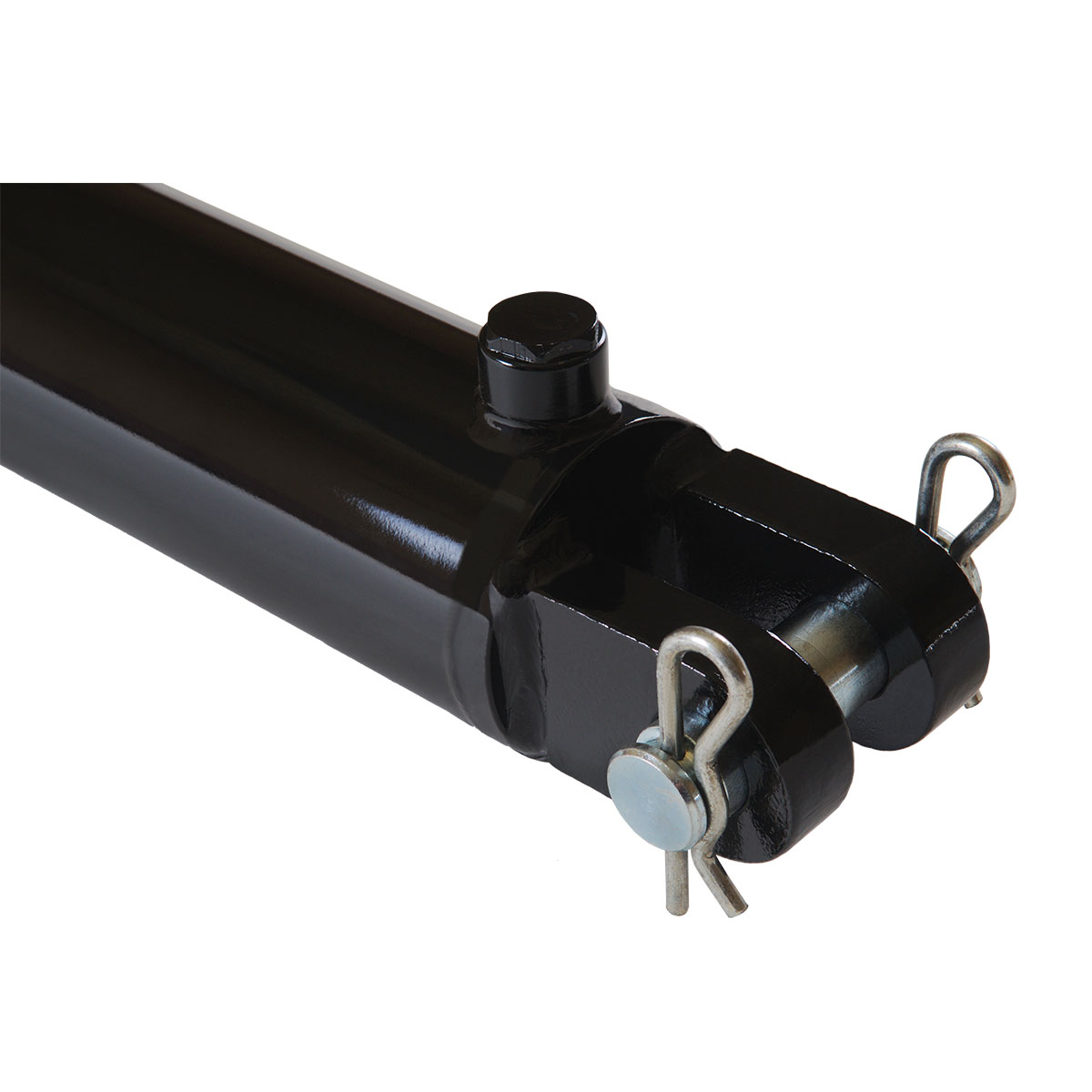

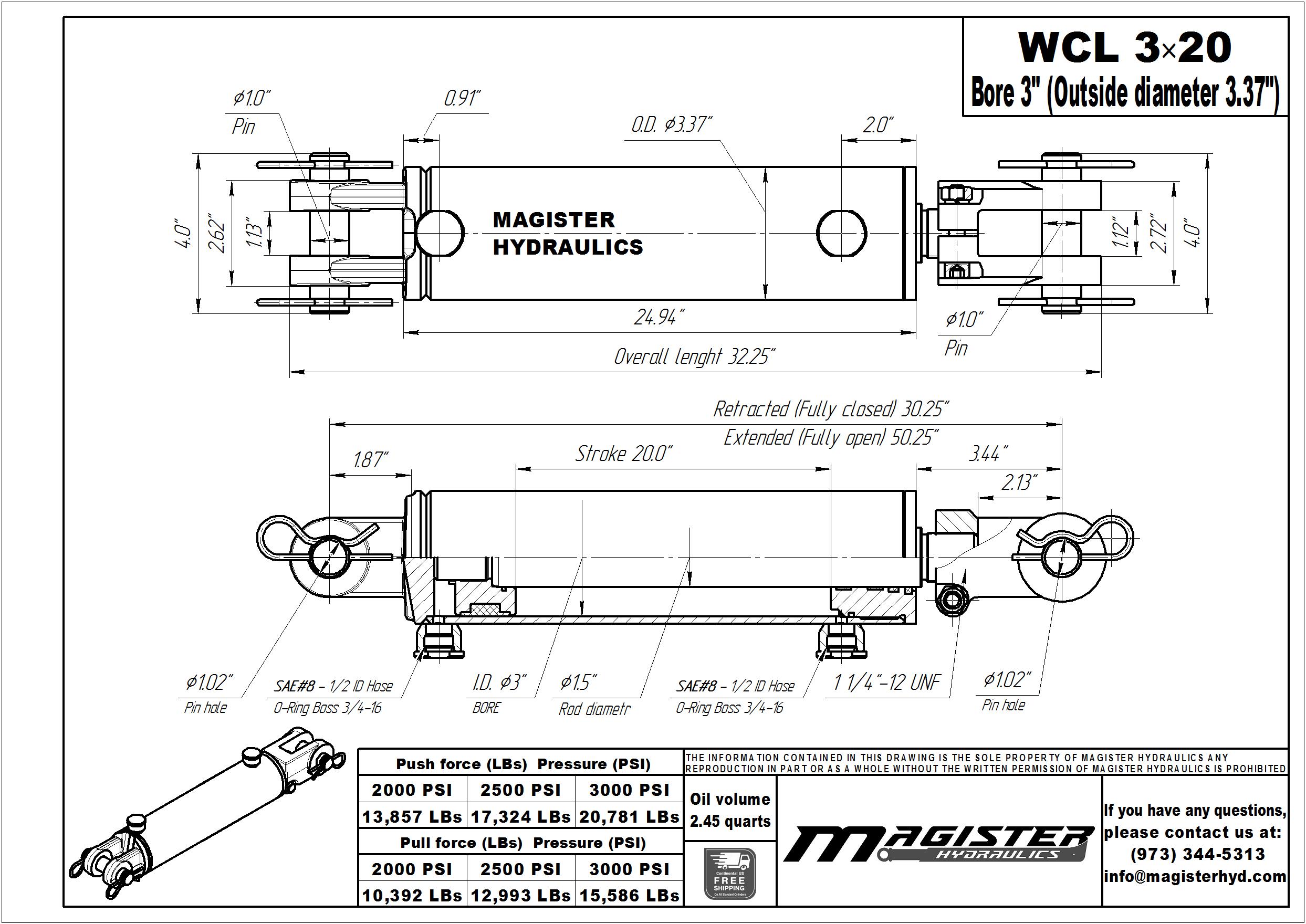

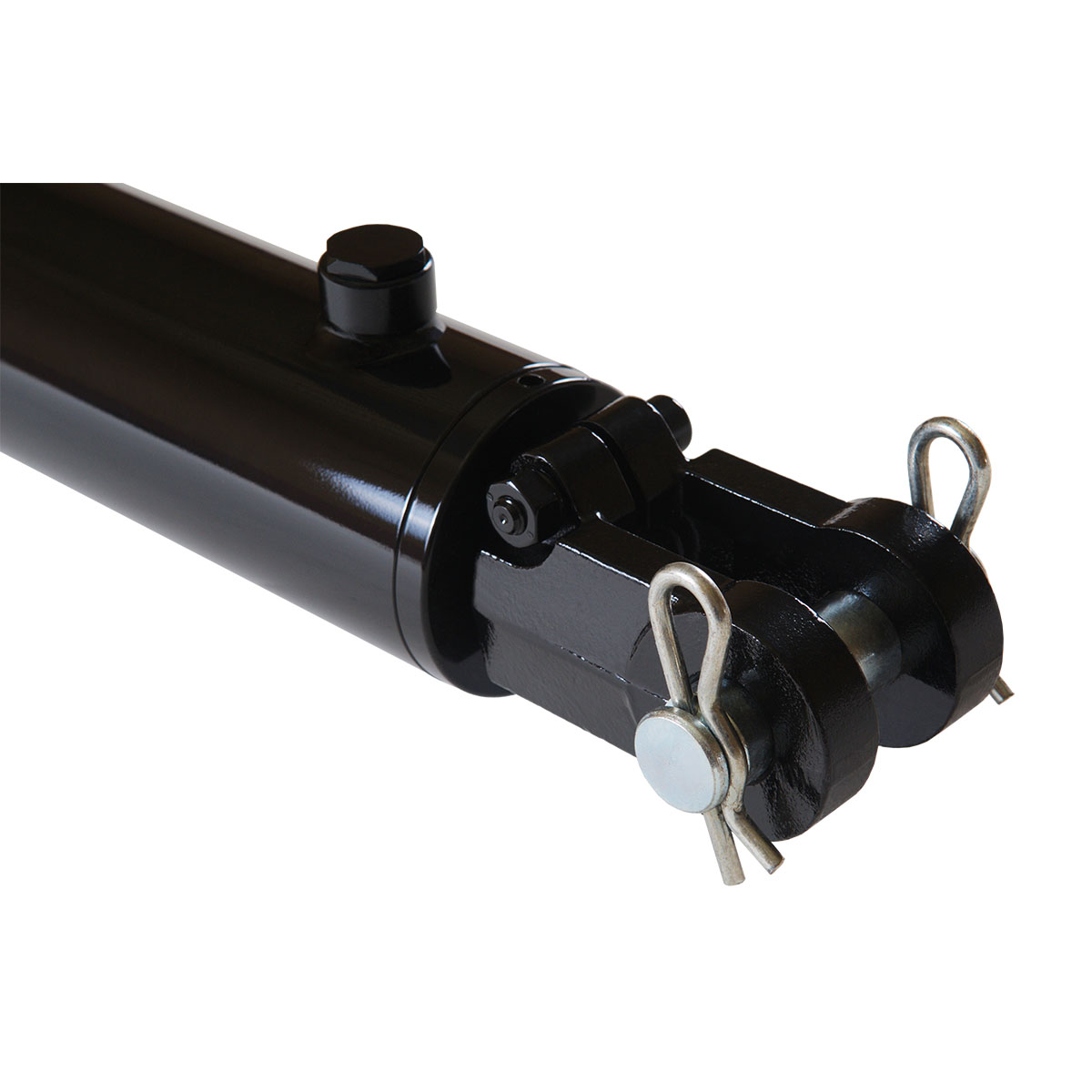

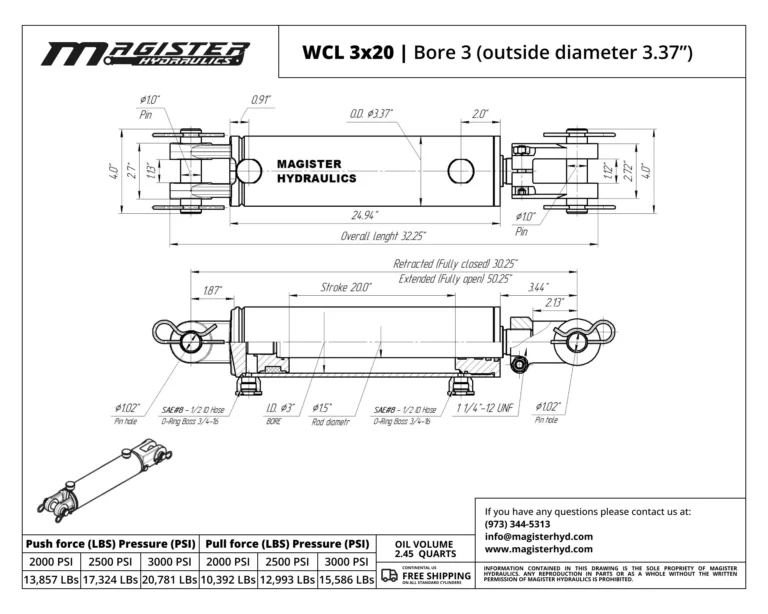

3" bore x 20" stroke clevis hydraulic cylinder

(1 customer review)

$203.00

WCL 3x20
Bore :
3"
OD :
3.37"
Stroke :
20"
Rod :
1.5"
Port Size :
SAE 8
Pin :
1"

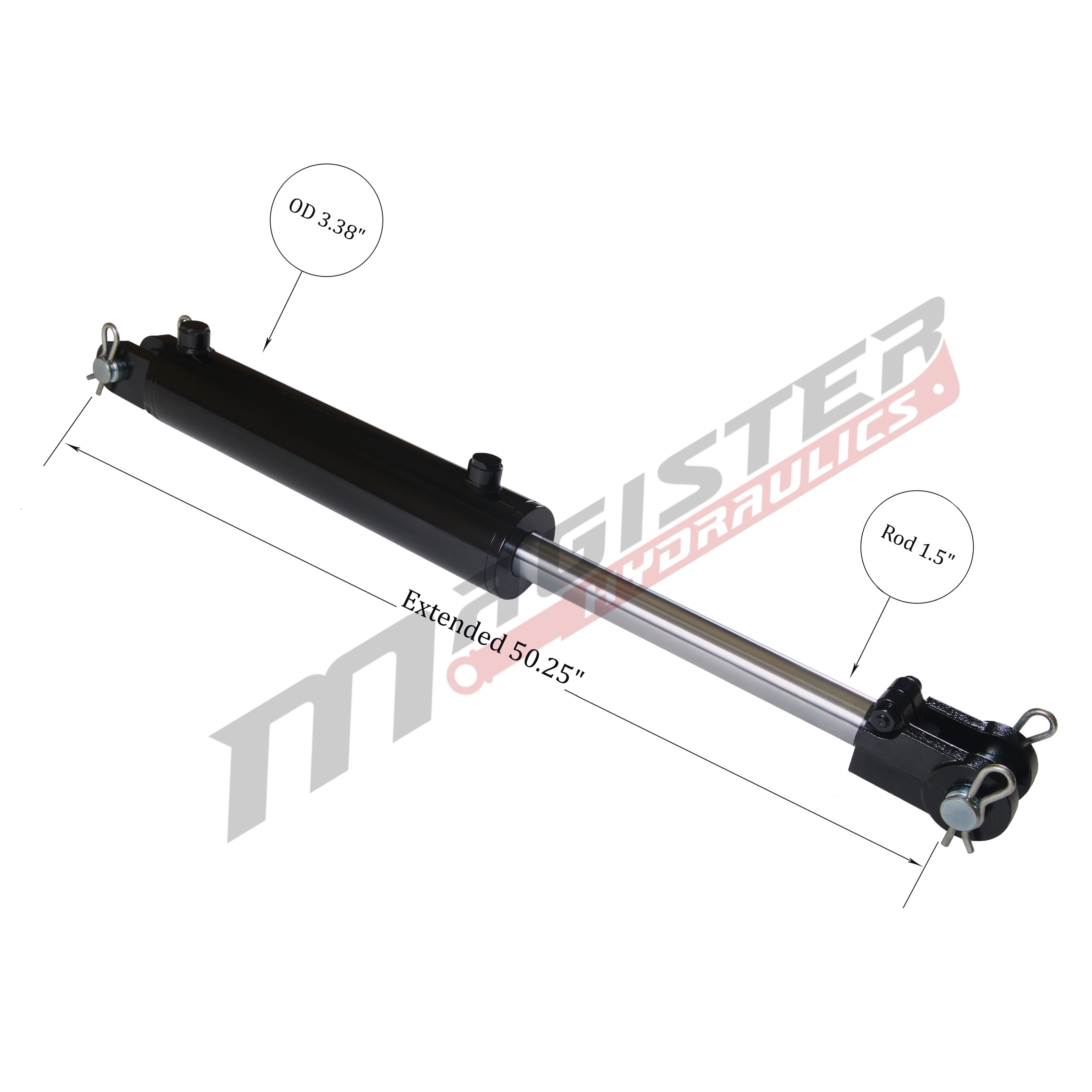

Extended :
50.25"

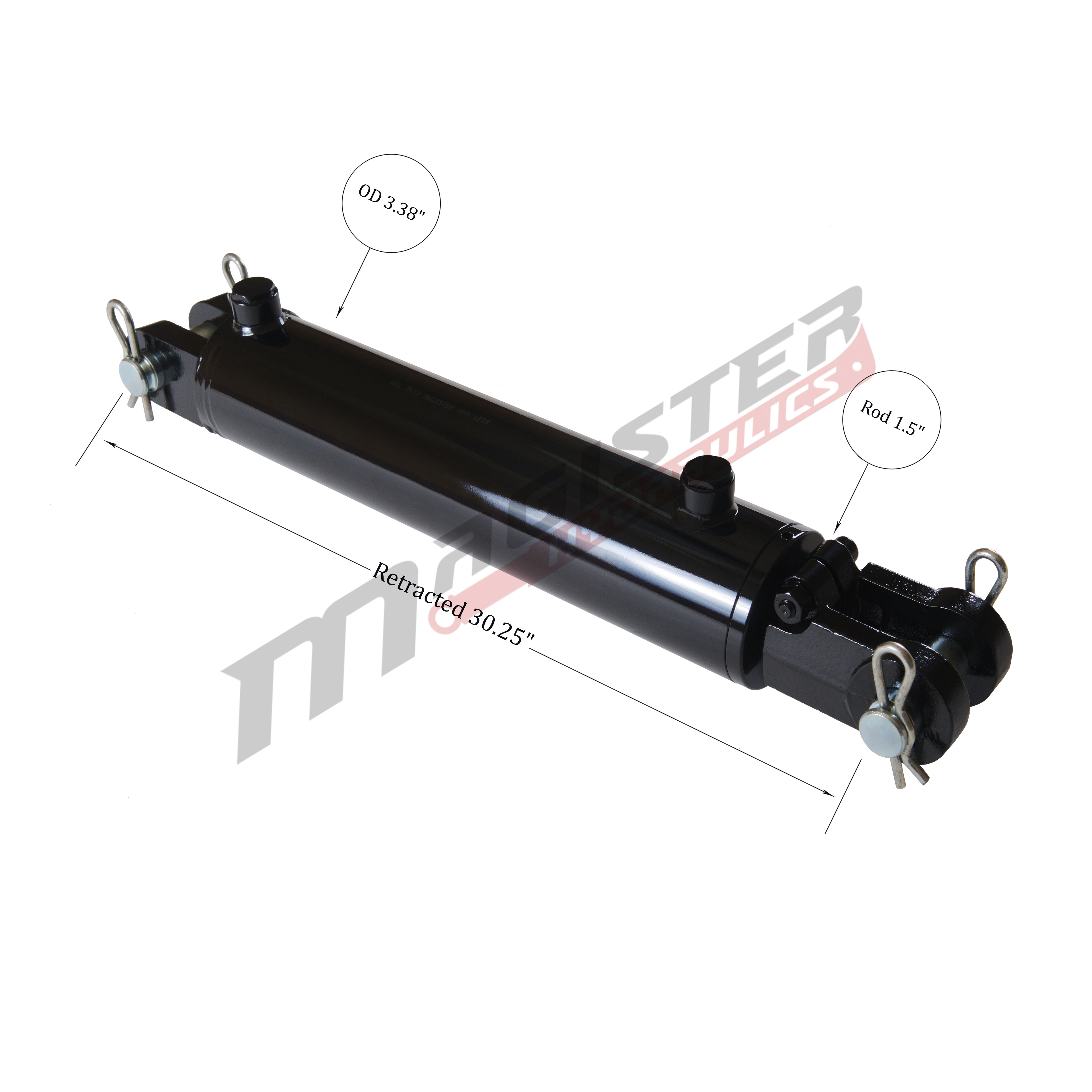

Retracted :
30.25"
Overall length :
32.25"
Pressure :
3500 PSI
Column Load (LBs) :
21,200
Oil Volume (quarts) :
2.45
Brand :
Magister Hydraulics
GTIN :
850597006547
1+ PRICE EA
$203.00
4+ PRICE EA -5%
$192.85
10+ PRICE EA -10%
$182.70
In stock

15 in stock

DESCRIPTION

  • 3″ bore x 20″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
