3 bore x 4 stroke hydraulic cylinder, welded clevis double acting cylinder | Magister Hydraulics

3" bore x 4" stroke clevis hydraulic cylinder

$229.00

Pay in 4 interest-free payments of $57.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCL 3x4
Bore : 3 in
Stroke : 4 in
Rod Dia. (⌀) : 1.5 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

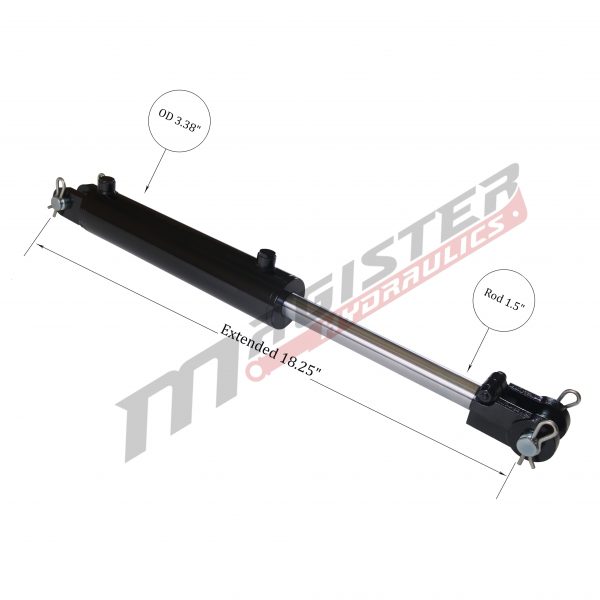

Extended : 18.25 in

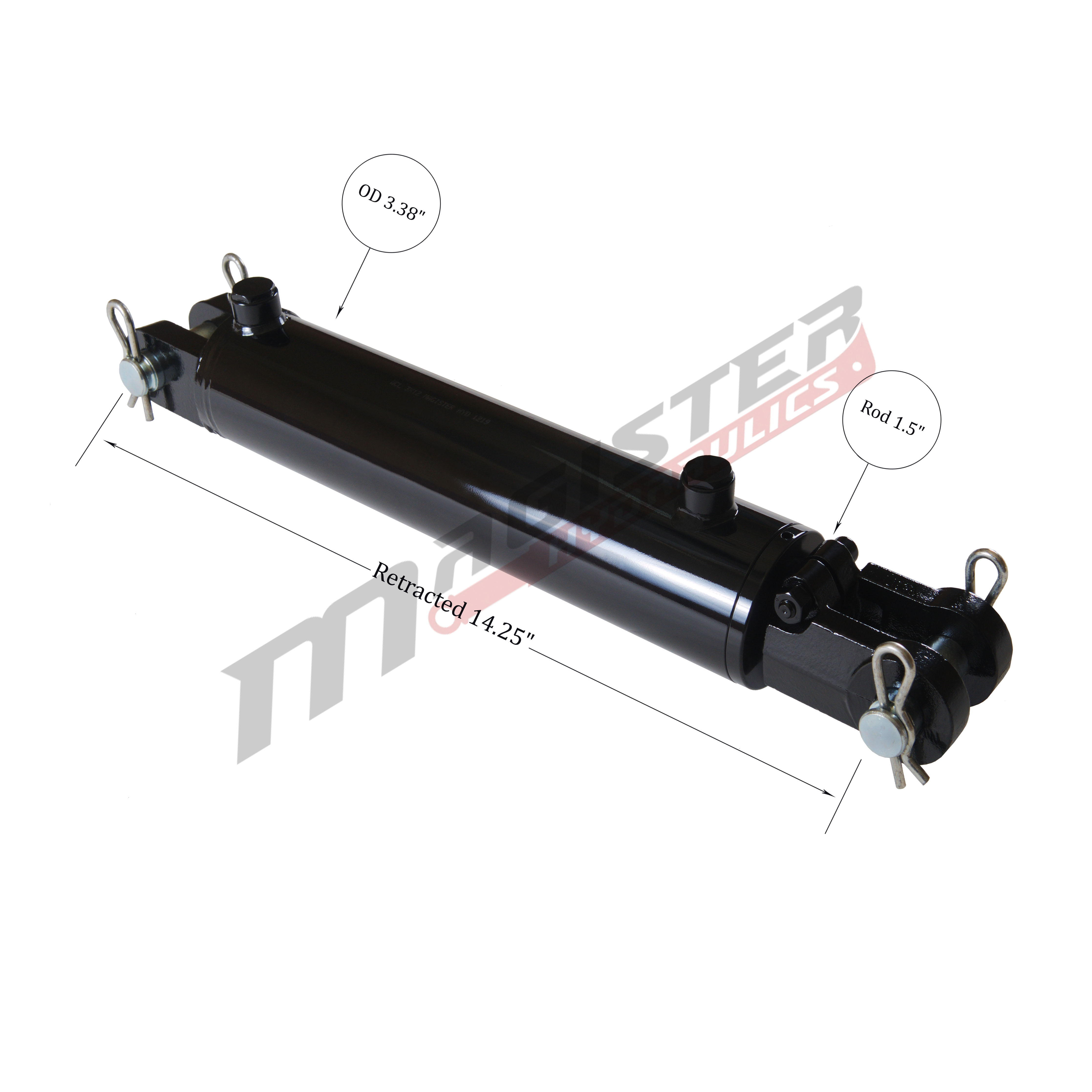

Retracted : 14.25 in
Overall length : 16.25 in
Pressure : 3500 PSI
Column Load : 21,200 LBs
Oil Volume : 0.49 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Clevis
Action : Double Acting
Weight : 24 LBs
GTIN : 857743006185
SKU: WCL 3x4 Categories: ,

Volume discounts

1+ PRICE EA
$229.00
4+ PRICE EA -5%
$217.55
8+ PRICE EA -10%
$206.10
In stock

48 in stock

Description


  • 3″ bore x 4″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Tariff-FREE cylinders.

Made in Europe.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

973-344-5313
