3 bore x 18 stroke hydraulic cylinder, welded clevis double acting cylinder | Magister Hydraulics

3" bore x 18" stroke clevis hydraulic cylinder

Name: 3" bore x 18" stroke clevis hydraulic cylinder
Brand: Magister Hydraulics
SKU: WCL 3x18
Price: 294.00 USD
Availability: InStock
Rating: 5 (10 reviews)

$294.00

Pay in 4 interest-free payments of $73.50

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WCL 3x18

Product SKU	Maxim part number	Chief part number	Prince-Wolverine part number	Eagle part number
WCL 3x18	288434	287037	WWCL3018-S	HTG3018-ORB

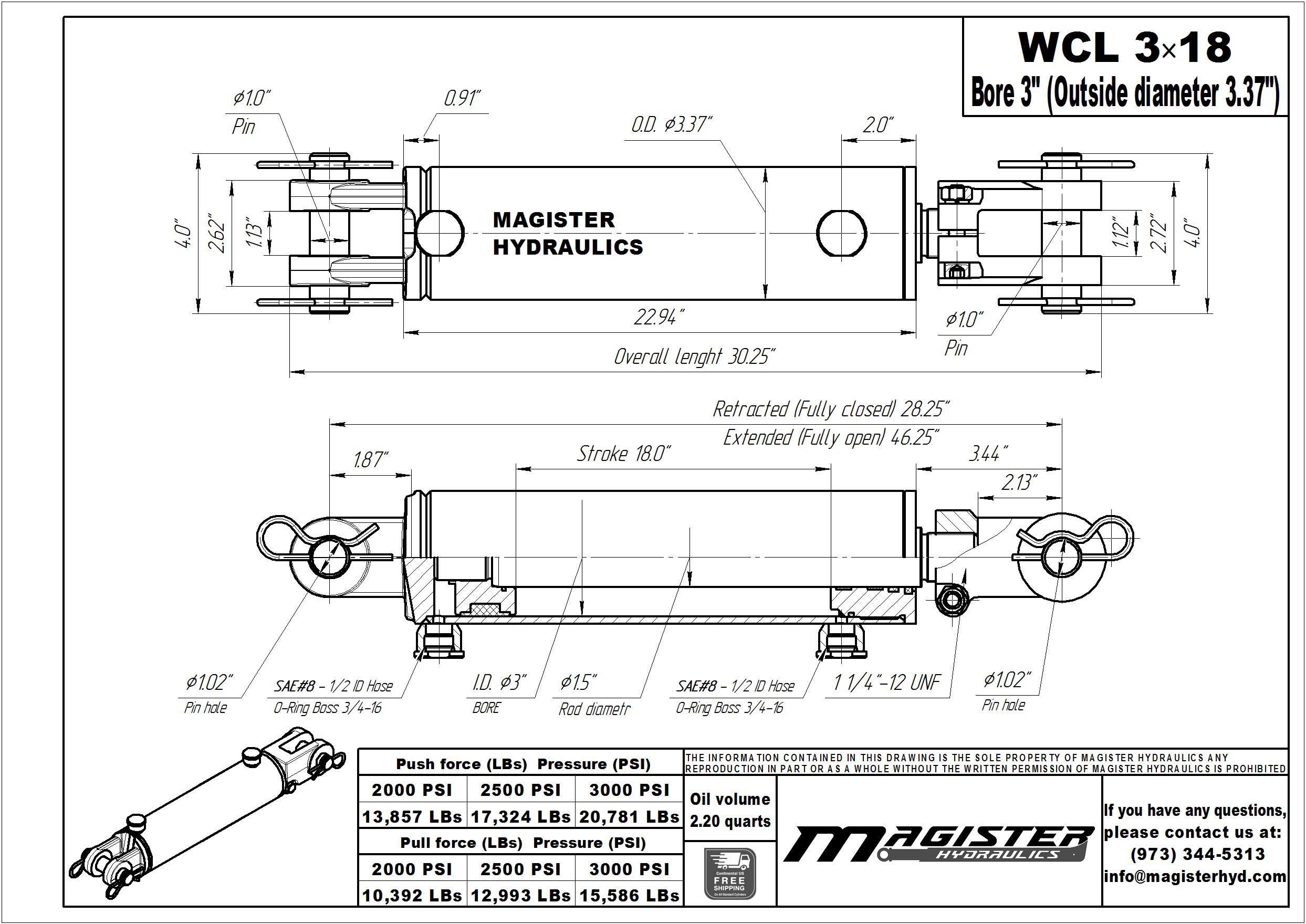

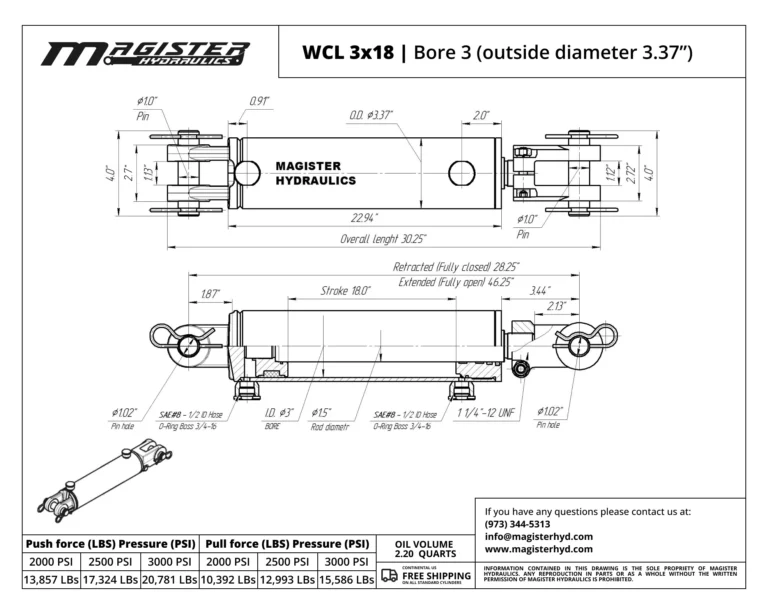

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	3 in
Outer Dia. (⌀) :	3.37 in
Stroke :	18 in
Rod Dia. (⌀) :	1.5 in
Port Size :	SAE 8
Pin Dia. (⌀) :	1 in

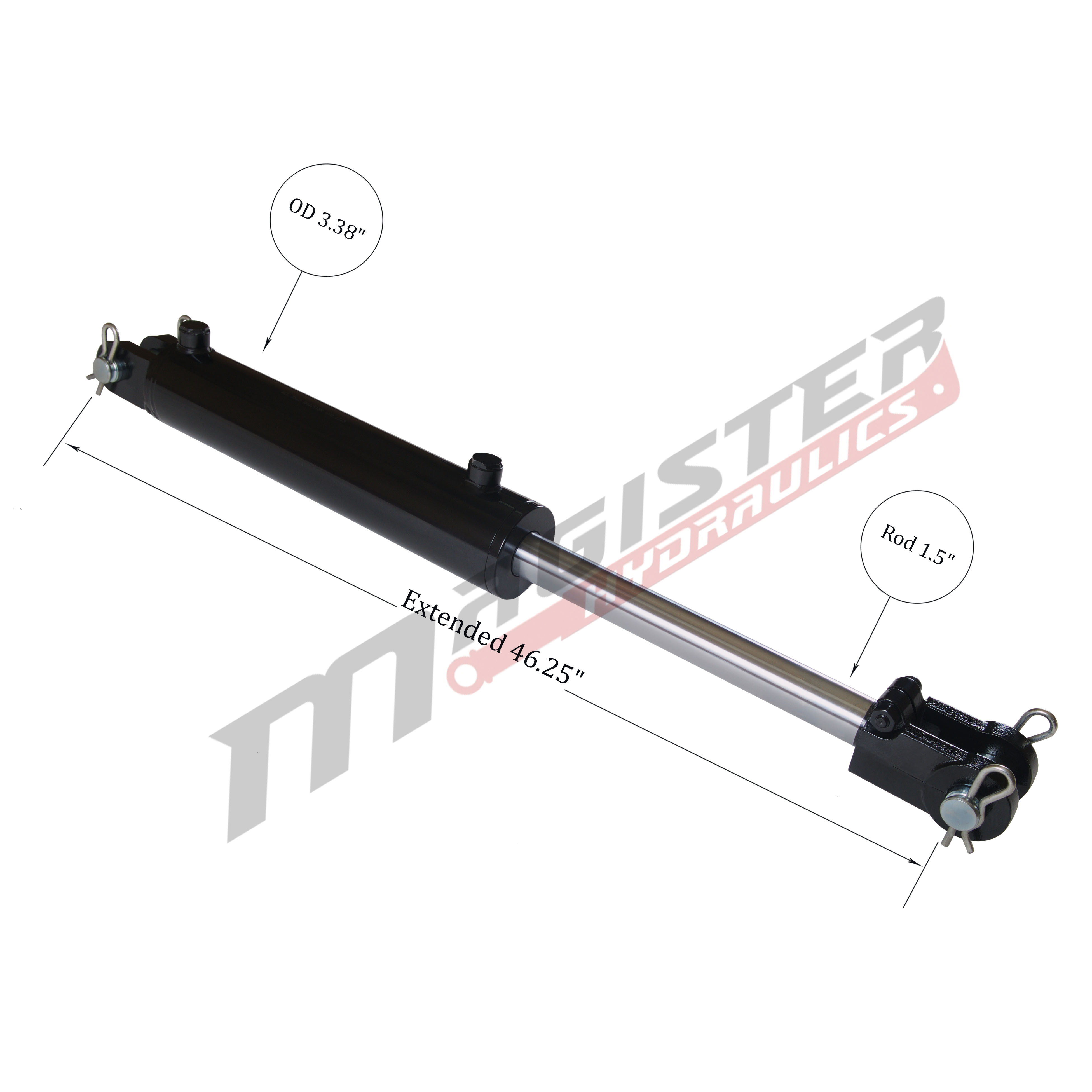

Extended :	46.25 in

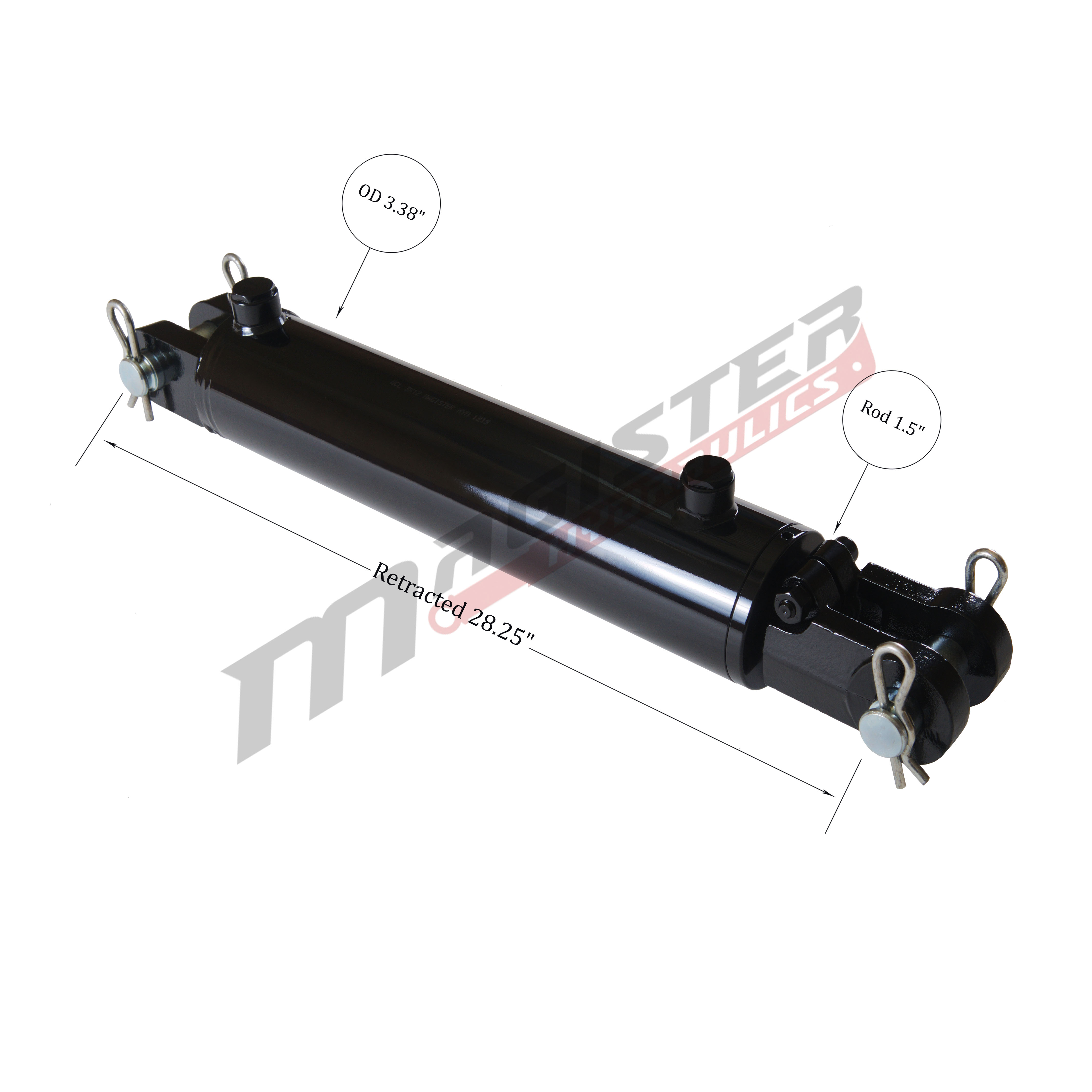

Retracted :	28.25 in
Overall length :	30.25 in
Pressure :	3500 PSI
Column Load :	21,200 LBs
Oil Volume :	2.2 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated

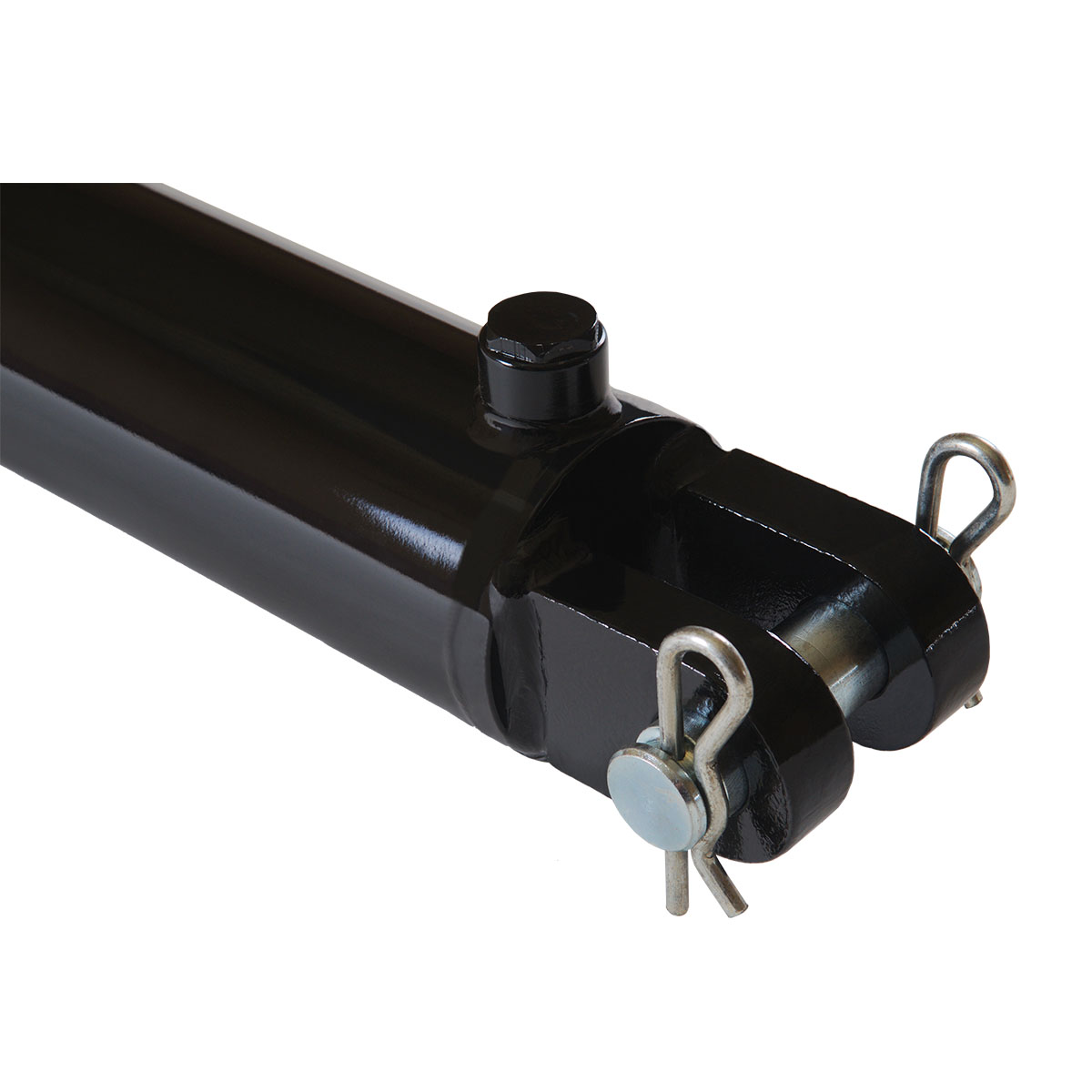

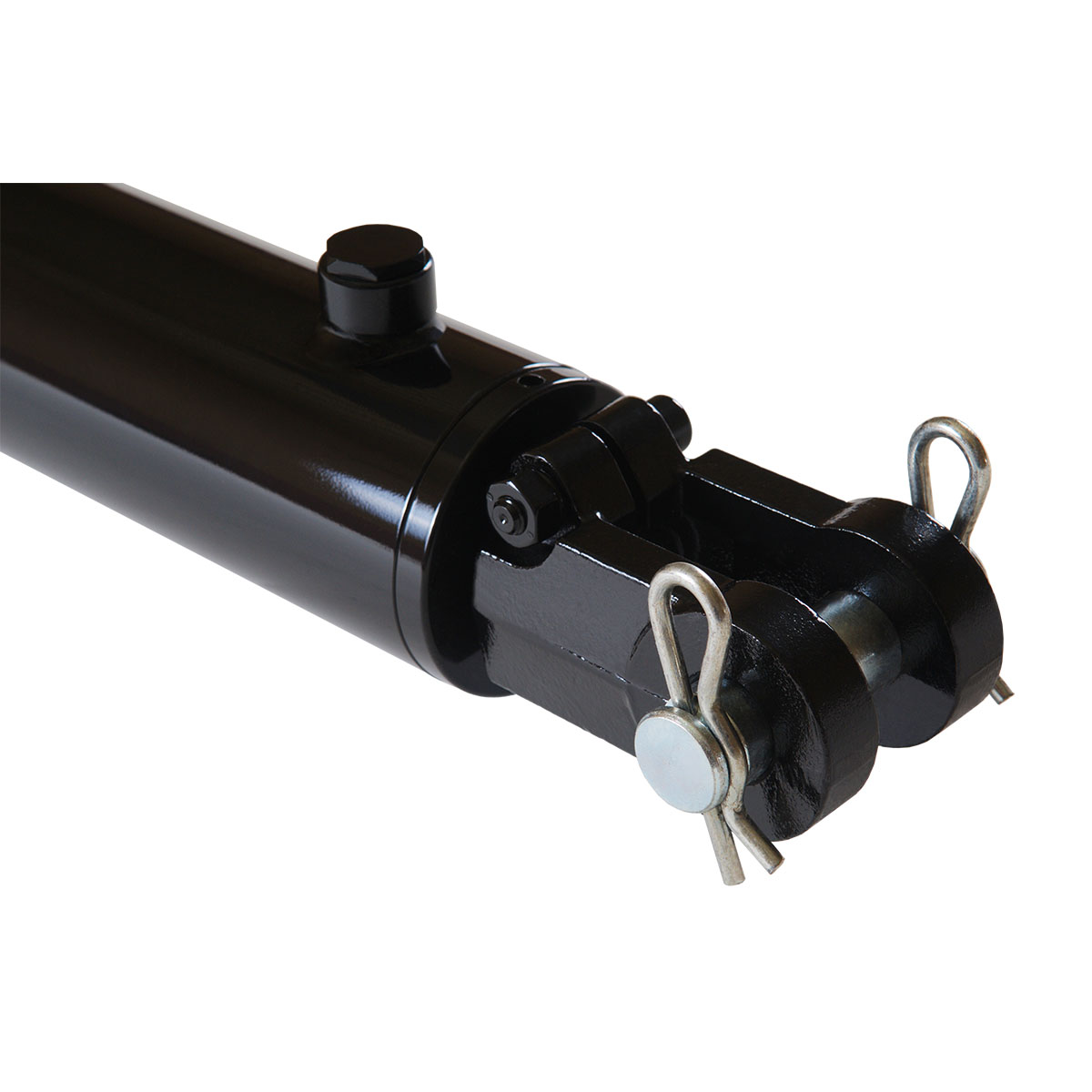

Rod End :	Clevis
Action :	Double Acting
Weight :	37 LBs
GTIN :	857743006208

SKU: WCL 3x18 Categories: 3" Bore Clevis, Hydraulic Cylinders

Volume discounts

1+ PRICE EA

$294.00

4+ PRICE EA -5%

$279.30

8+ PRICE EA -10%

$264.60

In stock

49 in stock

Description

3″ bore x 18″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

Free Ground Continental US Shipping

Tariff-FREE cylinders.

Made in Europe.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

973-344-5313
