1.5" bore x 14" stroke cross tube hydraulic cylinder

Name: 1.5" bore x 14" stroke cross tube hydraulic cylinder
Brand: Magister Hydraulics
SKU: WCT 1.5x14
Price: 172.00 USD
Availability: InStock
Rating: 5 (10 reviews)

$172.00

Pay in 4 interest-free payments of $43.00

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WCT 1.5x14

Product SKU	Maxim part number	Chief part number	Prince-Wolverine part number	Eagle part number
WCT 1.5x14	288305	288601	WWXT1514-S	HBU1514-ORB

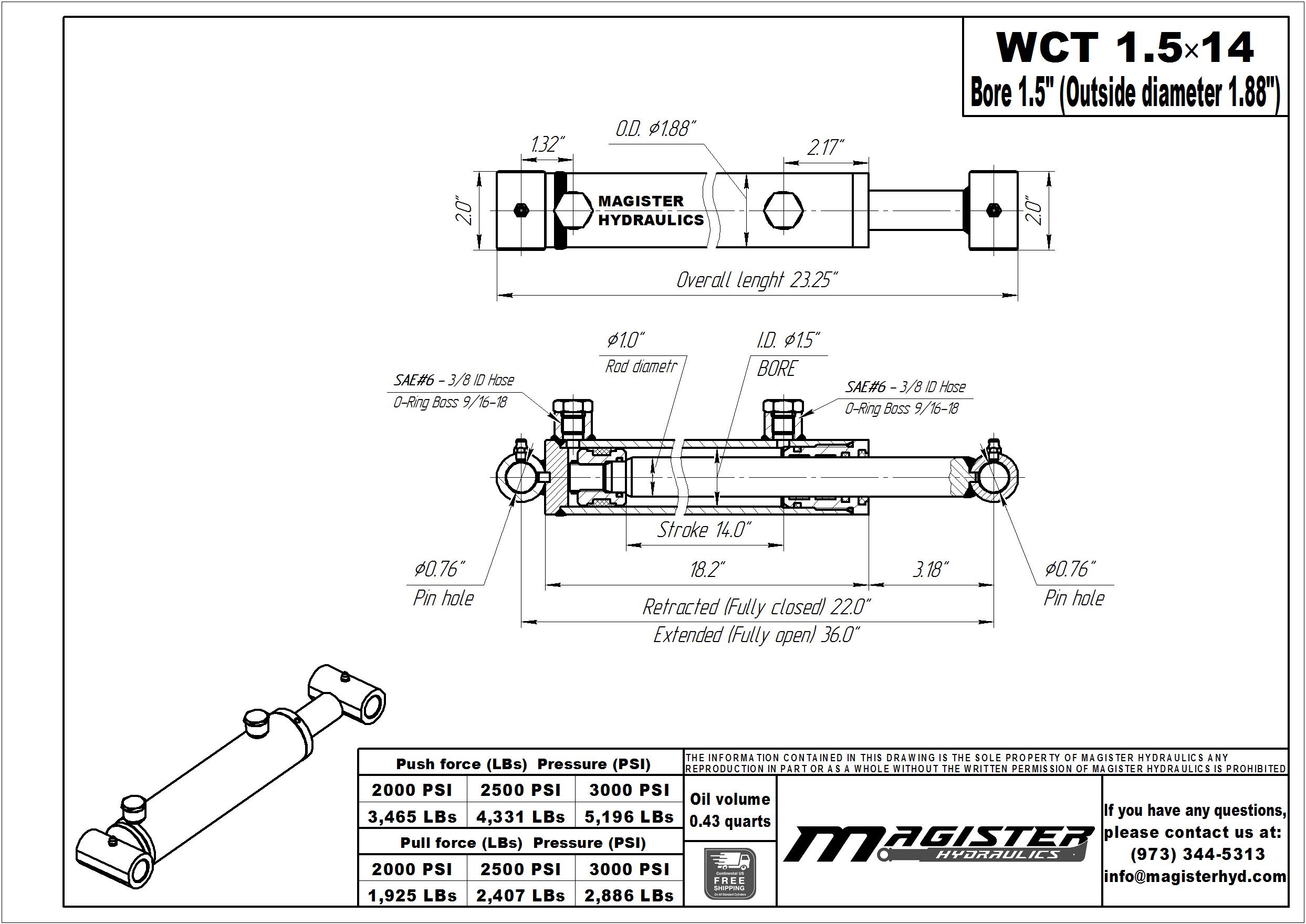

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	1.5 in
Outer Dia. (⌀) :	1.88 in
Stroke :	14 in
Rod Dia. (⌀) :	1 in
Port Size :	SAE 6
Pin Dia. (⌀) :	0.75 in

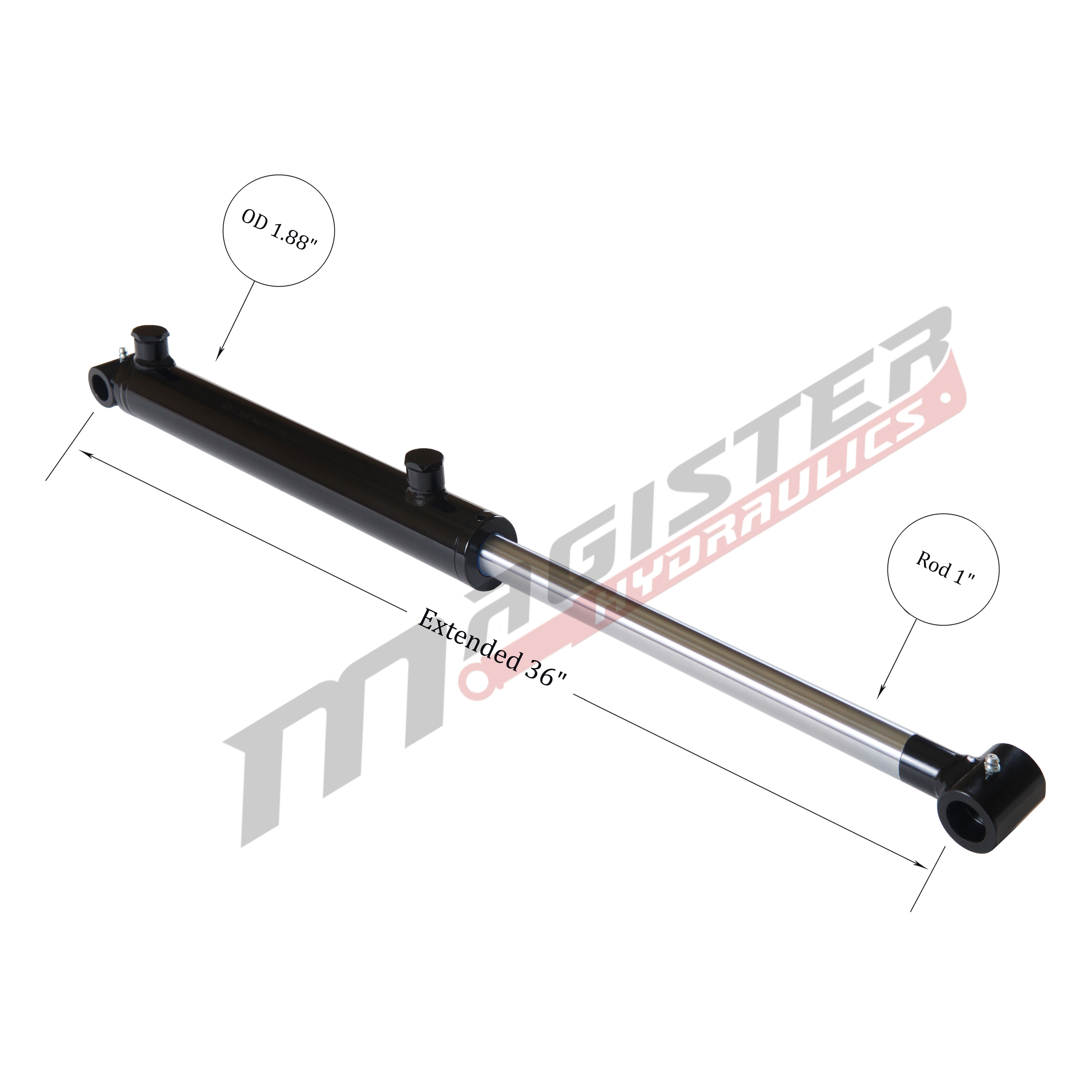

Extended :	36 in

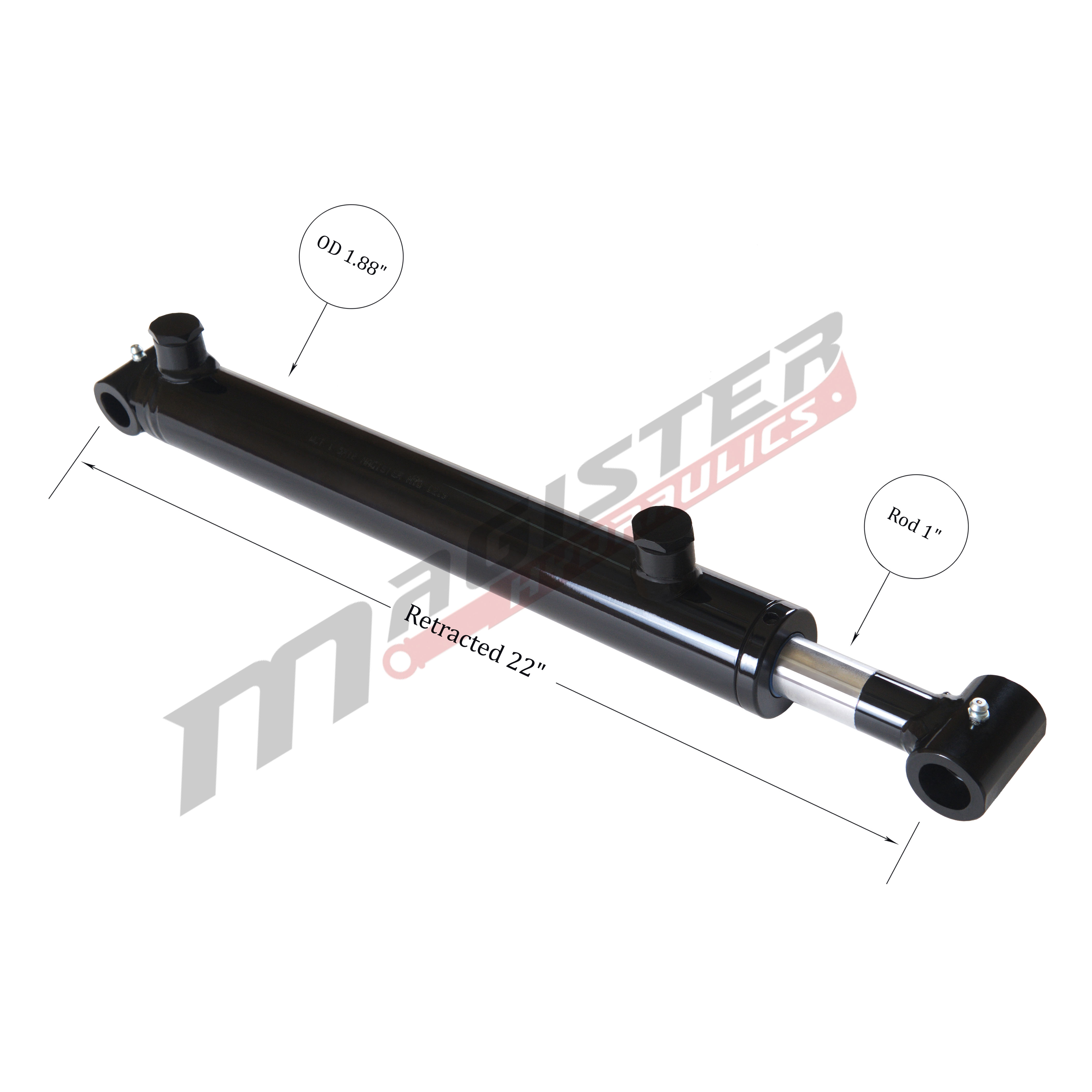

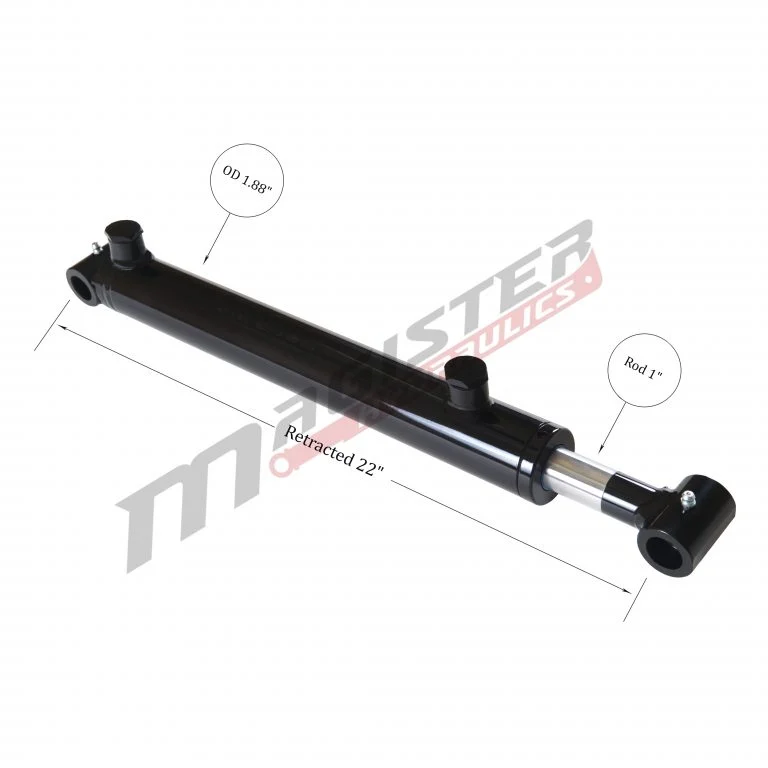

Retracted :	22 in
Overall length :	23.25 in
Pressure :	3500 PSI
Column Load :	5,300 LBs
Oil Volume :	0.43 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated

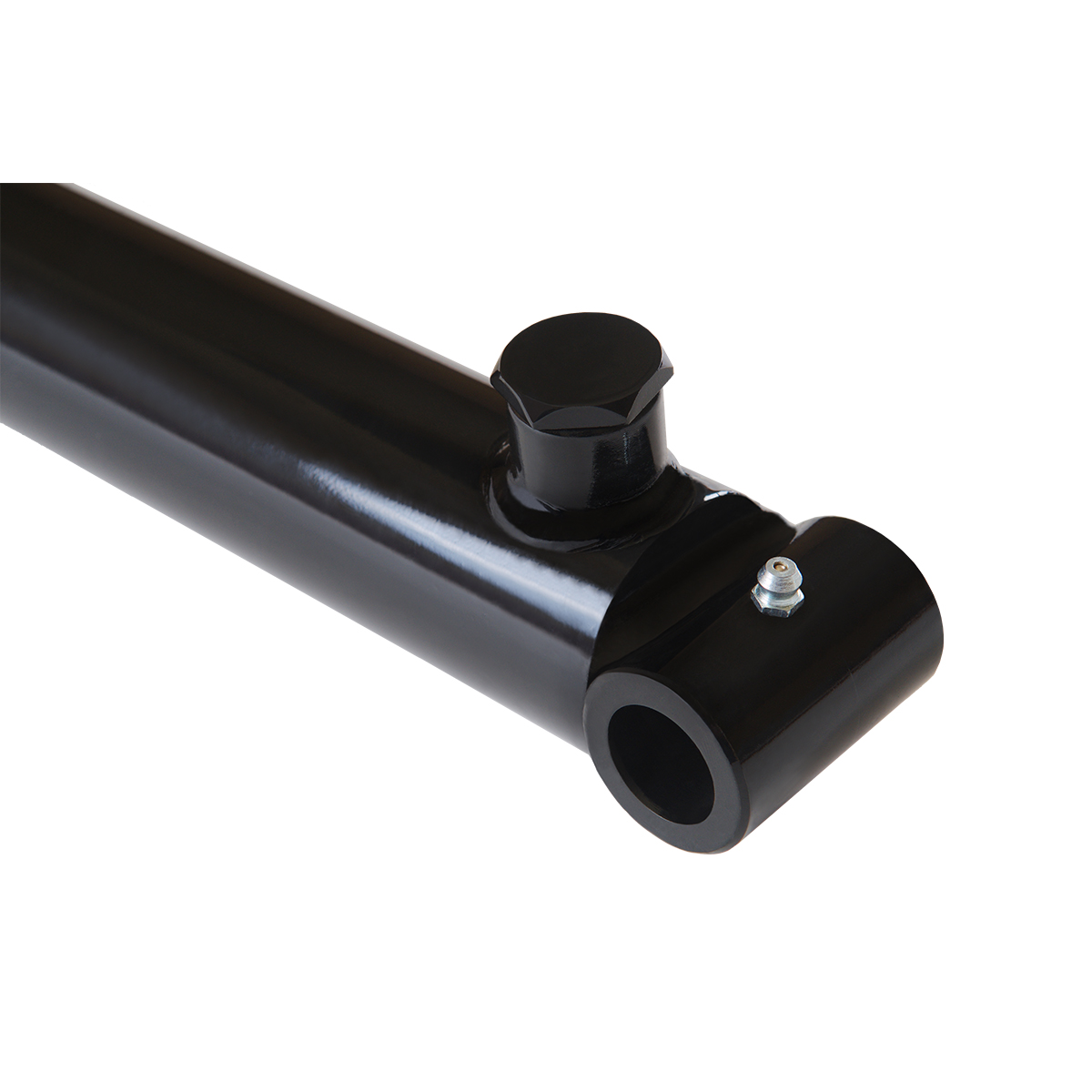

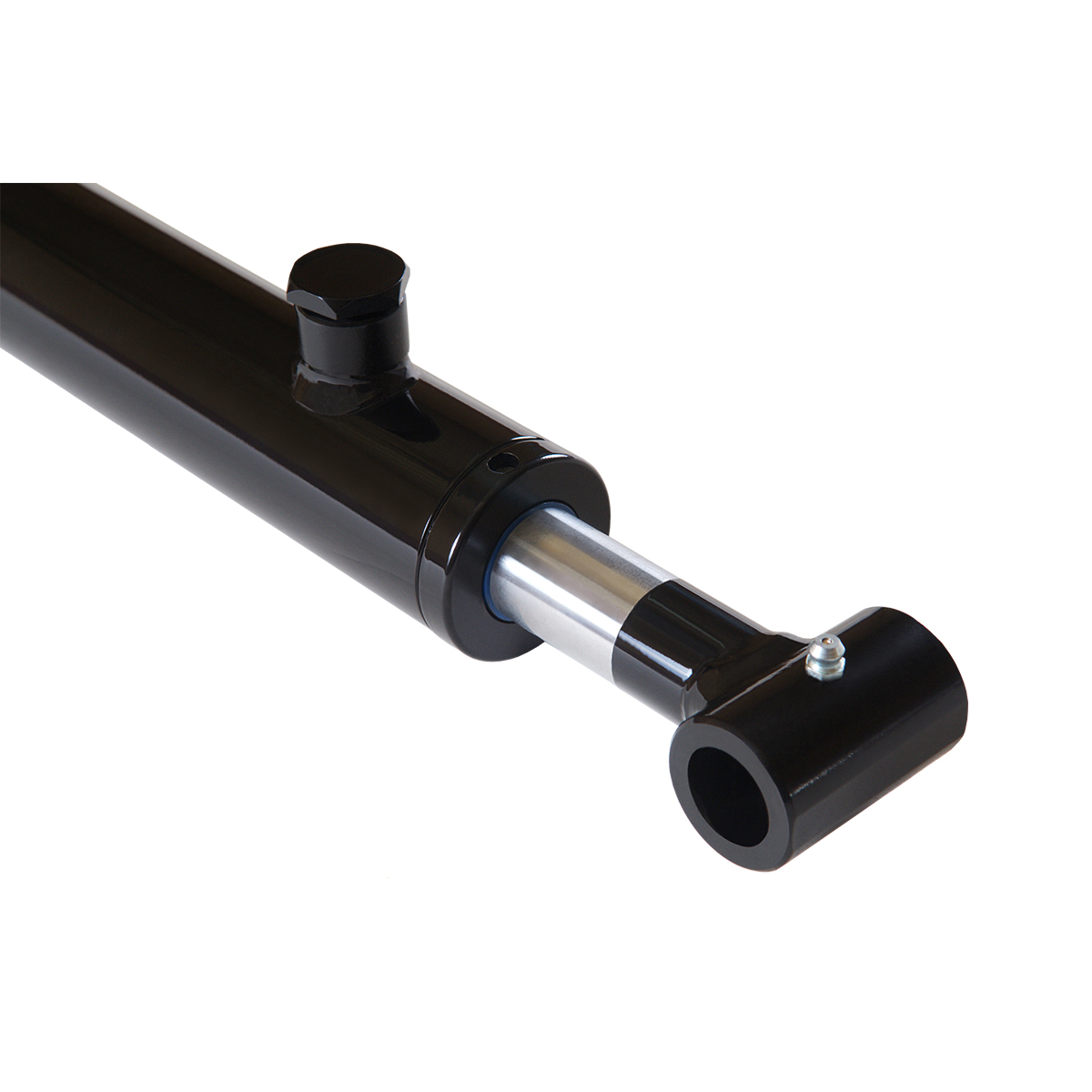

Rod End :	Cross Tube
Action :	Double Acting
Weight :	12 LBs
GTIN :	857743006321

SKU: WCT 1.5x14 Categories: 1.5" Bore Cross Tube, Cross Tube Hydraulic Cylinders, Hydraulic Cylinders

Volume discounts

1+ PRICE EA

$172.00

4+ PRICE EA -5%

$163.40

8+ PRICE EA -10%

$154.80

In stock

55 in stock

Description

1.5″ bore x 14″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.

Tariff-FREE cylinders.

Made in Europe.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

973-344-5313
