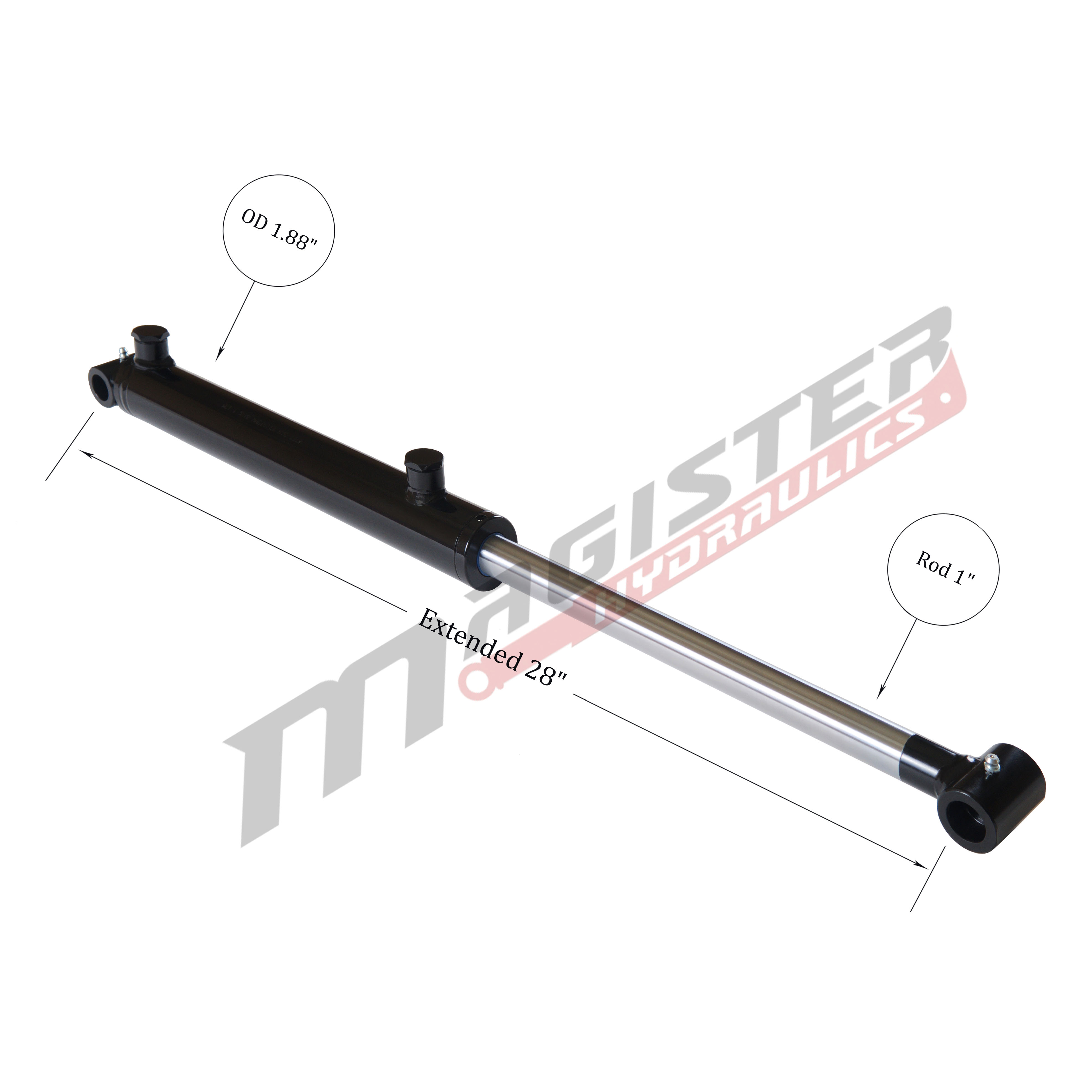

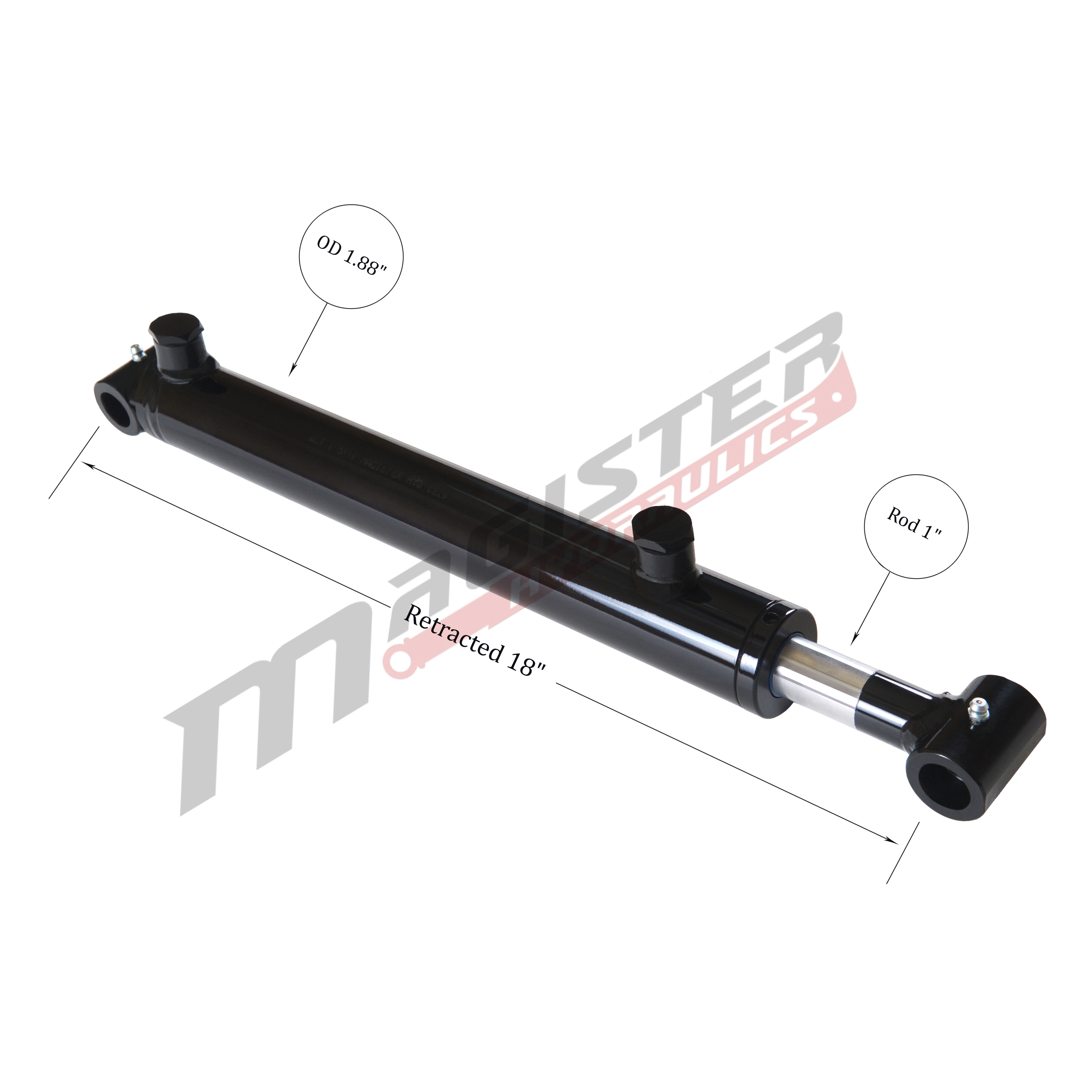

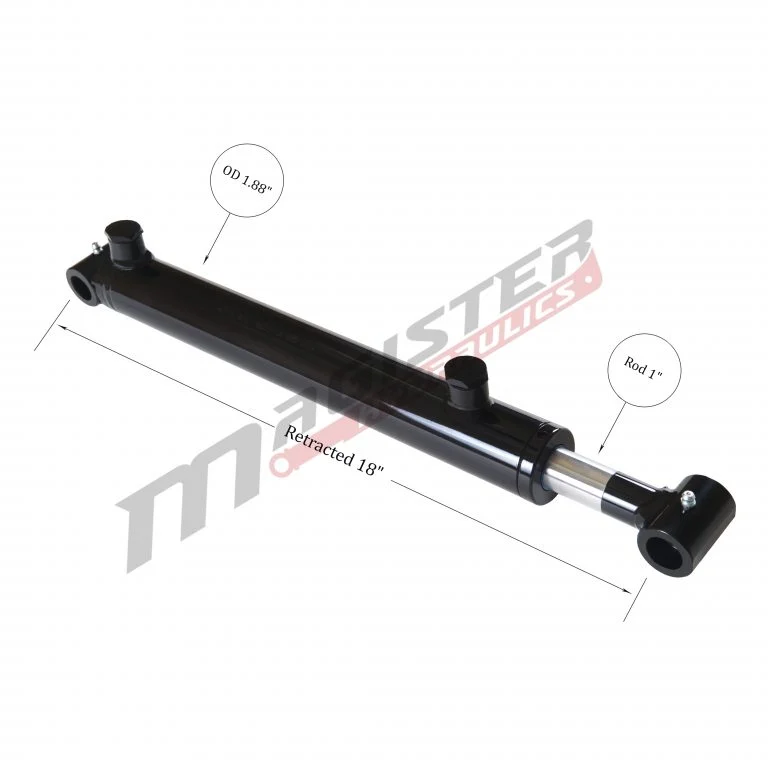

1.5" bore x 10" stroke cross tube hydraulic cylinder
$160.00
Pay in 4 interest-free payments of $40.00SKU: WCT 1.5x10

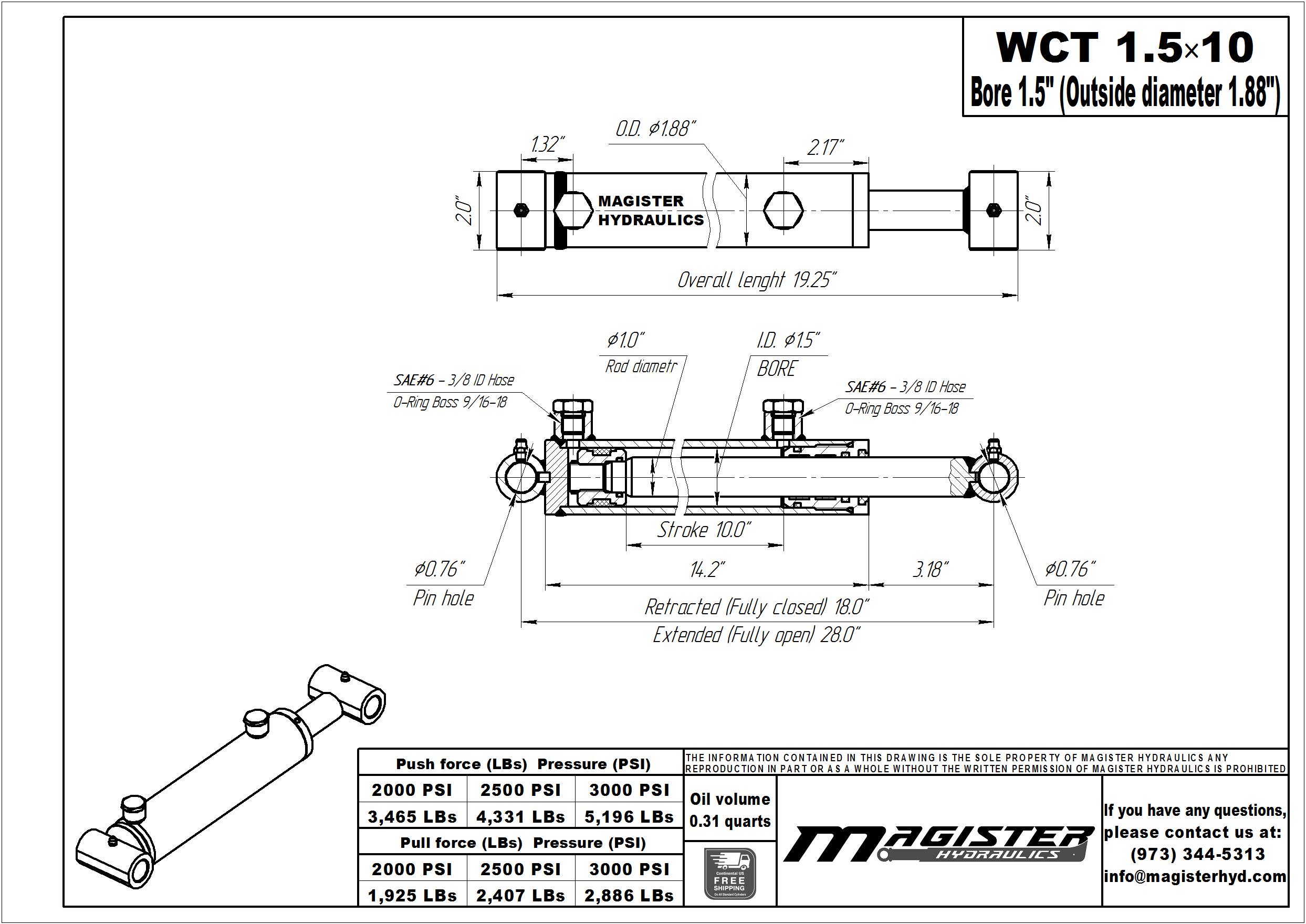

| Bore : | 1.5 in | Outer Dia. (⌀) : | 1.88 in | Stroke : | 10 in | Rod Dia. (⌀) : | 1 in | Port Size : | SAE 6 | Pin Dia. (⌀) : | 0.75 in | Extended : | 28 in | Retracted : | 18 in | Overall length : | 19.25 in | Pressure : | 3500 PSI | Column Load : | 5,300 LBs | Oil Volume : | 0.31 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Cross Tube | Action : | Weight : | 10 LBs |
|---|---|
| GTIN : | 857743006307 |
Volume discounts
4+ PRICE EA -5%
$152.00
8+ PRICE EA -10%
$144.00
In stock
55 in stock
Description

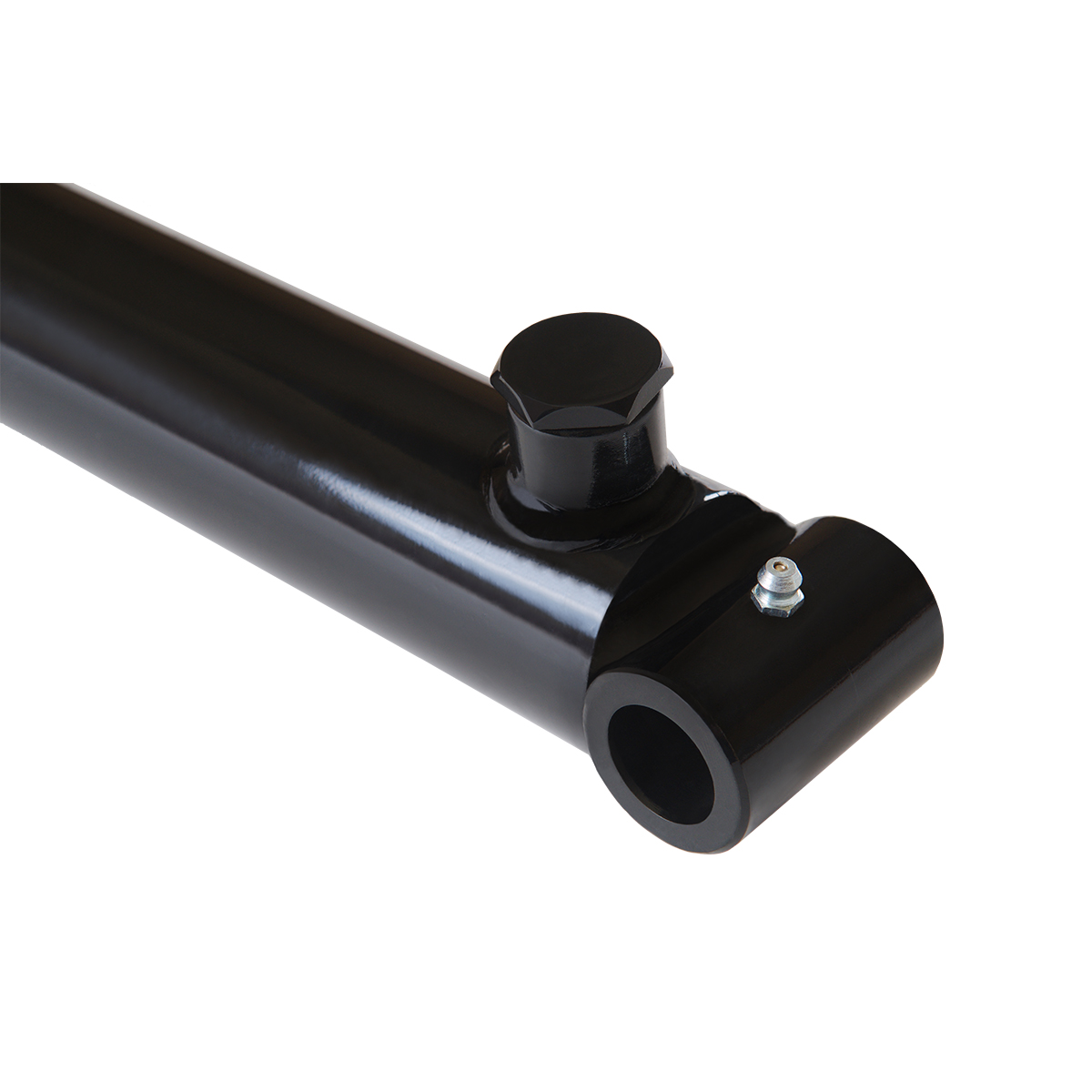

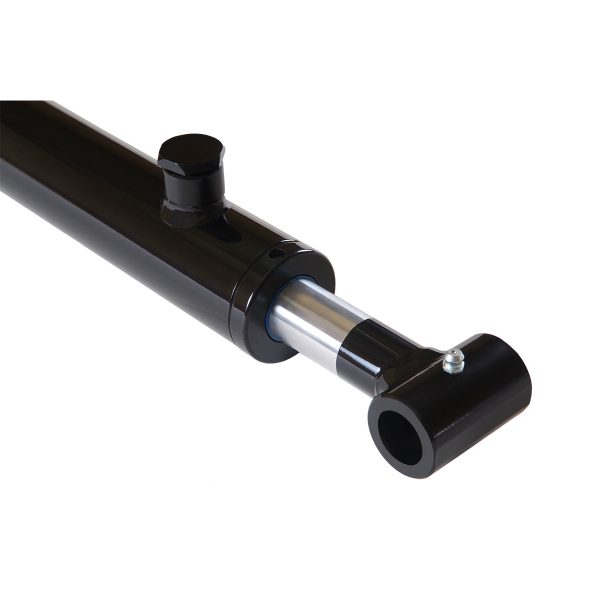

- 1.5″ bore x 10″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
- Applications:Â Welded Double Acting Hydraulic Cylinder.
- Color:Â Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
