1.5 bore x 22 stroke hydraulic cylinder, welded cross tube double acting cylinder | Magister Hydraulics

1.5" bore x 22" stroke cross tube hydraulic cylinder

$133.00

* Wholesale Discount is available for this product if you purchase 4 or more products.

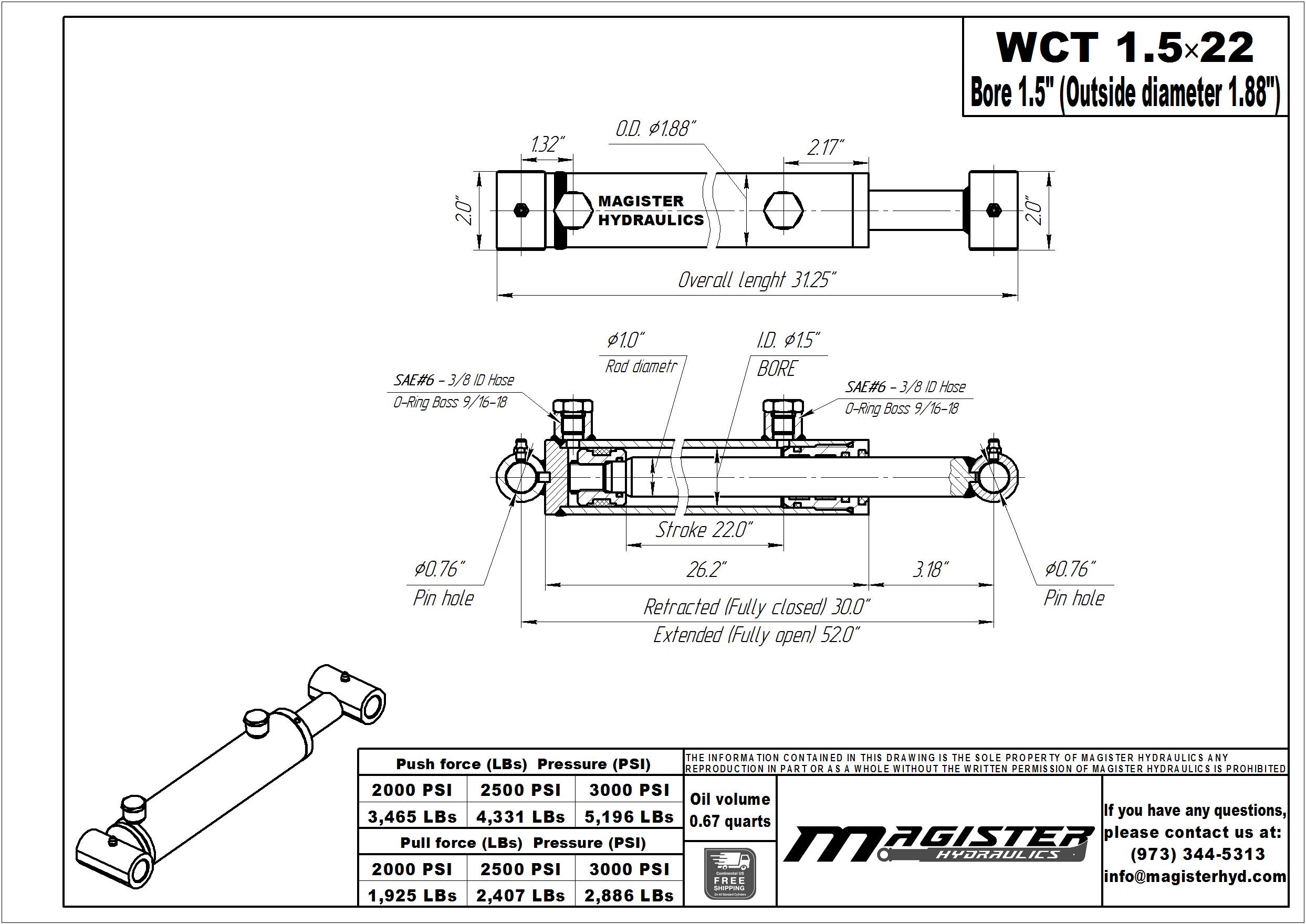

WCT 1.5x22

Bore :

1.5 inch

OD :

1.88"

Stroke :

22 inch

Rod :

Port Size :

SAE 6

Pin :

0.75"

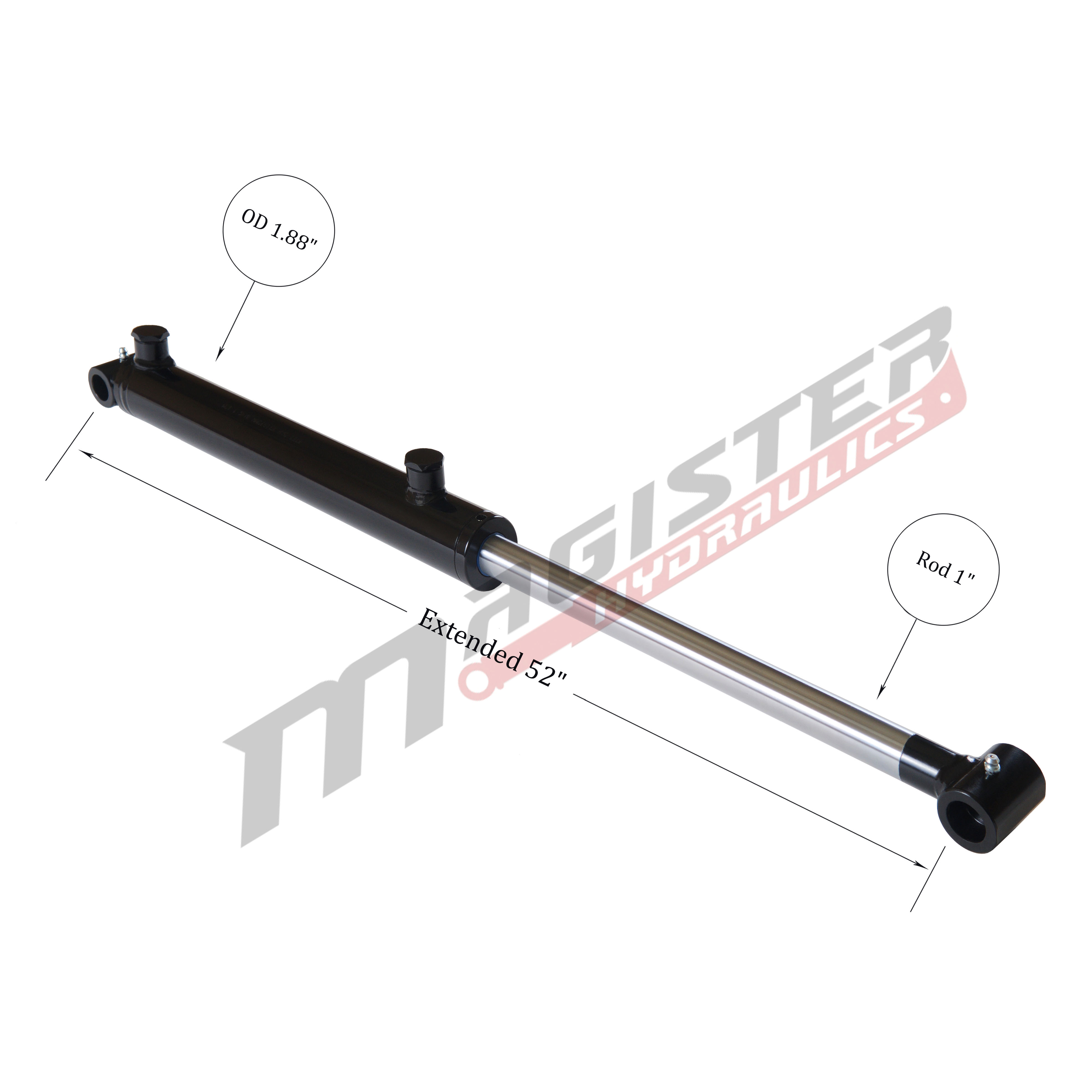

Extended :

52"

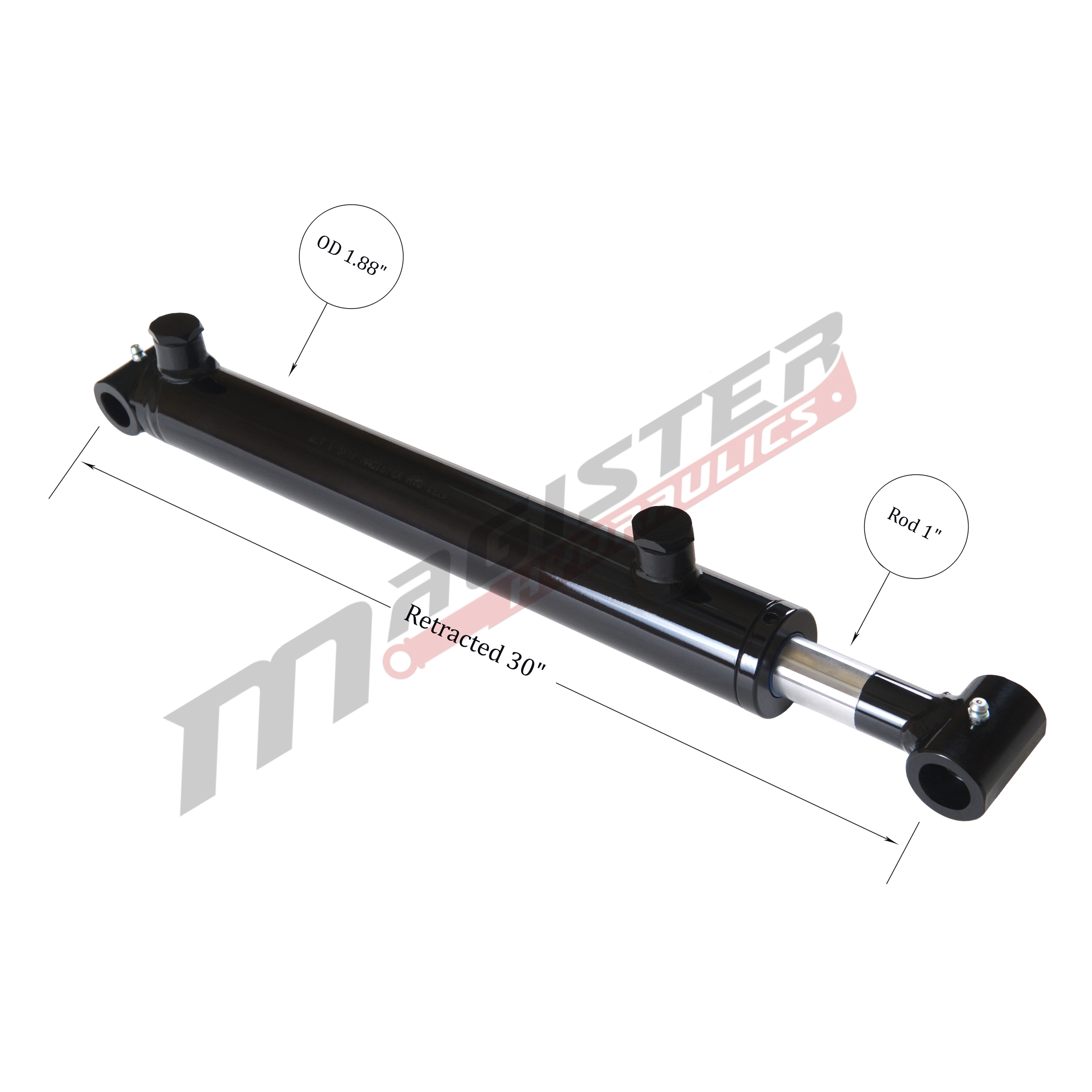

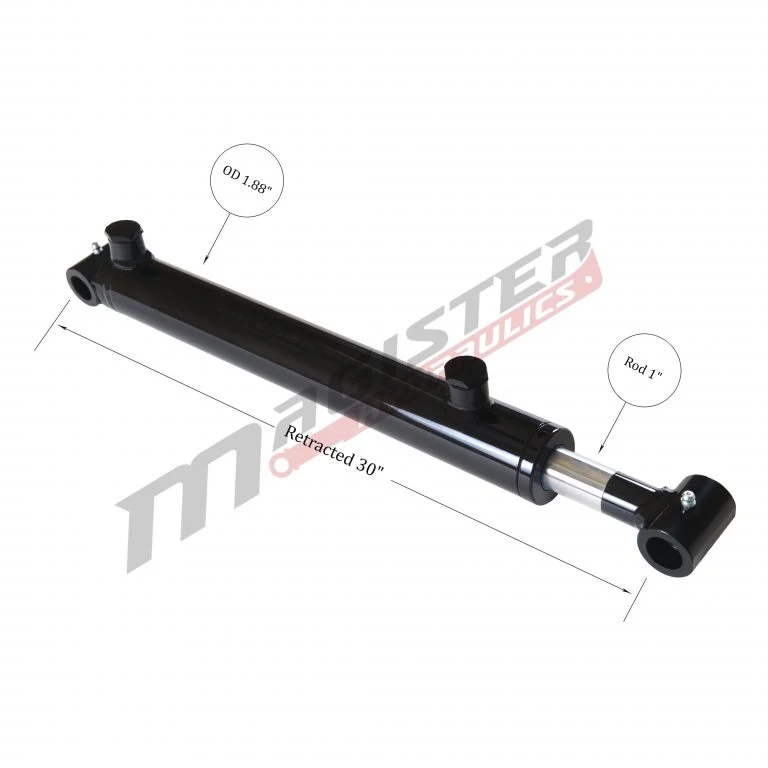

Retracted :

30"

Overall length :

31.25"

Pressure :

3500 PSI

Column Load (LBs) :

4,620

Oil Volume (quarts) :

0.67

Brand :

Magister Hydraulics

GTIN :

857743006772

1+ PRICE EA

$133.00

4+ PRICE EA -5%

$126.35

10+ PRICE EA -10%

$119.70

In stock

39 in stock

DESCRIPTION

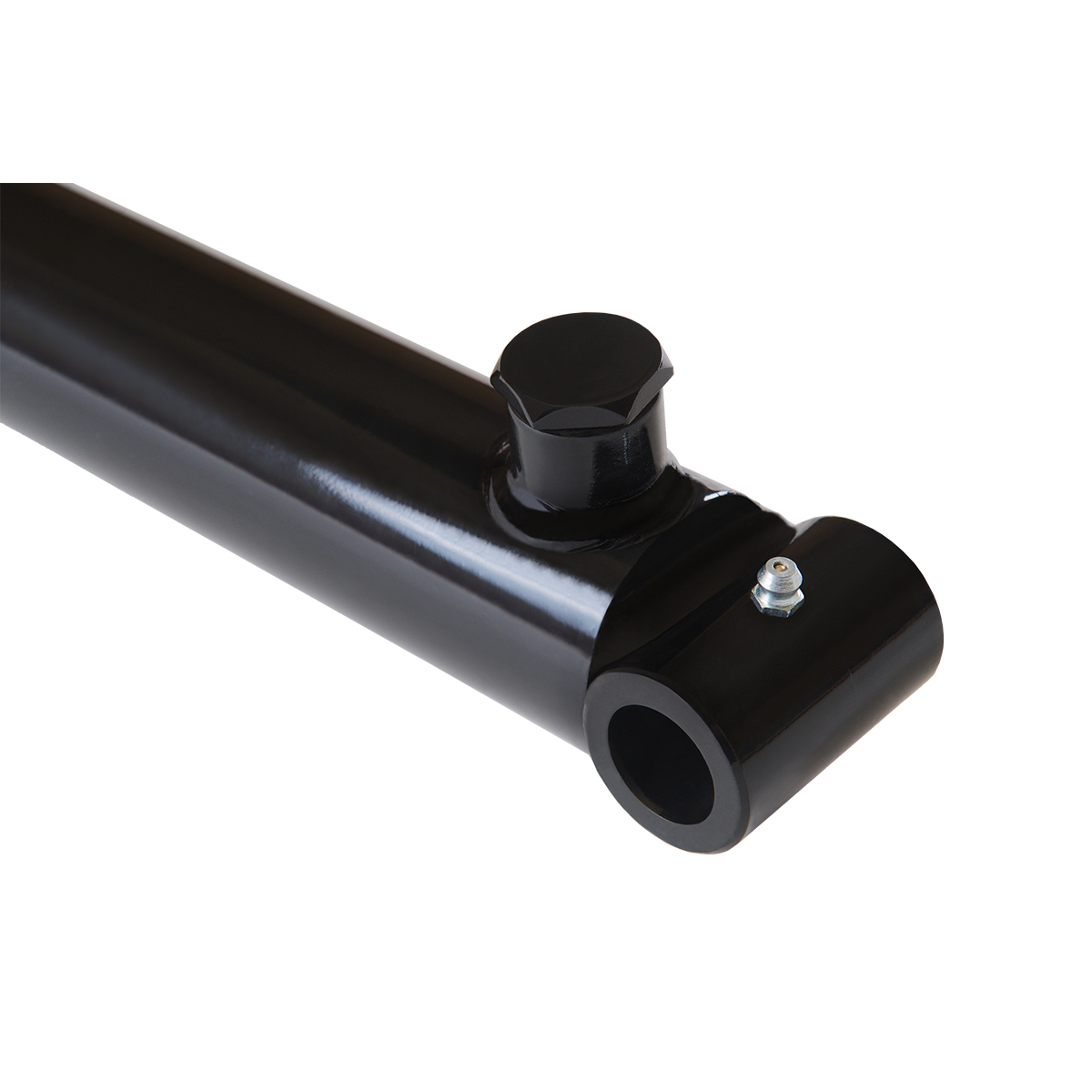

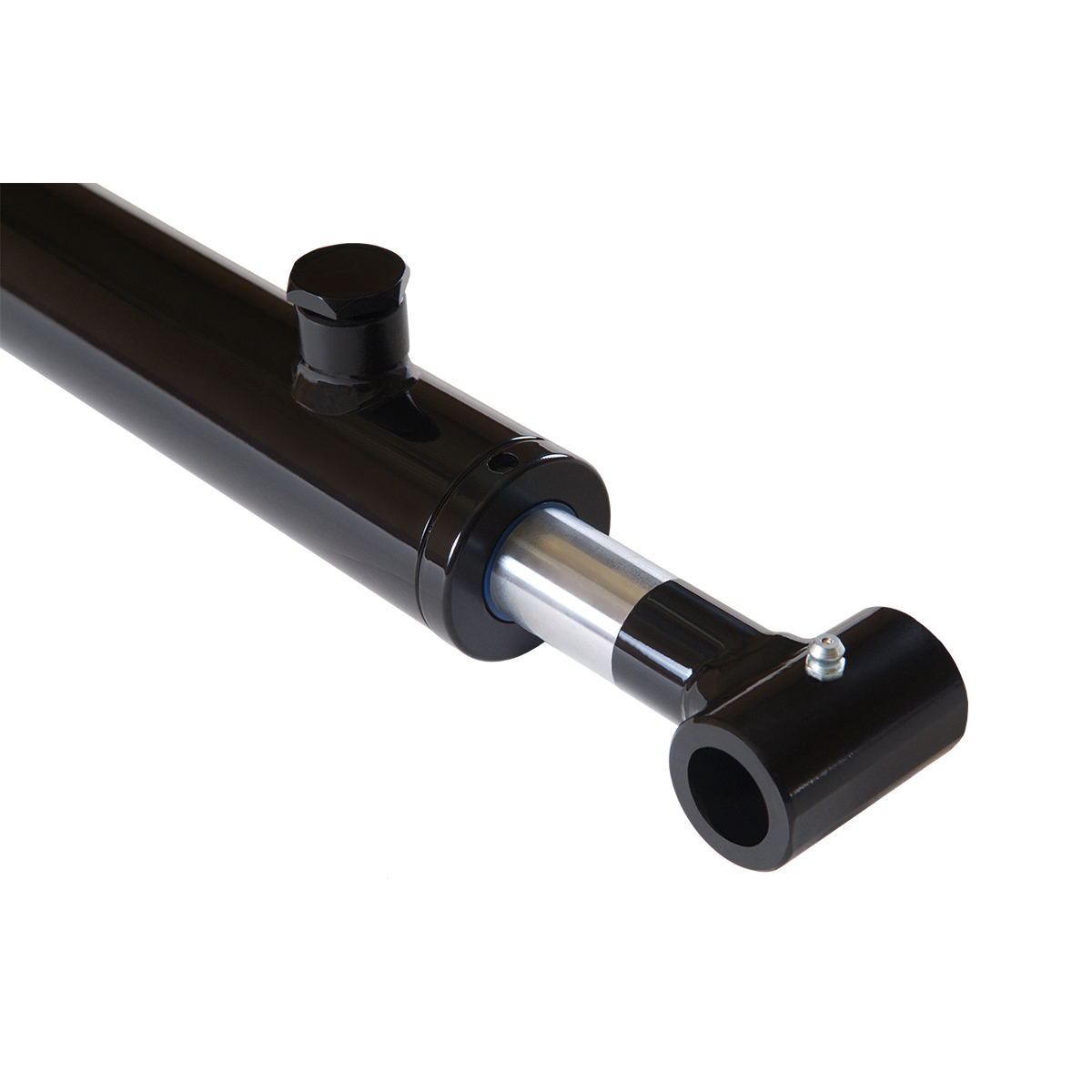

1.5″ bore x 22″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.
FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
