1.5" bore x 4" stroke cross tube hydraulic cylinder


* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 1.5x4
Bore :
1.5 inch
OD :
Stroke :
4 inch
Rod :
Port Size :
Pin :

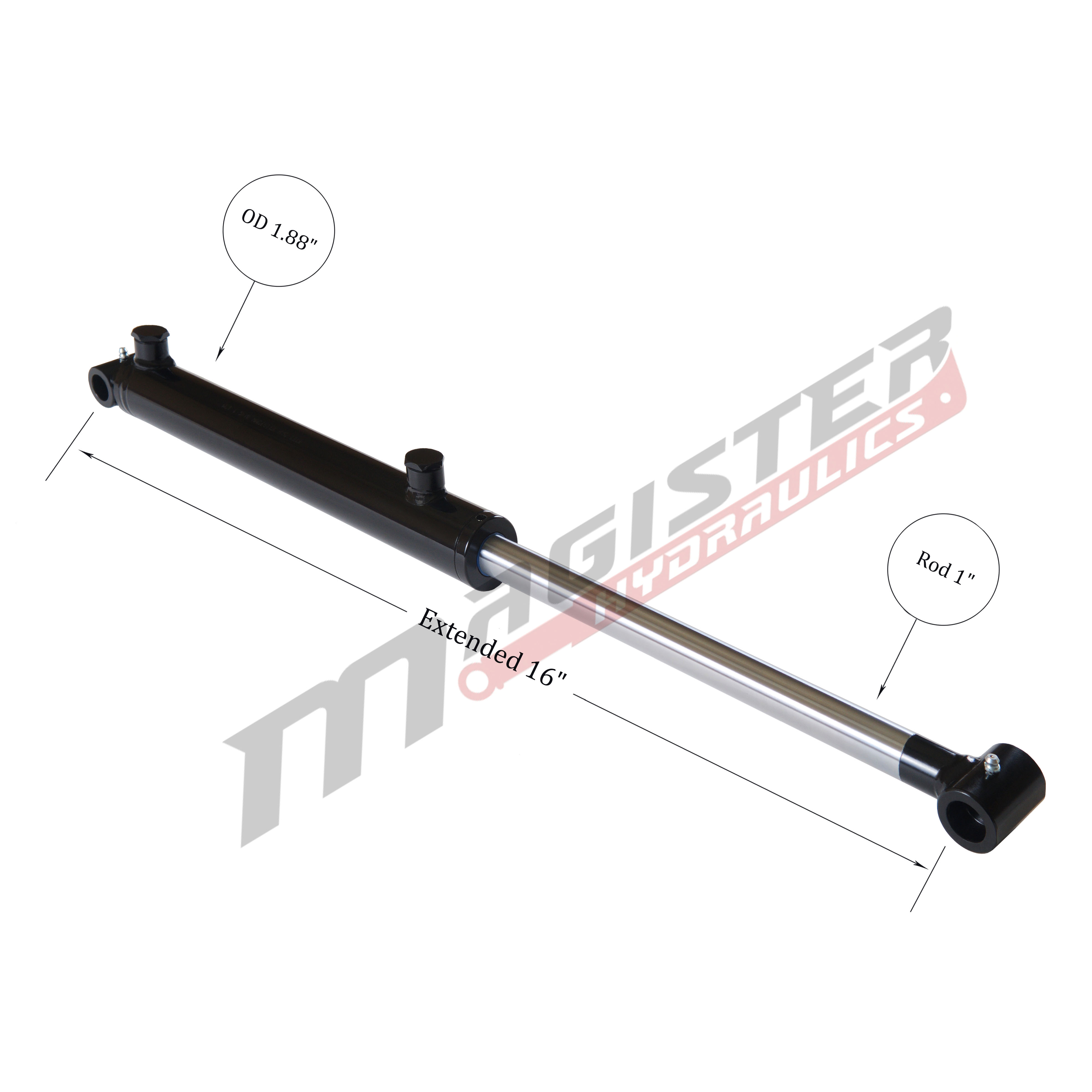

Extended :

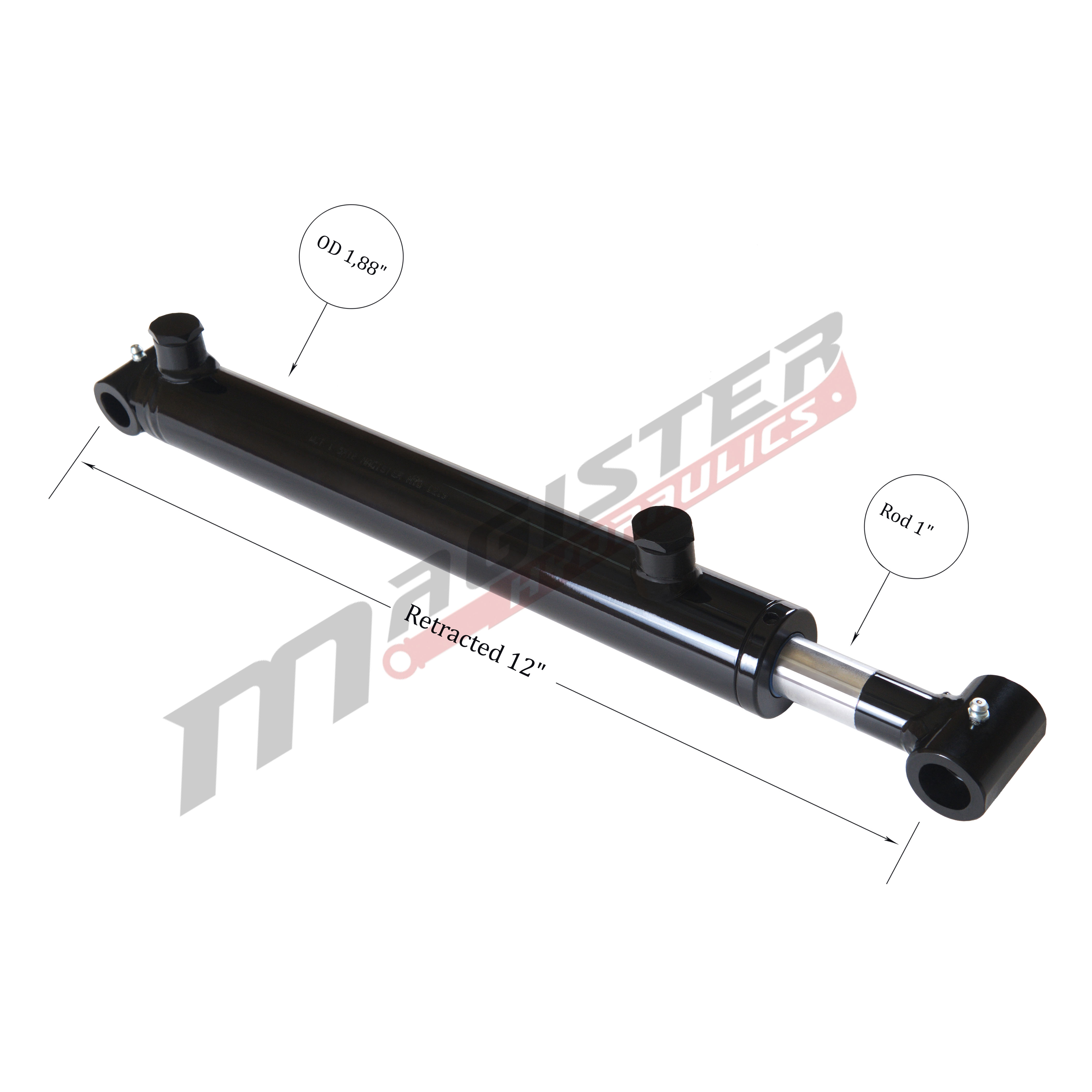

Retracted :
Overall length :
Pressure :
3500 PSI
Column Load (LBs) :
Oil Volume (quarts) :
Brand :
Magister Hydraulics
4+ PRICE EA -5%
10+ PRICE EA -10%
Out of stock

Out of stock

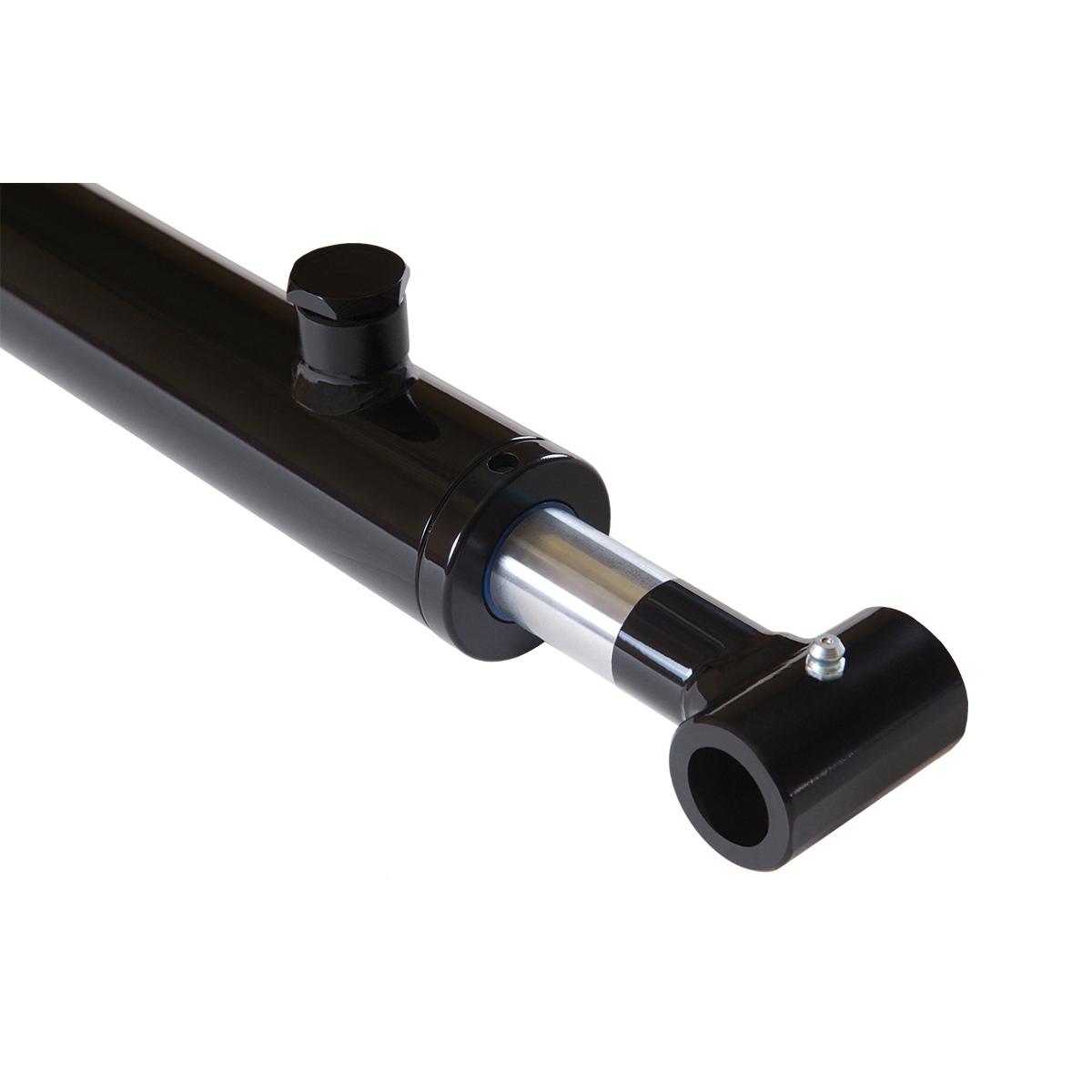

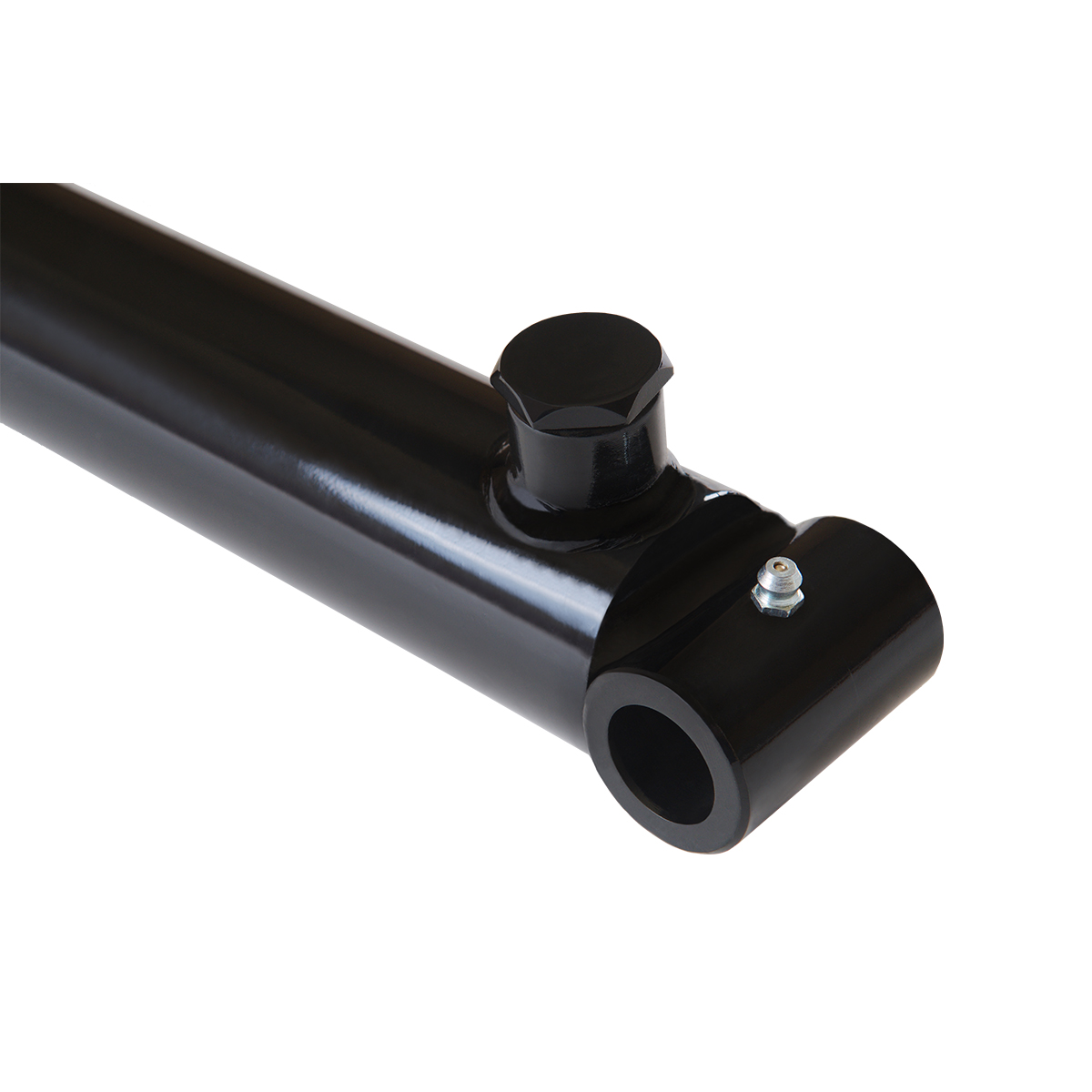

  • 1.5″ bore x 4″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

9 thoughts on “1.5″ bore x 4″ stroke cross tube hydraulic cylinder

  1. Really nice cylinders. Saved me a LOT if money compared to what Kubota wanted for replacement cylinders for my BX2230 loader. Not a perfect match but an easy grind on one end and a couple of small hoses made at the local shop and as good as new.
    I purchased the cylinder to use on the tilt of my Tractors front end loader. The install was simple and straight forward. Simply install a pin at each end’ add the hydraulic lines and off we go. The cylinder worked well for the first load or so. Then the problem came when the cylinder shaft bent. Mind you the old cylinder on the other side never bent. So I called to get a return number. Just to learn that a bent shaft was not covered under warranty. I emailed the customer service lady’s supervisor only to get an email that said no warranty. The cylinder was nistalled wrong. So buyer beware if you buy the cheap China stuff be ready to replace it as when it breaks it will not be under warranty.

  2. I bought two to replace the cylinders on my John Deere tractor front push blade . John Deere wanted $269 each. I got these cylinders in 2 days at a fraction of the cost. So far I have ran them with no issues.

  3. Great product. I ordered the wrong size and seller approved my return request immediately. The new one (the correct size) showed up today and it looks like it’s going to be perfect
