4" bore x 30" stroke cross tube hydraulic cylinder
$480.00
Pay in 4 interest-free payments of $120.00SKU: WCT 4x30

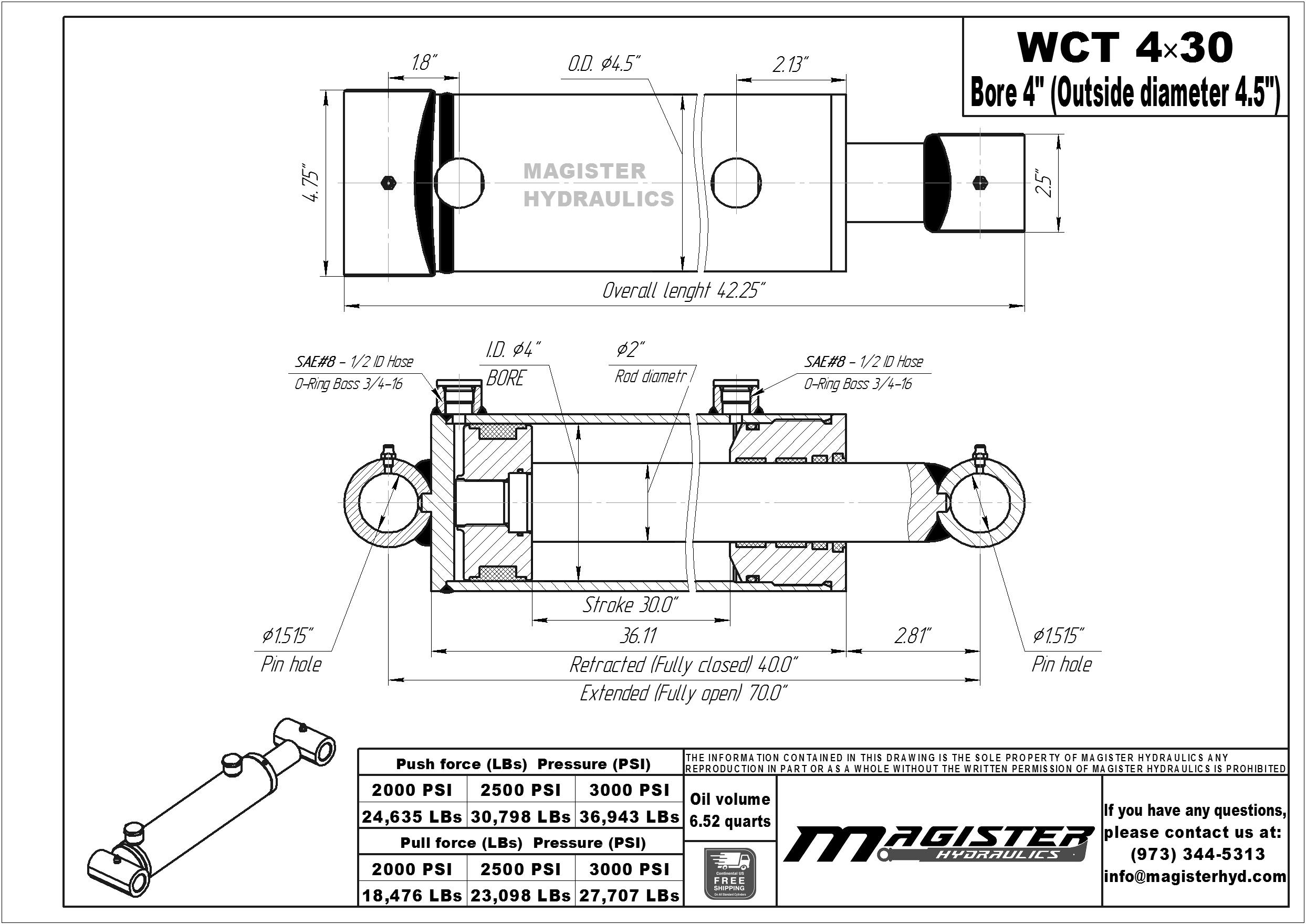

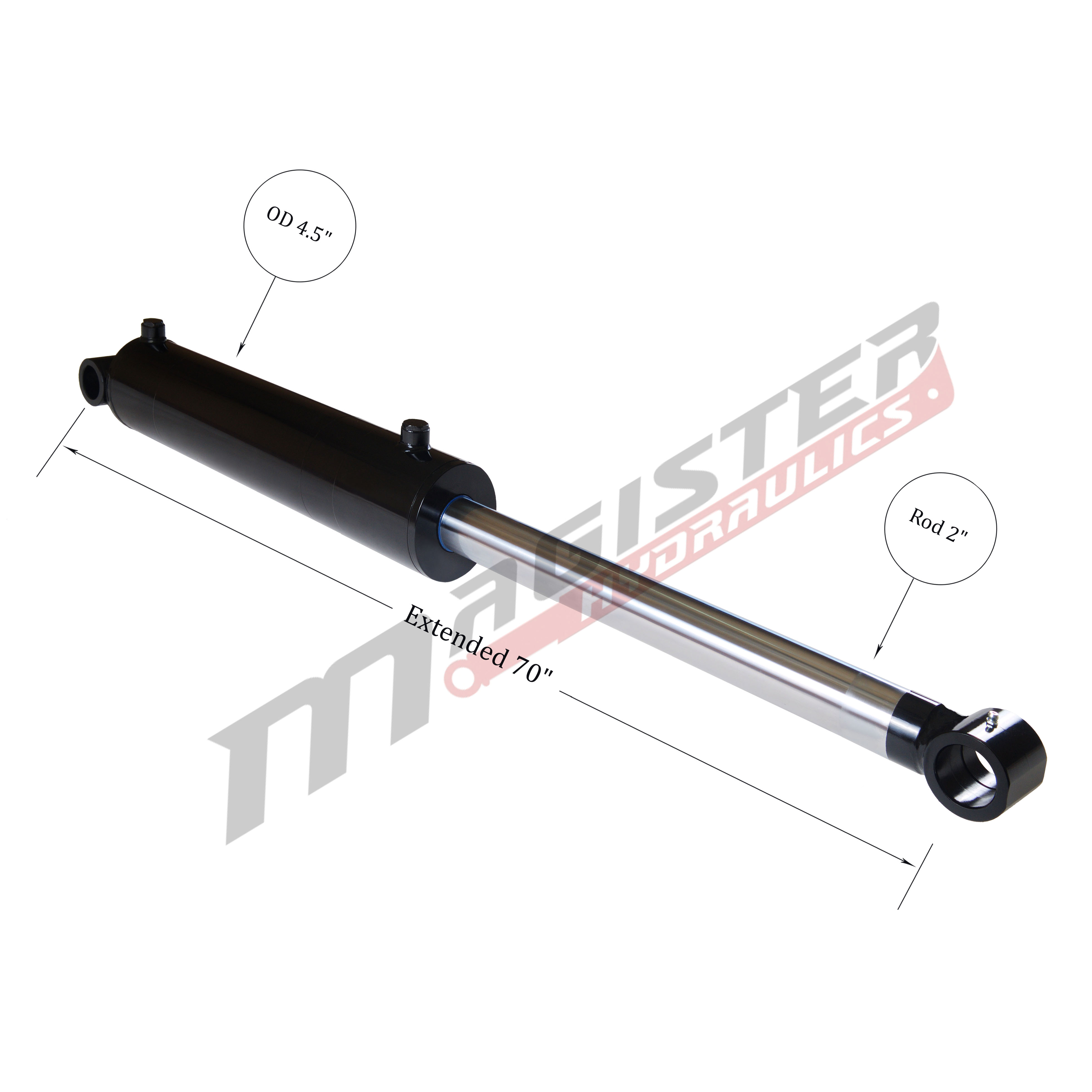

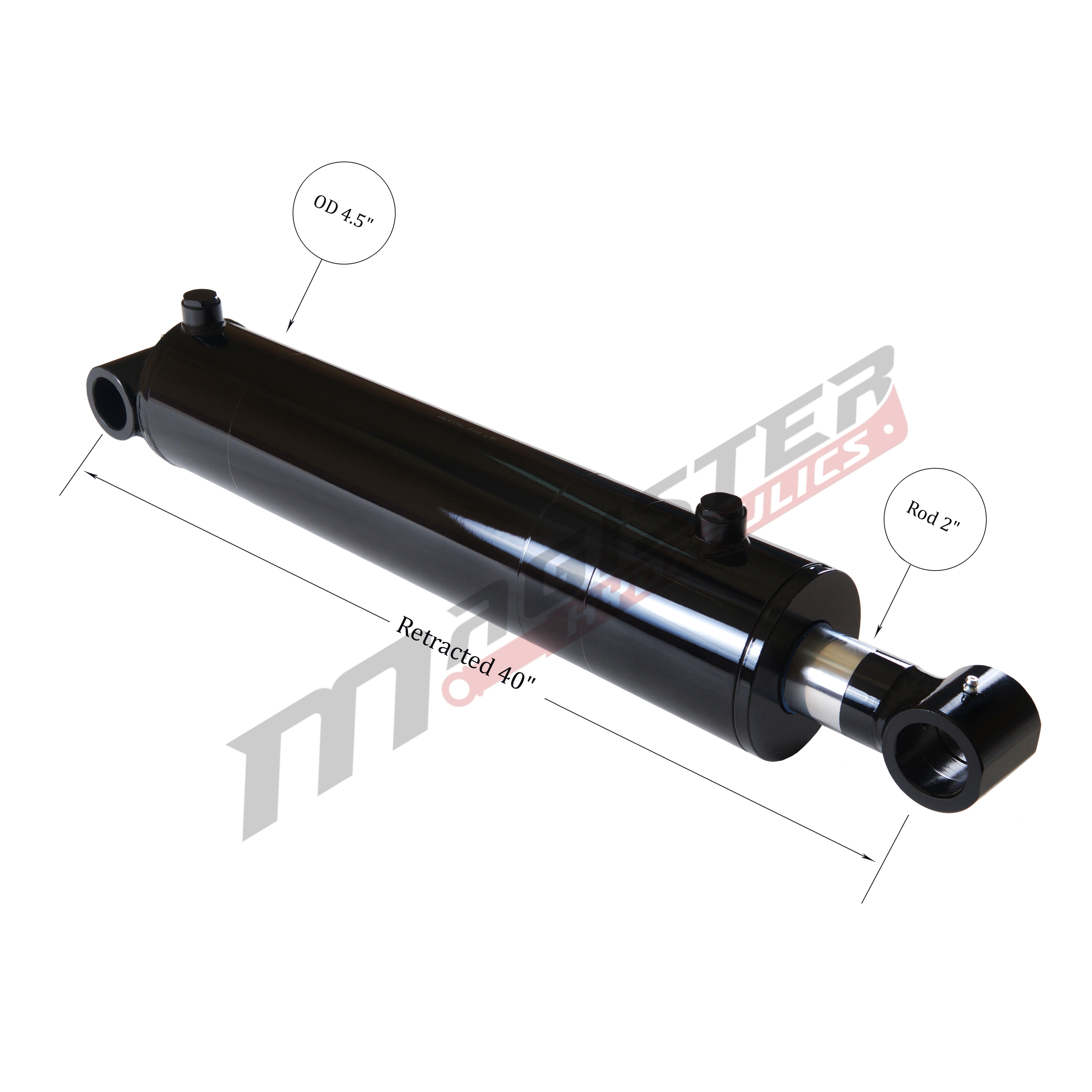

| Bore : | 4 in | Outer Dia. (⌀) : | 4.5 in | Stroke : | 30 in | Rod Dia. (⌀) : | 2 in | Port Size : | SAE 8 | Pin Dia. (⌀) : | 1.5 in | Extended : | 70 in | Retracted : | 40 in | Overall length : | 42.25 in | Pressure : | 3500 PSI | Column Load : | 35,700 LBs | Oil Volume : | 6.52 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Cross Tube | Action : | Weight : | 86 LBs |
|---|---|
| GTIN : | 850597006332 |
In stock
71 in stock
Description

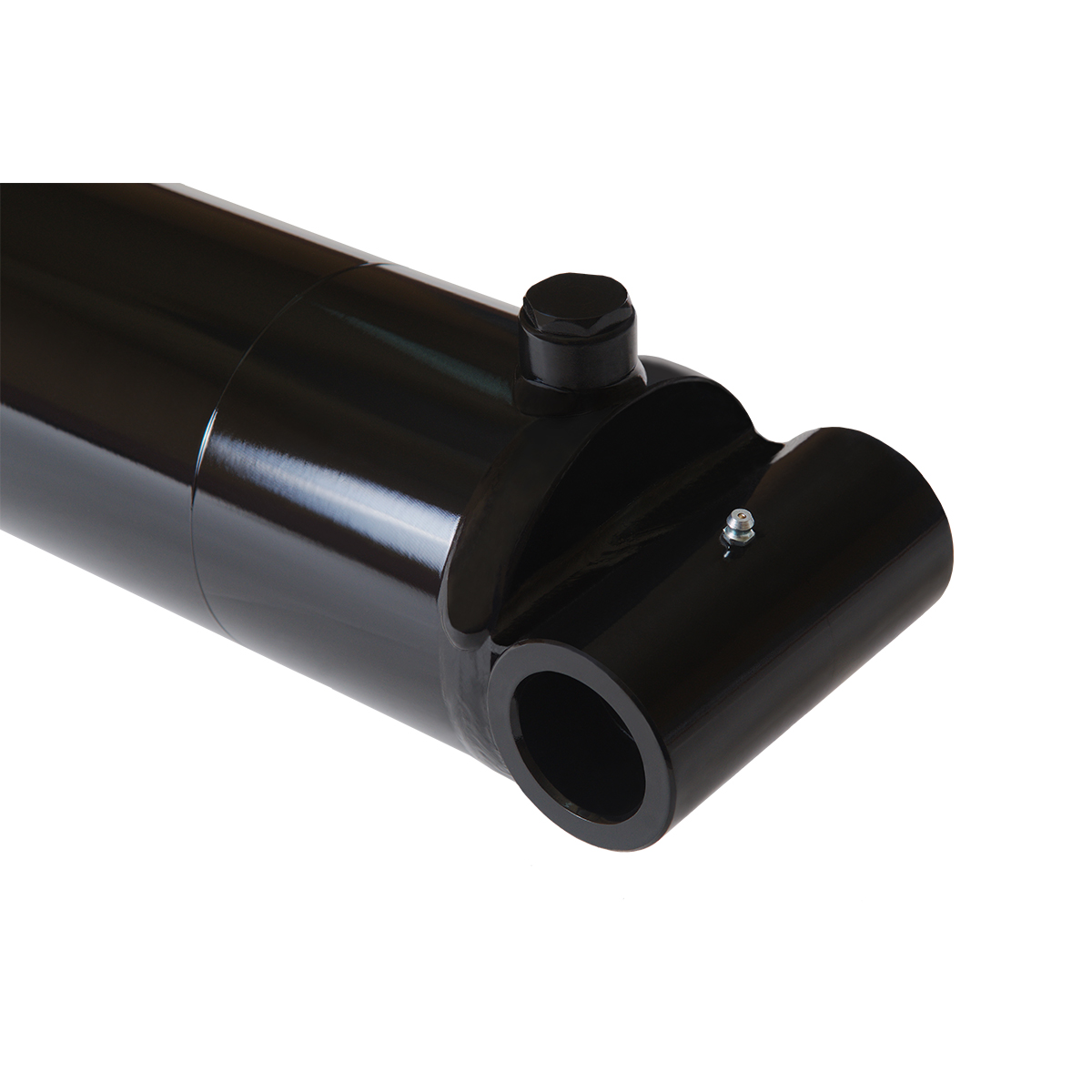

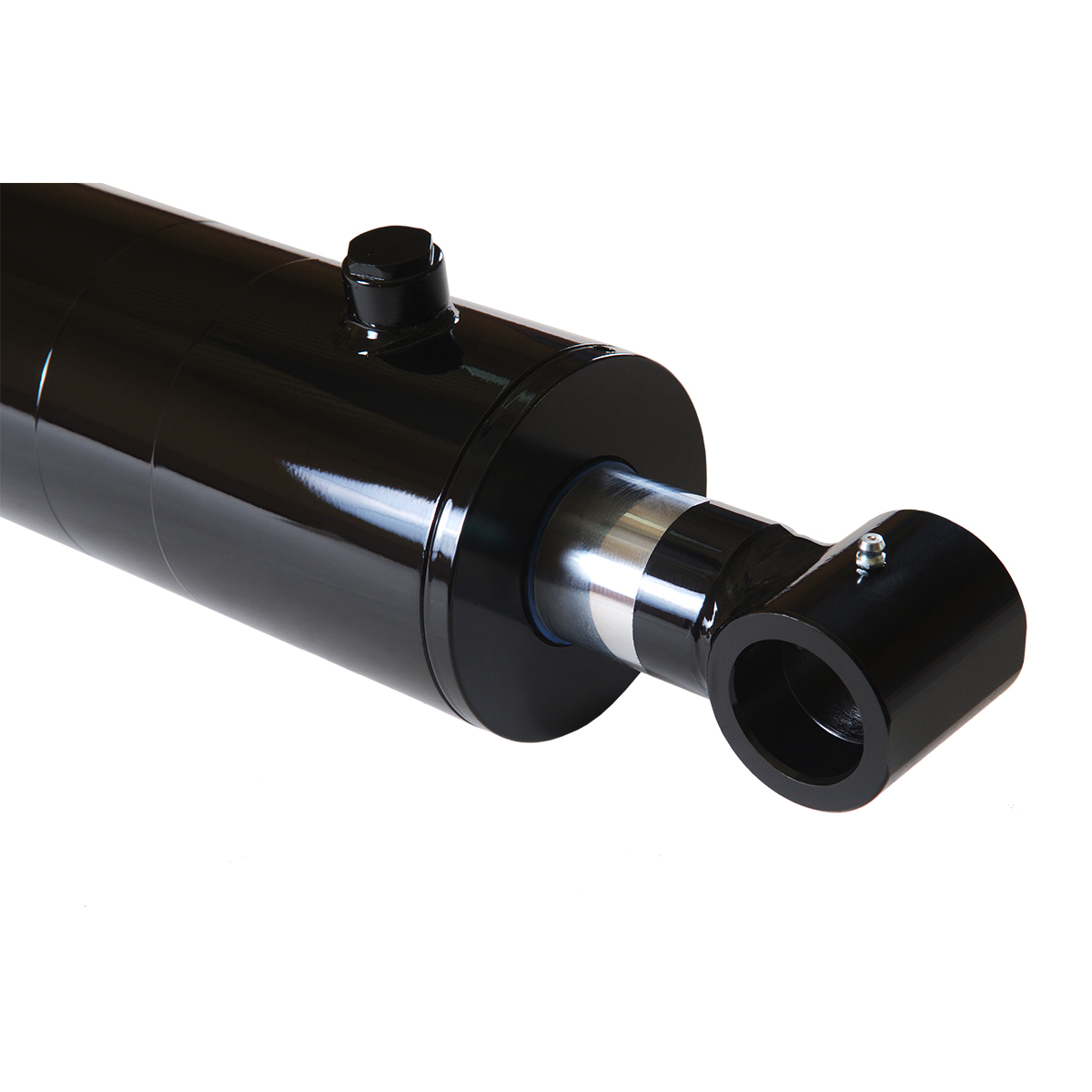

- 4″ bore x 30″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
- Applications:Â Welded Double Acting Hydraulic Cylinder.
- Color:Â Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
