4" bore x 16" stroke cross tube hydraulic cylinder
$416.00
Pay in 4 interest-free payments of $104.005 in stock
Free Shipping
Designed for maximum performance and durability, the heavy-duty welded Cross Tube Hydraulic Cylinder is engineered to handle the toughest jobs in agricultural, industrial, and construction applications. Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 4-inch bore and 16-inch stroke with cross tube ends with 3500 PSI. Due to their construction, these hydraulic rams can efficiently work in all conditions, offering a more affordable and perfect alternative to genuine hydraulic cylinders. The cross-tube cylinders serve as an excellent replacement part for front-end loaders, mainly for John Deere, Kubota, Massey Ferguson, Mahindra, and others.
Key Features:
- Extreme load capacity: Welded cross tube ends, ⌀ 4.5″ honed cold-drawn tubing, ⌀ 2″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 16″ stroke.
- Wide Range Hydraulic Applications: forklifts, backhoes, front end loaders, tractors, ensuring reliable operation in harsh environments thanks to the usage of this cross tube cylinder.
- Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
- High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
- Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
- Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
- Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
- 2-year warranty
- Same Day Free Shipping: all orders, made until 1 pm EST, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
- Made in Europe.

Before purchase, please take the proper measurements:
- The diameter of the bore (please specify inside or outside measurement).
- The diameter of the rod and pin holes.
- The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
- The width on each mounting end of the cylinder where the pins slide through.

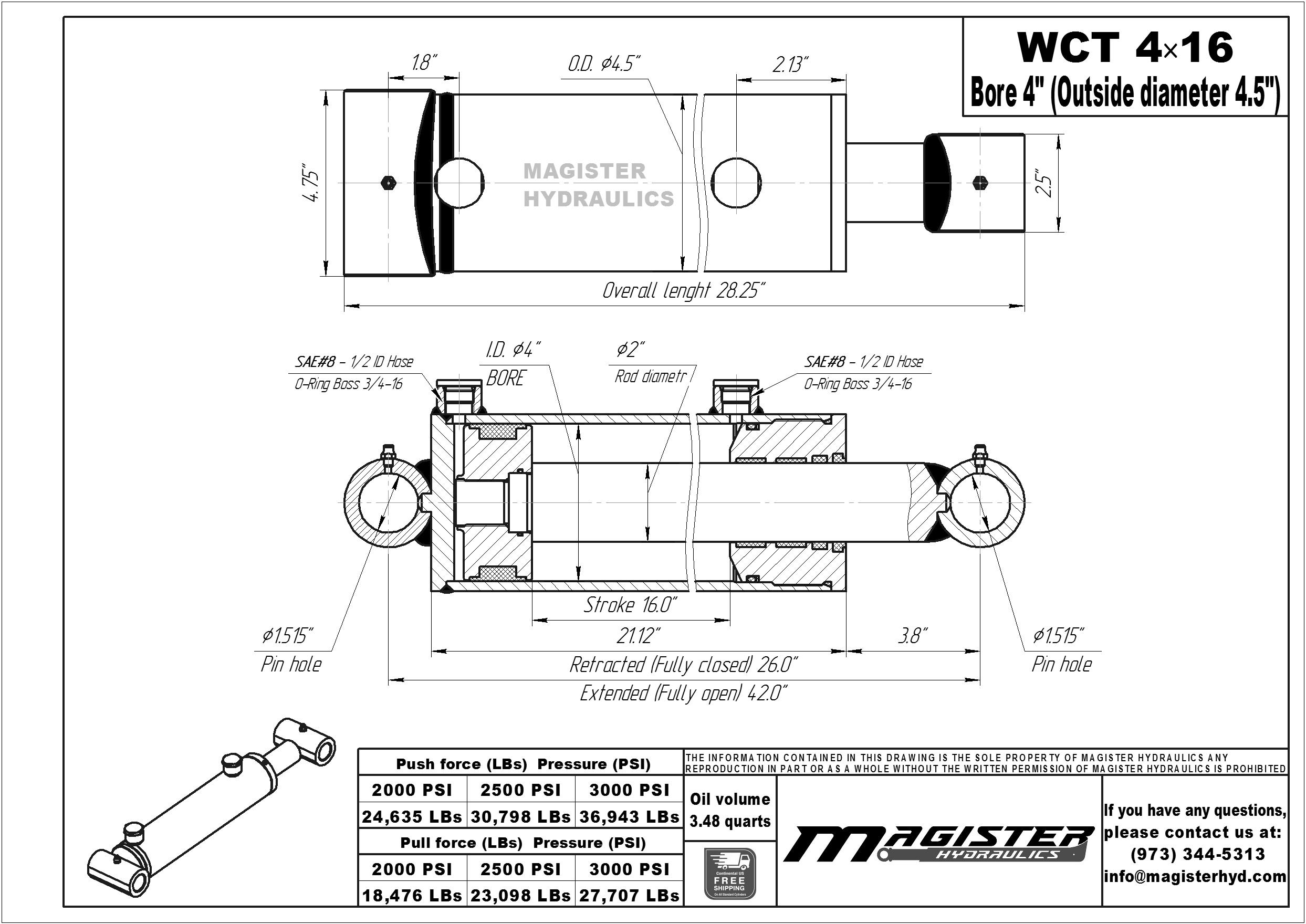

Specifications
| Bore | 4 in | Outer Dia. (⌀) | 4.5 in |
|---|---|---|---|
| Stroke | 16 in | Rod Dia. (⌀) | 2 in |
| Port Size | SAE 8 | Pin Dia. (⌀) | 1.5 in |

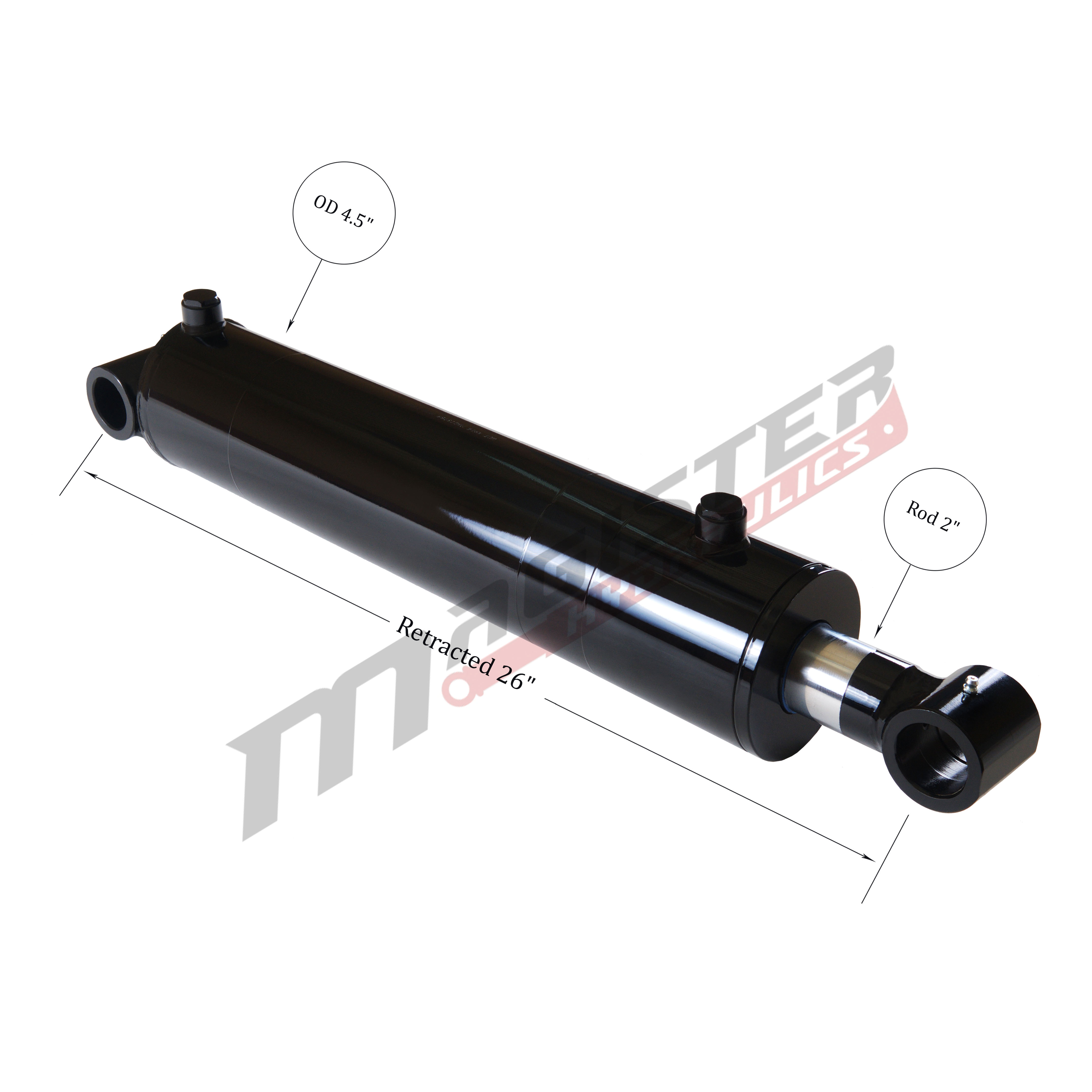

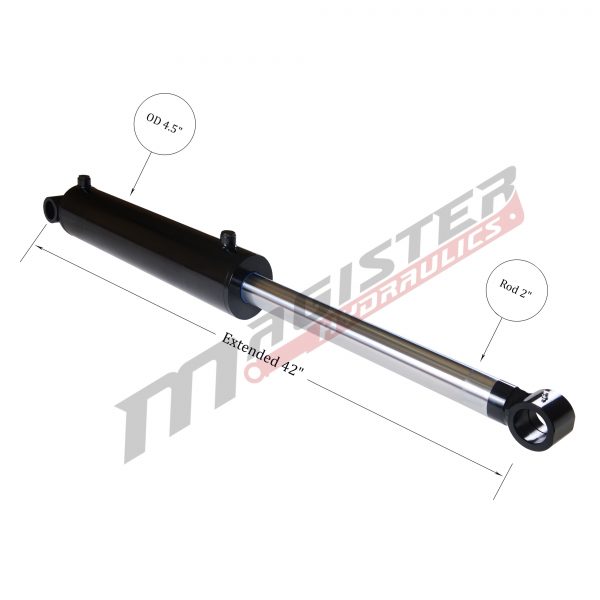

| Extended | 42 in | Retracted | 26 in |
| Overall length | 28.25 in | Pressure | 3500 PSI |
| Column Load | 37,700 LBs | Oil Volume | 3.48 QTs |
| Brand | Magister Hydraulics | Design | Welded |
| Rod Type | Chrome Plated | Rod End | Cross Tube |
| Action | Double Acting | Weight | 58 LBs |
| GTIN | 850597006301 |
Alternative part numbers
| Manufacturer | Product SKU |
|---|---|
| Maxim | 288369 |
| Prince-Wolverine | WWXT4016-S |
| Eagle | HBU4016-ORB |
