2.5" bore x 14" stroke clevis hydraulic cylinder
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCL 2.5x14
|Bore :||2.5” Bore Hydraulic Cylinders||OD :||2.87"||Stroke :||14” Stroke Hydraulic Cylinders||Rod :||1.25"||Port Size :||SAE 8||Pin :||1"||Extended :||38.25"||Retracted :||24.25"||Overall length :||26.25"||Pressure :||3500 PSI||Column Load (LBs) :||14,700||Oil Volume (quarts) :||1.19||Brand :||Magister Hydraulics|
1+ PRICE EA
4+ PRICE EA -5%
10+ PRICE EA -10%
39 in stock

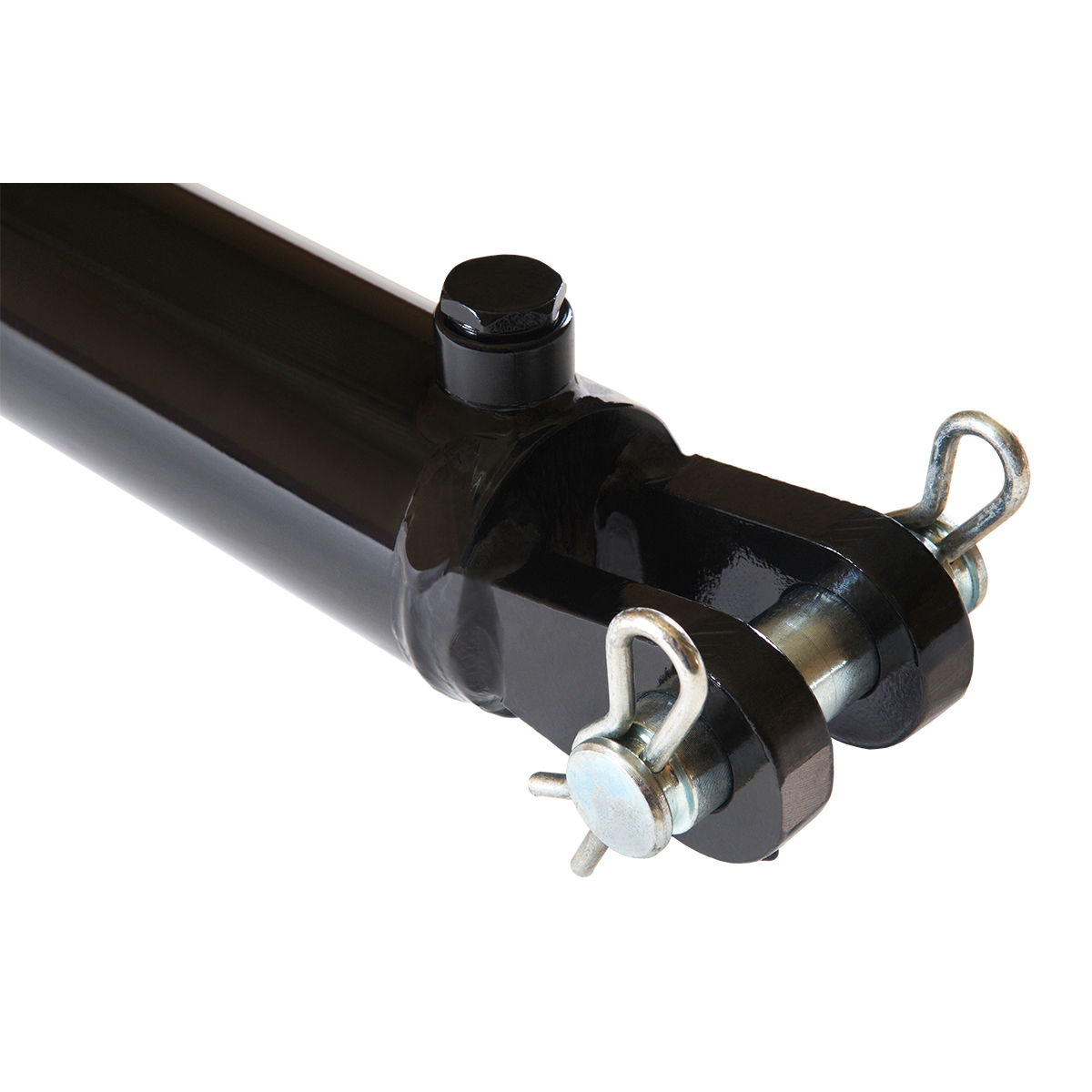

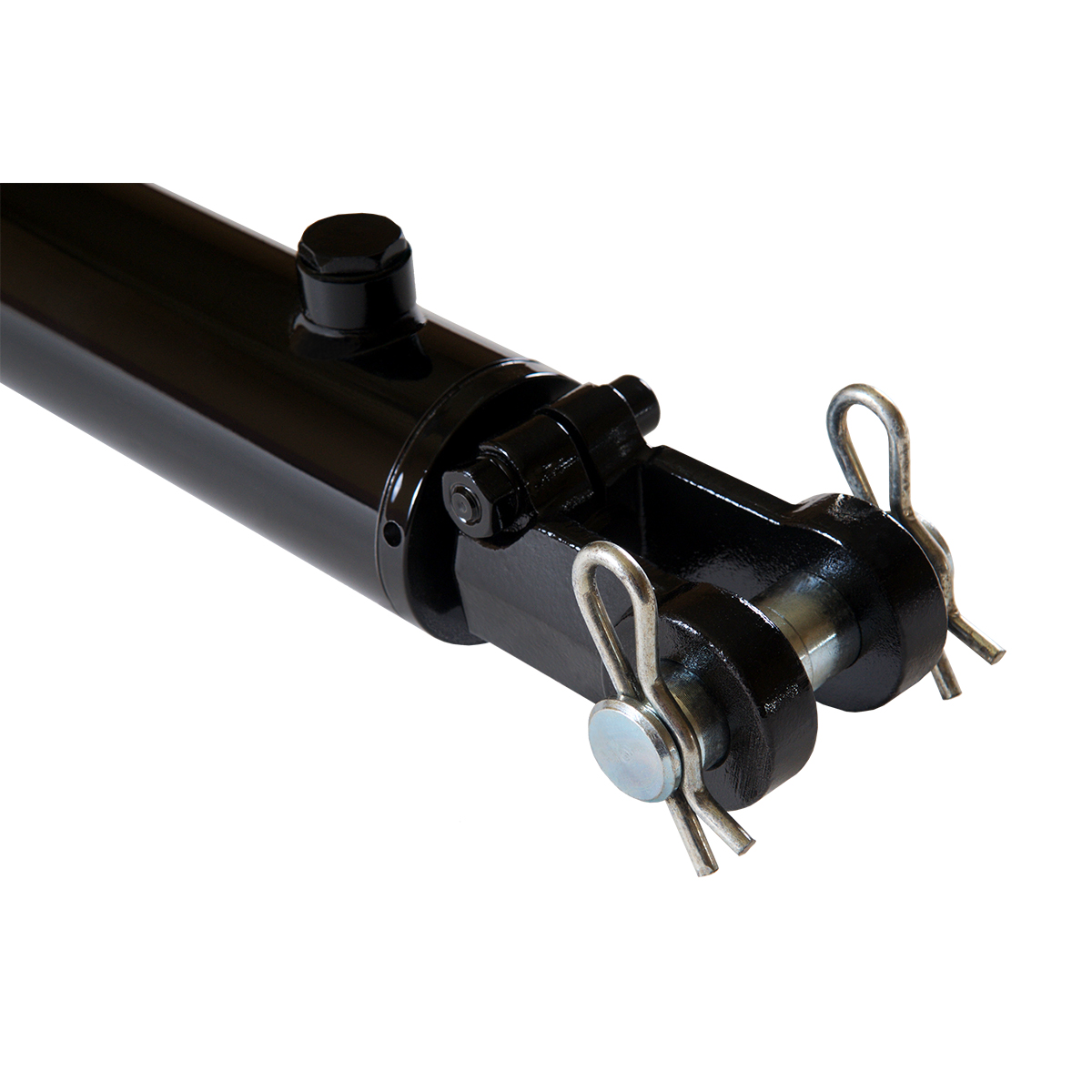

- 2.5″ bore x 14″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
