2.5" bore x 16" stroke clevis hydraulic cylinder

$207.00

Pay in 4 interest-free payments of $51.75
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCL 2.5x16

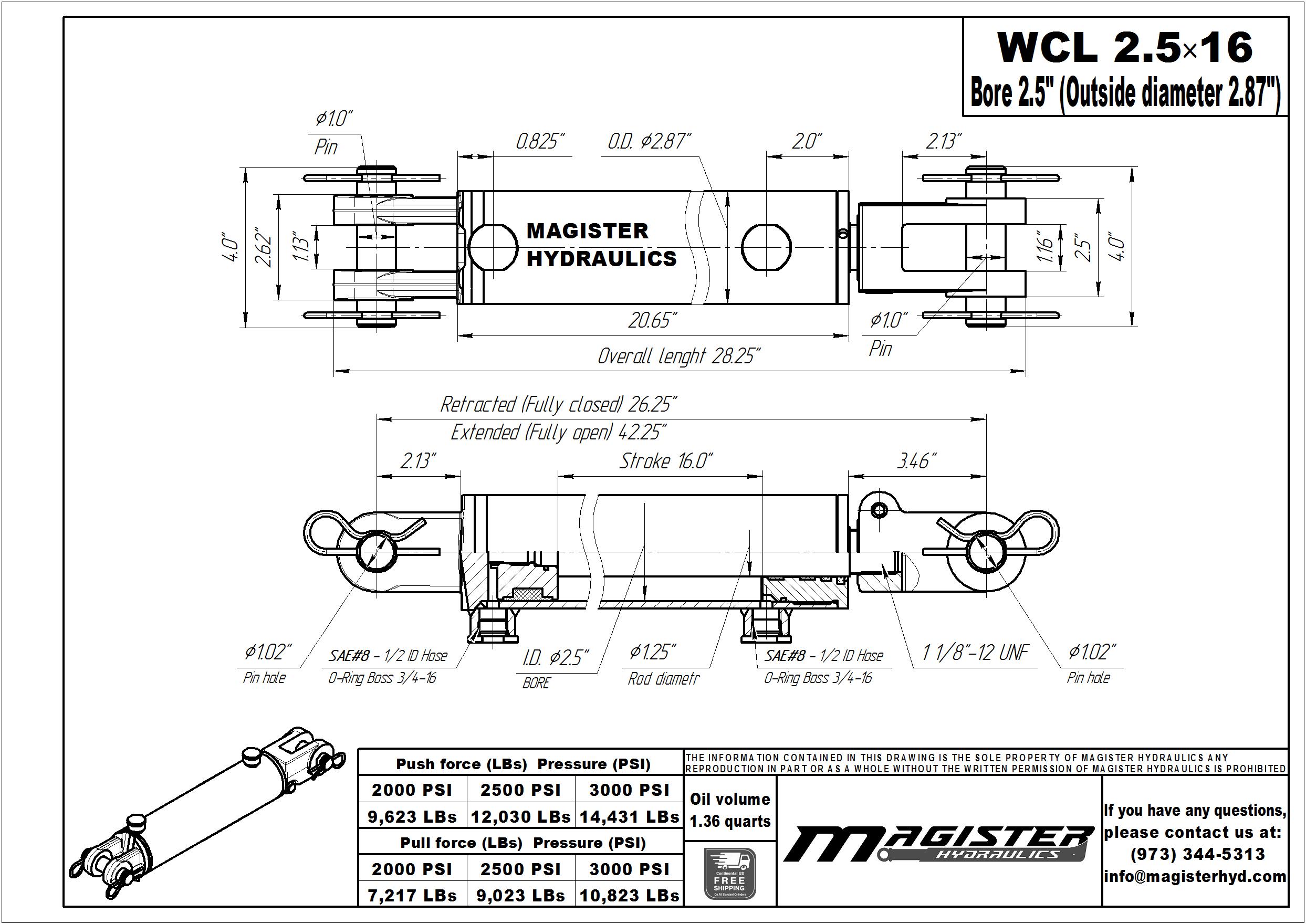

Bore : 2.5"
OD : 2.87"
Stroke : 16 inch
Rod : 1.25"
Port Size : SAE 8
Pin : 1"

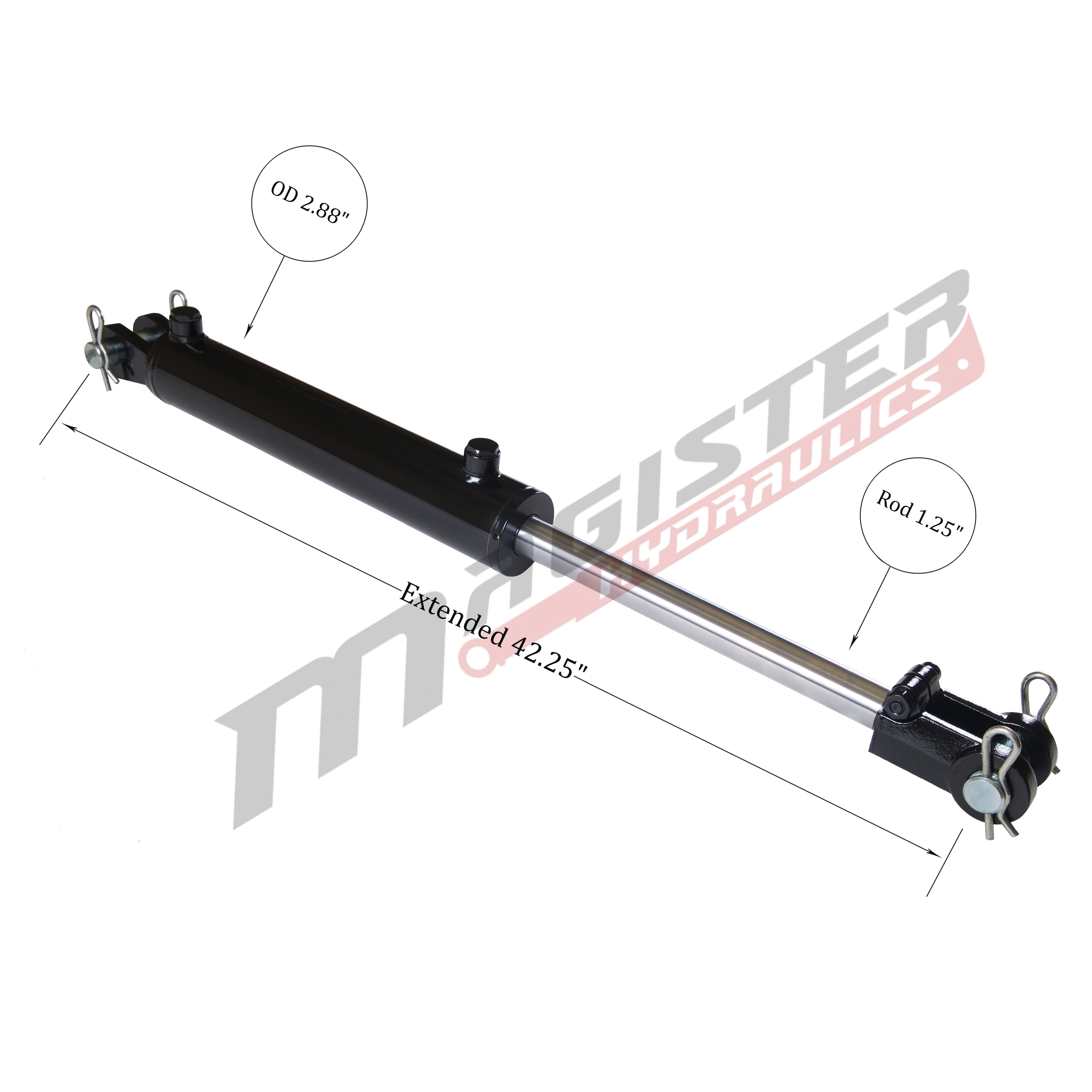

Extended : 42.25"

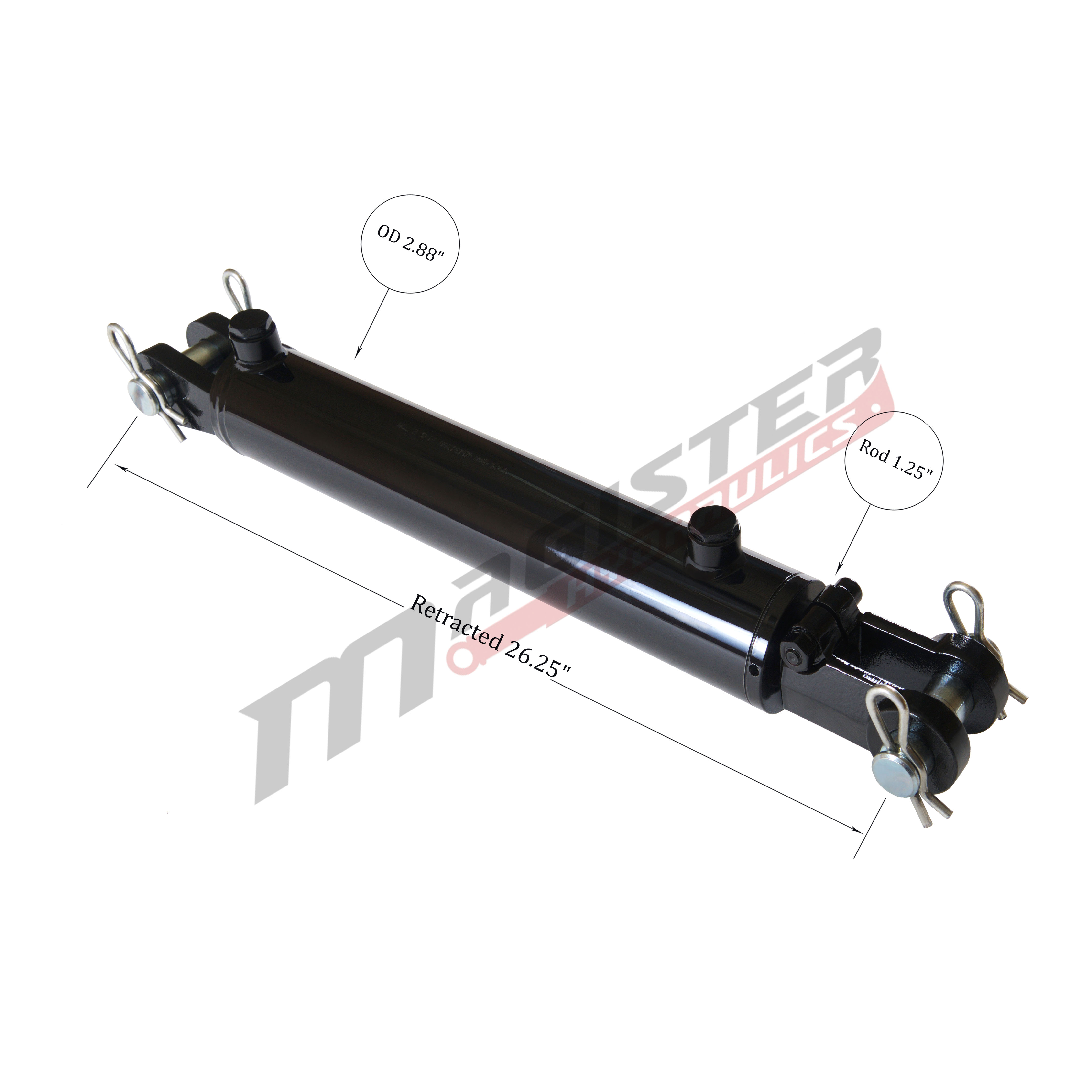

Retracted : 26.25"
Overall length : 28.25"
Pressure : 3500 PSI
Column Load (LBs) : 14,700
Oil Volume (quarts) : 1.36
Brand : Magister Hydraulics
GTIN : 850597006462
SKU: WCL 2.5x16 Categories: ,
1+ PRICE EA
$207.00
4+ PRICE EA -5%
$196.65
8+ PRICE EA -10%
$186.30
In stock

64 in stock

DESCRIPTION

  • 2.5″ bore x 16″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
