2.5" bore x 8" ASAE stroke clevis hydraulic cylinder


* Wholesale Discount is available for this product if you purchase 4 or more products.
Bore :2.5” Bore Hydraulic Cylinders
OD :2.87"
Stroke :8 inch ASAE
Rod :1.25"
Port Size :SAE 8
Pin :1"

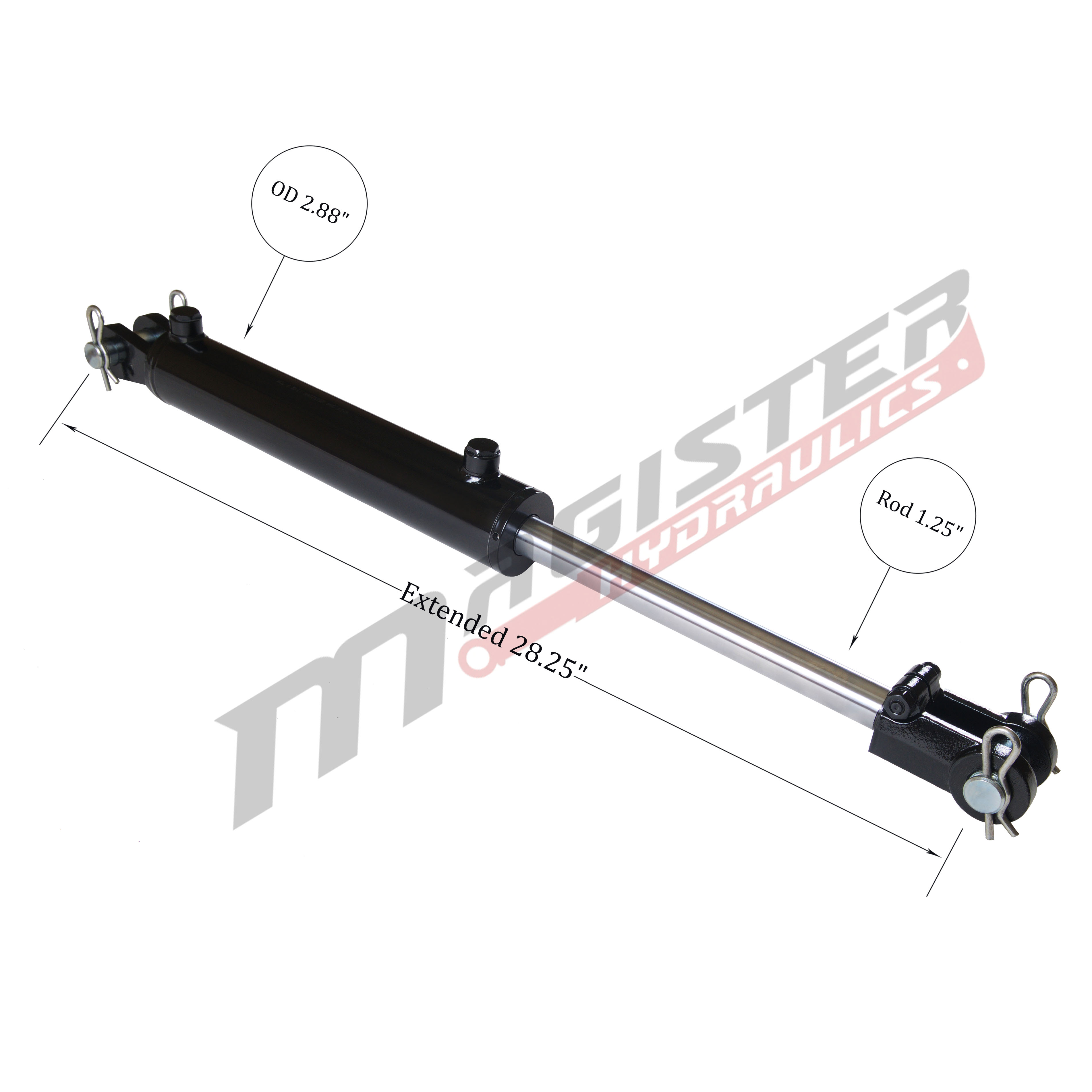

Extended :28.25"

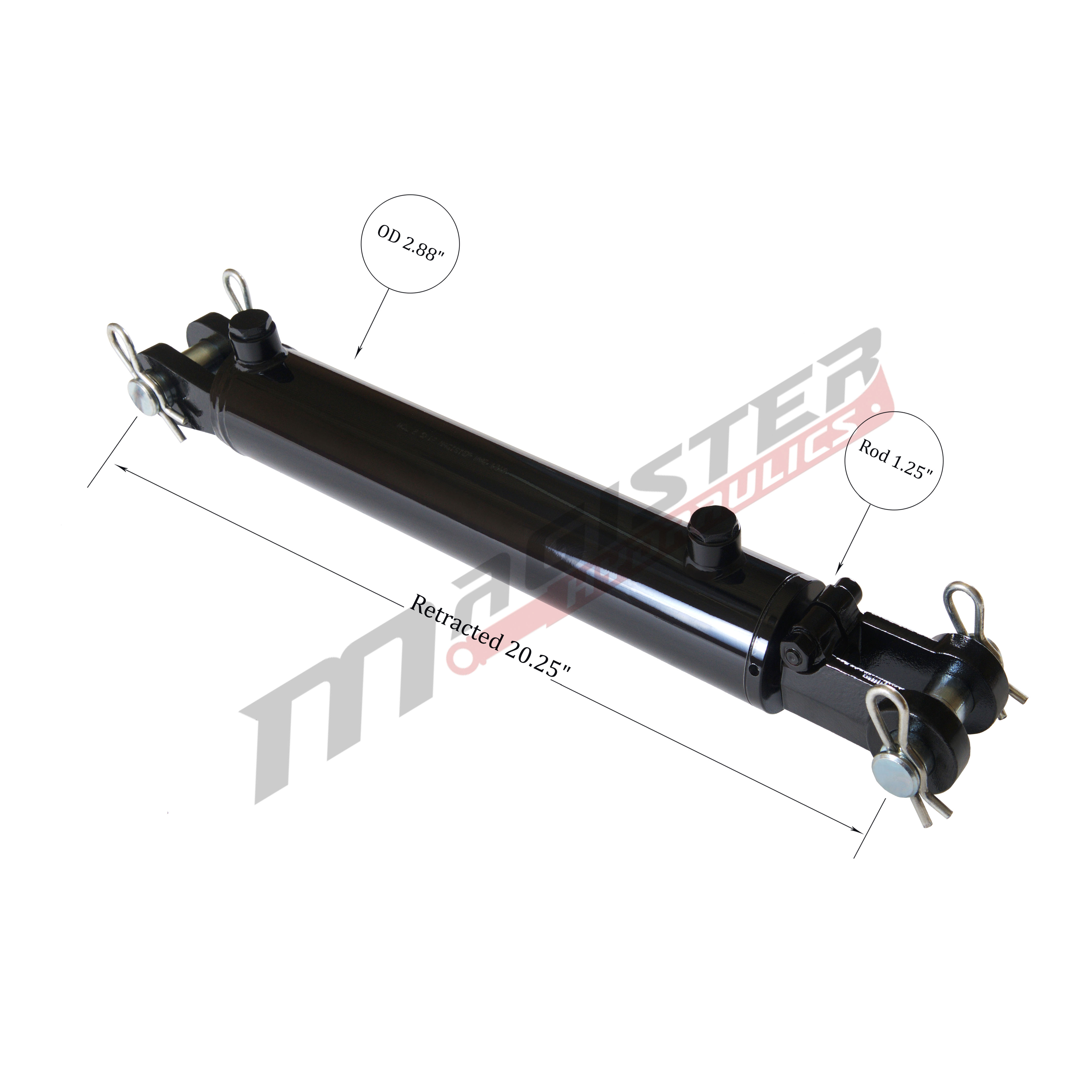

Retracted :20.25"
Overall length :22.25"
Pressure :3500 PSI
Column Load (LBs) :14,700
Oil Volume (quarts) :0.68
Brand :Magister Hydraulics
GTIN :850597006431
SKU: WCL 2.5x8 ASAE Categories: ,
4+ PRICE EA -5%
10+ PRICE EA -10%
In stock

82 in stock

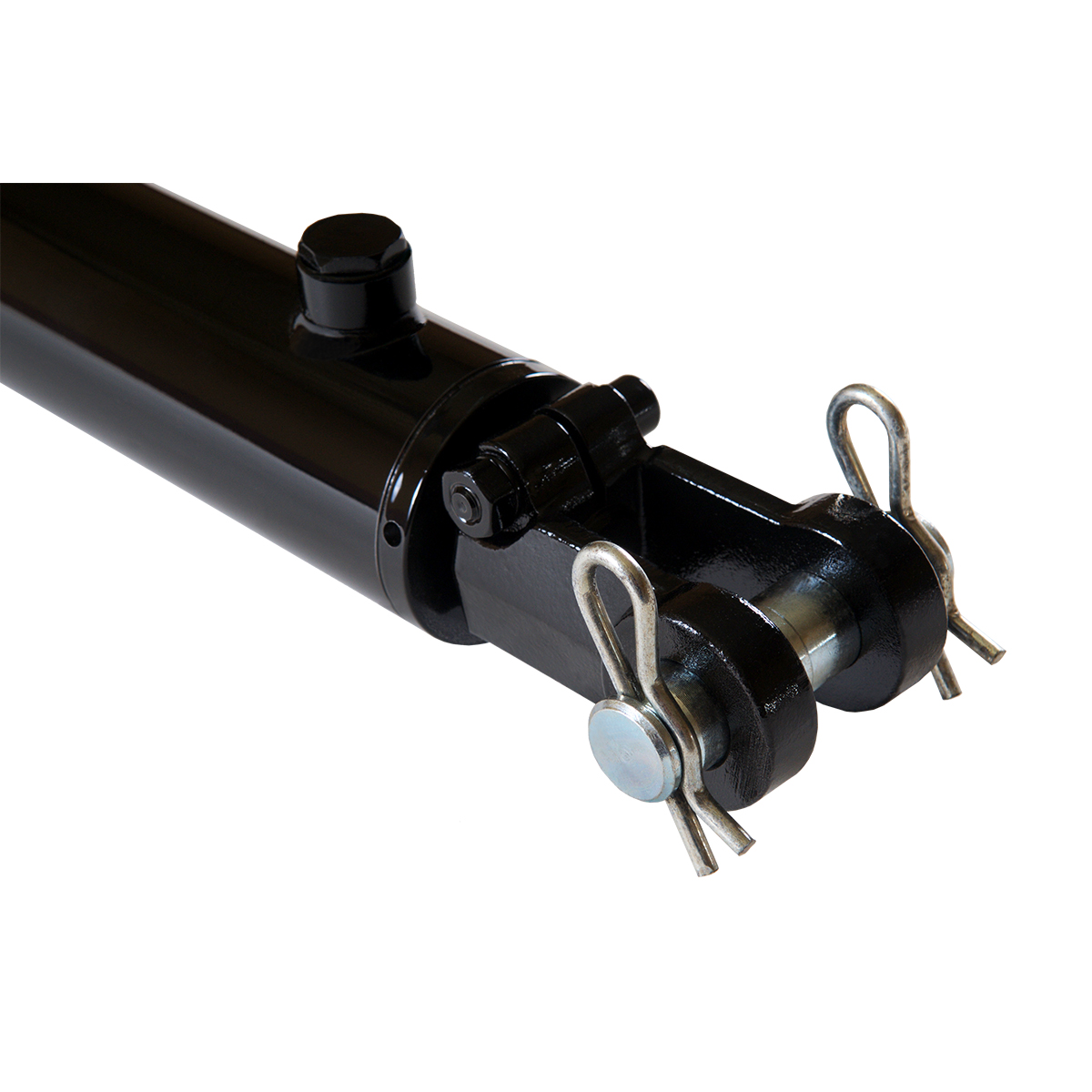

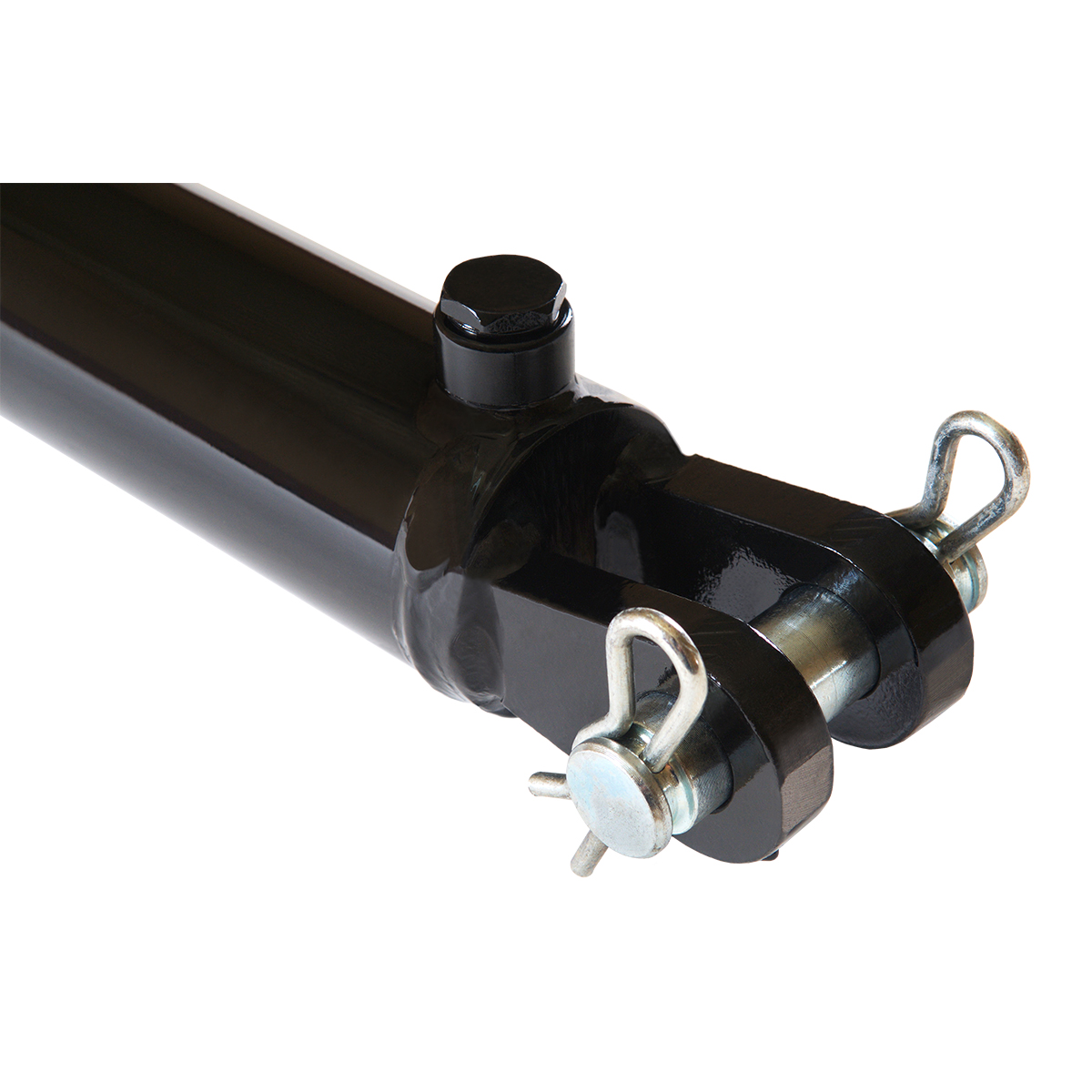

  • 2.5″ bore x 8″ ASAE stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
