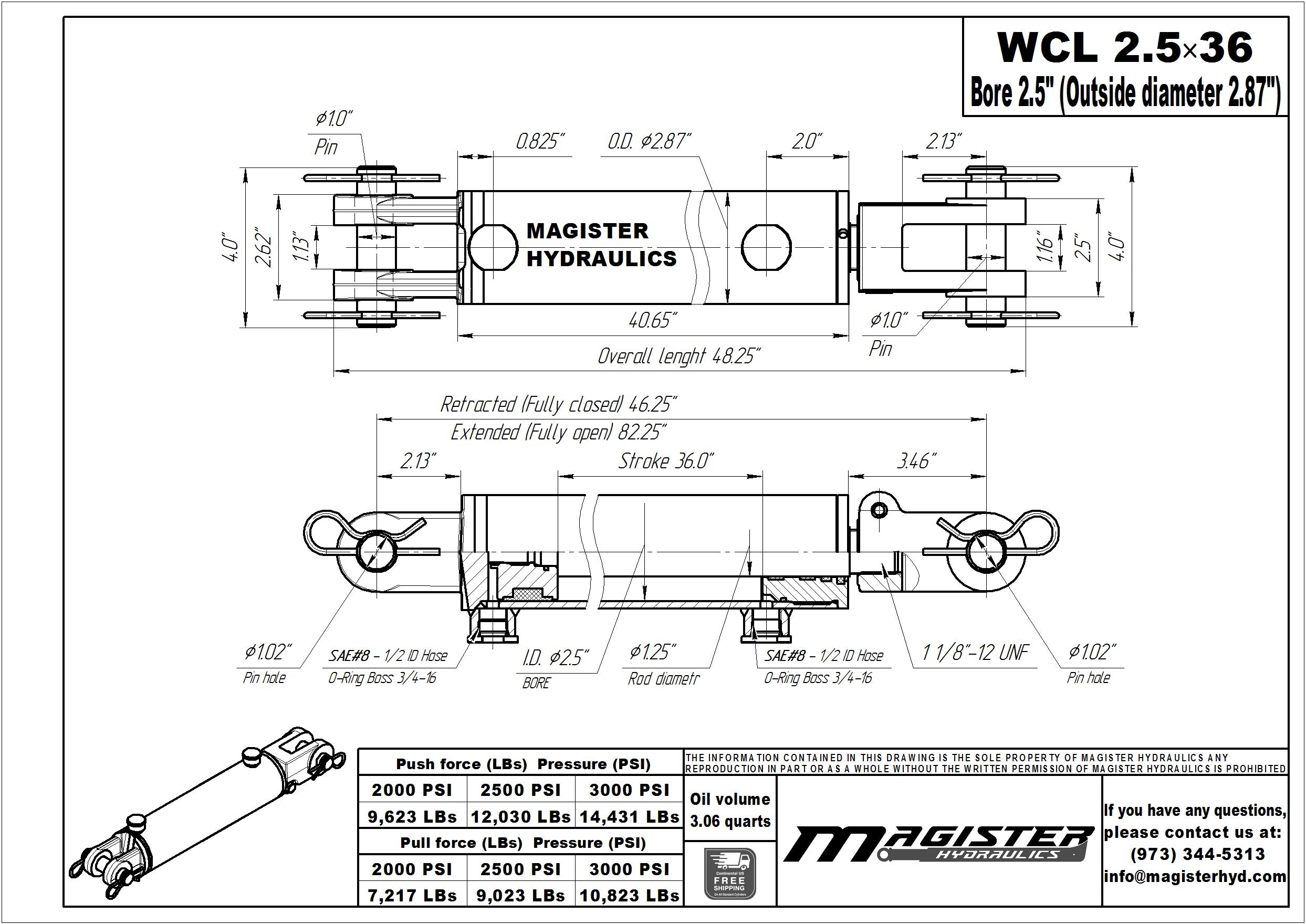

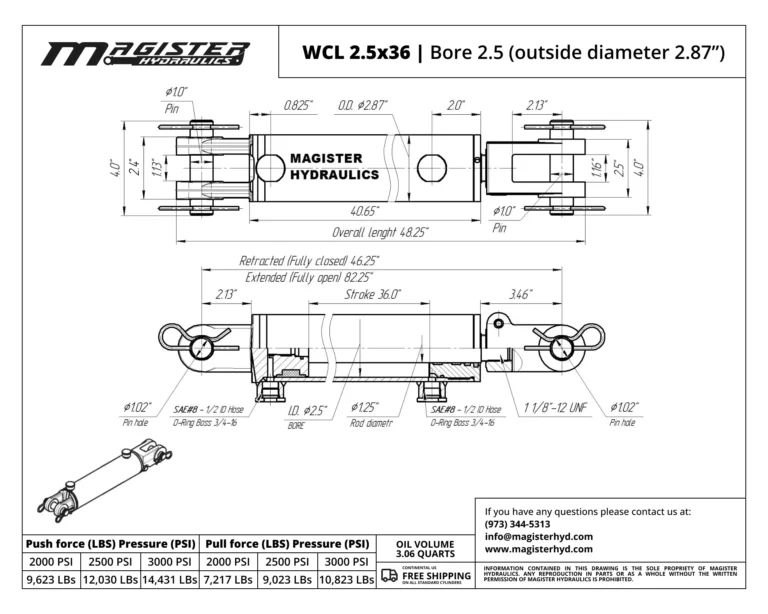

2.5" bore x 36" stroke clevis hydraulic cylinder
$294.00
* Wholesale Discount is available for this product if you purchase 4 or more products.SKU: WCL 2.5x36
| OD : | 2.87" |
|---|---|
| Stroke : | 36 inch |
| Rod : | 1.25" |
| Port Size : | SAE 8 |
| Pin : | 1" |

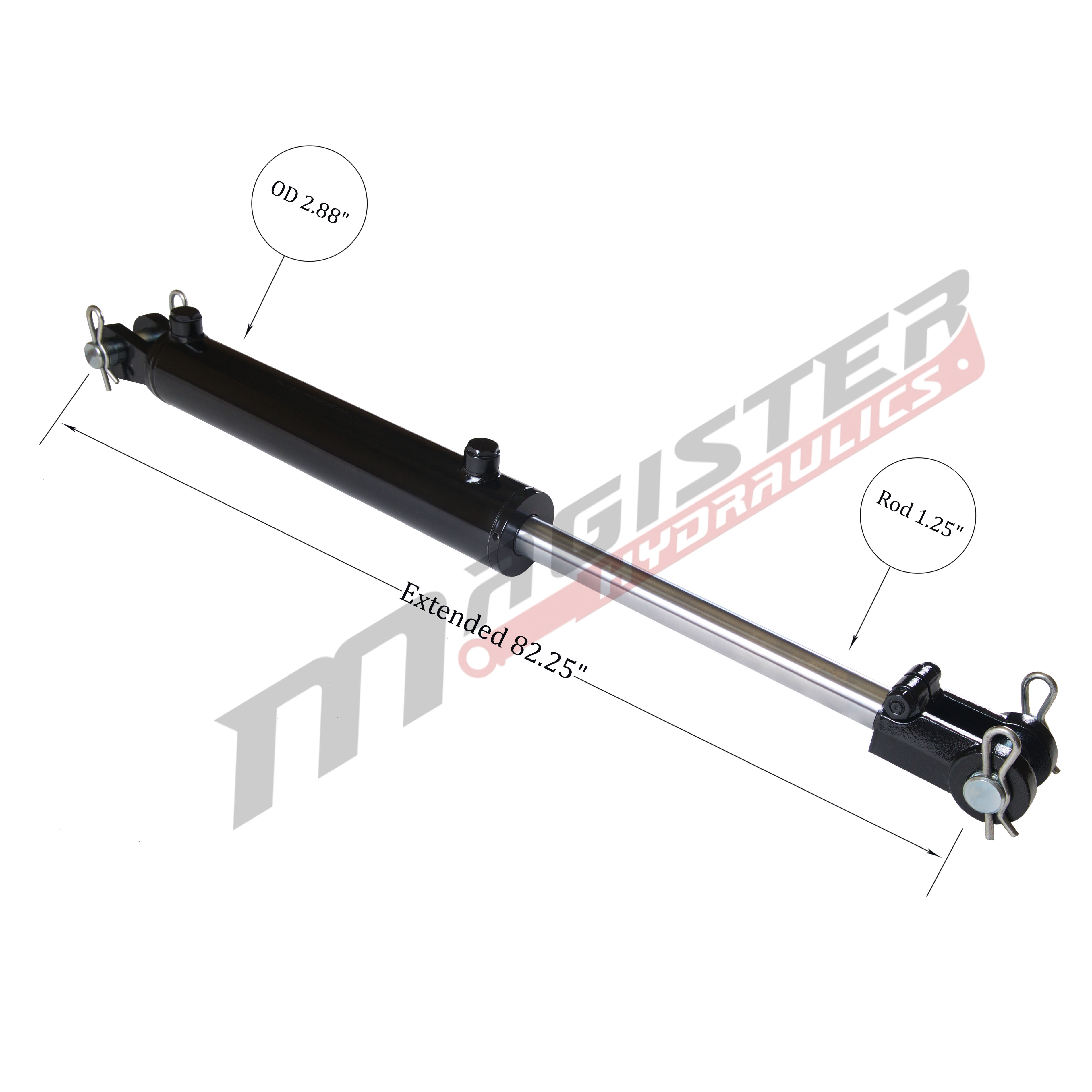

| Extended : | 82.25" |

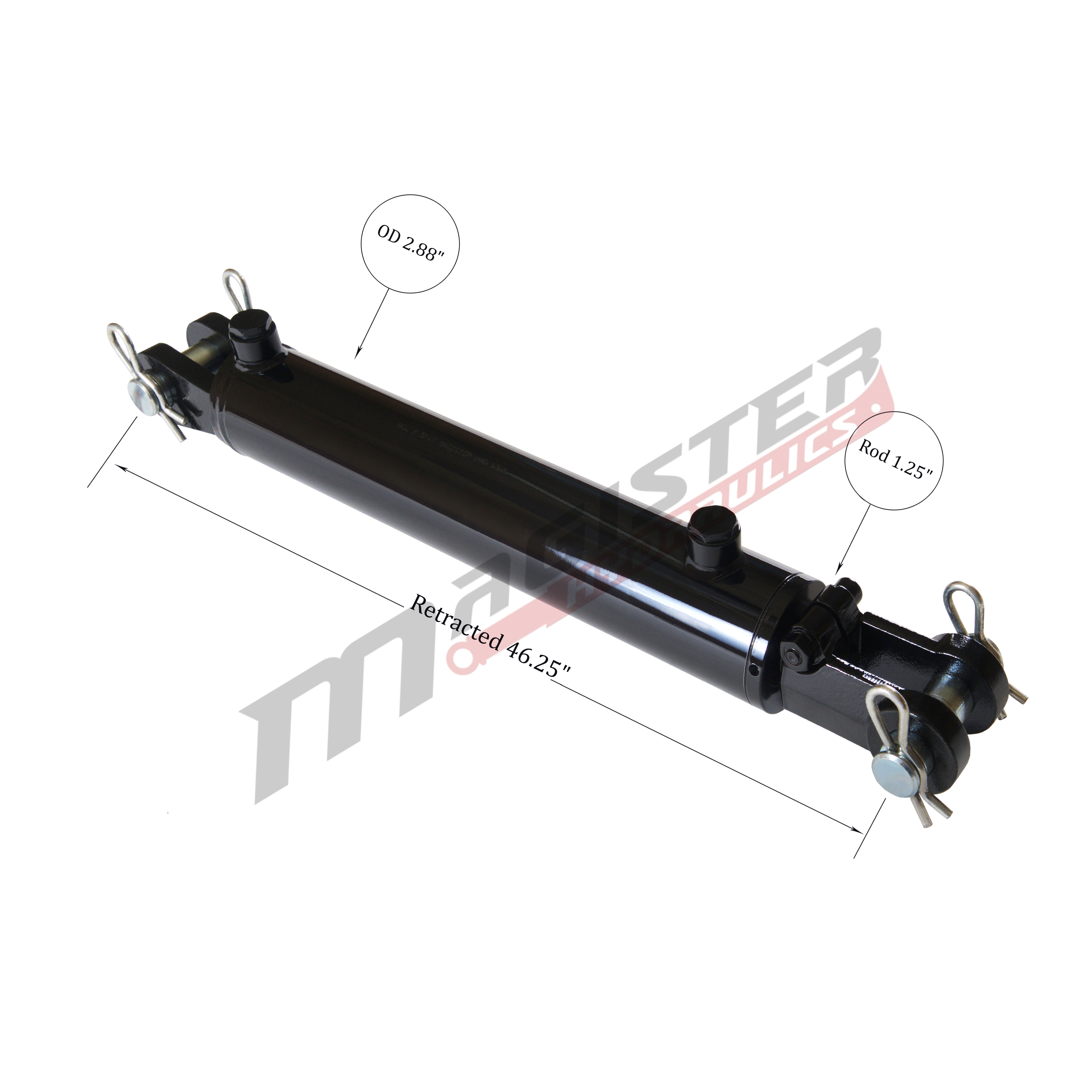

| Retracted : | 46.25" |
| Overall length : | 48.25" |
| Pressure : | 3500 PSI |
| Column Load (LBs) : | 4,000 |
| Oil Volume (quarts) : | 3.06 |
| Brand : | Magister Hydraulics |
| GTIN : | 850597006882 |
1+
PRICE EA
$294.00
4+
PRICE EA -5%
$279.30
10+
PRICE EA -10%
$264.60
In stock
19 in stock
DESCRIPTION
- 2.5″ bore x 36″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
FREE SHIPPING
We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
