2.5" bore x 24" stroke clevis hydraulic cylinder

Original price was: $258.00.Current price is: $219.30.

Pay in 4 interest-free payments of $54.83
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCL 2.5x24

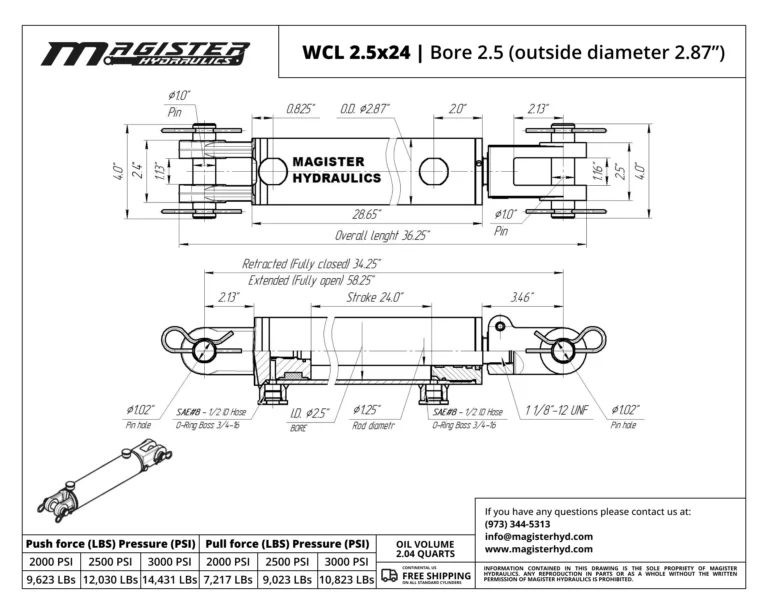

Bore : 2.5 in
Outer Dia. (⌀) : 2.87 in
Stroke : 24 in
Rod Dia. (⌀) : 1.25 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

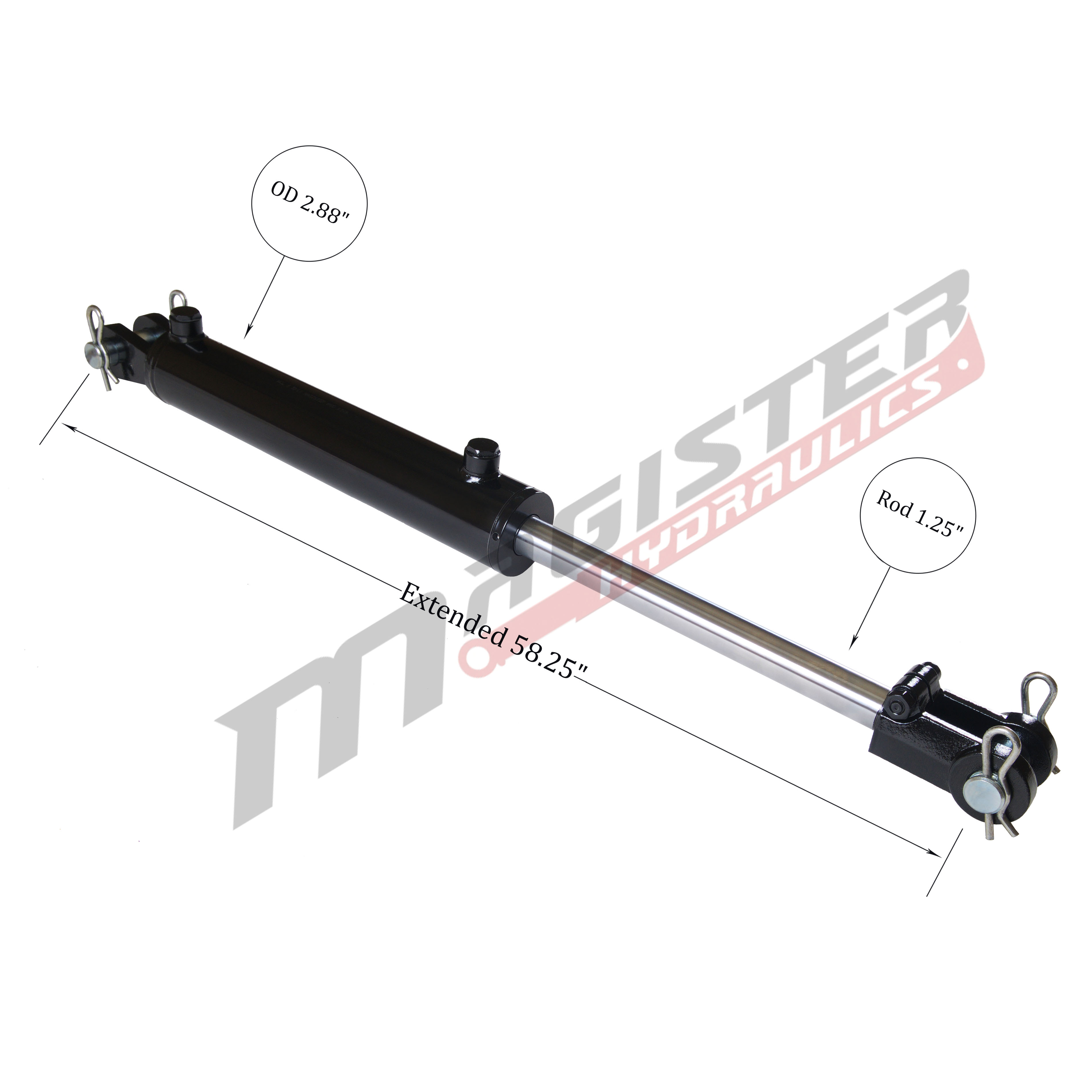

Extended : 58.25 in

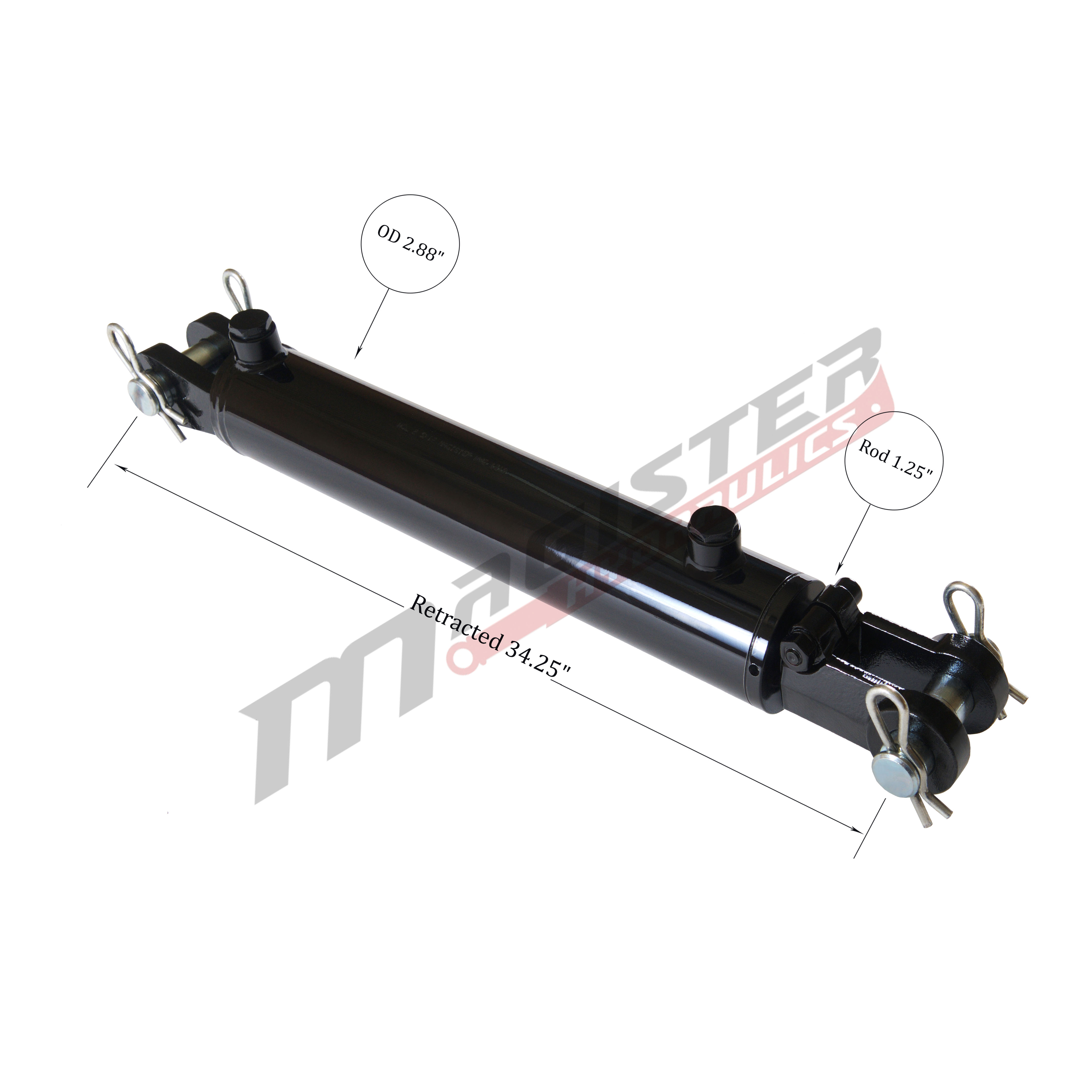

Retracted : 34.25 in
Overall length : 36.25 in
Pressure : 3500 PSI
Column Load : 7,900 LBs
Oil Volume : 2.04 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Clevis
Action :
  • Double Acting
  • Weight : 33 LBs
    GTIN : 850597006486
    SKU: WCL 2.5x24 Categories: ,

    Volume discounts

    1+ PRICE EA
    $219.30
    4+ PRICE EA -5%
    $208.34
    8+ PRICE EA -10%
    $197.37
    In stock

    32 in stock

    Description

    • 2.5″ bore x 24″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.
