3.5" bore x 30" stroke clevis hydraulic cylinder
$373.00
* Wholesale Discount is available for this product if you purchase 4 or more products.SKU: WCL 3.5x30
| OD : | 3.86" |
|---|---|
| Stroke : | 30 inch |
| Rod : | 1.75" |
| Port Size : | SAE 8 |
| Pin : | 1" |

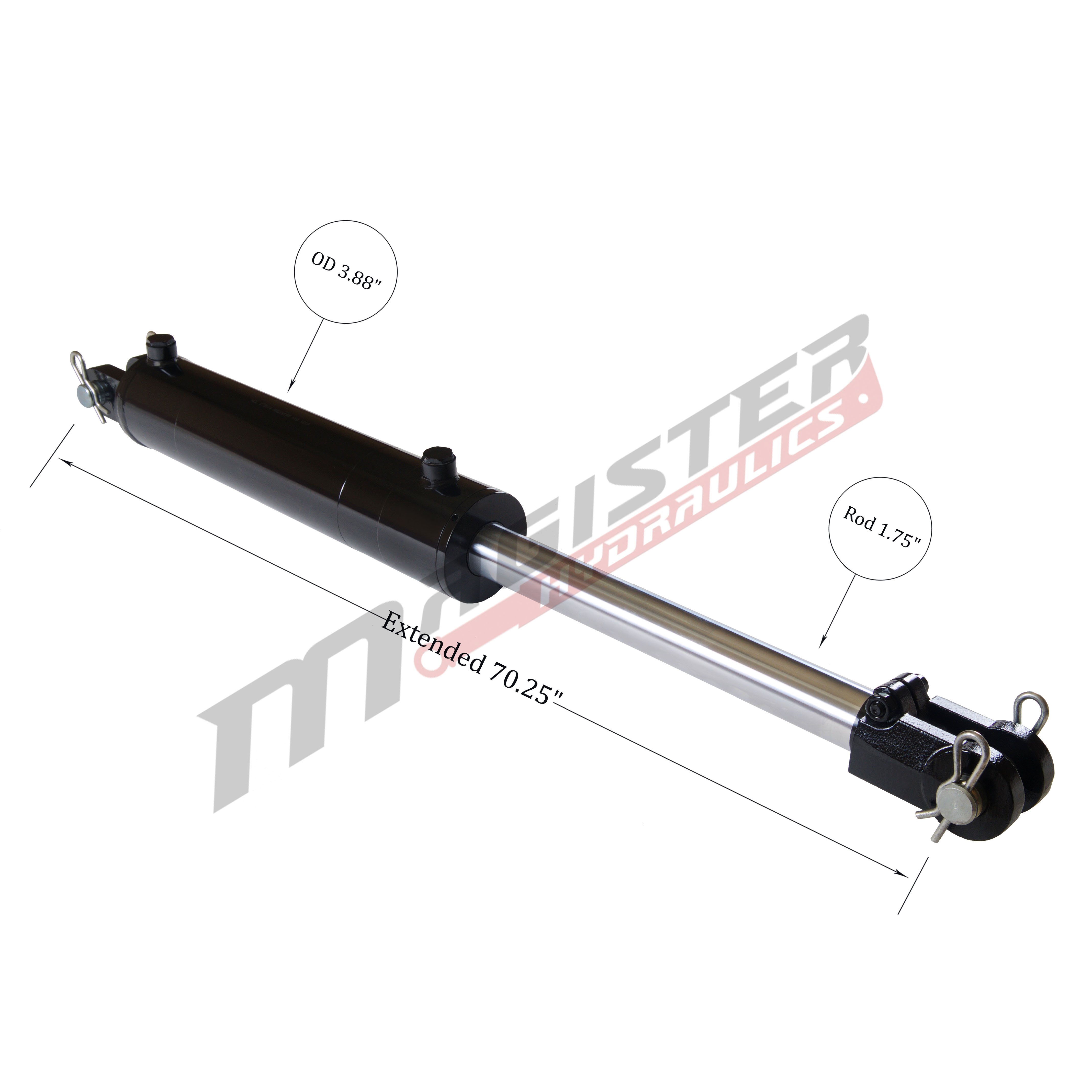

| Extended : | 70.25" |

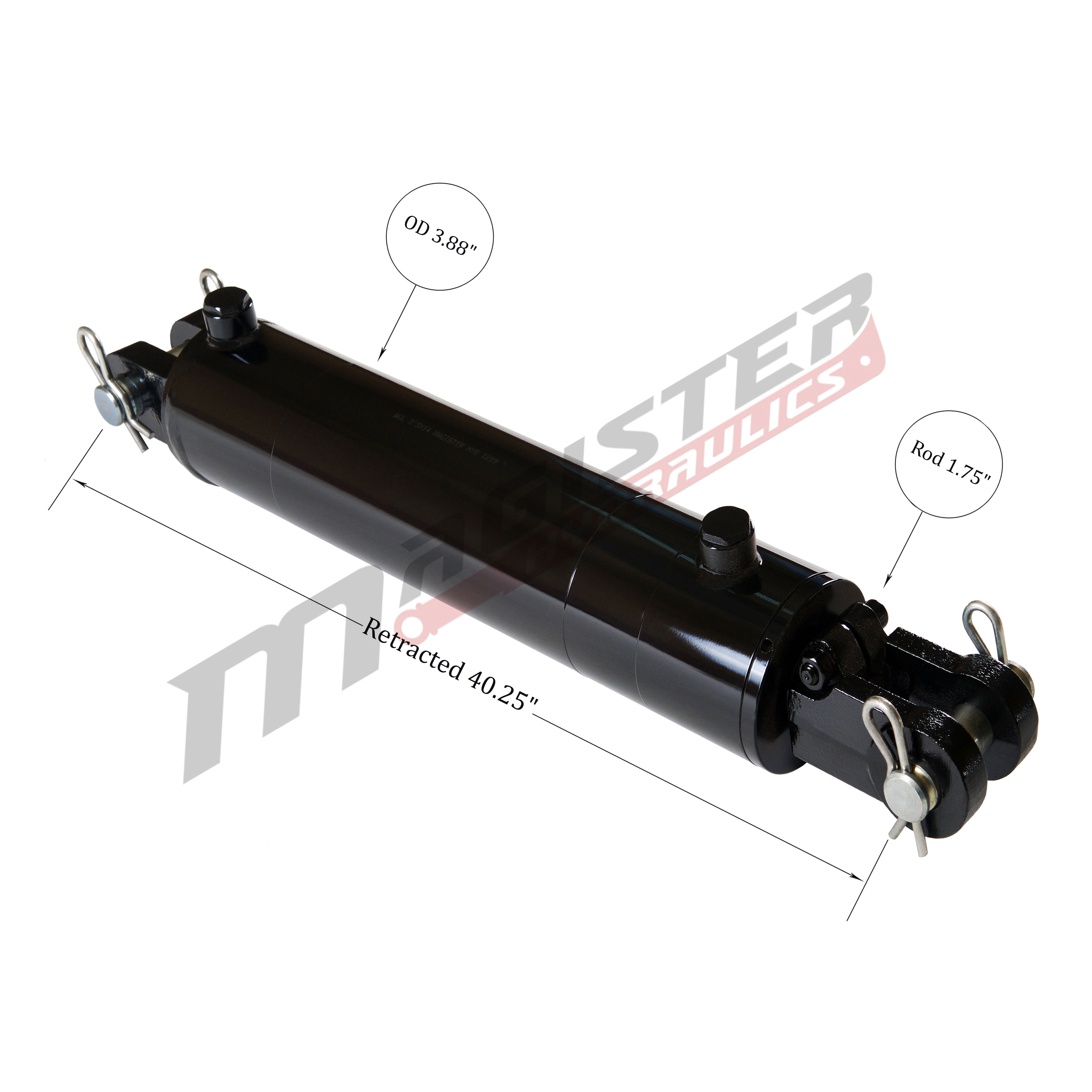

| Retracted : | 40.25" |
| Overall length : | 42.25" |
| Pressure : | 3500 PSI |
| Column Load (LBs) : | 20,000 |
| Oil Volume (quarts) : | 5 |
| Brand : | Magister Hydraulics |
| GTIN : | 850597006912 |
1+
PRICE EA
$373.00
4+
PRICE EA -5%
$354.35
10+
PRICE EA -10%
$335.70
In stock
17 in stock
DESCRIPTION

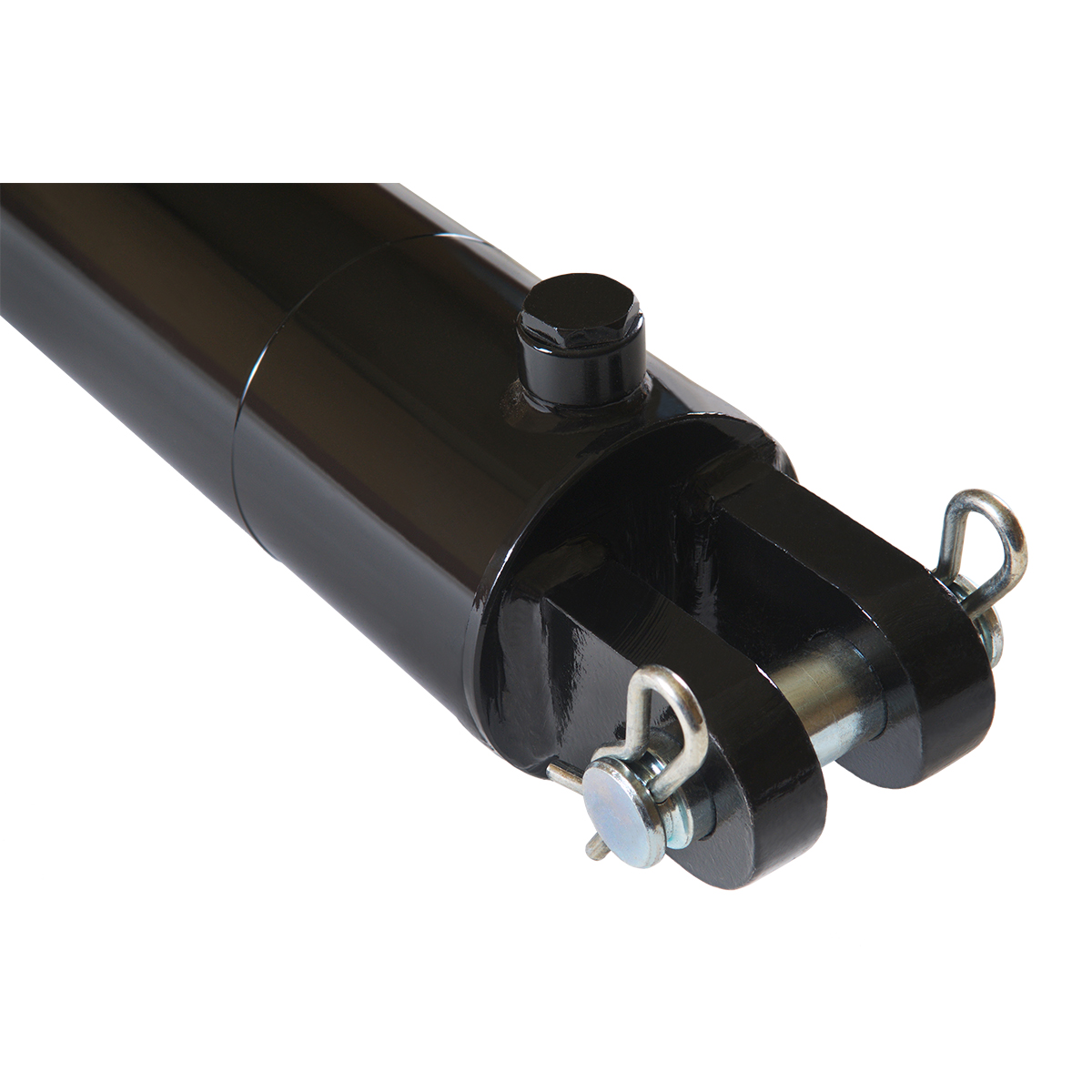

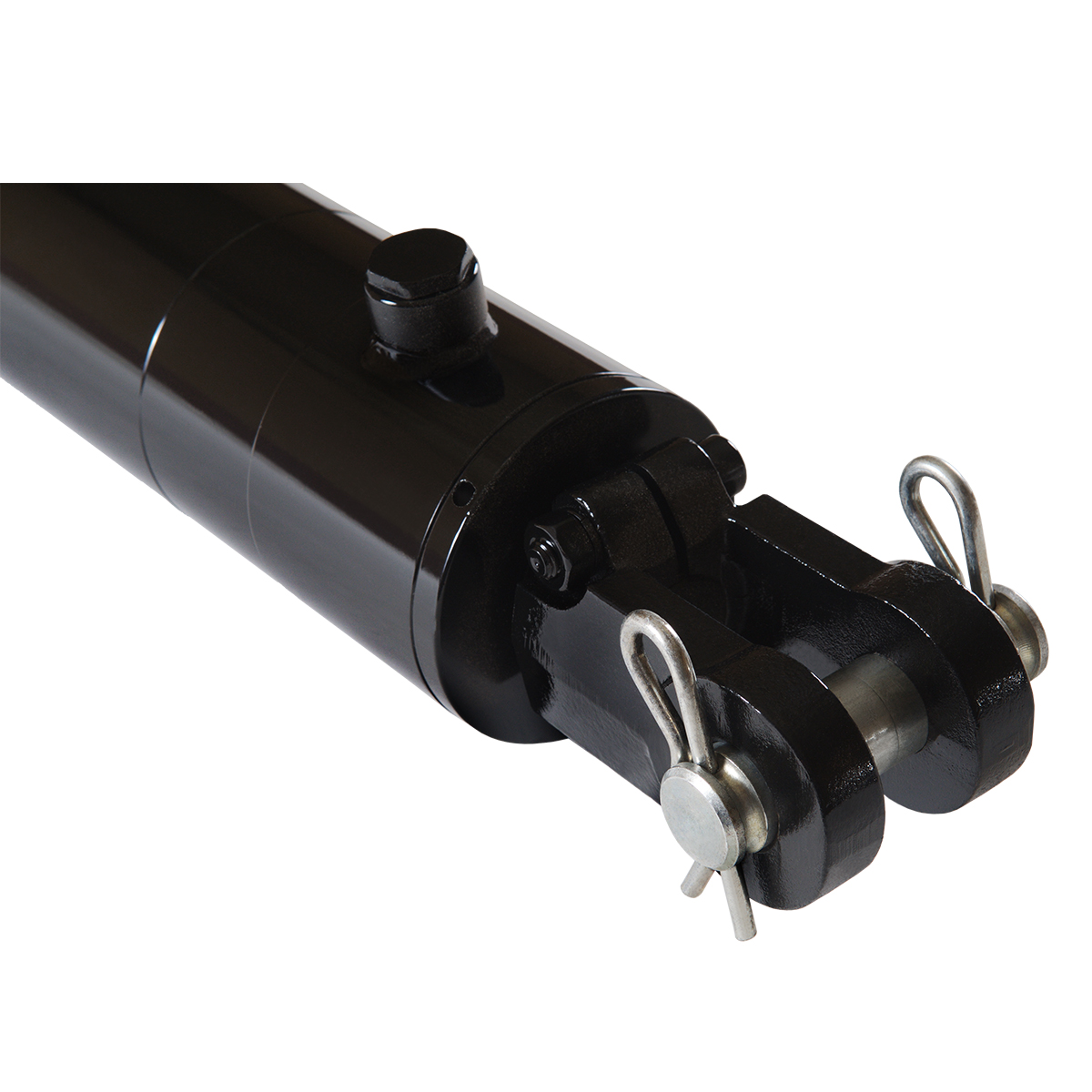

- 3.5″ bore x 30″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
- Applications:Â Welded Double Acting Hydraulic Cylinder.
- Color:Â Black.
FREE SHIPPING
We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
