3.5" bore x 20" stroke clevis hydraulic cylinder

Name: 3.5" bore x 20" stroke clevis hydraulic cylinder
Brand: Magister Hydraulics
SKU: WCL 3.5x20
Price: 337.00 USD
Availability: InStock
Rating: 5 (10 reviews)

$337.00

Pay in 4 interest-free payments of $84.25

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WCL 3.5x20

Product SKU	Maxim part number	Chief part number	Prince-Wolverine part number	Prince-Magnum part number	Eagle part number
WCL 3.5x20	288448	287051	WWCL3520-S	PC3520CL	HTG3520-ORB

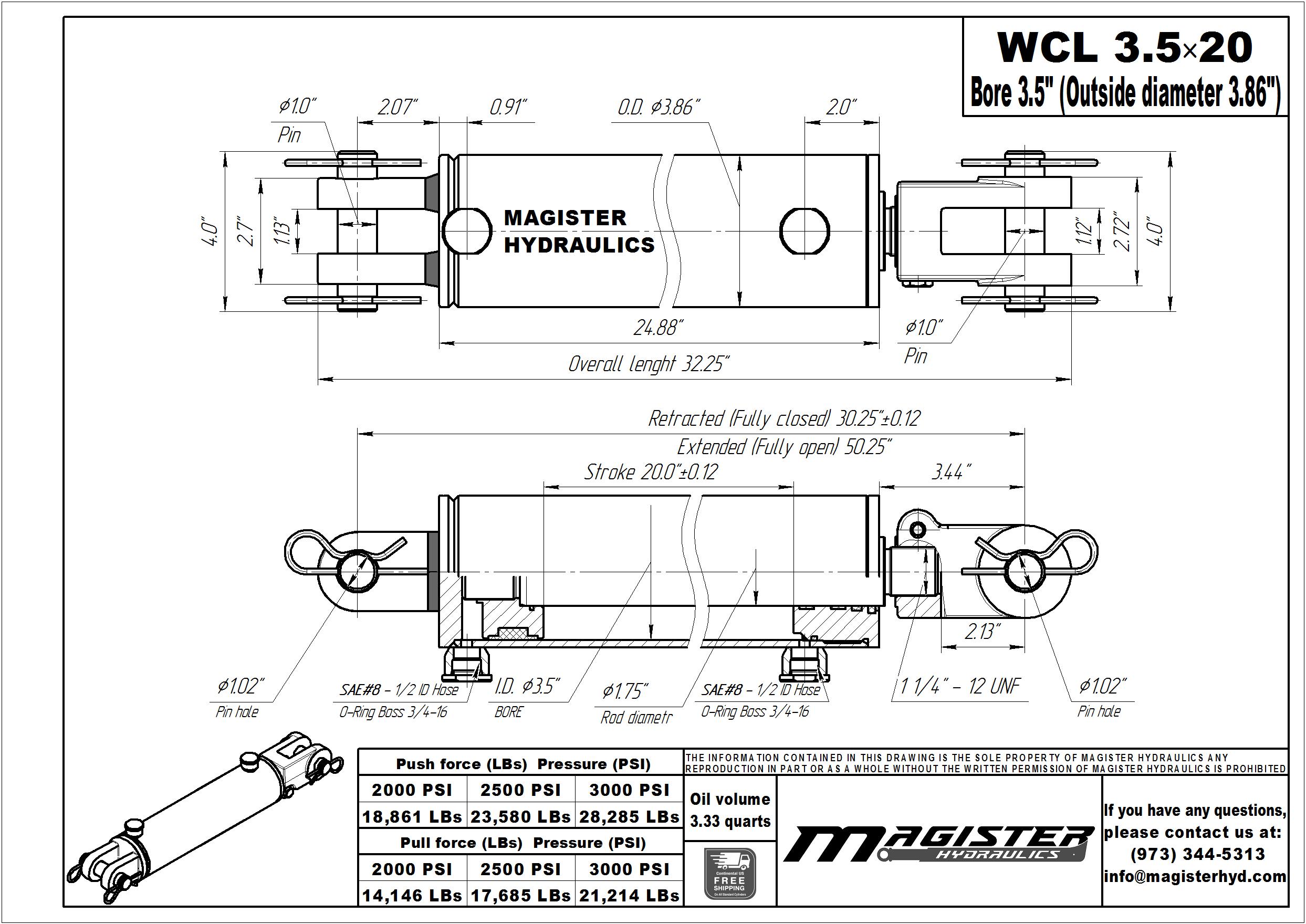

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	3.5 in
Outer Dia. (⌀) :	3.86 in
Stroke :	20 in
Rod Dia. (⌀) :	1.75 in
Port Size :	SAE 8
Pin Dia. (⌀) :	1 in

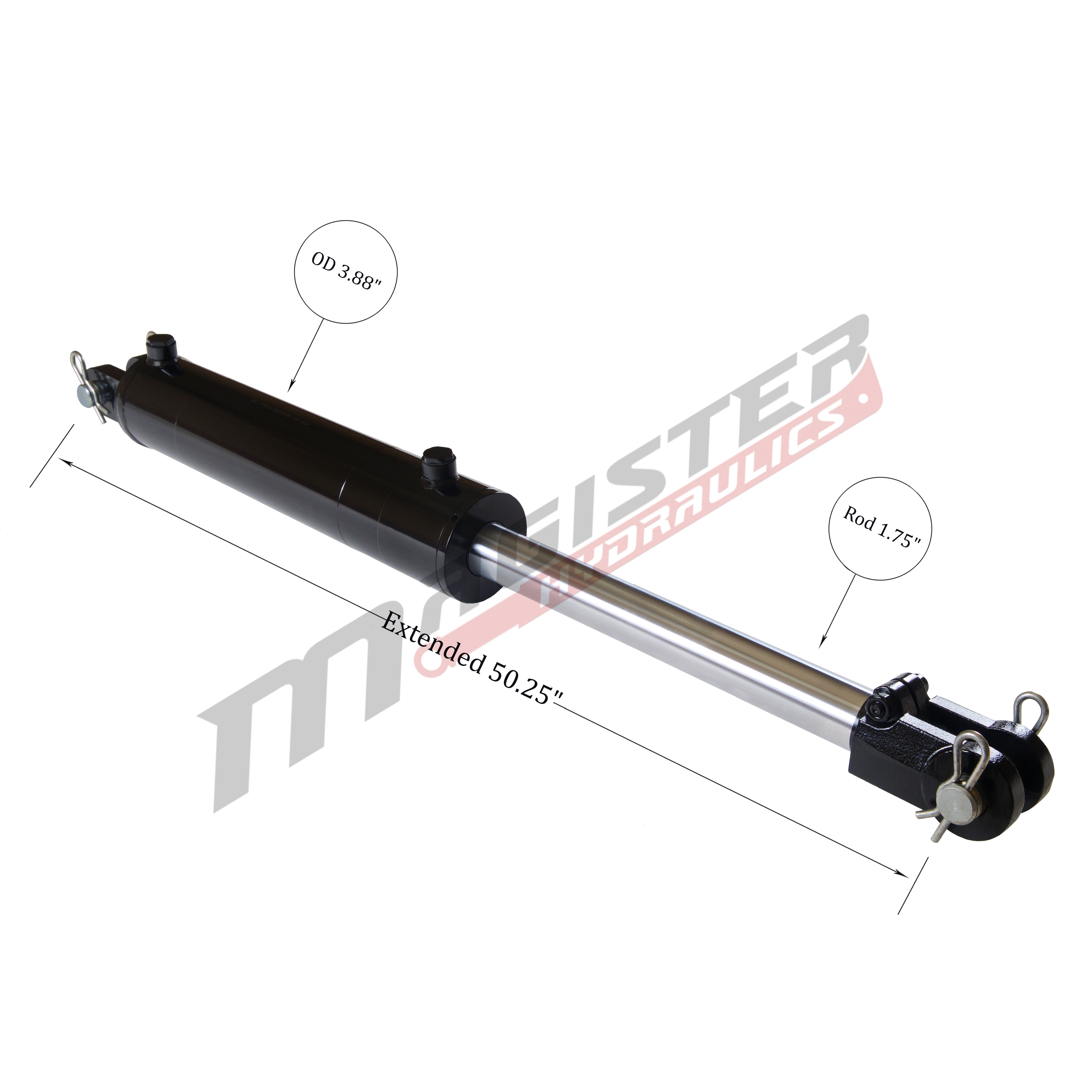

Extended :	50.25 in

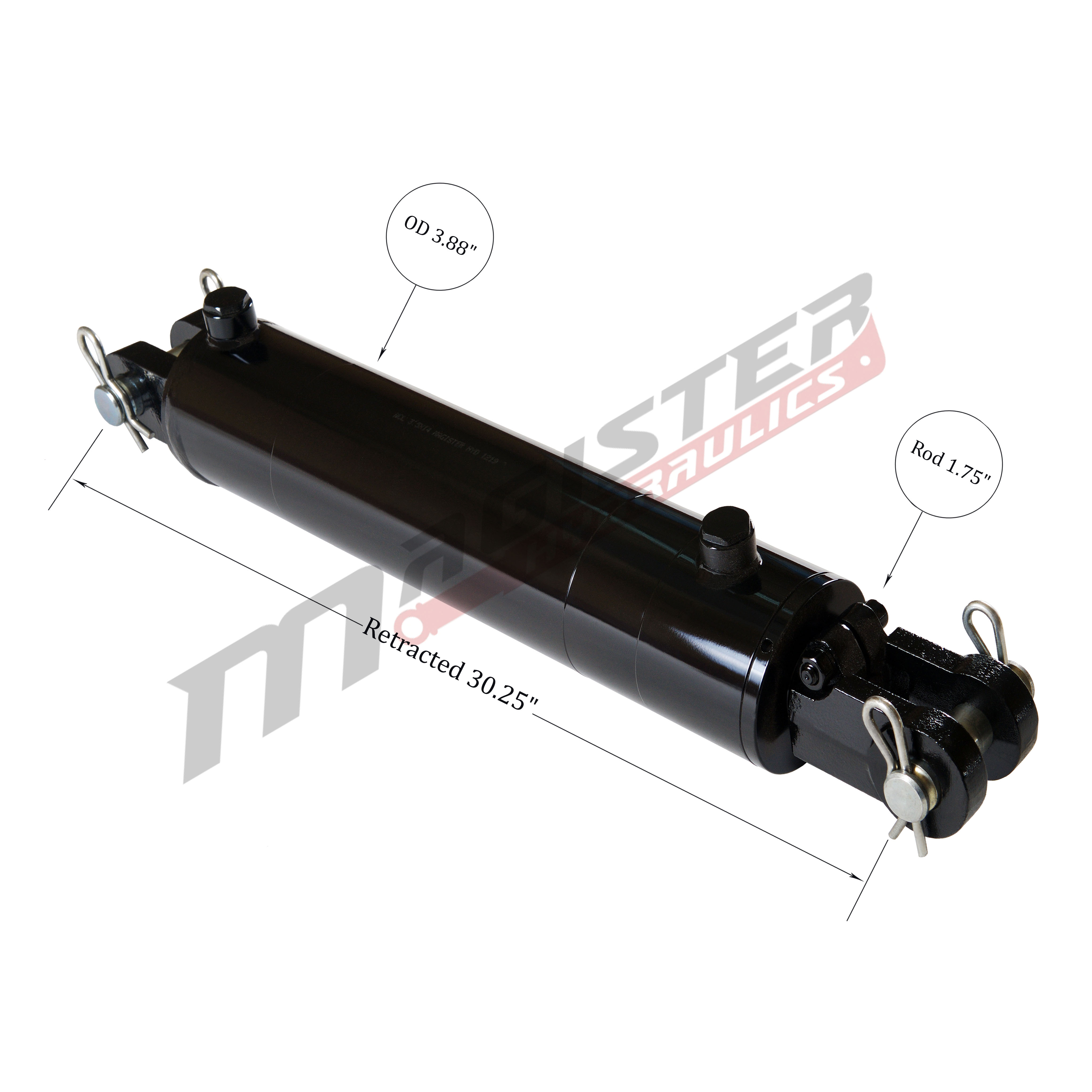

Retracted :	30.25 in
Overall length :	32.25 in
Pressure :	3500 PSI
Column Load :	28,800 LBs
Oil Volume :	3.33 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Clevis
Action :	Double Acting
Weight :	50 LBs
GTIN :	850597006615

SKU: WCL 3.5x20 Categories: 3.5" Bore Clevis, Hydraulic Cylinders

Volume discounts

4+ PRICE EA -5%

$320.15

8+ PRICE EA -10%

$303.30

In stock

39 in stock

Description

Experience unmatched power and precision with our high-performance Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 3.5-inch bore and 20-inch stroke with clevis ends and 3500 PSI. This cylinder is a best option for heavy-duty hydraulics. Perfect fit to automotive hydraulic applications (vehicle lifts, dump trucks, towing and recovery), construction equipment (excavators, loaders, bulldozers), agricultural machinery (tractors, combine harvesters, sprayers), forestry (tree harvesters, skidders), and mining equipment (drilling rigs, haul trucks).

Key Features:

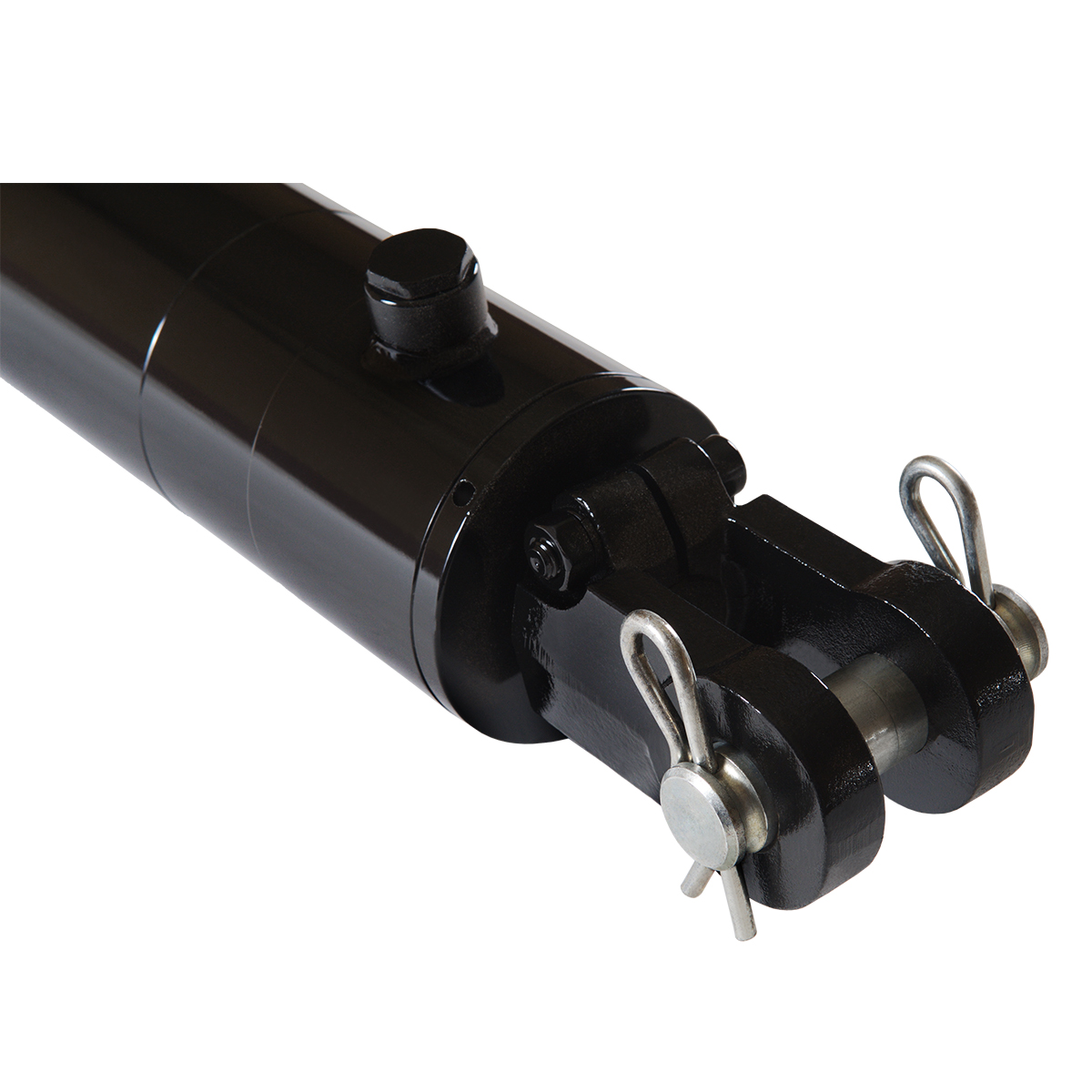

- – Extreme load capacity: Screw-on ductile iron clevis adjustable rod end, ⌀ 3.86″ honed cold-drawn tubing, ⌀ 1.75″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 20″ stroke.
- – Wide Range Hydraulic Applications: tractors, harvesters, farming machinery, ensuring reliable operation in harsh environments thanks to the usage of this clevis end cylinder.
- – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
- – High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
- – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
- – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
- – Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
- – 2-year warranty
- – Same Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
- – Made in Europe.

Before purchase, please take the proper measurements:

– The diameter of the bore (please specify inside or outside measurement).
– The diameter of the rod and pin holes.
– The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
– The width on each mounting end of the cylinder where the pins slide through.
