Sale!
3.5" bore x 14" stroke clevis hydraulic cylinder
$256.50
* Wholesale Discount is available for this product if you purchase 4 or more products.SKU: WCL 3.5x14

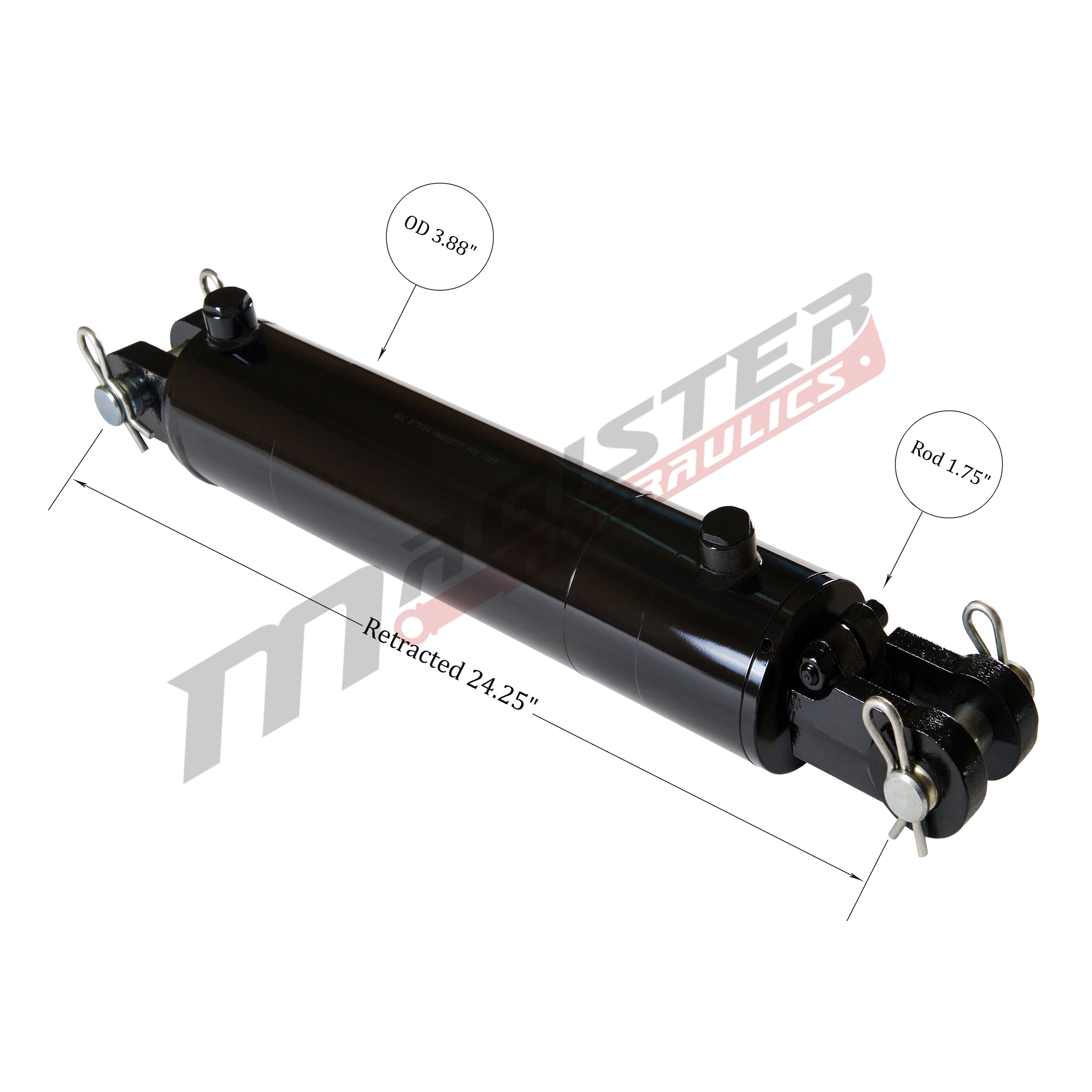

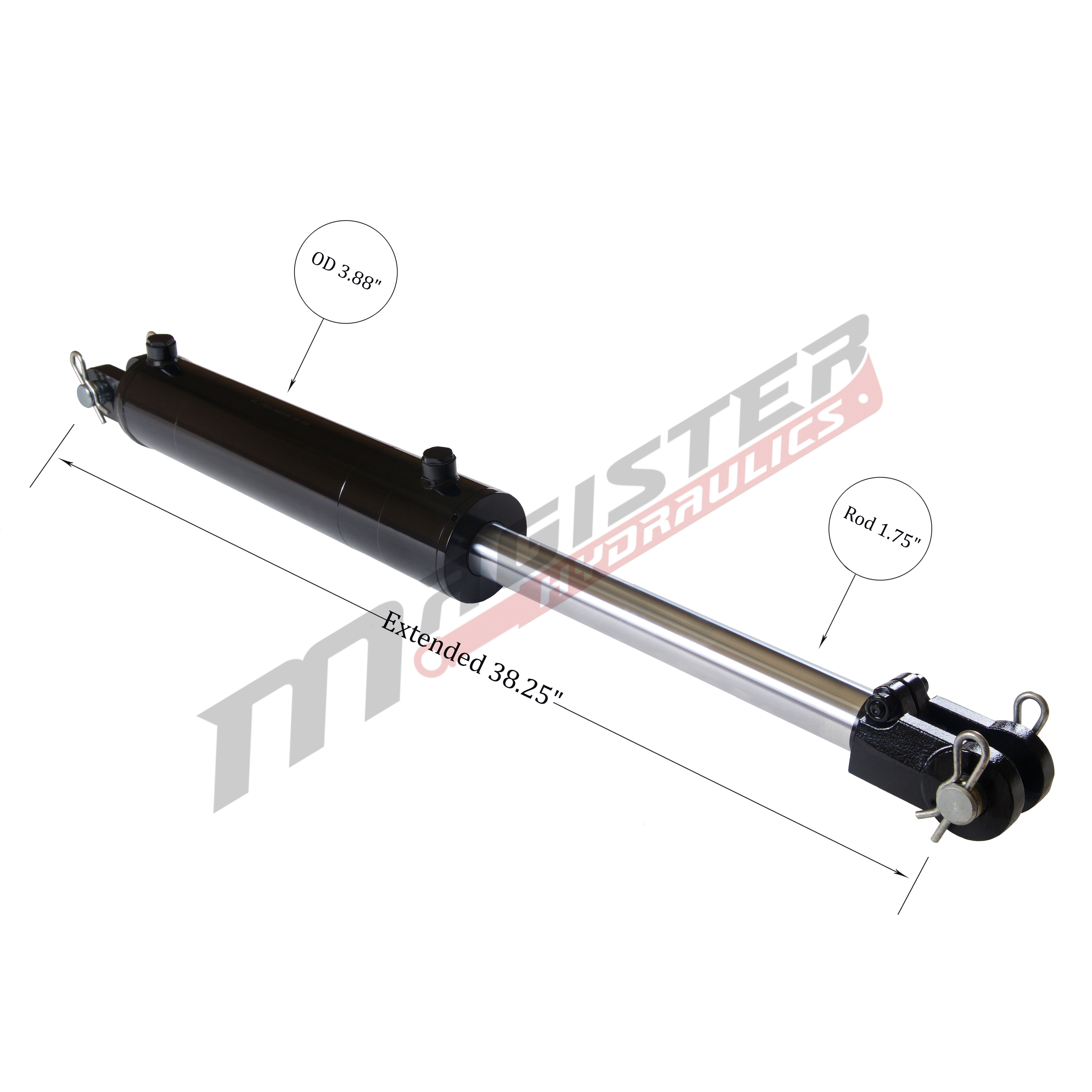

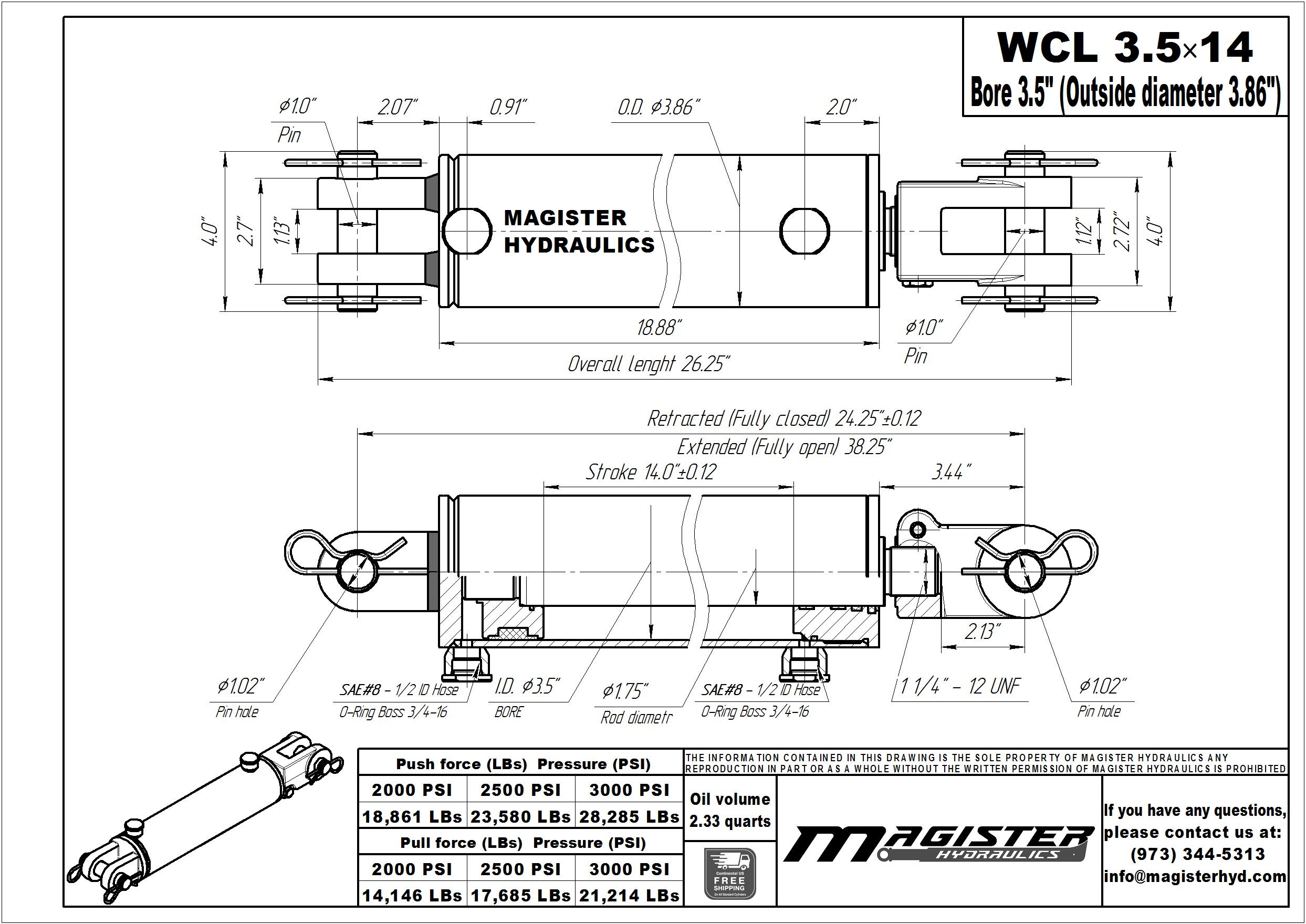

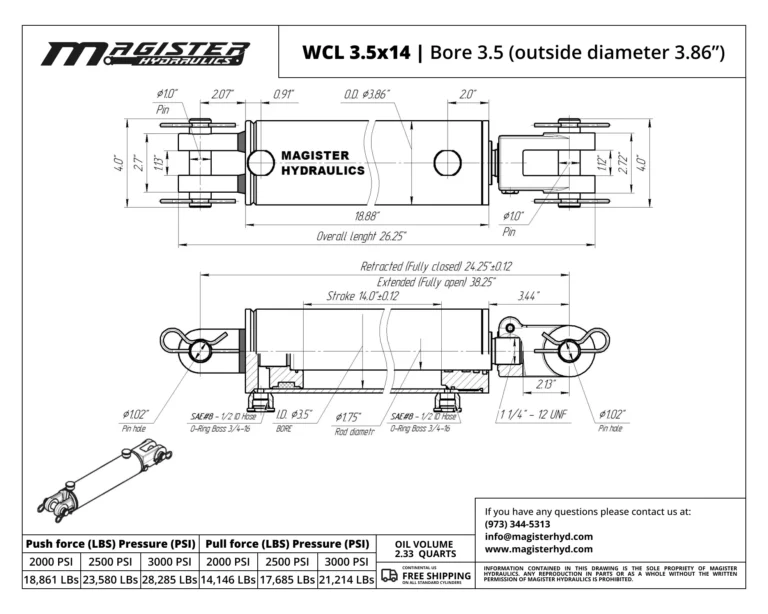

| Bore : | 3.5 inch | OD : | 3.86" | Stroke : | 14” Stroke Hydraulic Cylinders | Rod : | 1.75" | Port Size : | SAE 8 | Pin : | 1" | Extended : | 38.25" | Retracted : | 24.25" | Overall length : | 26.25" | Pressure : | 3500 PSI | Column Load (LBs) : | 28,800 | Oil Volume (quarts) : | 2.33 | Brand : | Magister Hydraulics |
|---|---|
| GTIN : | 850597006783 |
1+
PRICE EA
$256.50
4+
PRICE EA -5%
$243.68
10+
PRICE EA -10%
$230.85
In stock
11 in stock
DESCRIPTION

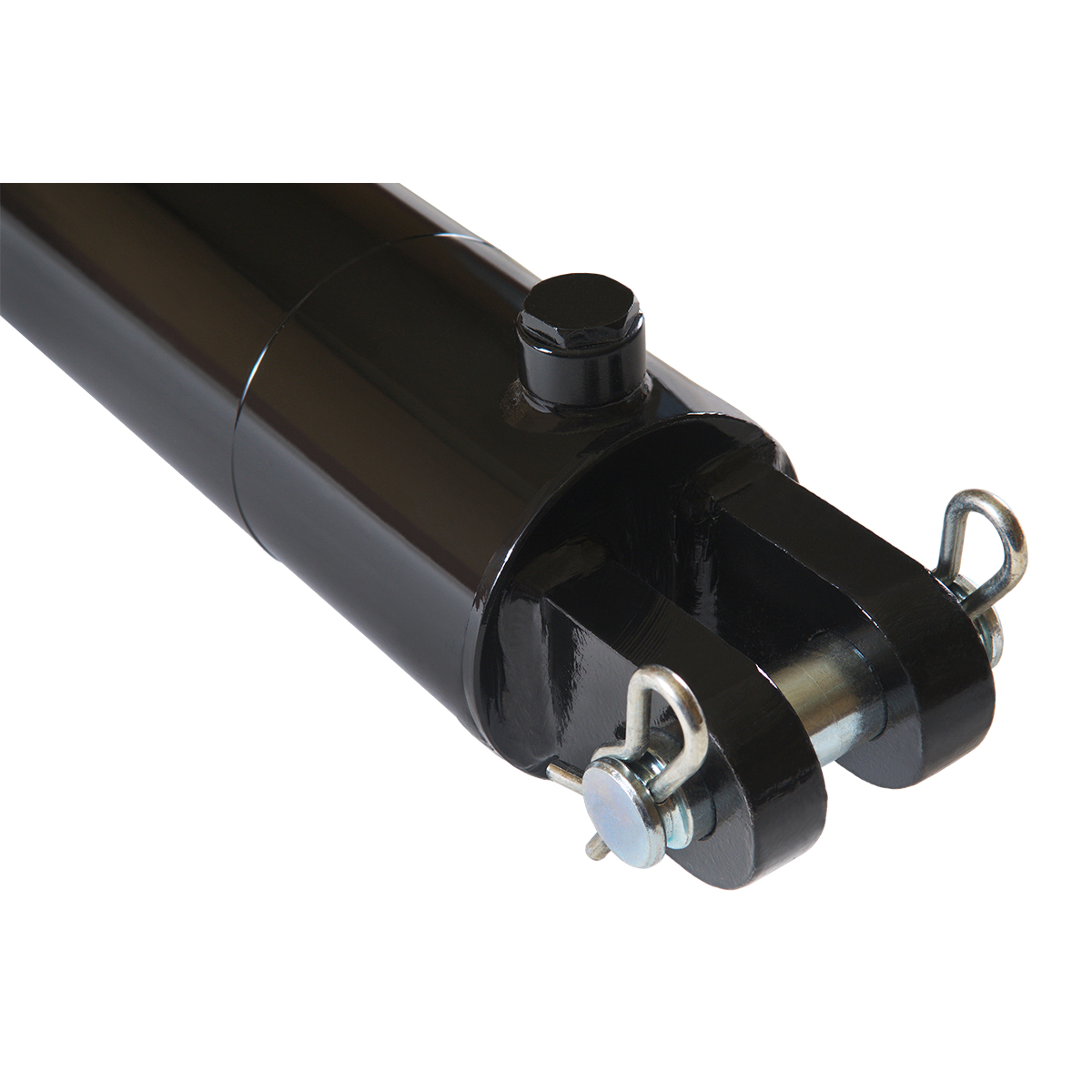

- 3.5″ bore x 14″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
FREE SHIPPING
We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
