2.5" bore x 30" stroke clevis hydraulic cylinder

$277.00

* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCL 2.5x30
Bore :
2.5 inch
OD :
2.87"
Stroke :
30 inch
Rod :
1.25"
Port Size :
SAE 8
Pin :
1"

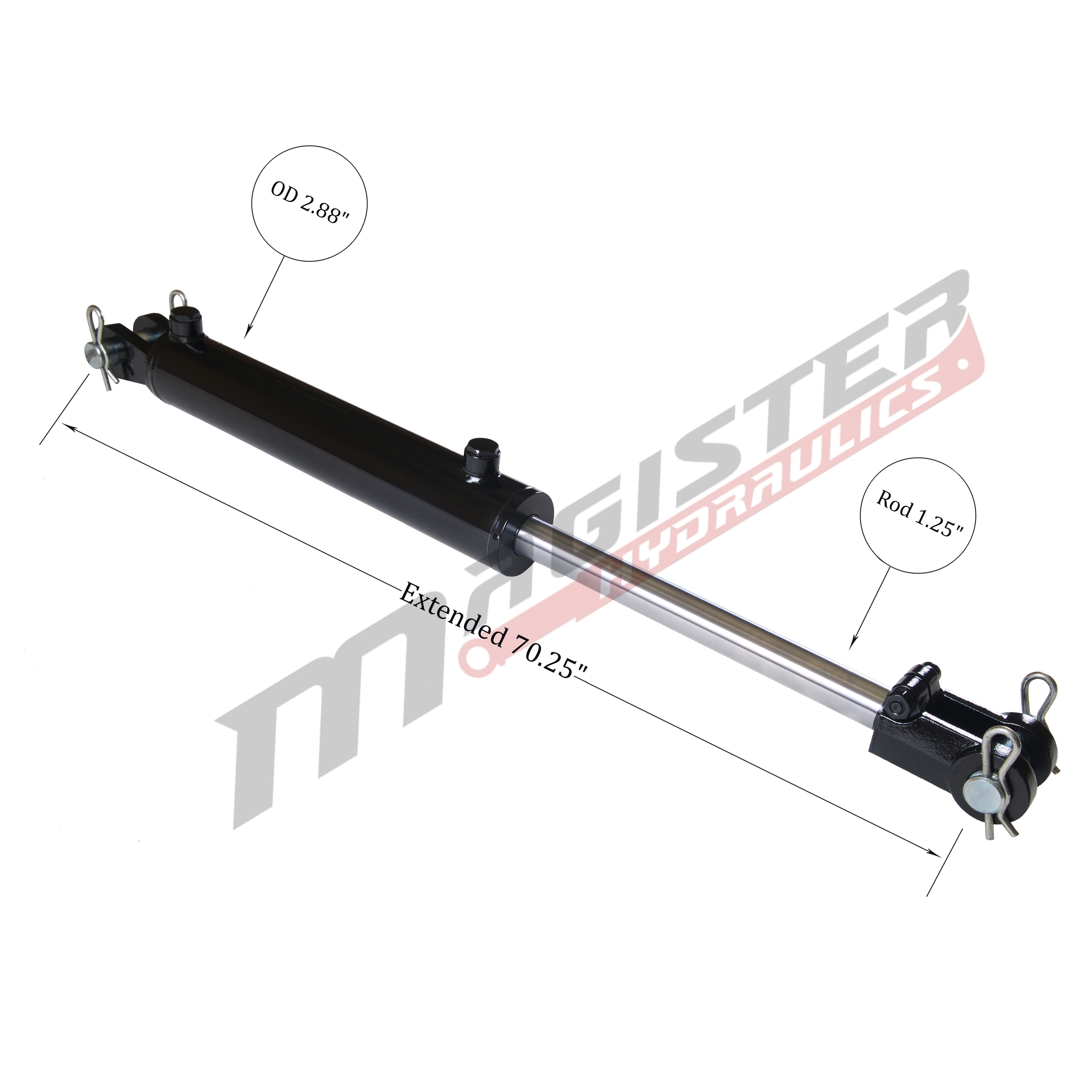

Extended :
70.25"

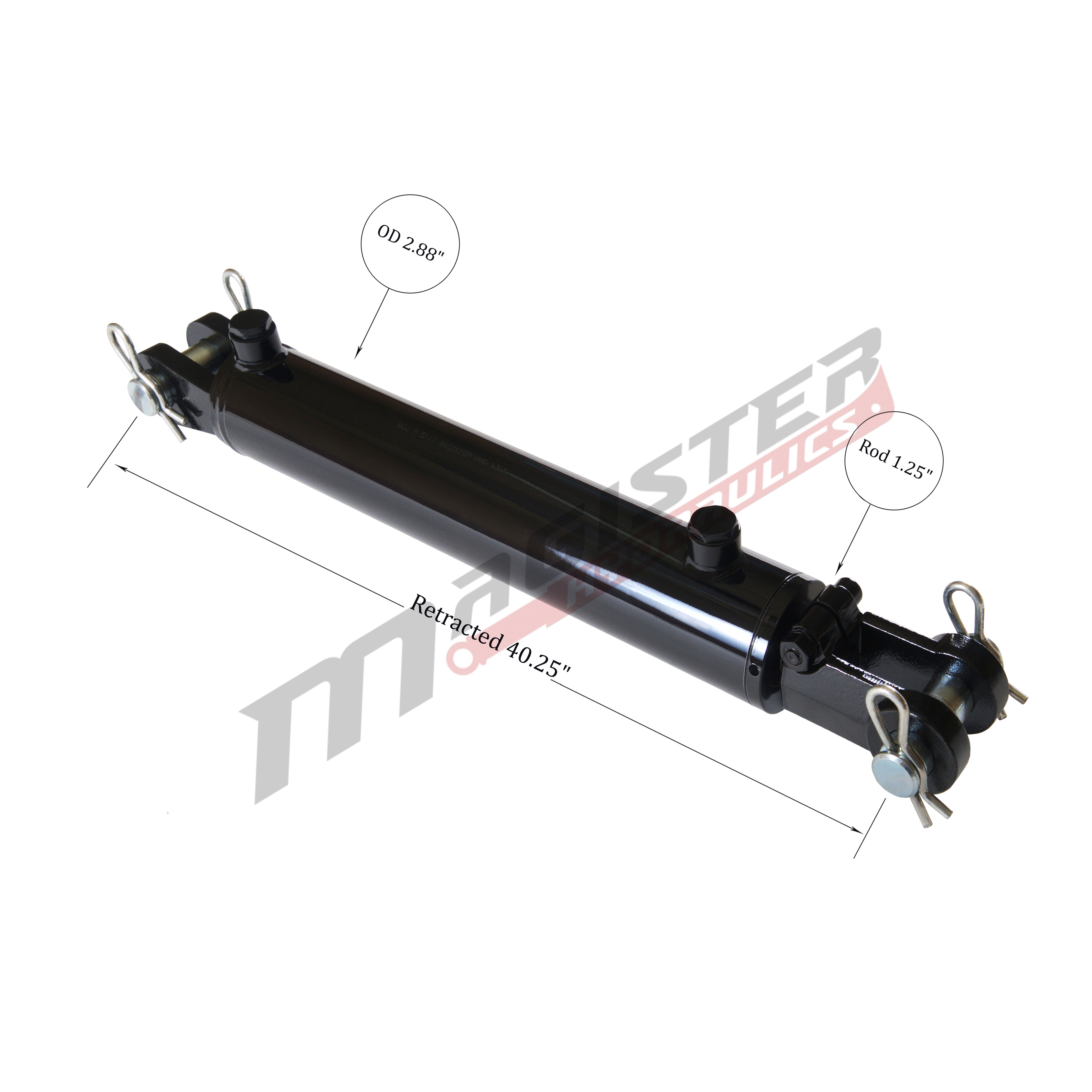

Retracted :
40.25"
Overall length :
42.25"
Pressure :
3500 PSI
Column Load (LBs) :
5,400
Oil Volume (quarts) :
2.55
Brand :
Magister Hydraulics
GTIN :
850597006875
1+ PRICE EA
$277.00
4+ PRICE EA -5%
$263.15
10+ PRICE EA -10%
$249.30
Out of stock
SKU: WCL 2.5x30 Categories: ,

Out of stock

DESCRIPTION

  • 2.5″ bore x 30″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
