2.5" bore x 24" stroke ag clevis hydraulic cylinder


Pay in 4 interest-free payments of $55.50
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WBC 2.5x24
OD :2.87"
Stroke :24"
Rod :1.125"
Port Size :SAE 8
Pin :1"

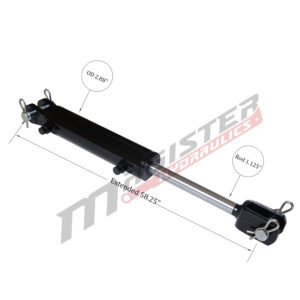

Extended :58.25"

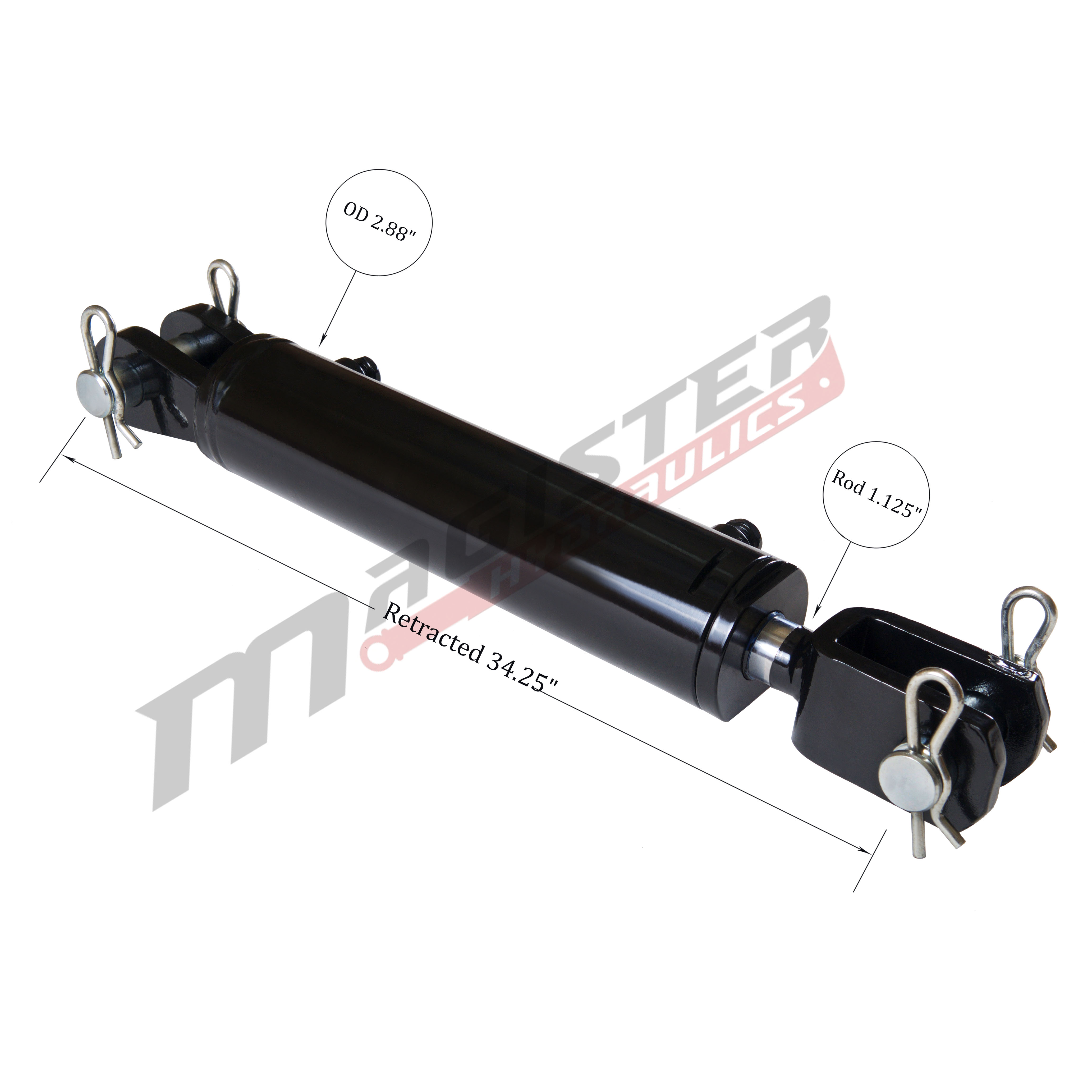

Retracted :34.25"
Overall length :36.25"
Pressure :2500 PSI
Column Load (LBs) :5,500
Oil Volume (quarts) :2.04
Brand :Magister Hydraulics
GTIN :850016509420
SKU: WBC 2.5x24 Categories: ,
4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

20 in stock


  • 2.5″ bore x 24″ stroke ag clevis hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel gland with wear rings for long life. Welded steel clevis ends, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Agriculture clevis cylinder is a perfect welded alternative of tie rod cylinder. Great replacement for farming equipment and others.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
