2.5" bore x 12" stroke ag clevis hydraulic cylinder
$181.00
Pay in 4 interest-free payments of $45.25SKU: WBC 2.5x12

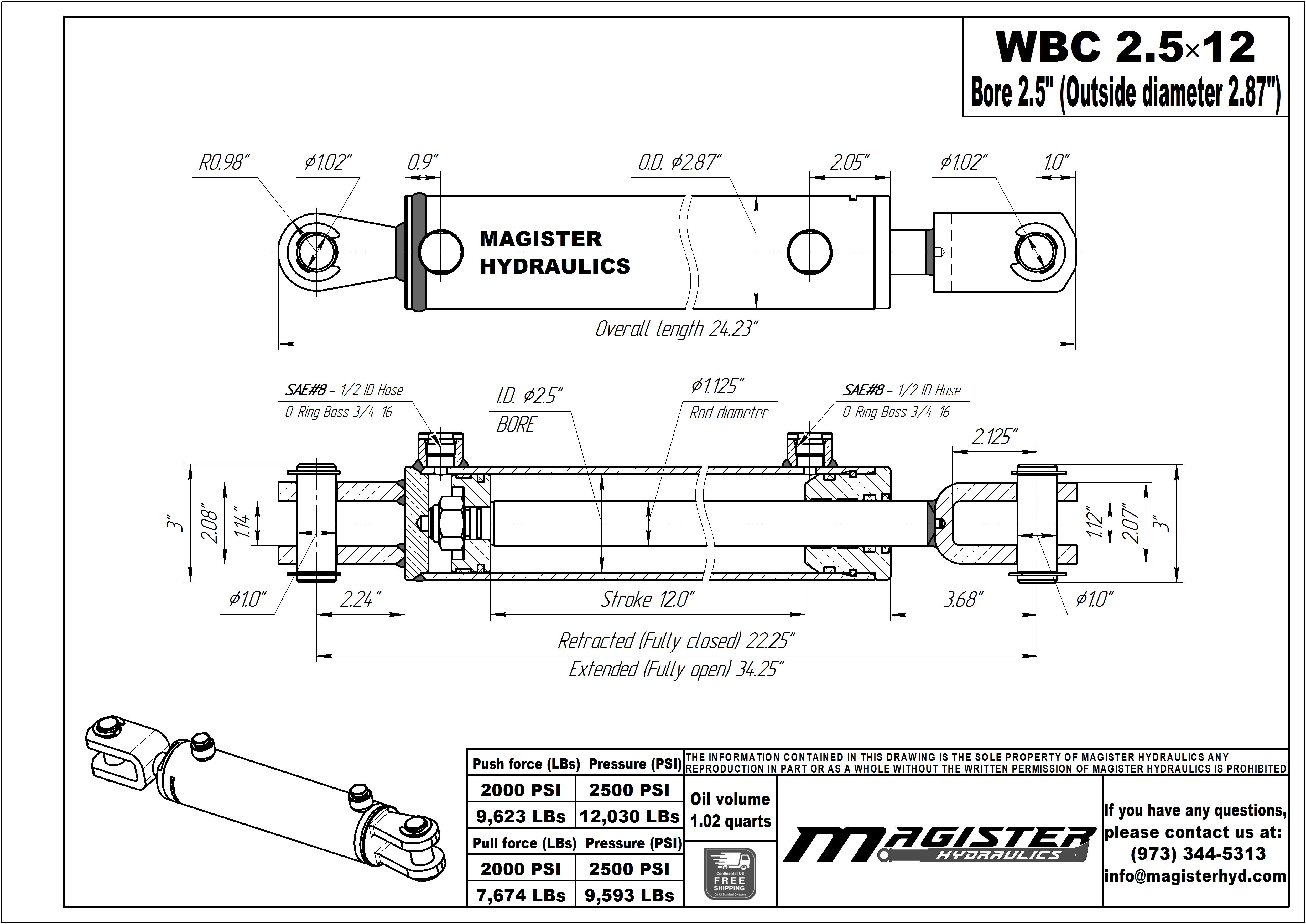

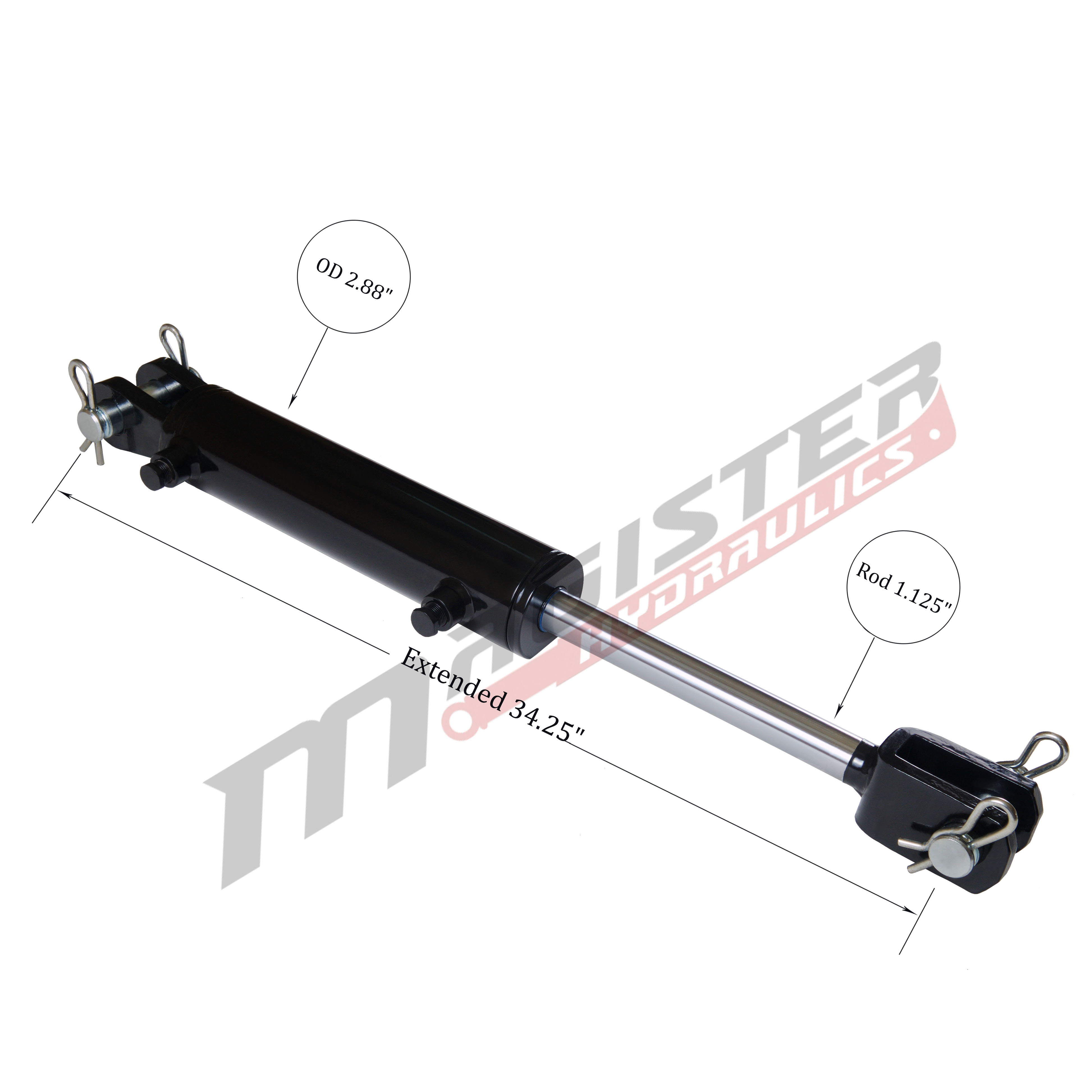

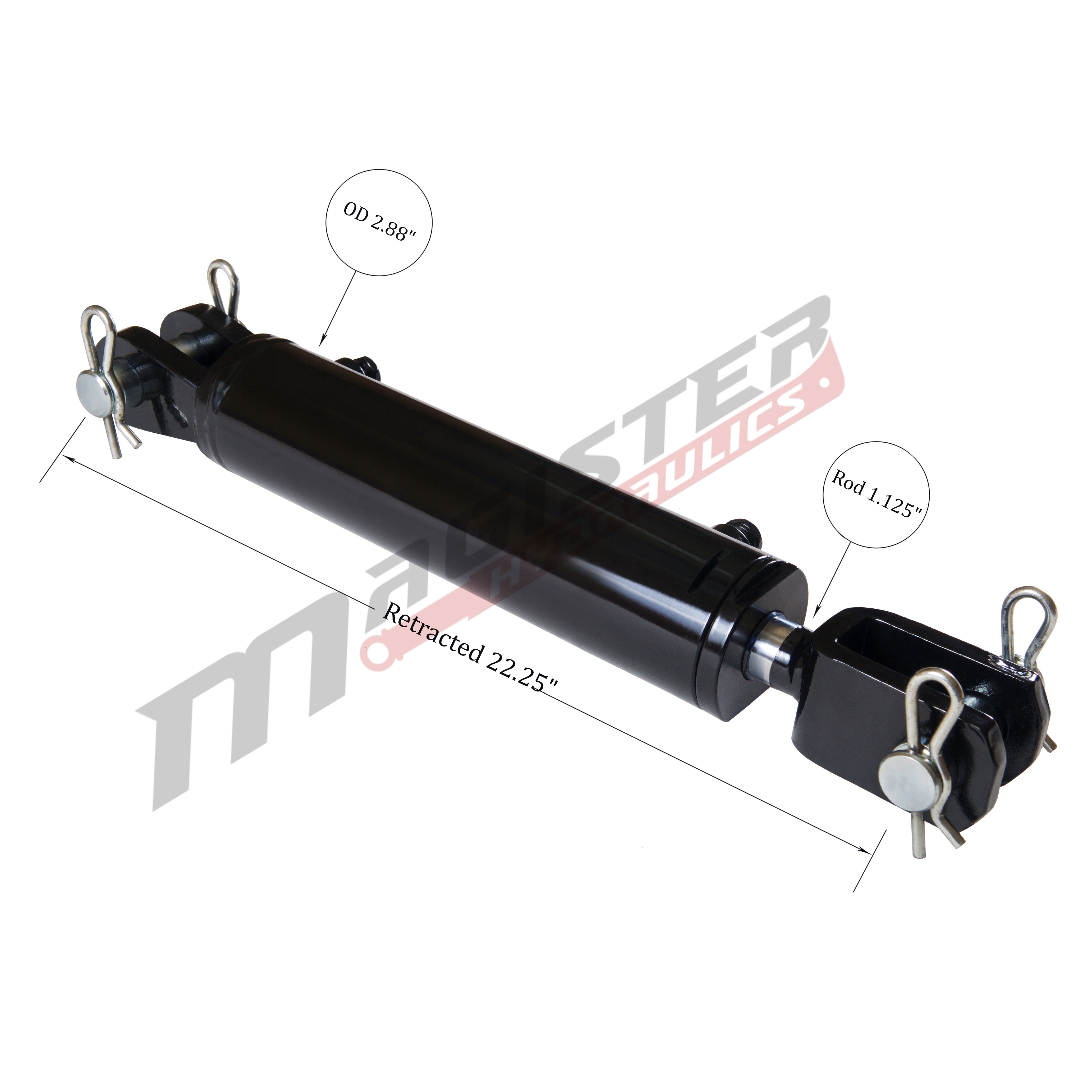

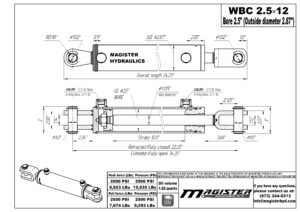

| Bore : | 2.5 in | Outer Dia. (⌀) : | 2.87 in | Stroke : | 12 in | Rod Dia. (⌀) : | 1.125 in | Port Size : | SAE 8 | Pin Dia. (⌀) : | 1 in | Extended : | 34.25 in | Retracted : | 22.25 in | Overall length : | 24.25 in | Pressure : | 2500 PSI | Column Load : | 12,270 LBs | Oil Volume : | 1.02 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Clevis | Action : | Double Acting | Weight : | 21 LBs |
|---|---|
| GTIN : | 850016509376 |
Volume discounts
1+ PRICE EA
$181.00
4+ PRICE EA -5%
$171.95
8+ PRICE EA -10%
$162.90
In stock
47 in stock
Description

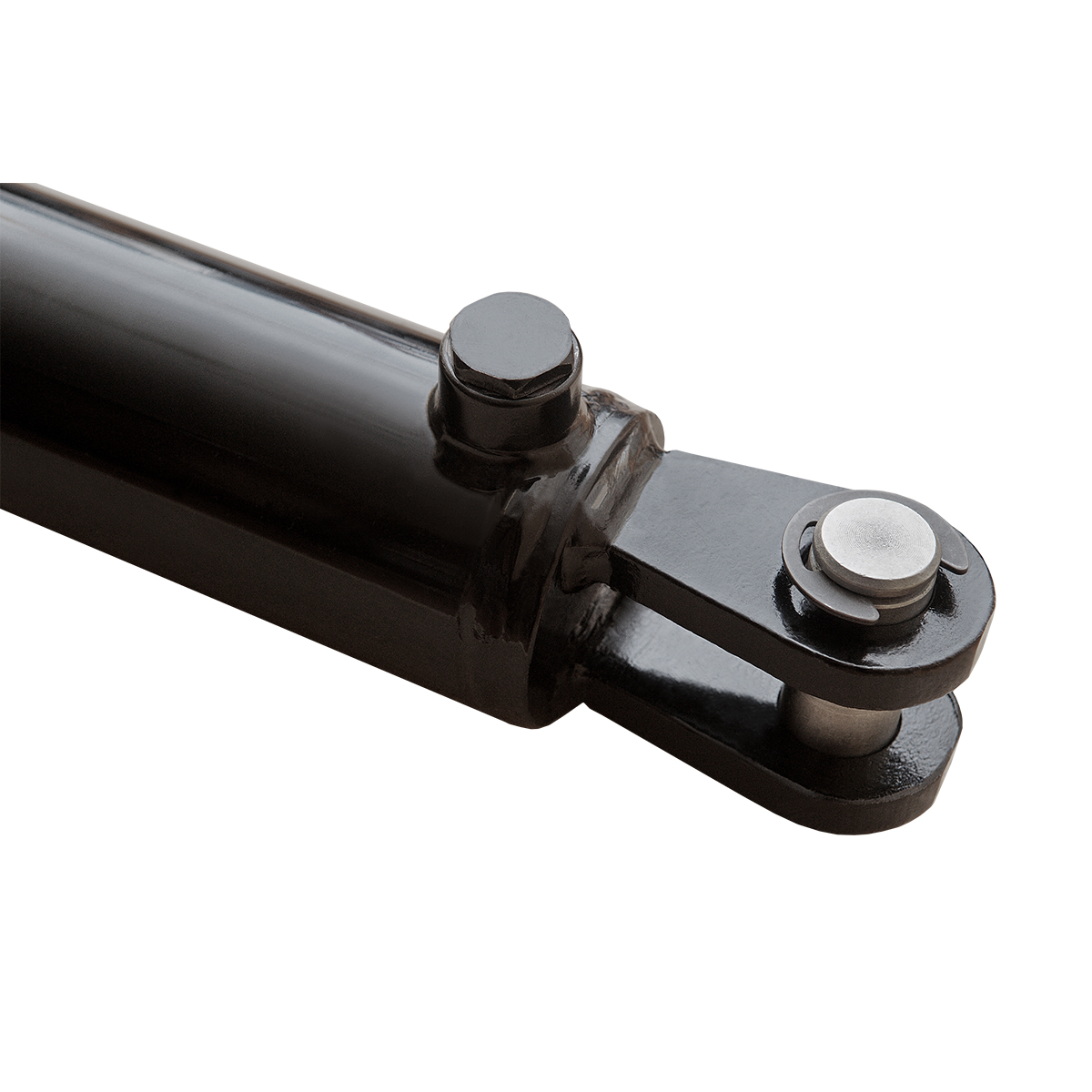

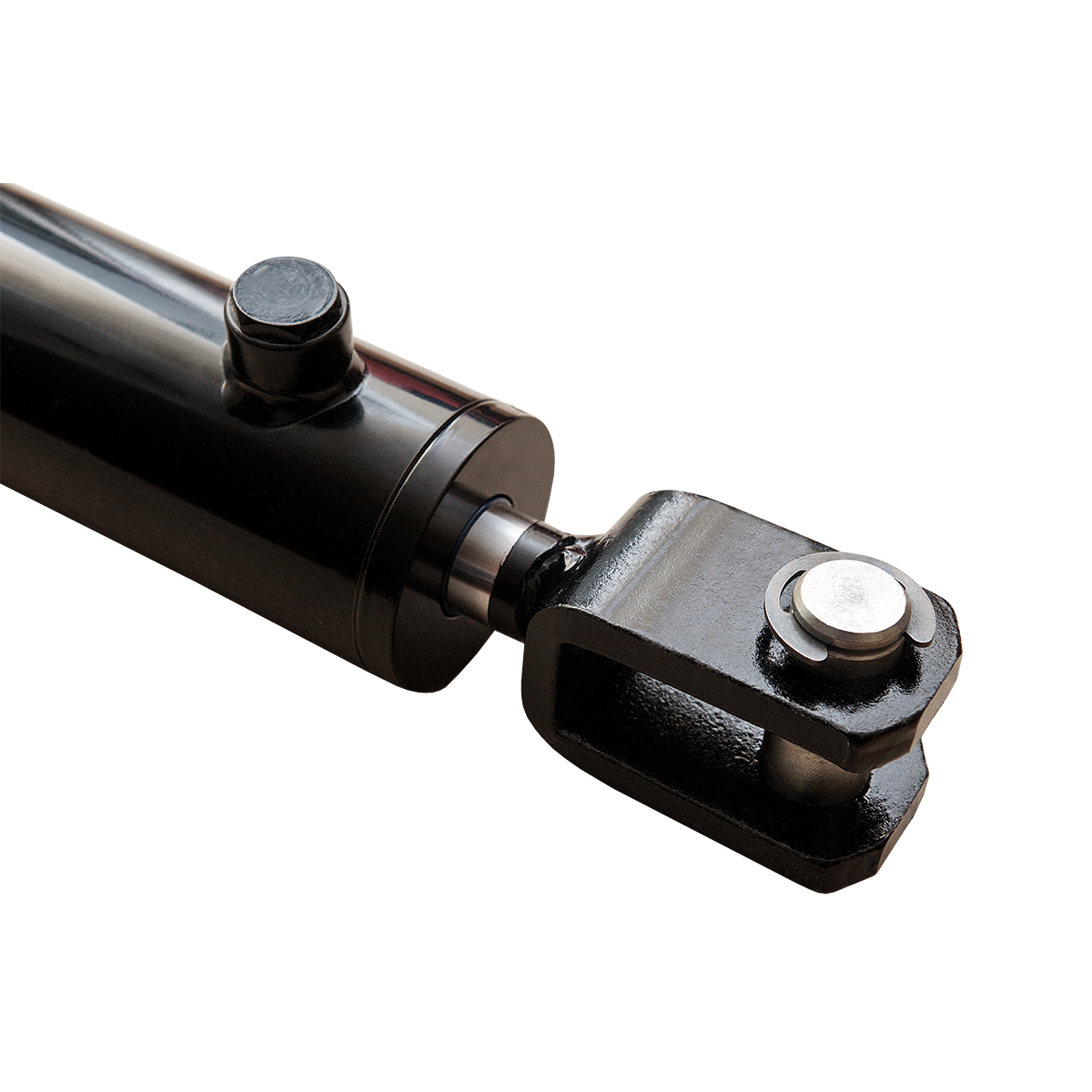

- 2.5″ bore x 12″ stroke ag clevis hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel gland with wear rings for long life. Welded steel clevis ends, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Agriculture clevis cylinder is a perfect welded alternative of tie rod cylinder. Great replacement for farming equipment and others.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Tariff-FREE cylinders.
Made in Europe.
