2.5" bore x 8" ASAE stroke ag clevis hydraulic cylinder

$169.00

Pay in 4 interest-free payments of $42.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WBC 2.5x8 ASAE
Bore : 2.5 in
Outer Dia. (⌀) : 2.87 in
Stroke : 8 in ASAE
Rod Dia. (⌀) : 1.125 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

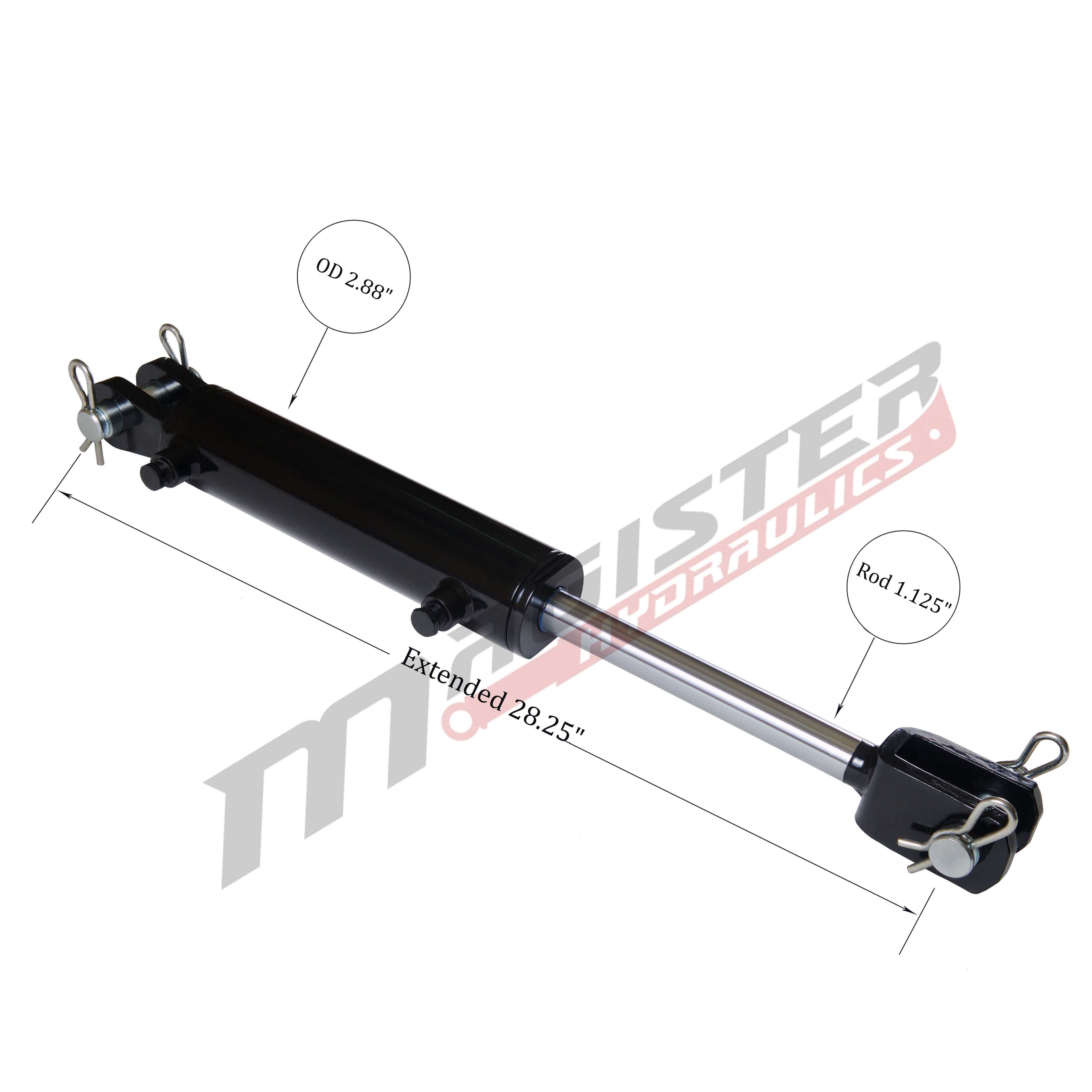

Extended : 28.25 in

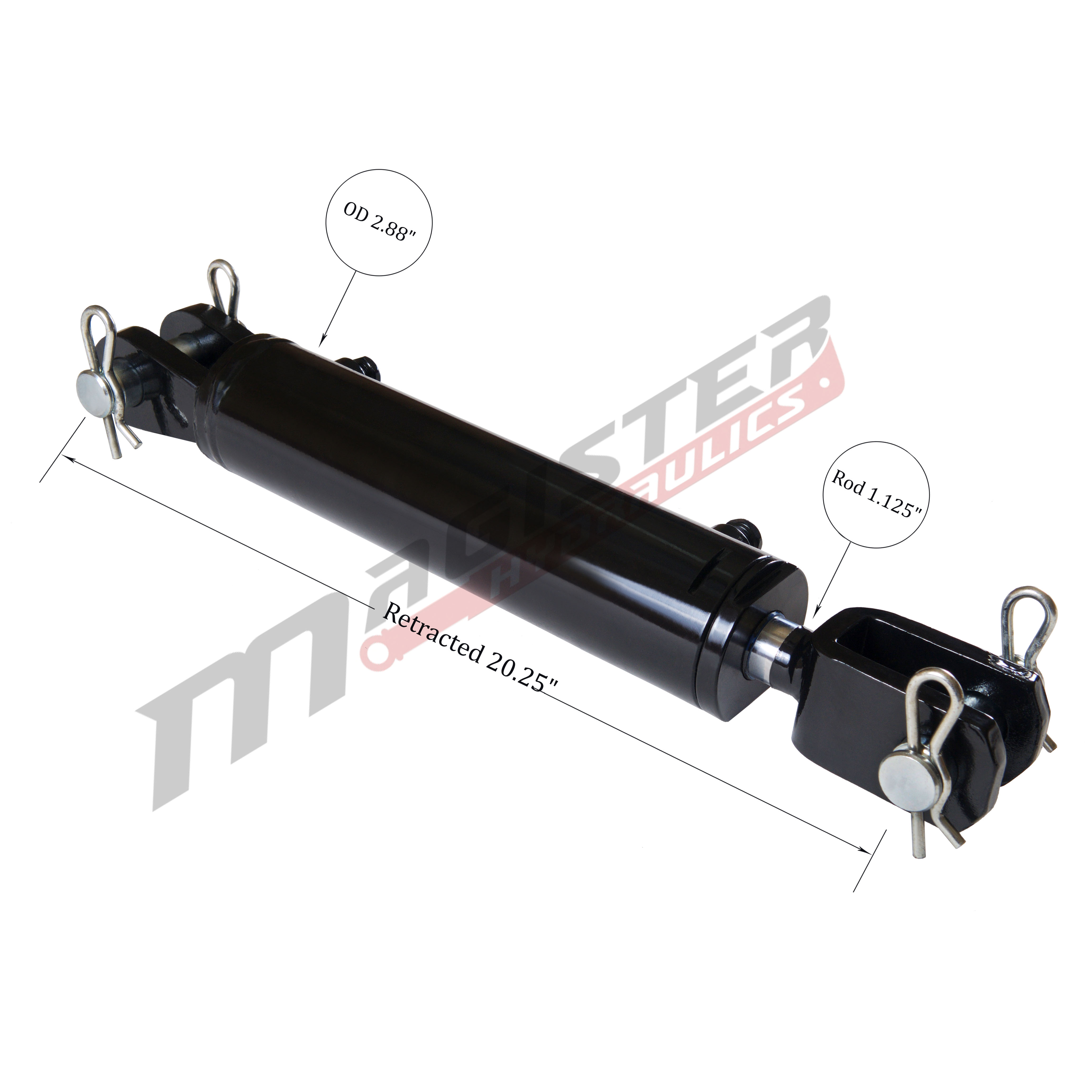

Retracted : 20.25 in
Overall length : 22.25 in
Pressure : 2500 PSI
Column Load : 12,270 LBs
Oil Volume : 0.68 QTs
Brand : Magister Hydraulics

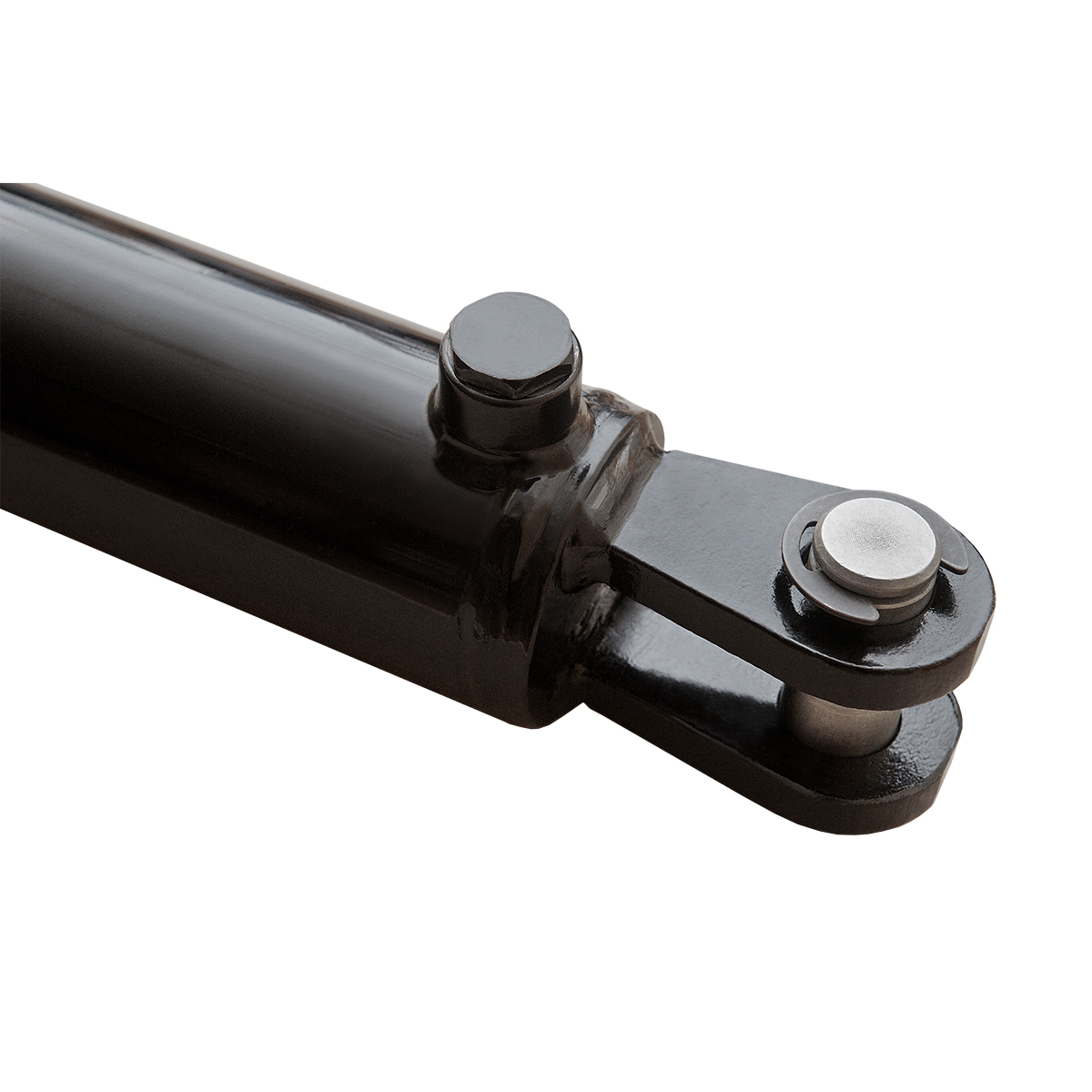

Design : Welded
Rod Type : Chrome Plated

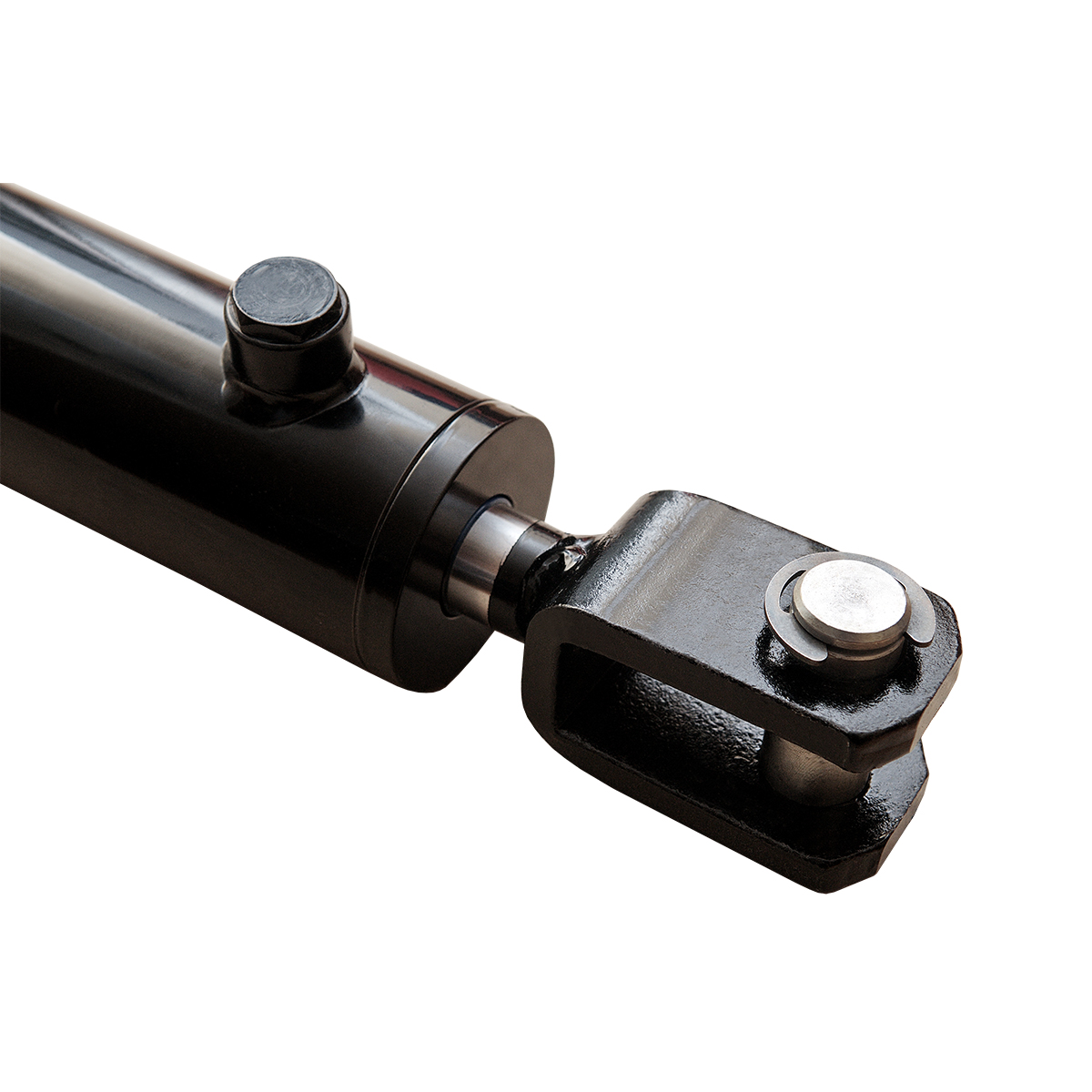

Rod End : Clevis
Action :
  • Double Acting
  • Weight : 18 LBs
    GTIN : 850016509352
    SKU: WBC 2.5x8 ASAE Categories: ,

    Volume discounts

    4+ PRICE EA -5%
    $160.55
    8+ PRICE EA -10%
    $152.10
    In stock

    4 in stock

    Description

    Experience unmatched power and precision with our high-performance Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 2.5-inch bore and 8-inch ASAE stroke with clevis ends and 2500 PSI. This cylinder is an optimal welded-type replacement for the tie rod cylinder. Ideal replacement for farming equipment and various other applications.

    Key Features:

      • – High load capacity: Welded steel clevis ends, ⌀ 2.87″ honed cold-drawn tubing, ⌀ 1.125″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 8″ stroke.
      • – Agricultural Equipment: Ideal for tractors, harvesters, and other farming machinery, ensuring reliable operation in tough conditions.
      • – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
      • – High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
      • – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
      • – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
      • – Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
      • – 2-year warranty
      • – Same Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
      • – Made in Europe.

    Before purchase, please take the proper measurements:

    • – The diameter of the bore (please specify inside or outside measurement).
    • – The diameter of the rod and pin holes.
    • – The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
    • – The width on each mounting end of the cylinder where the pins slide through.

    How to Measure a Hydraulic Cylinder
