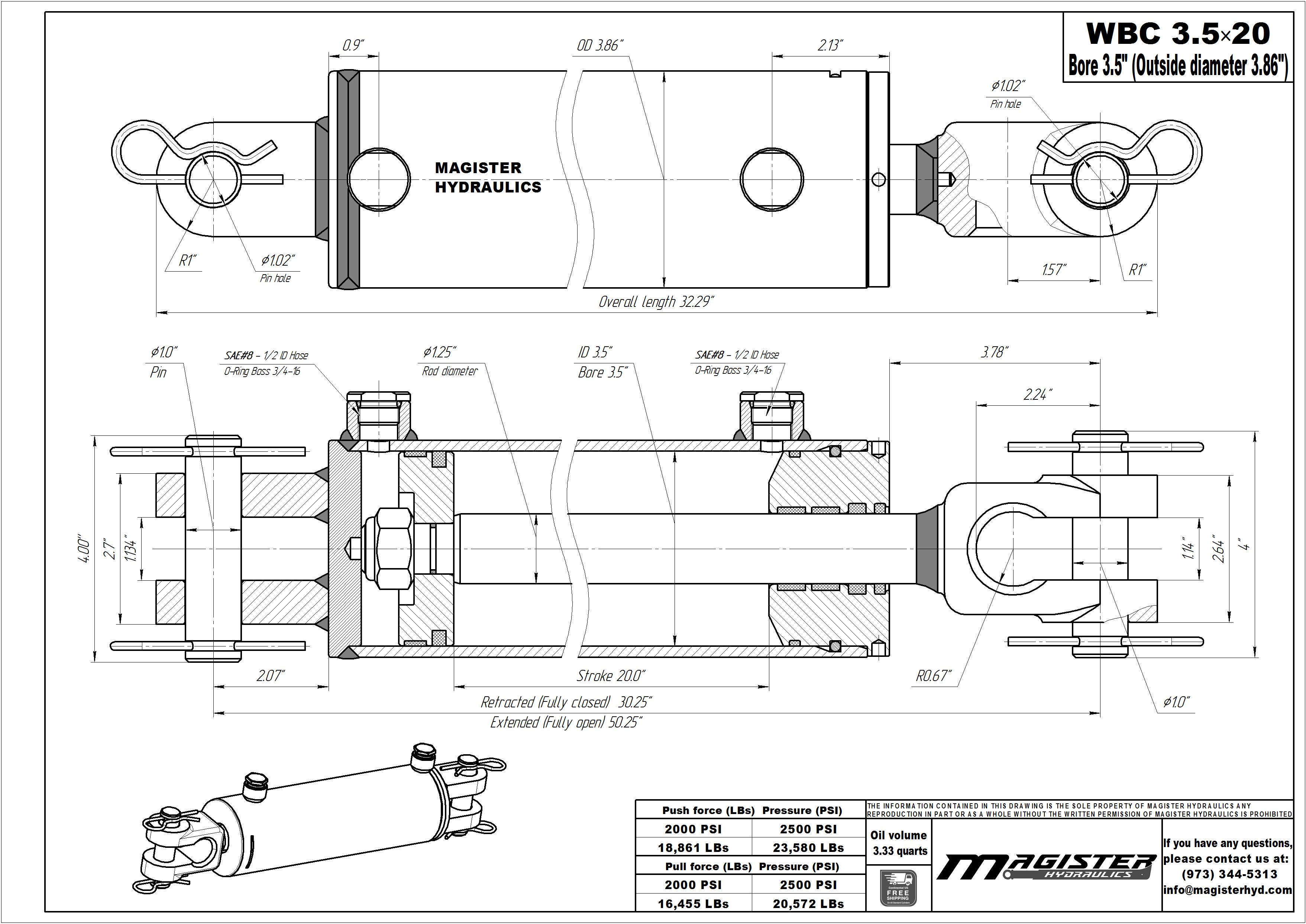

3.5" bore x 20" stroke ag clevis hydraulic cylinder
$292.00

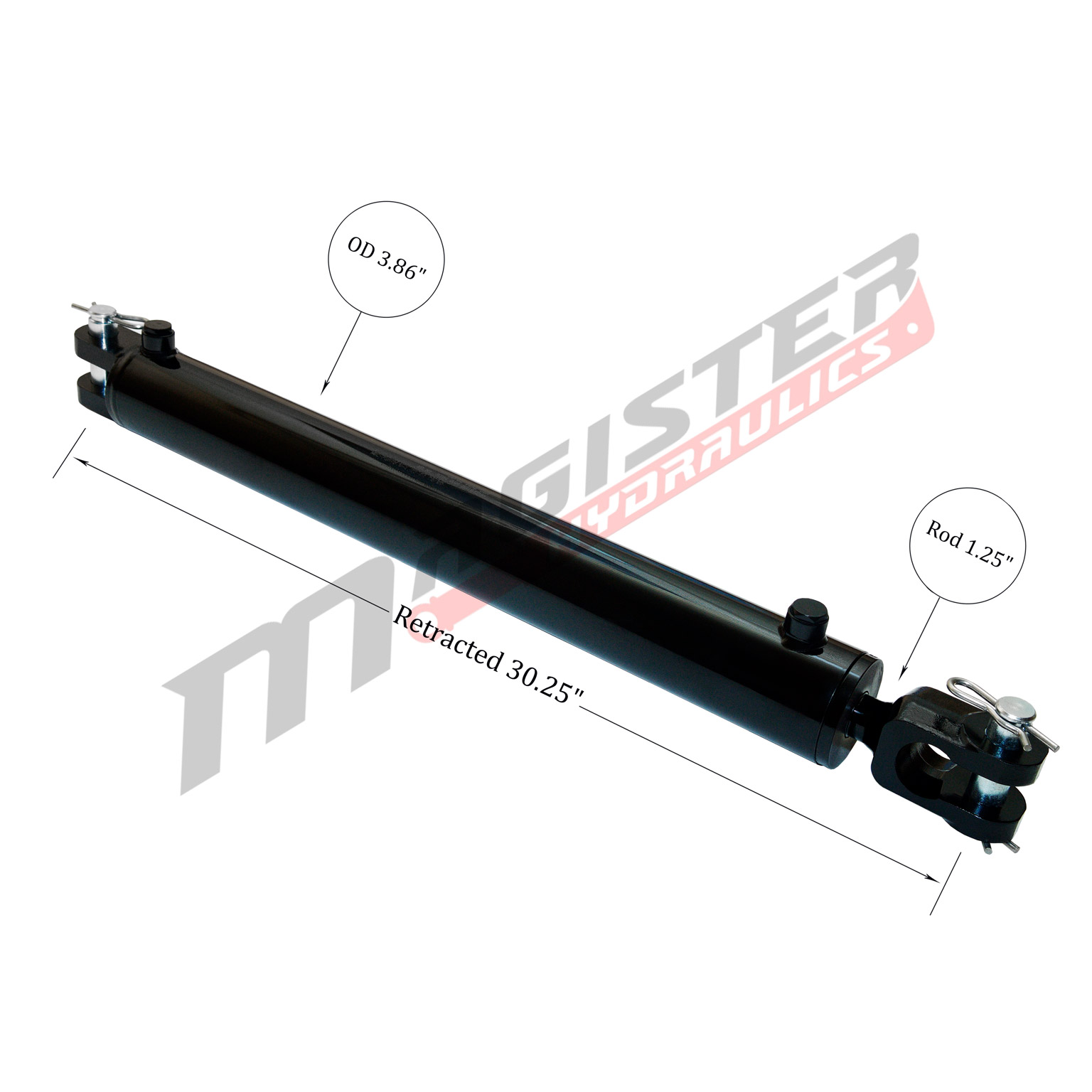

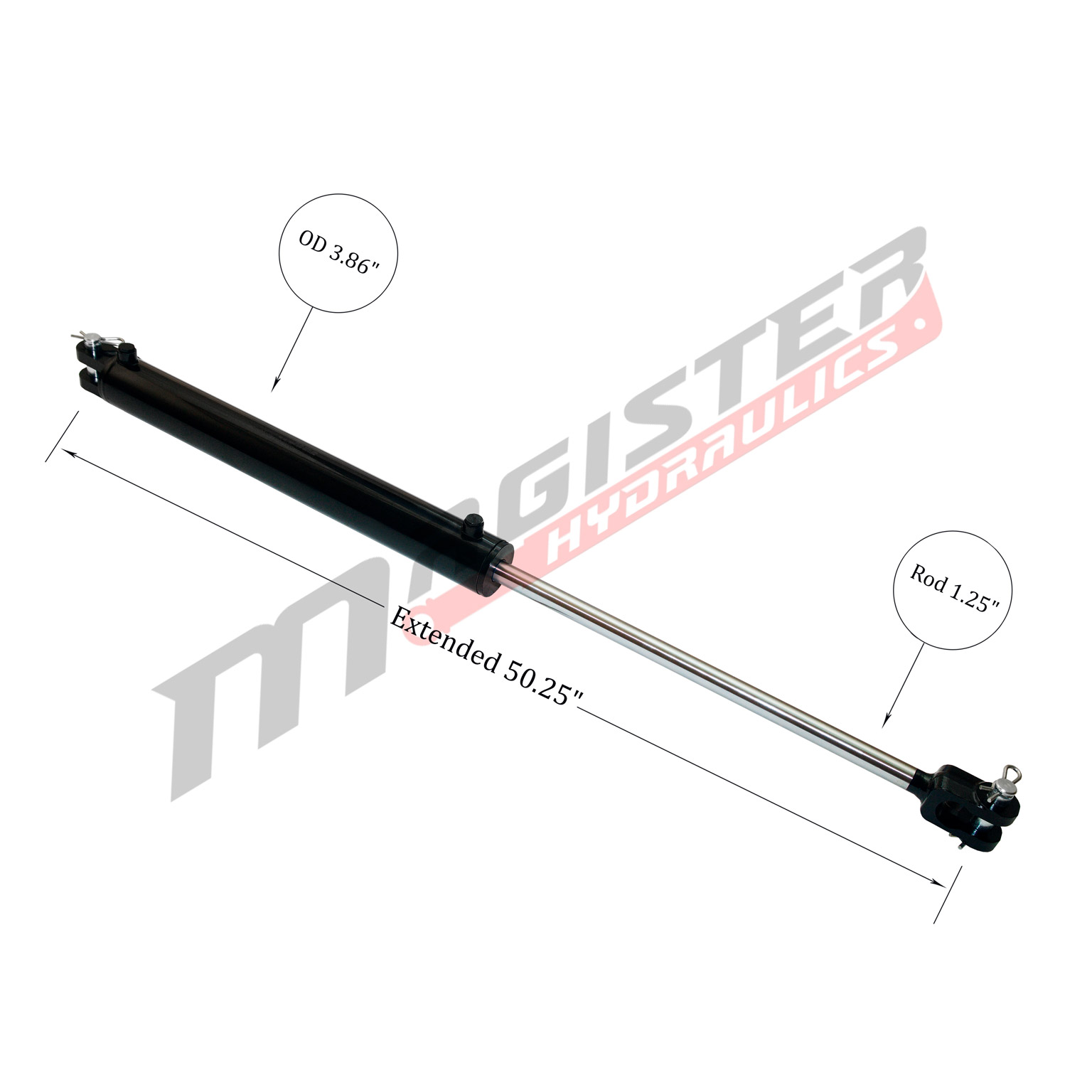

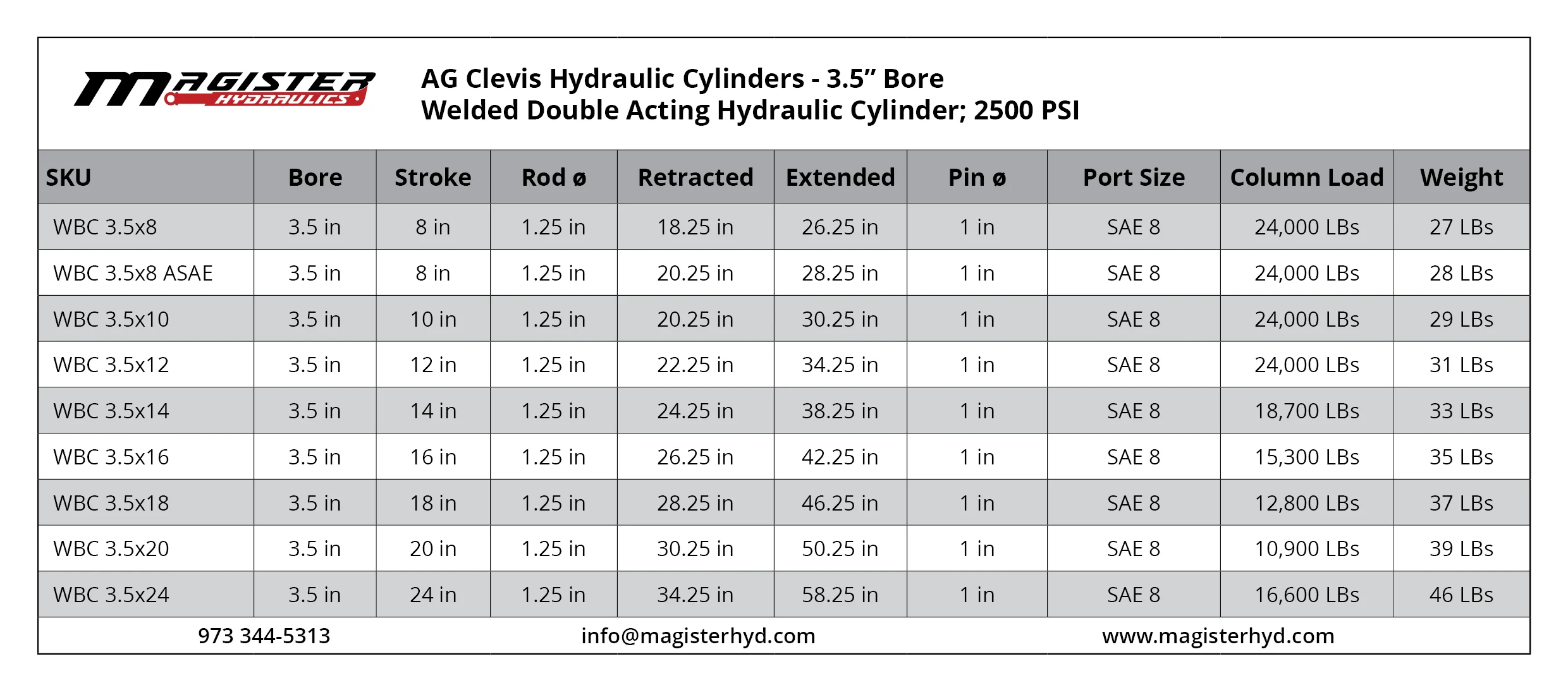

Pay in 4 interest-free payments of $73.00| Bore : | 3.5 in | Outer Dia. (⌀) : | 3.86 in | Stroke : | 20 in | Rod Dia. (⌀) : | 1.25 in | Port Size : | SAE 8 | Pin Dia. (⌀) : | 1 in | Extended : | 50.25 in | Retracted : | 30.25 in | Overall length : | 32.25 in | Pressure : | 2500 PSI | Column Load : | 10,900 LBs | Oil Volume : | 3.33 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Clevis | Action : | Weight : | 39 LBs |
|---|---|
| GTIN : | 850016509598 |
Volume discounts
28 in stock
Description
Experience unmatched power and precision with our high-performance Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 3.5-inch bore and 20-inch stroke with clevis ends and 2500 PSI. This cylinder is an optimal welded-type replacement for the tie rod cylinder. Ideal replacement for farming equipment and various other applications.
Key Features:

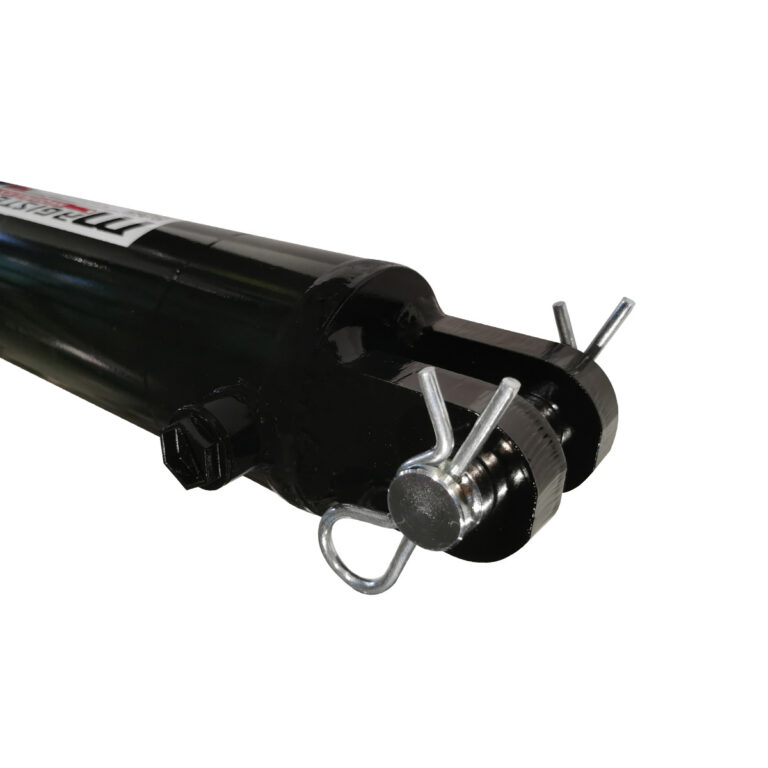

- High load capacity: Welded steel clevis ends, ⌀ 3.87″ honed cold-drawn tubing, ⌀ 1.25″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 20″ stroke.
- Agricultural Equipment: Ideal for tractors, harvesters, and other farming machinery, ensuring reliable operation in tough conditions.
- Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
- High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
- Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
- Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
- Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
- 2-year warranty
- Same Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
- Made in Europe.
Before purchase, please take the proper measurements:
- The diameter of the bore (please specify inside or outside measurement).
- The diameter of the rod and pin holes.
- The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
- The width on each mounting end of the cylinder where the pins slide through.
