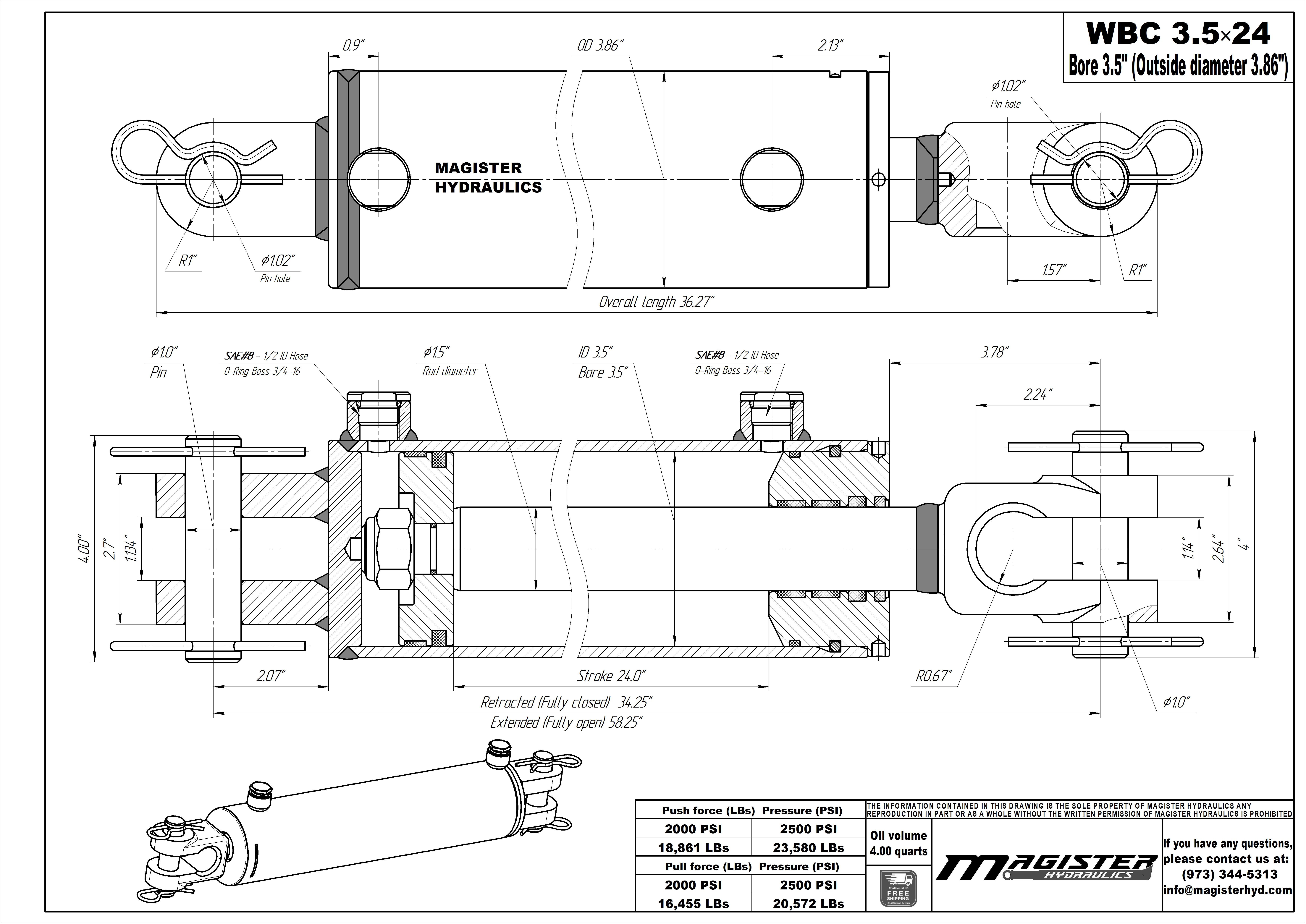

3.5" bore x 24" stroke ag clevis hydraulic cylinder

$310.00

Pay in 4 interest-free payments of $77.50
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WBC 3.5x24
Bore : 3.5 in
Outer Dia. (⌀) : 3.86 in
Stroke : 24 in
Rod Dia. (⌀) : 1.5 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

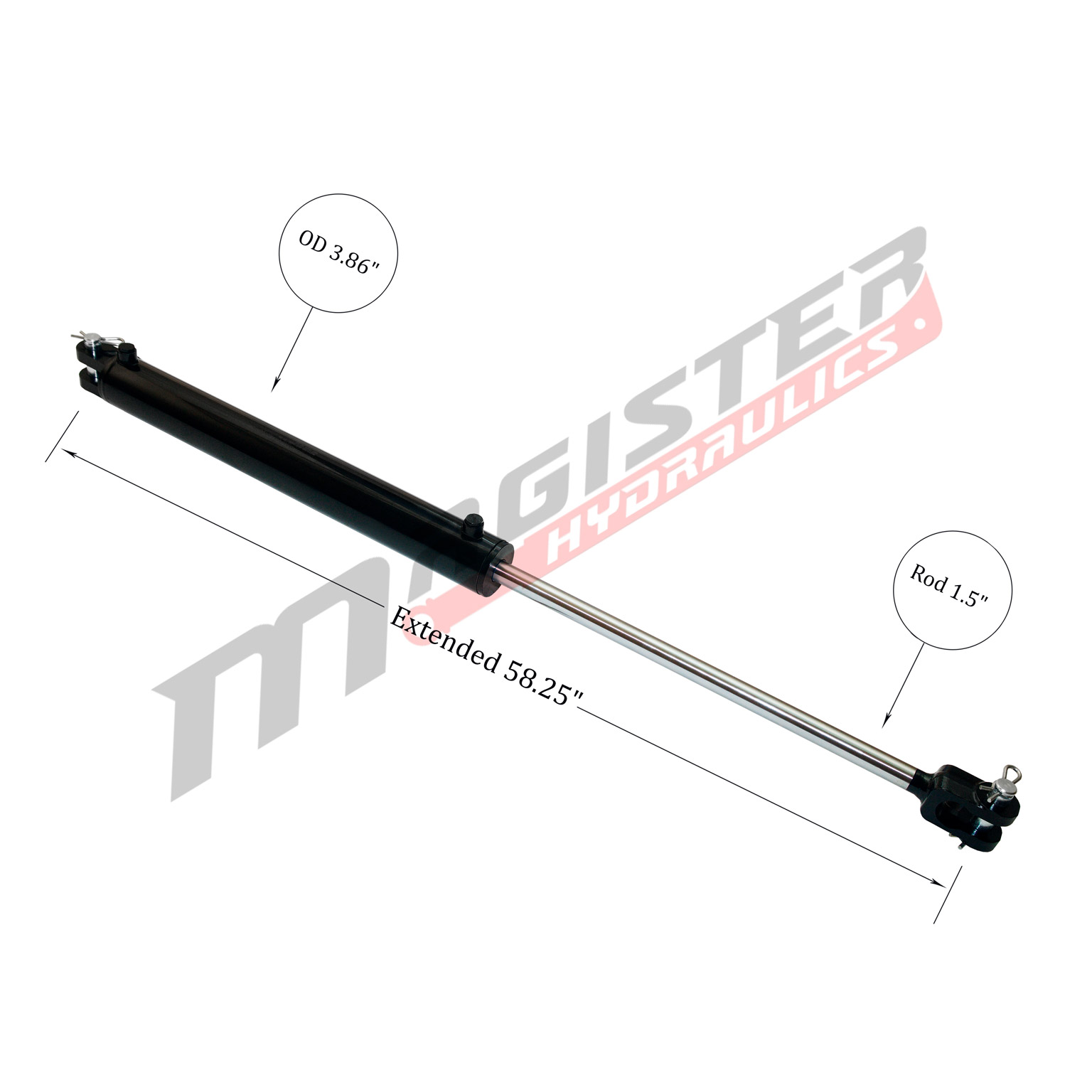

Extended : 58.25 in

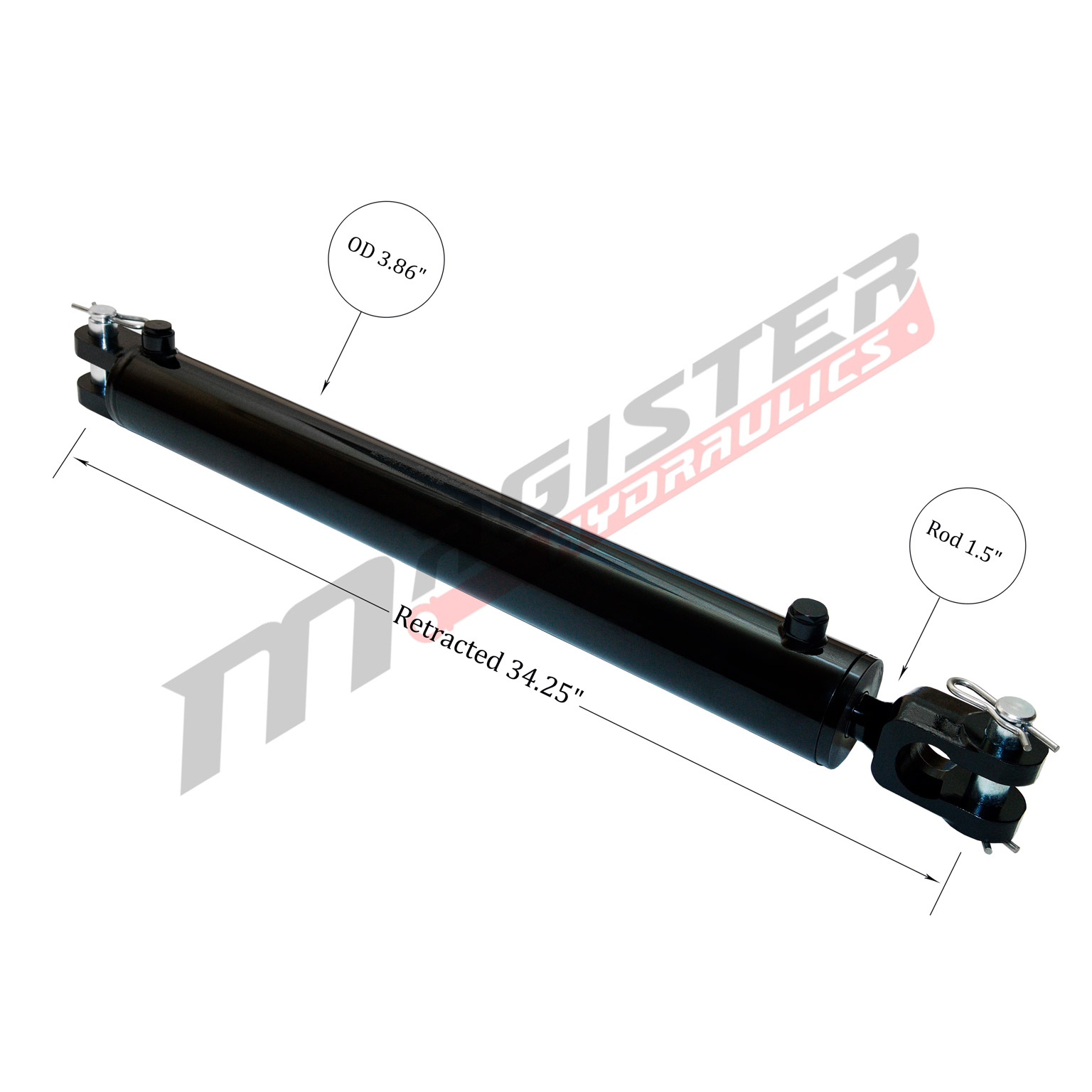

Retracted : 34.25 in
Overall length : 36.25 in
Pressure : 2500 PSI
Column Load : 16,600 LBs
Oil Volume : 4 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Clevis
Action :
  • Double Acting
  • Weight : 46 LBs
    GTIN : 850016509604
    SKU: WBC 3.5x24 Categories: ,

    Volume discounts

    4+ PRICE EA -5%
    $294.50
    8+ PRICE EA -10%
    $279.00
    In stock

    34 in stock

    Description

    Experience unmatched power and precision with our high-performance Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 3.5-inch bore and 24-inch stroke with clevis ends and 2500 PSI. This cylinder is an optimal welded-type replacement for the tie rod cylinder. Ideal replacement for farming equipment and various other applications.

    Key Features:

      • – High load capacity: Welded steel clevis ends, ⌀ 3.87″ honed cold-drawn tubing, ⌀ 1.25″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 24″ stroke.
      • – Agricultural Equipment: Ideal for tractors, harvesters, and other farming machinery, ensuring reliable operation in tough conditions.
      • – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
      • – High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
      • – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
      • – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
      • – Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
      • – 2-year warranty
      • – Same Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
      • – Made in Europe.

    Before purchase, please take the proper measurements:

    • – The diameter of the bore (please specify inside or outside measurement).
    • – The diameter of the rod and pin holes.
    • – The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
    • – The width on each mounting end of the cylinder where the pins slide through.

    How to Measure a Hydraulic Cylinder
