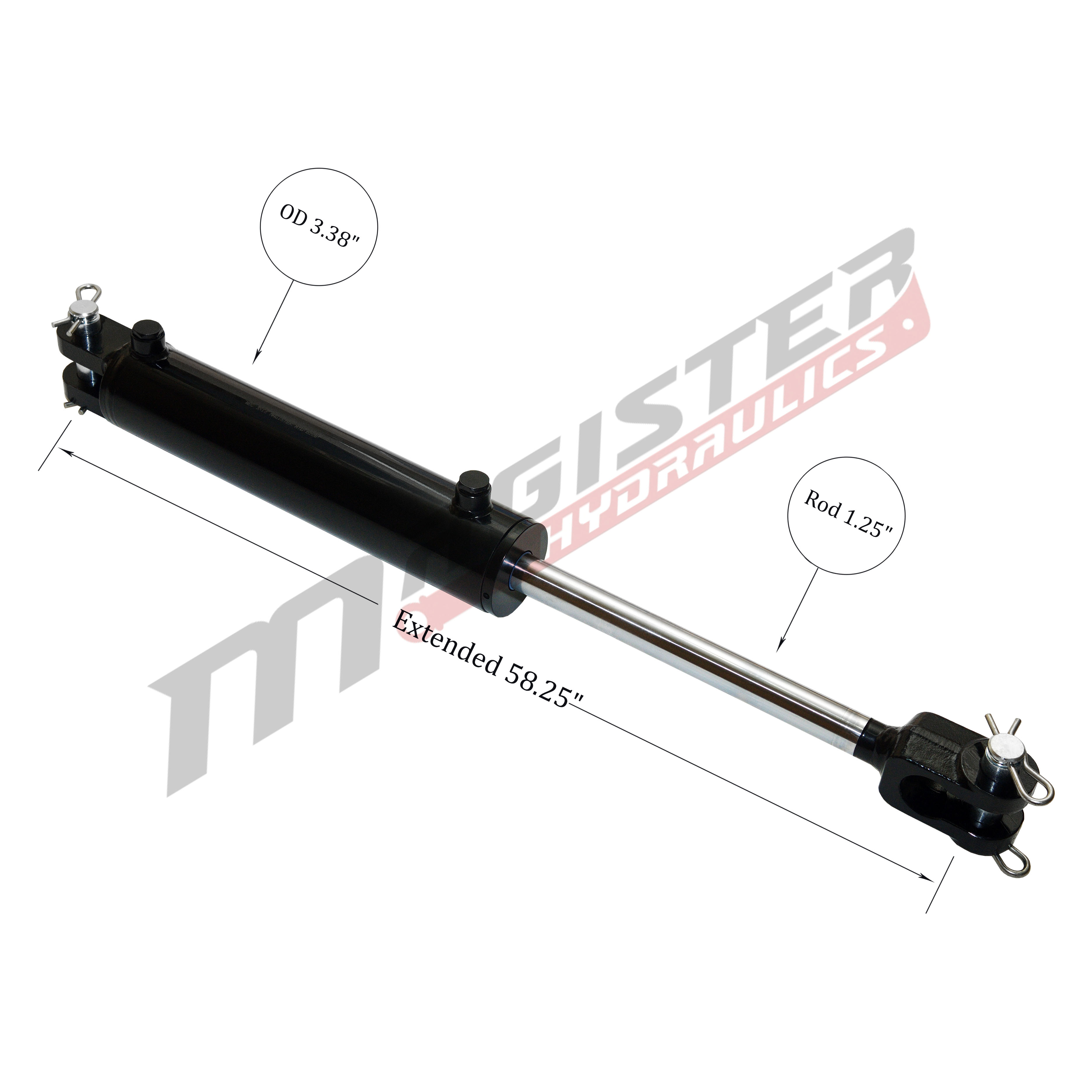

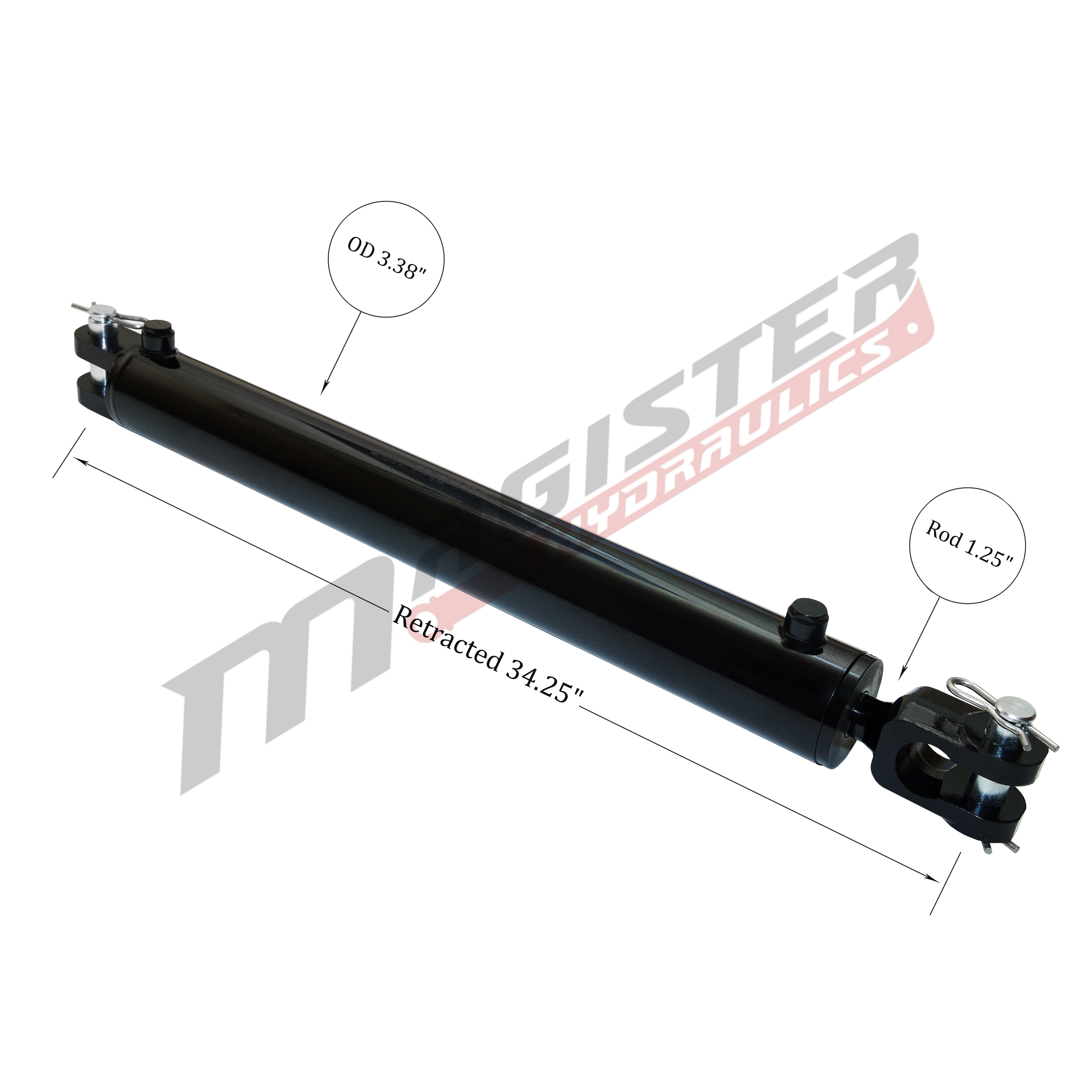

3" bore x 24" stroke ag clevis hydraulic cylinder
$267.00
Pay in 4 interest-free payments of $66.75SKU: WBC 3x24

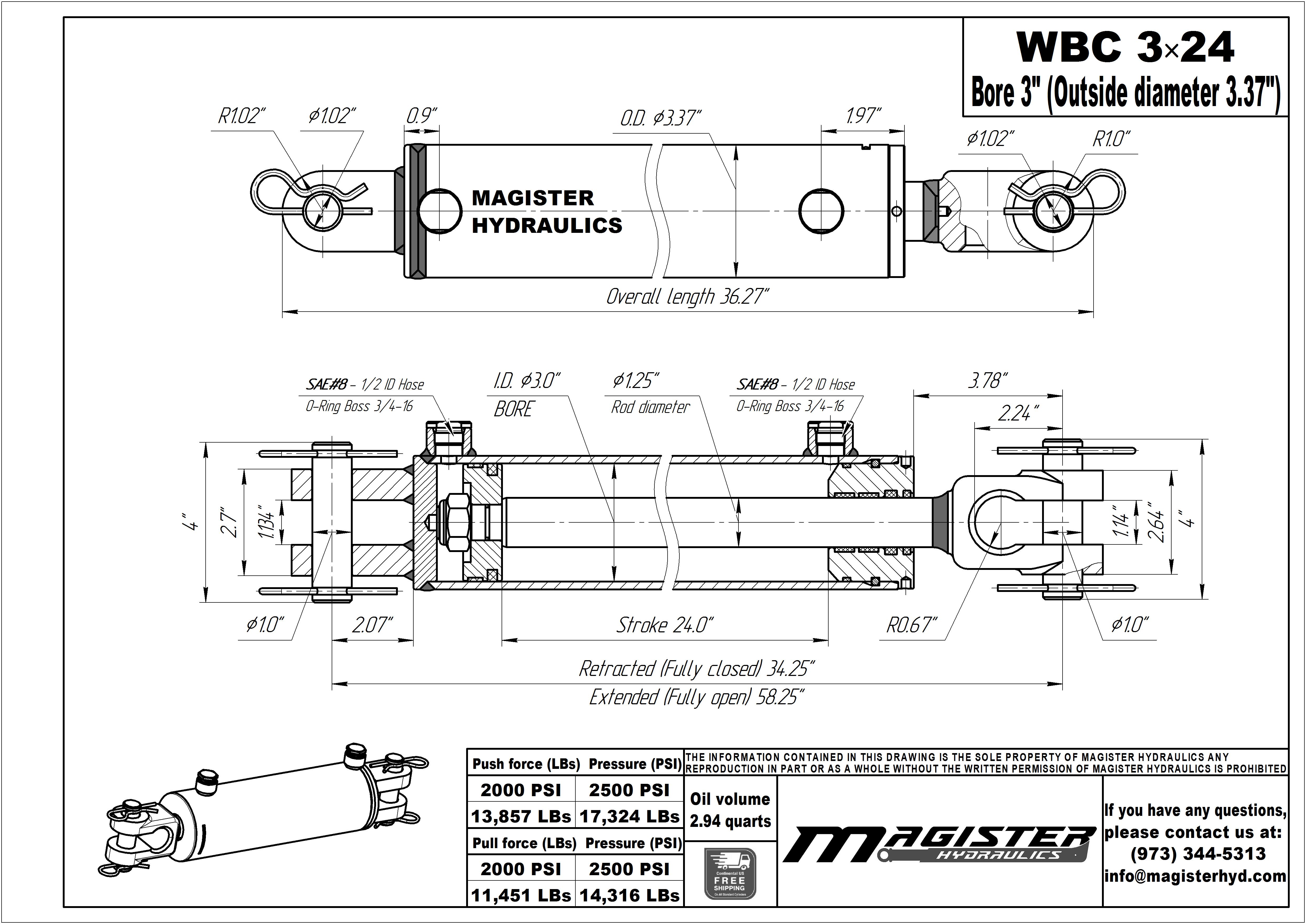

| Bore : | 3 in | Outer Dia. (⌀) : | 3.37 in | Stroke : | 24 in | Rod Dia. (⌀) : | 1.25 in | Port Size : | SAE 8 | Pin Dia. (⌀) : | 1 in | Extended : | 58.25 in | Retracted : | 34.25 in | Overall length : | 36.25 in | Pressure : | 2500 PSI | Column Load : | 8,050 LBs | Oil Volume : | 2.94 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Clevis | Action : | Double Acting | Weight : | 37 LBs |
|---|---|
| GTIN : | 850016509512 |
Volume discounts
1+ PRICE EA
$267.00
4+ PRICE EA -5%
$253.65
8+ PRICE EA -10%
$240.30
In stock
10 in stock
Description
- 3″ bore x 24″ stroke ag clevis hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel gland with wear rings for long life. Welded steel clevis ends, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Agriculture clevis cylinder is a perfect welded alternative of tie rod cylinder. Great replacement for farming equipment and others.
- Applications:Â Welded Double Acting Hydraulic Cylinder.
- Color:Â Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
