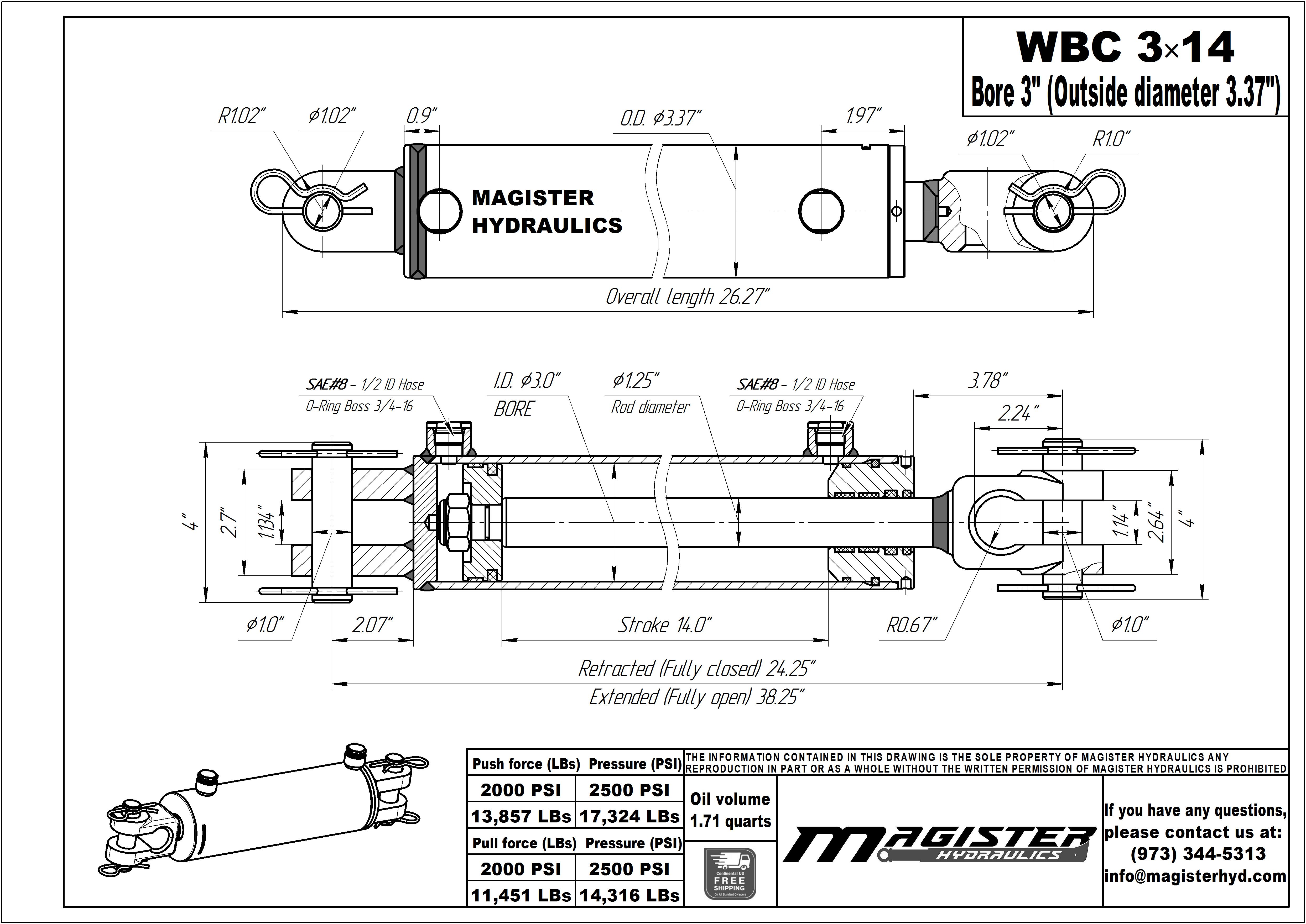

  • WBC-3-14.jpg
  • WBC 04
  • WBC 05
  • WBC 06
  • WBC-Rod-End-4x.webp
  • WBC-3-4-in-bore-base-end

3" bore x 14" stroke ag clevis hydraulic cylinder

SKU: WBC 3x14

$233.00

In Stock
PayPalPay in 4 interest-free payments of $58.25

Volume Discounts

4+ PRICE EA -5%
$221.35
8+ PRICE EA -10%
$209.70

9 in stock

View cart
2-Year Warranty
Same Day
Free Shipping
Made in Europe
US Customer Support
* Wholesale Discount is available for this product if you purchase 4 or more products.

Experience unmatched power and precision with our high-performance Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 3-inch bore and 14-inch stroke with clevis ends and 2500 PSI. This cylinder is an optimal welded-type replacement for the tie rod cylinder. Ideal replacement for farming equipment and various other applications.

Key Features:

  • High load capacity: Welded steel clevis ends, ⌀ 3.37″ honed cold-drawn tubing, ⌀ 1.25″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 14″ stroke.
  • Agricultural Equipment: Ideal for tractors, harvesters, and other farming machinery, ensuring reliable operation in tough conditions.
  • Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
  • High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
  • Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
  • Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
  • Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
  • 2-year warranty
  • Same Day Shipping: all orders, made until 1 pm EST, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
  • Made in Europe.

Before purchase, please take the proper measurements:

  • The diameter of the bore (please specify inside or outside measurement).
  • The diameter of the rod and pin holes.
  • The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
  • The width on each mounting end of the cylinder where the pins slide through.

How to Measure a Hydraulic Cylinder

View Full Specifications

Specifications

3" bore x 14" stroke ag clevis hydraulic cylinder
SKU: WBC 3x14
Bore3 inOuter Dia. (⌀)3.37 in
Stroke14 inRod Dia. (⌀)1.25 in
Port SizeSAE 8Pin Dia. (⌀)1 in

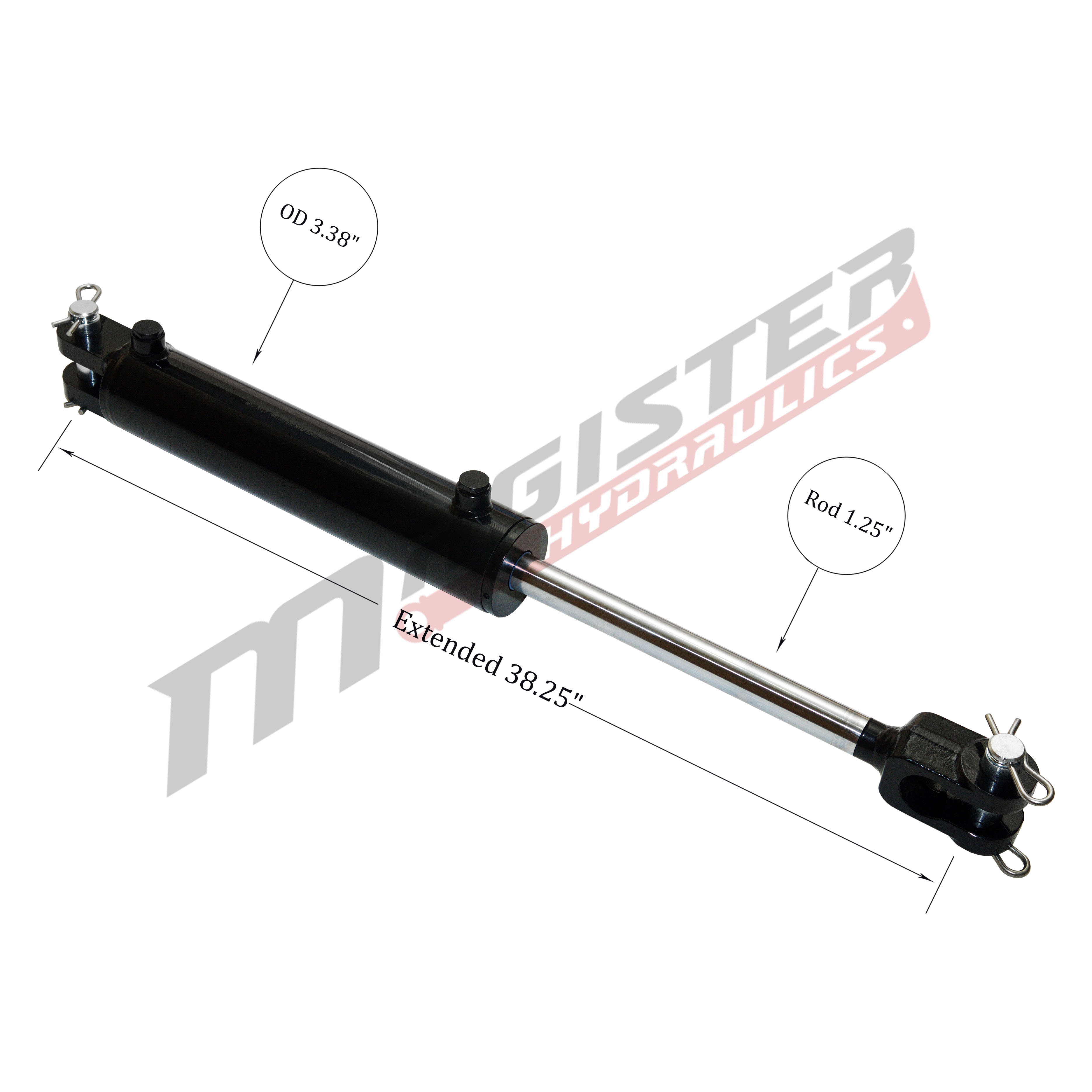

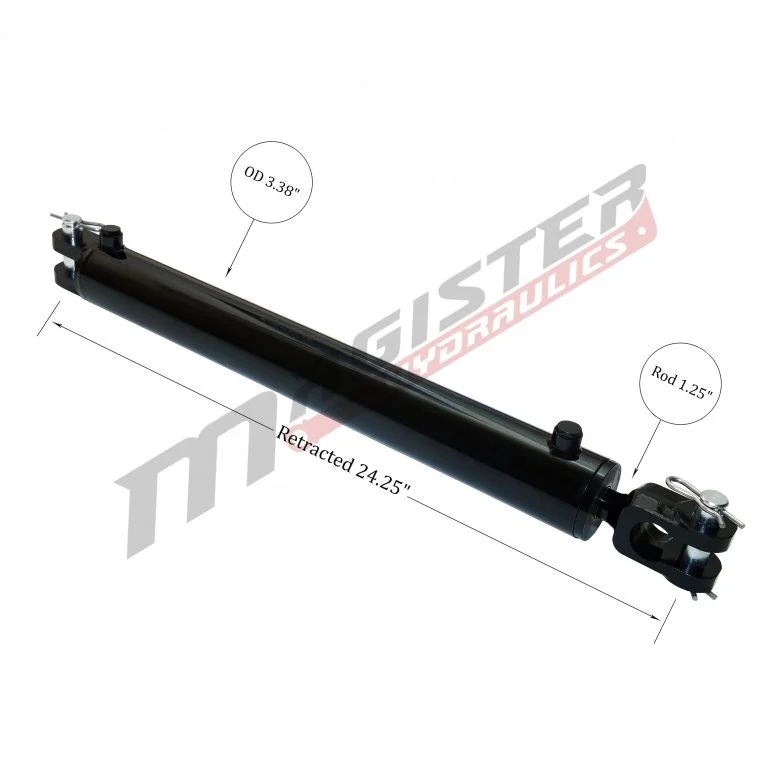

Extended38.25 inRetracted24.25 in
Overall length26.25 inPressure2500 PSI
Column Load17,670 LBsOil Volume1.71 QTs
BrandMagister HydraulicsDesignWelded
Rod TypeChrome PlatedRod EndClevis
ActionDouble ActingWeight29 LBs
GTIN850016509475
IMPORTANT NOTE: The chrome-plated rod is NOT induction hardened (temperature-treated). Improper use (due to incorrect measurements or application type) may result in rod bending. Such cases are NOT covered under our warranty!
