3.5" bore x 18" stroke ag clevis hydraulic cylinder

SKU: WBC 3.5x18

Original price was: $281.00.Current price is: $238.85.

In Stock
Pay in 4 interest-free payments of $59.71
AG Clevis Hydraulic Cylinders 3.5″ Bore
8" Stroke
8" Stroke
10" Stroke
12" Stroke
14" Stroke
16" Stroke
18" Stroke
20" Stroke
24" Stroke

15 in stock

View cart
2-Year Warranty
Same Day
Free Shipping
Made in Europe
US Customer Support
* Wholesale Discount is available for this product if you purchase 4 or more products.

Experience unmatched power and precision with our high-performance Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 3.5-inch bore and 18-inch stroke with clevis ends and 2500 PSI. This cylinder is an optimal welded-type replacement for the tie rod cylinder. Ideal replacement for farming equipment and various other applications.

Key Features:

  • High load capacity: Welded steel clevis ends, ⌀ 3.87″ honed cold-drawn tubing, ⌀ 1.25″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 18″ stroke.
  • Agricultural Equipment: Ideal for tractors, harvesters, and other farming machinery, ensuring reliable operation in tough conditions.
  • Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
  • High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
  • Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
  • Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
  • Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
  • 2-year warranty
  • Same Day Shipping: all orders, made until 1 pm EST, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
  • Made in Europe.

Before purchase, please take the proper measurements:

  • The diameter of the bore (please specify inside or outside measurement).
  • The diameter of the rod and pin holes.
  • The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
  • The width on each mounting end of the cylinder where the pins slide through.

How to Measure a Hydraulic Cylinder

View Full Specifications
Categories: , , Brand:

Frequently bought together

Hydraulic Cylinders Fitting Kits Hydraulic Cylinders Fitting Kits Hydraulic Hoses and Adapters Hydraulic Hoses and Adapters Bushings For Hydraulic Cylinders Bushings For Hydraulic Cylinders Pivot Pins Pivot Pins Hydraulic Control Valves Hydraulic Control Valves Hydraulic Power Units Hydraulic Power Units

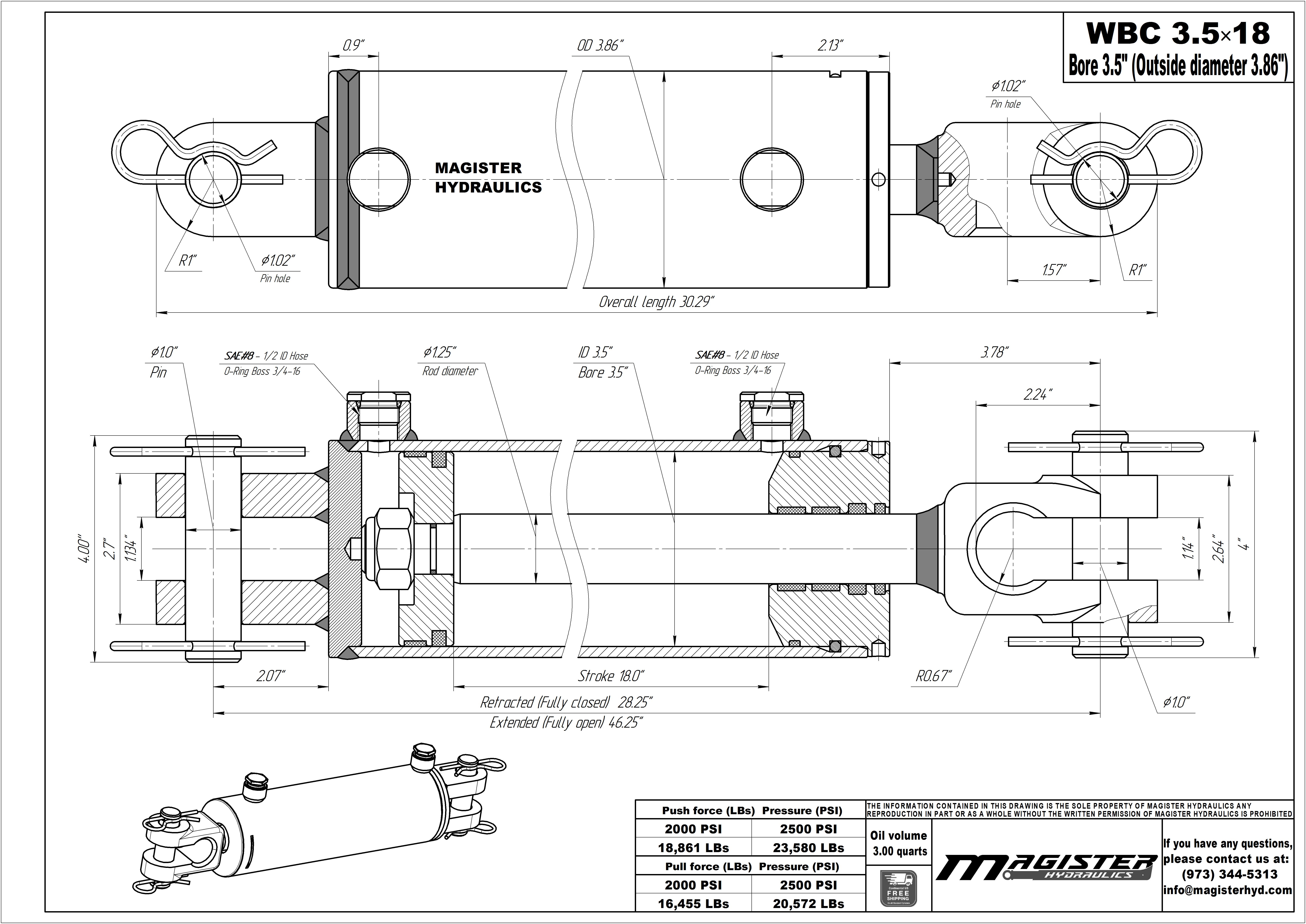

Specifications

3.5" bore x 18" stroke ag clevis hydraulic cylinder
SKU: WBC 3.5x18
3D Step Download
Bore 3.5 in Outer Dia. (⌀) 3.86 in
Stroke 18 in Rod Dia. (⌀) 1.25 in
Port Size SAE 8 Pin Dia. (⌀) 1 in

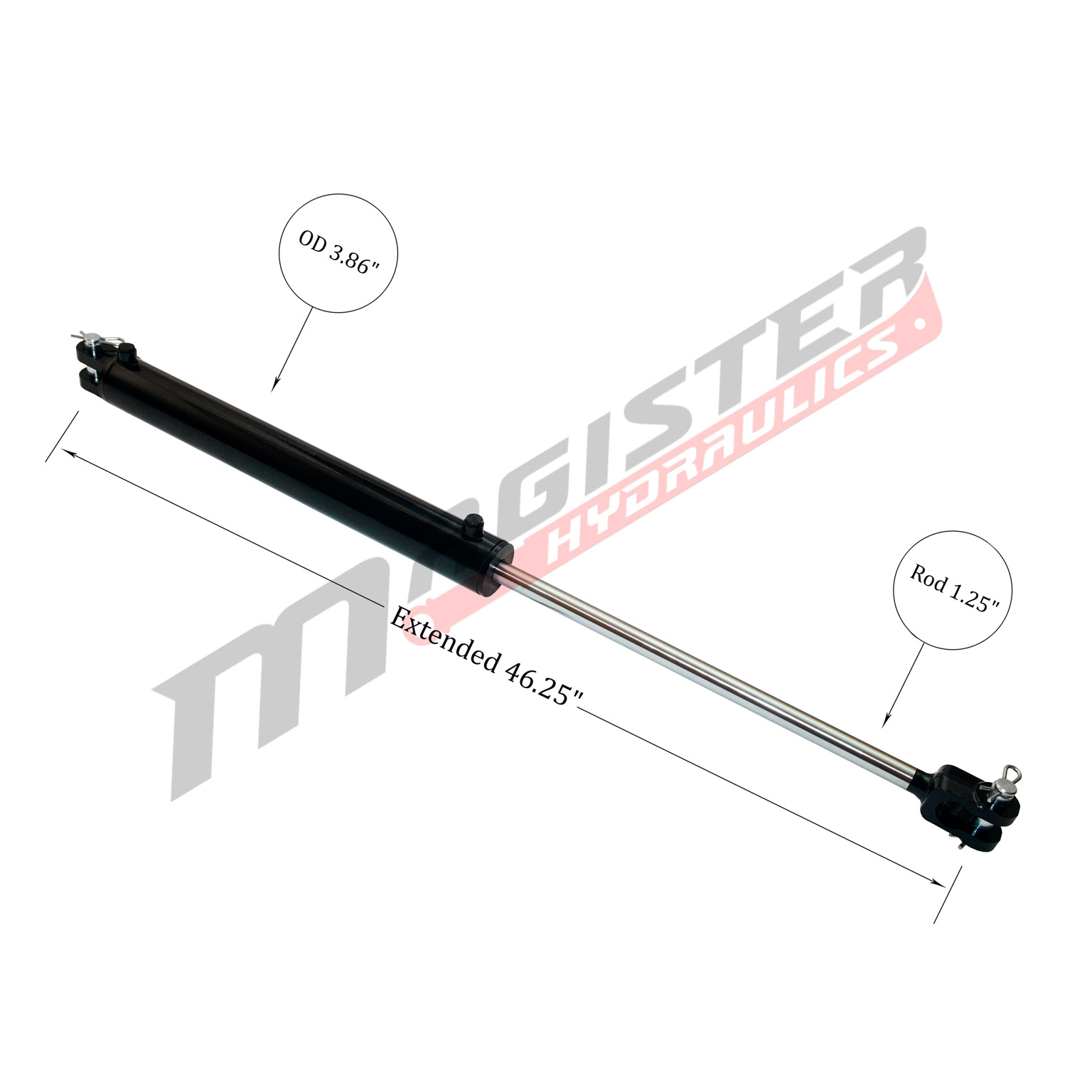

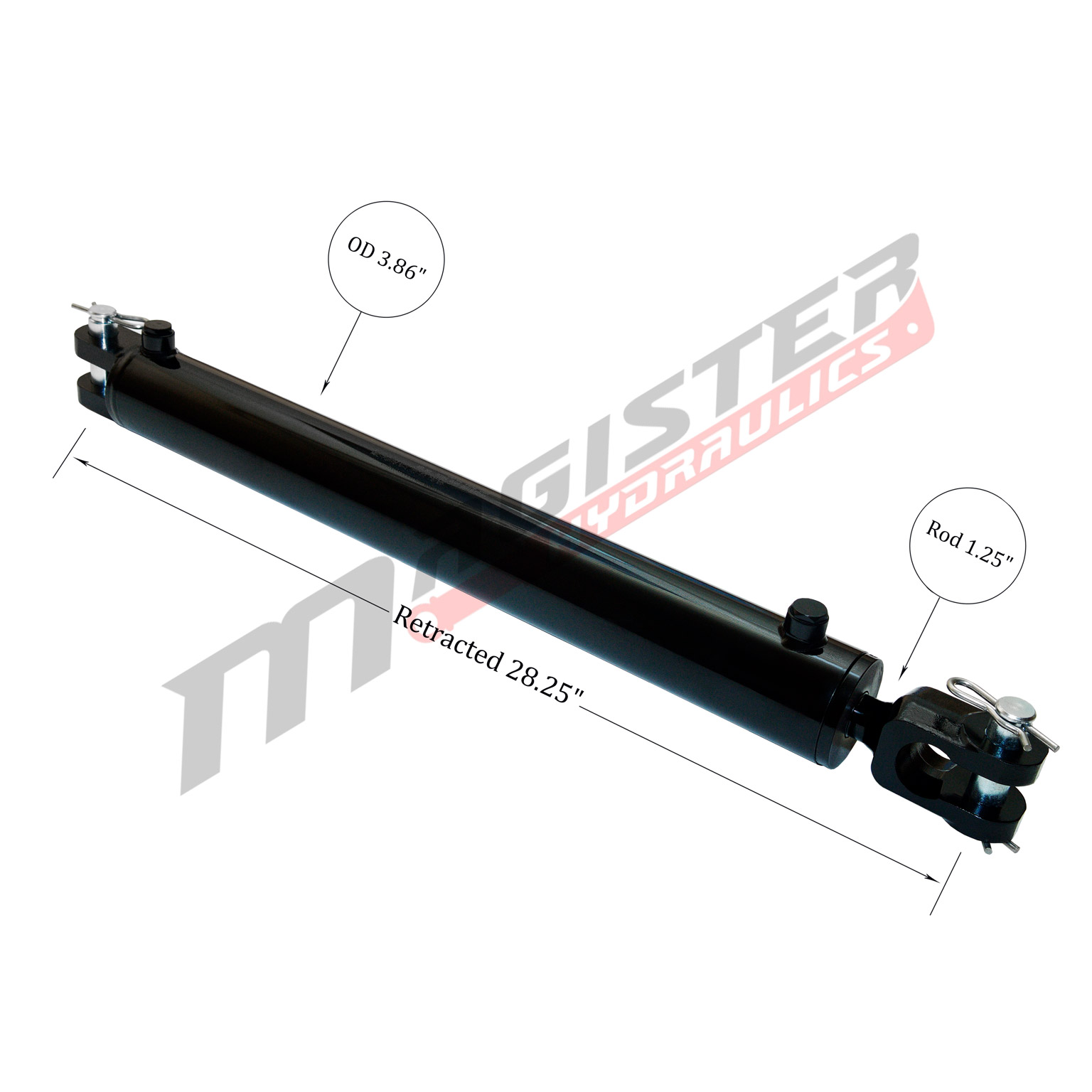

Extended 46.25 in Retracted 28.25 in
Overall length 30.25 in Pressure 2500 PSI
Column Load 12,800 LBs Oil Volume 3 QTs
Brand Magister Hydraulics Design Welded
Rod Type Chrome Plated Rod End Clevis
Action Double Acting Weight 37 LBs
IMPORTANT NOTE: The chrome-plated rod is NOT induction hardened (temperature-treated). Improper use (due to incorrect measurements or application type) may result in rod bending. Such cases are NOT covered under our warranty!
