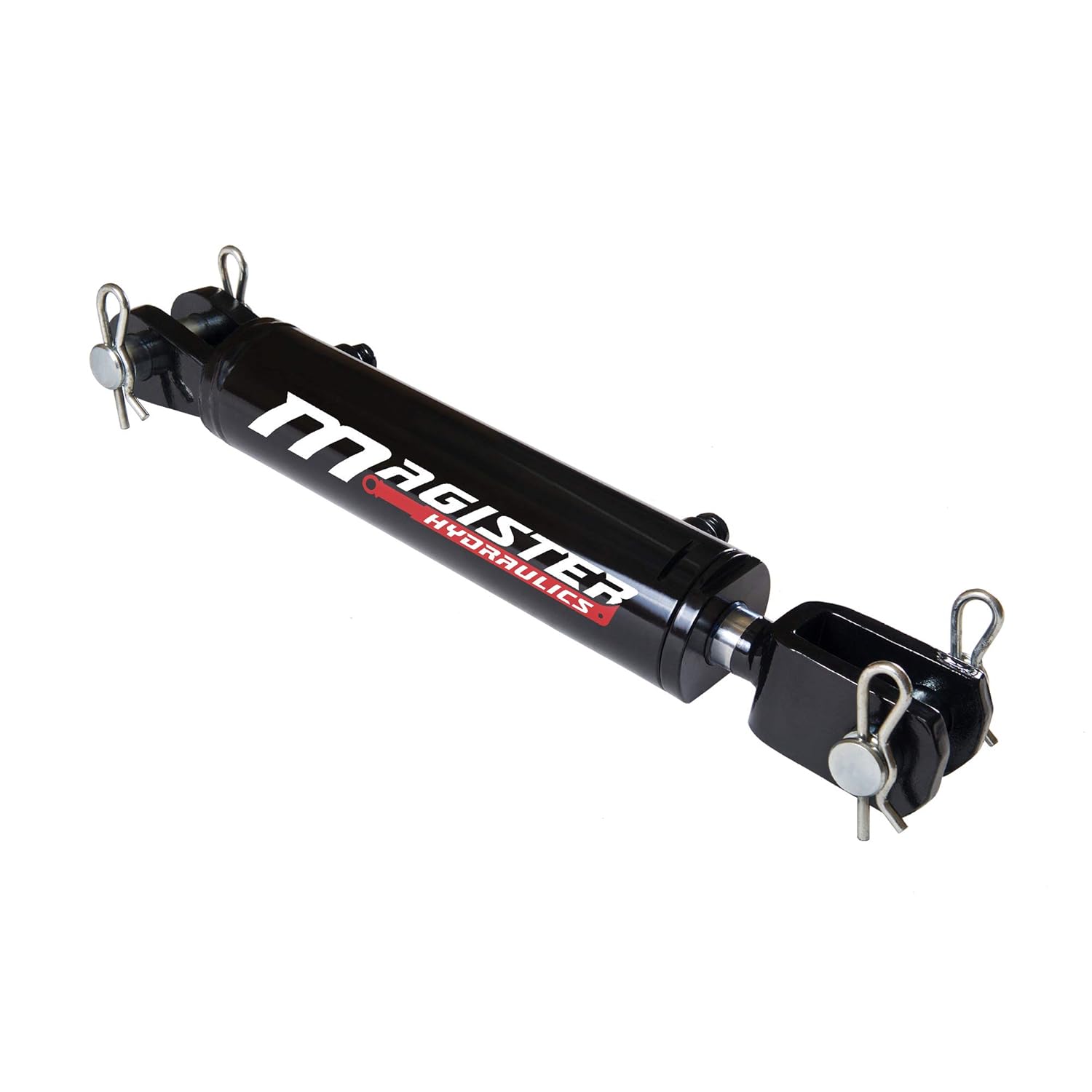

2.5" bore x 14" stroke ag clevis hydraulic cylinder

(1 customer review)

$126.00

WBC 2.5x14
Bore :
2.5"
OD :
2.87"
Stroke :
14"
Rod :
1.125"
Port Size :
SAE 8
Pin :
1"

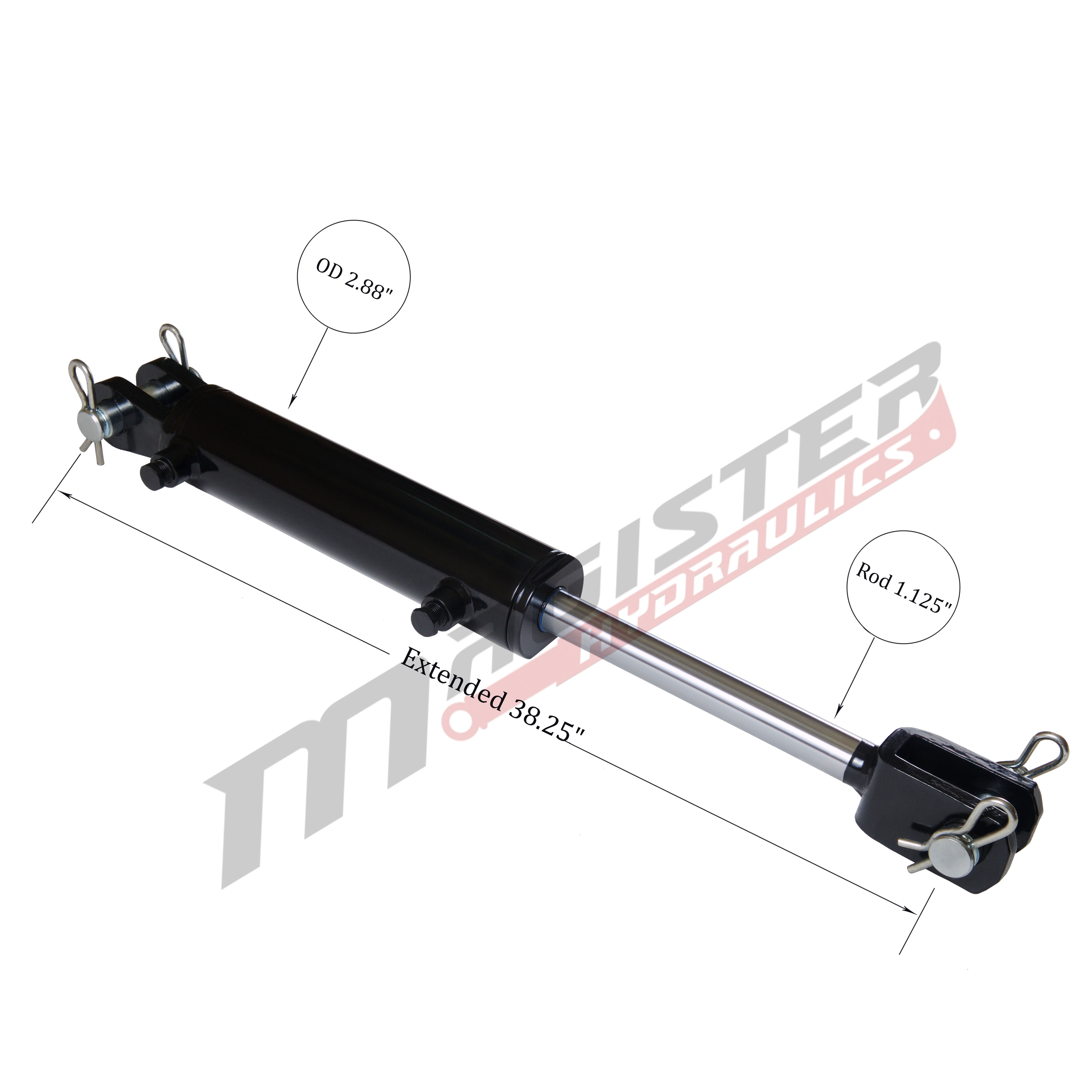

Extended :
38.25"

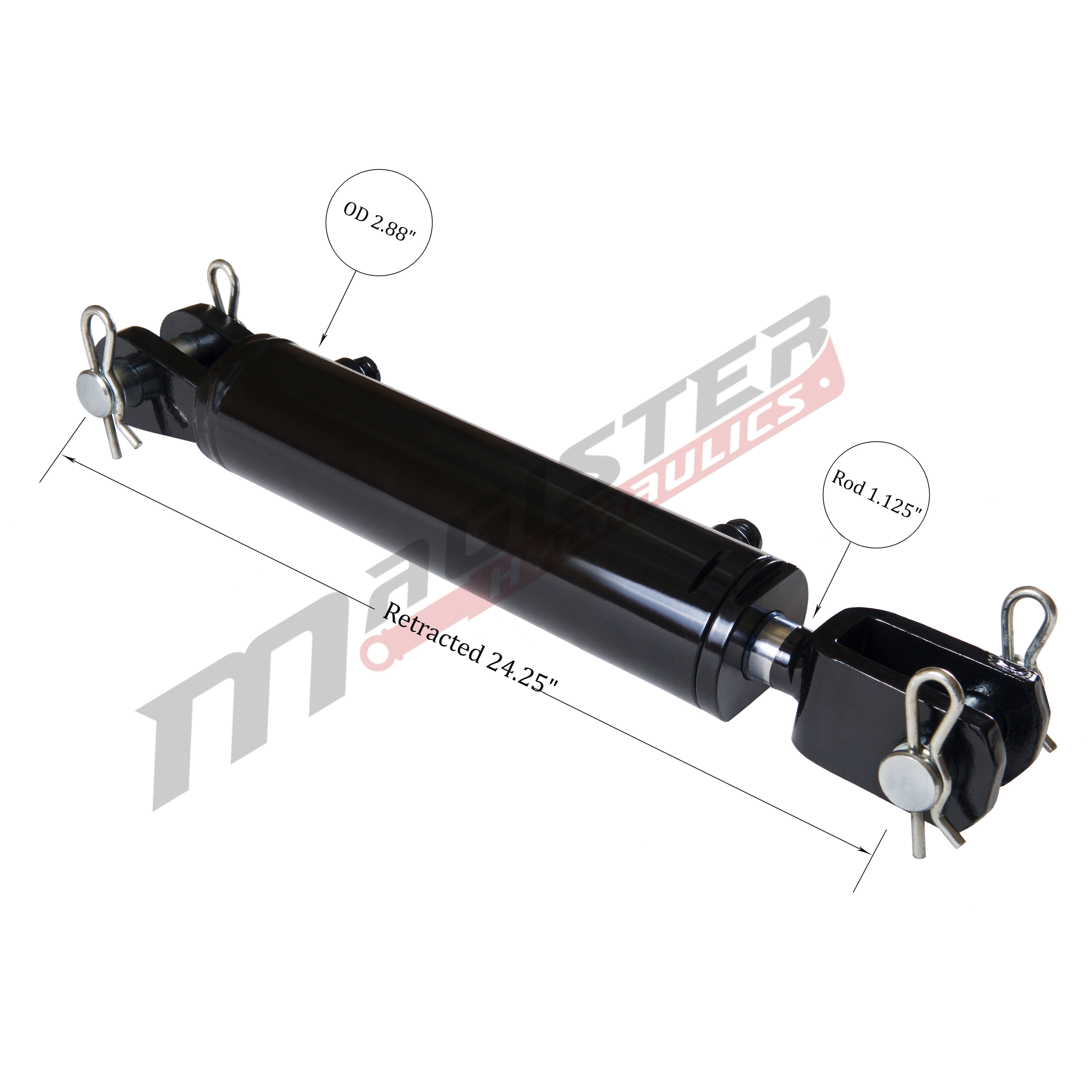

Retracted :
24.25"
Overall length :
26.25"
Pressure :
2500 PSI
Column Load (LBs) :
12,270
Oil Volume (quarts) :
1.19
Brand :
Magister Hydraulics
GTIN :
850016509383
1+ PRICE EA
$126.00
4+ PRICE EA -5%
$119.70
10+ PRICE EA -10%
$113.40
In stock

15 in stock

DESCRIPTION

  • 2.5″ bore x 14″ stroke ag clevis hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel gland with wear rings for long life. Welded steel clevis ends, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Agriculture clevis cylinder is a perfect welded alternative of tie rod cylinder. Great replacement for farming equipment and others.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
