4" bore x 6" stroke clevis hydraulic cylinder


Pay in 4 interest-free payments of $77.50
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCL 4x6
Bore :4” Bore Hydraulic Cylinders
OD :4.5"
Stroke :6"
Rod :2"
Port Size :SAE 8
Pin :1"

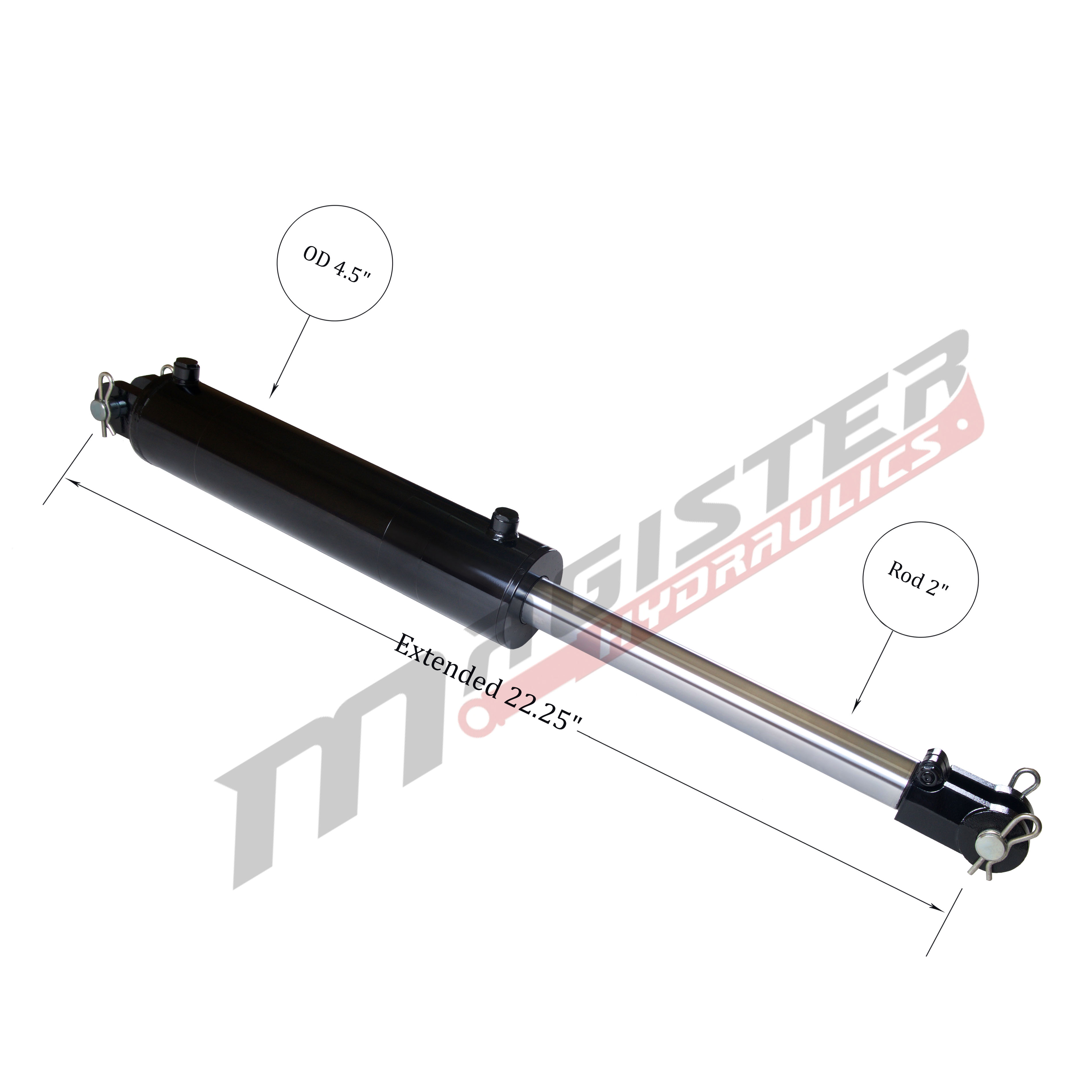

Extended :22.25"

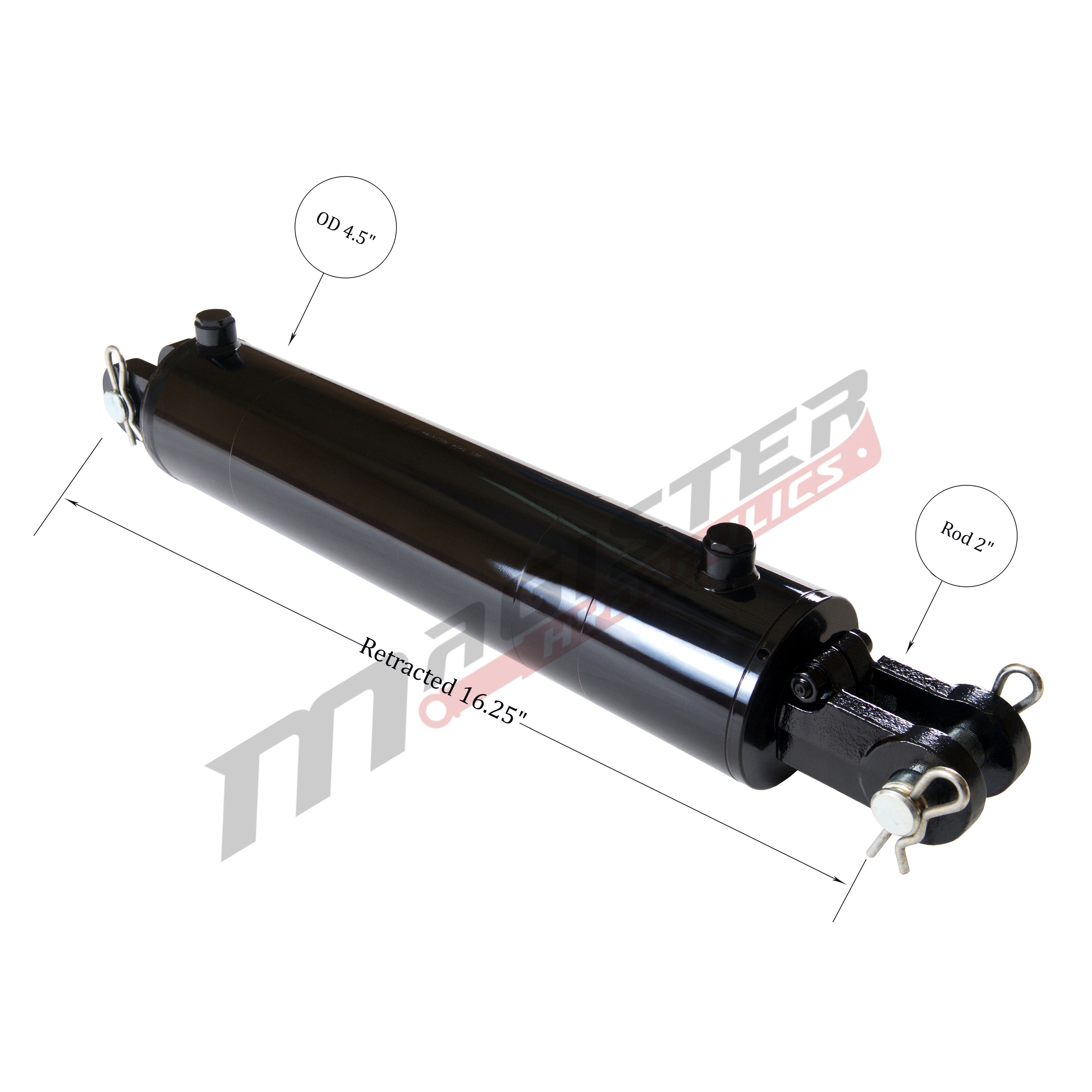

Retracted :16.25"
Overall length :18.25"
Pressure :3500 PSI
Column Load (LBs) :37,000
Oil Volume (quarts) :1.3
Brand :Magister Hydraulics
GTIN :857743006253
SKU: WCL 4x6 Categories: ,
4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

15 in stock


  • 4″ bore x 6″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
