4" bore x 8" stroke ag clevis hydraulic cylinder


Pay in 4 interest-free payments of $66.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WBC 4x8

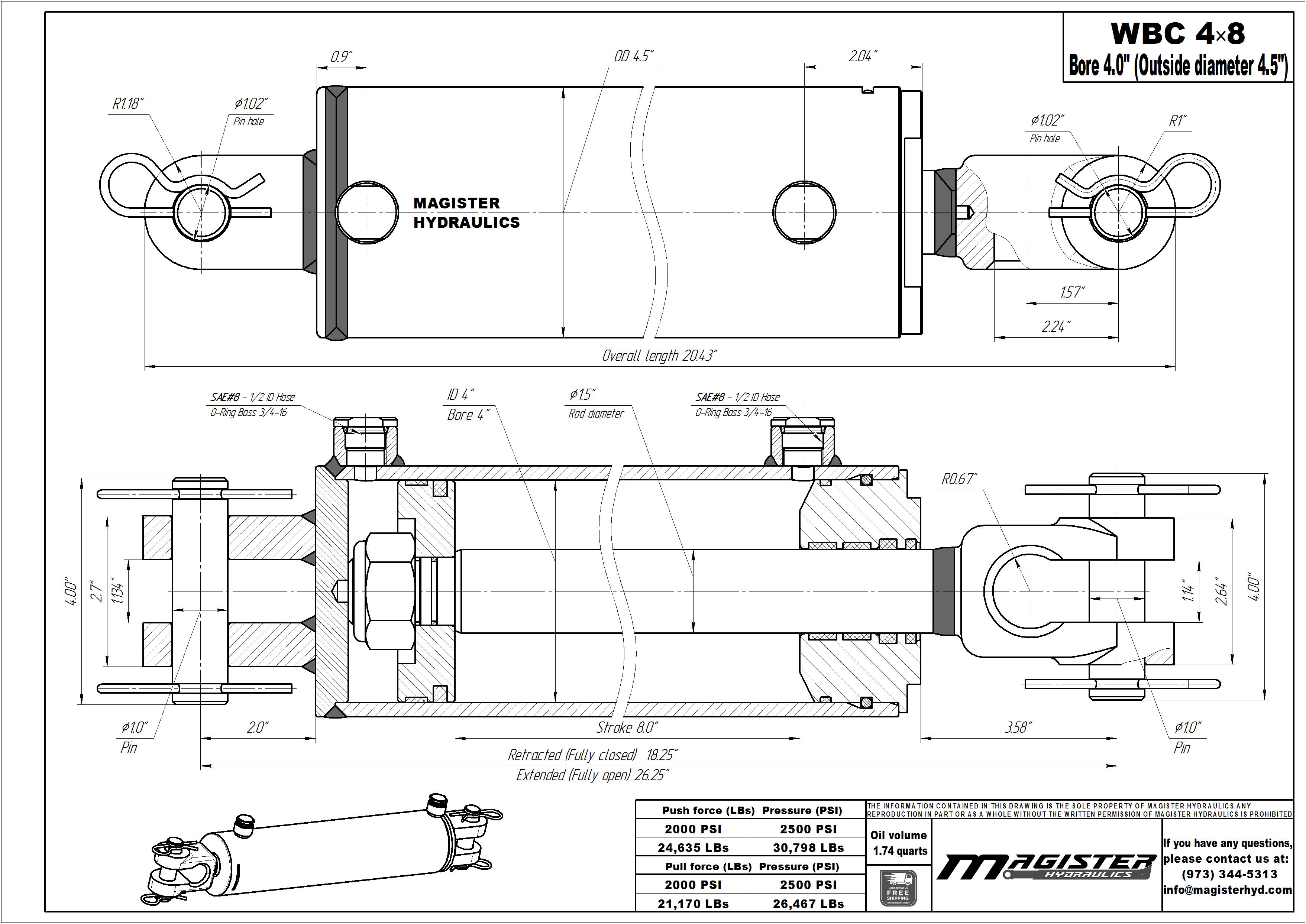

Bore : 4 in
Outer Dia. (⌀) : 4.5 in
Stroke : 8 in
Rod Dia. (⌀) : 1.5 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

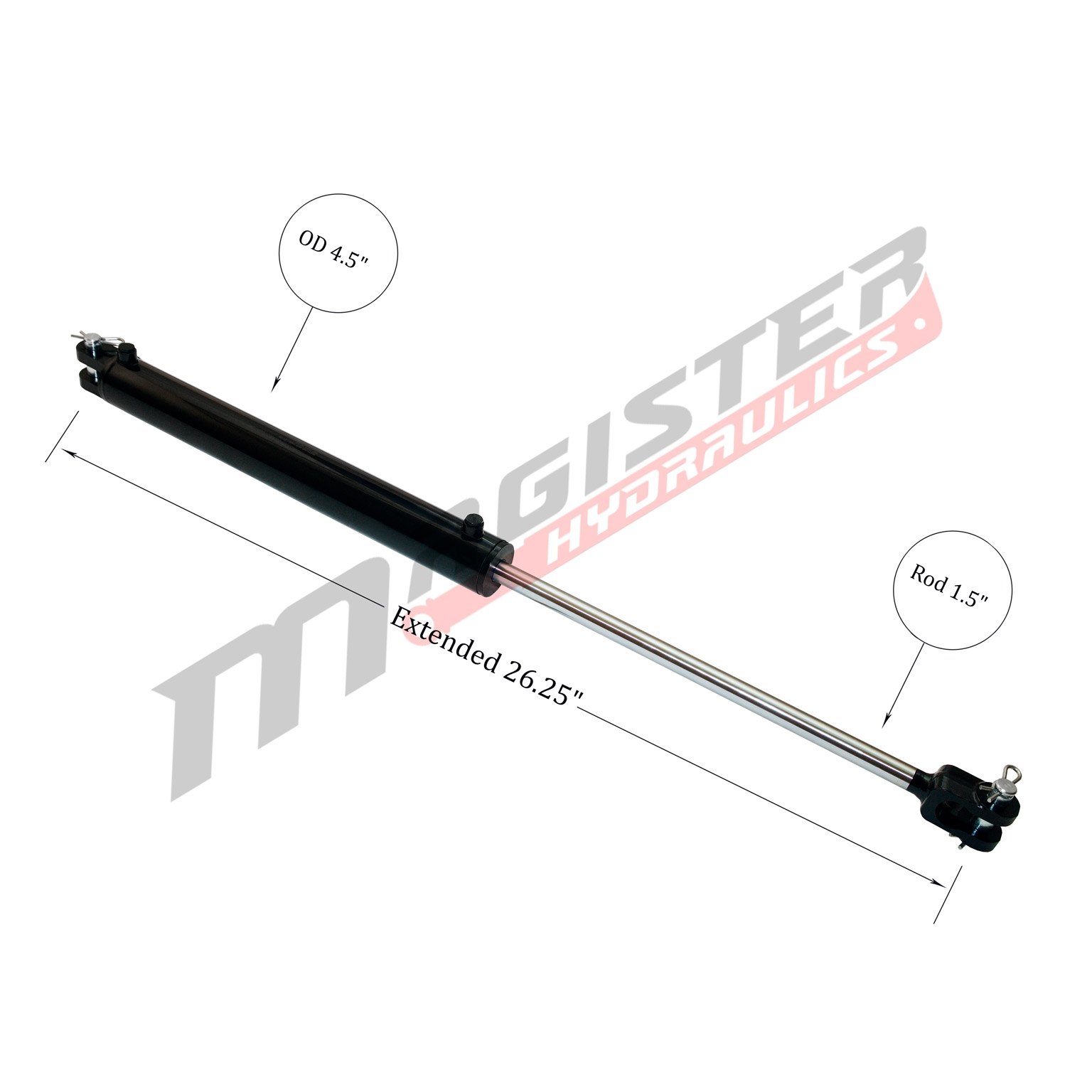

Extended : 26.25 in

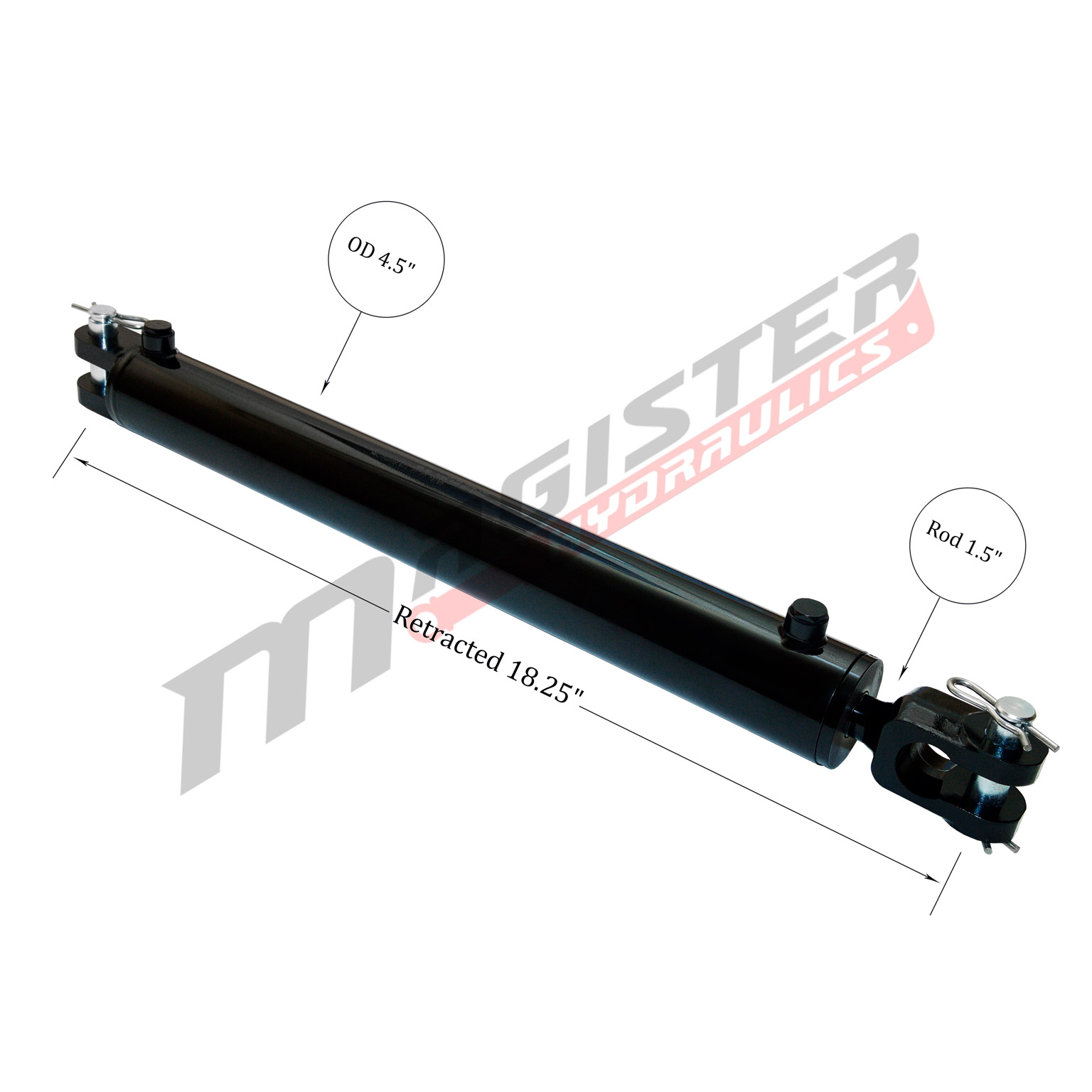

Retracted : 18.25 in
Overall length : 20.5 in
Pressure : 2500 PSI
Column Load : 31,400 LBs
Oil Volume : 1.74 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Clevis
Action : Double Acting
Weight : 37 LBs
GTIN : 850016509611
SKU: WBC 4x8 Categories: ,

Volume discounts

4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

12 in stock


  • 4″ bore x 8″ stroke ag clevis hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel gland with wear rings for long life. Welded steel clevis ends, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Agriculture clevis cylinder is a perfect welded alternative of tie rod cylinder. Great replacement for farming equipment and others.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Tariff-FREE cylinders.

Made in Europe.
