4" bore x 24" stroke ag clevis hydraulic cylinder

$368.00

Pay in 4 interest-free payments of $92.00
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WBC 4x24
Bore : 4 in
Outer Dia. (⌀) : 4.5 in
Stroke : 24 in
Rod Dia. (⌀) : 1.5 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

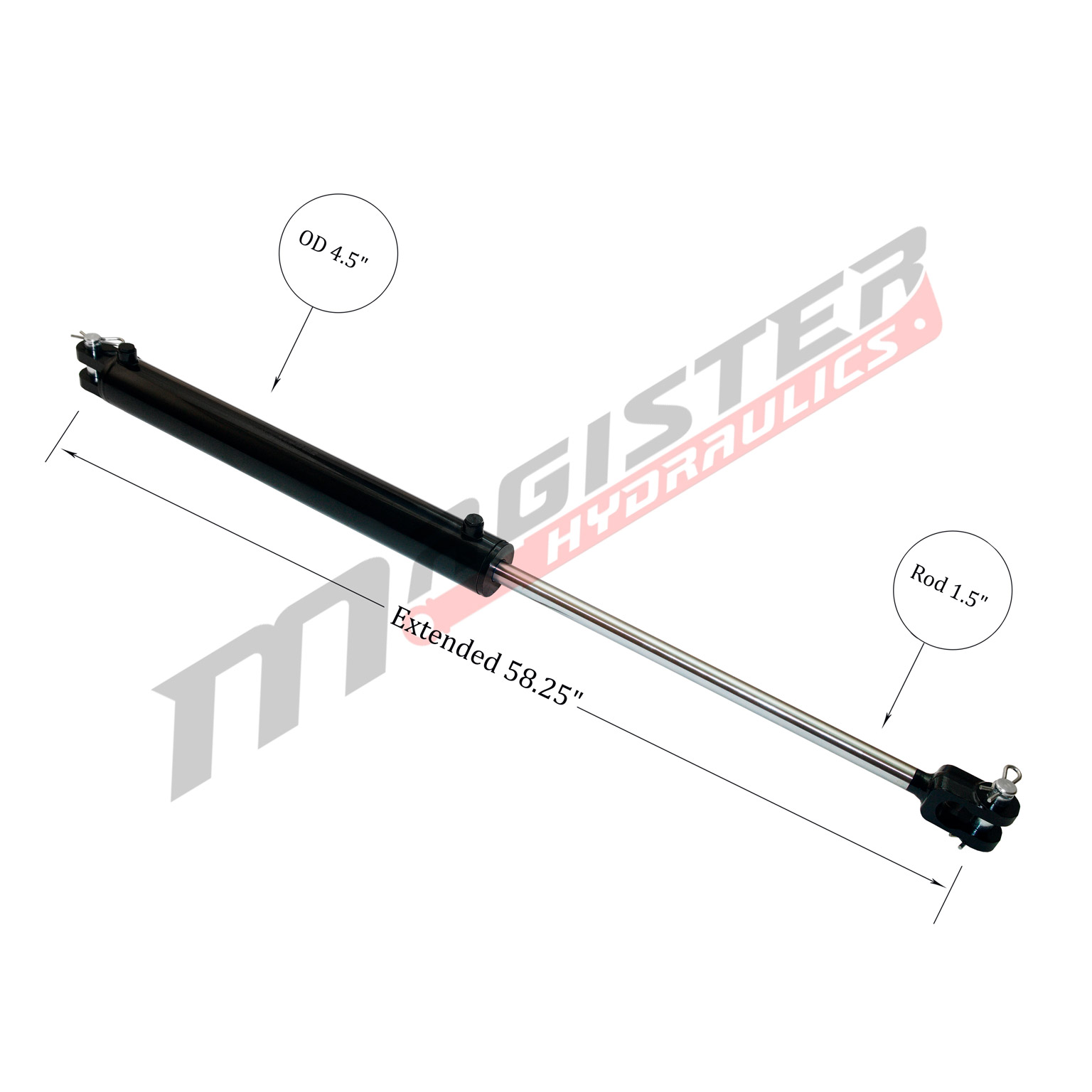

Extended : 58.25 in

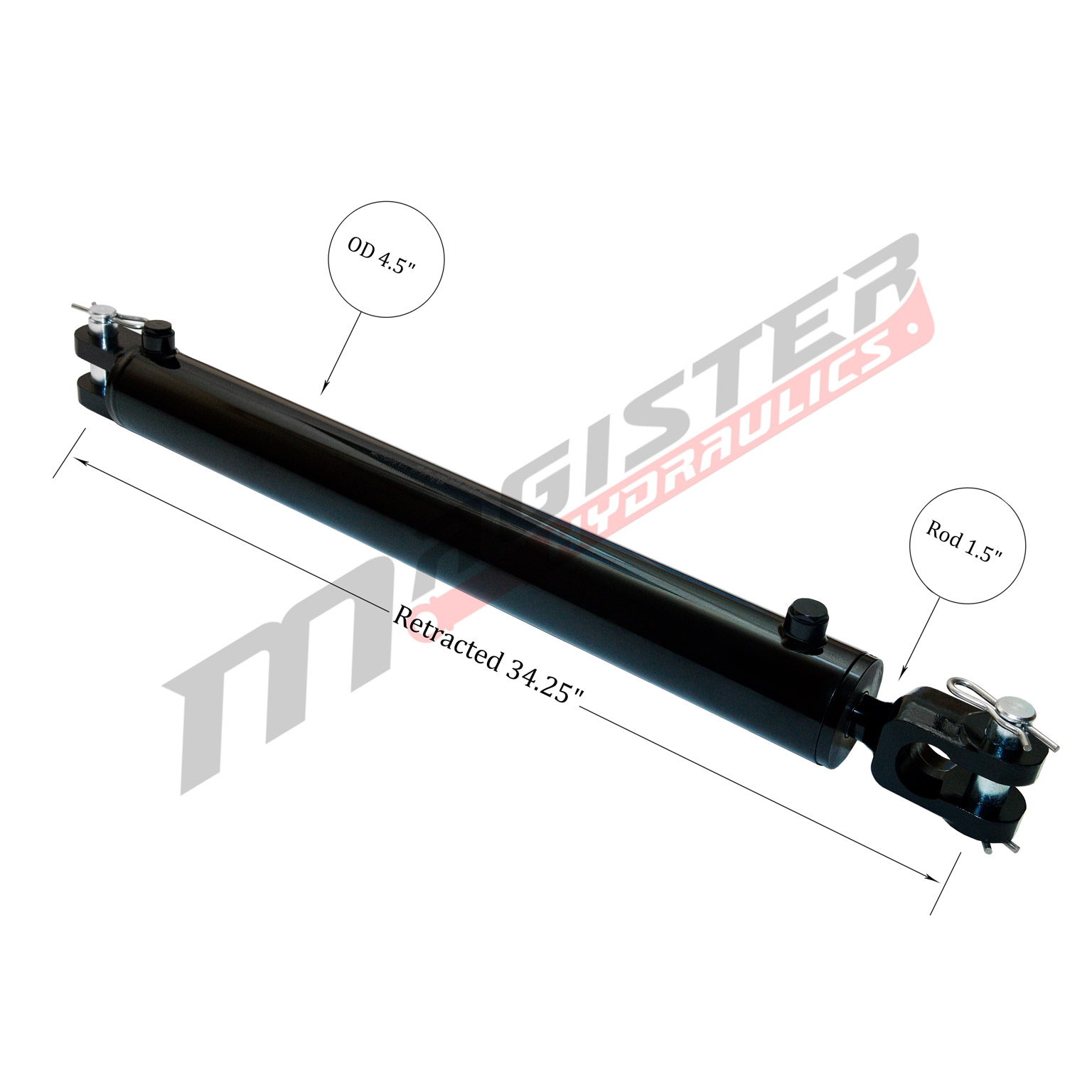

Retracted : 34.25 in
Overall length : 36.5 in
Pressure : 2500 PSI
Column Load : 16,800 LBs
Oil Volume : 5.22 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Clevis
Action : Double Acting
Weight : 59 LBs
GTIN : 850016509697
SKU: WBC 4x24 Categories: ,

Volume discounts

1+ PRICE EA
$368.00
4+ PRICE EA -5%
$349.60
8+ PRICE EA -10%
$331.20
In stock

34 in stock

Description


  • 4″ bore x 24″ stroke ag clevis hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel gland with wear rings for long life. Welded steel clevis ends, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Agriculture clevis cylinder is a perfect welded alternative of tie rod cylinder. Great replacement for farming equipment and others.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Tariff-FREE cylinders.

Made in Europe.
