4 bore x 8 ASAE stroke hydraulic cylinder, welded clevis double acting cylinder | Magister Hydraulics

4" bore x 8" ASAE stroke clevis hydraulic cylinder

Name: 4" bore x 8" ASAE stroke clevis hydraulic cylinder
Brand: Magister Hydraulics
SKU: WCL 4x8 ASAE
Price: 320.00 USD
Availability: InStock
Rating: 5 (10 reviews)

$320.00

Pay in 4 interest-free payments of $80.00

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WCL 4x8 ASAE

Product SKU	Maxim part number	Chief part number	Prince-Wolverine part number	Prince-Magnum part number	Eagle part number
WCL 4x8 ASAE	288454	287057	WWCL4008-ASAE	PC4008CL-ASAE	HTG4008-ASAE-ORB

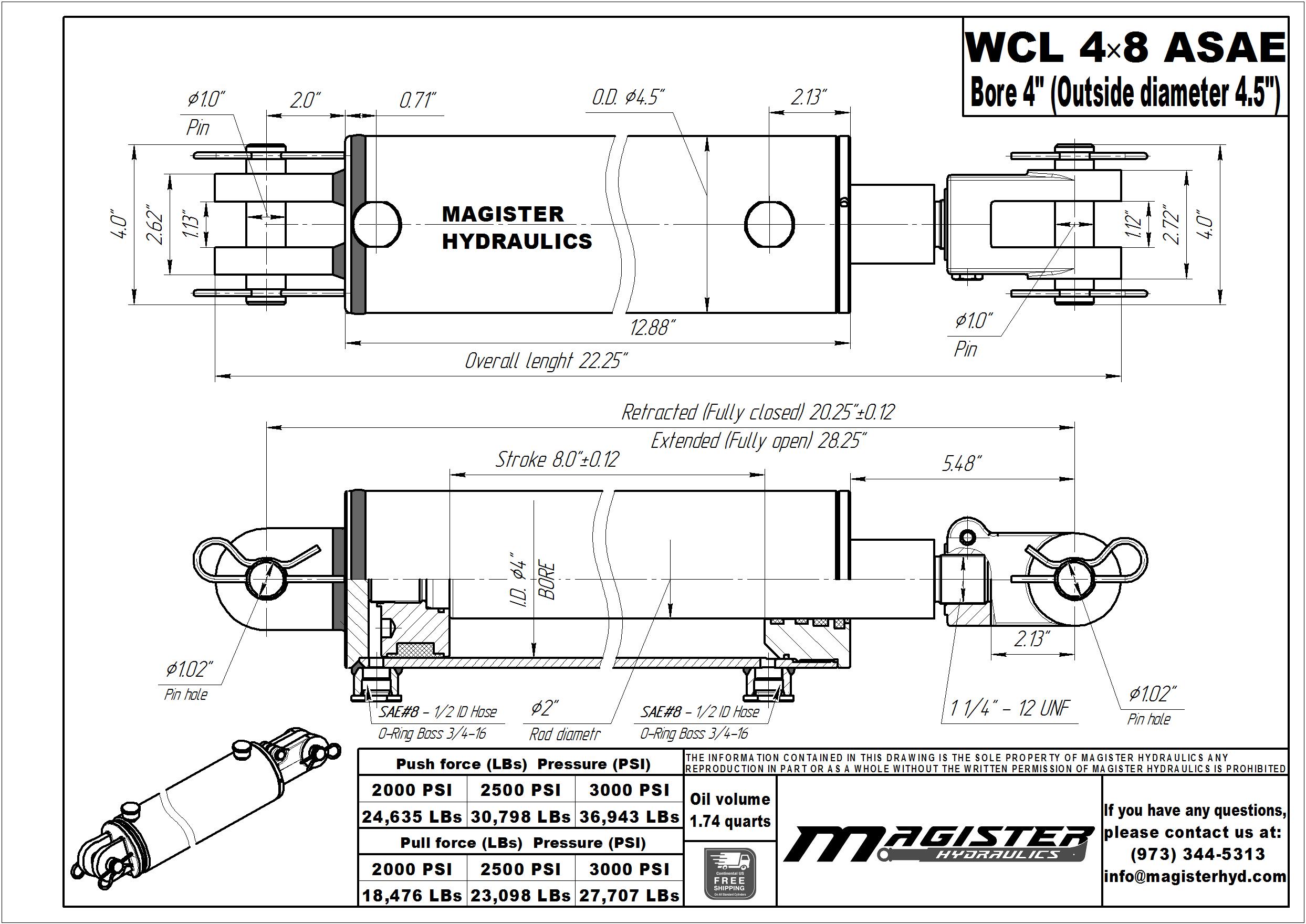

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	4 in
Outer Dia. (⌀) :	4.5 in
Stroke :	8 in ASAE
Rod Dia. (⌀) :	2 in
Port Size :	SAE 8
Pin Dia. (⌀) :	1 in

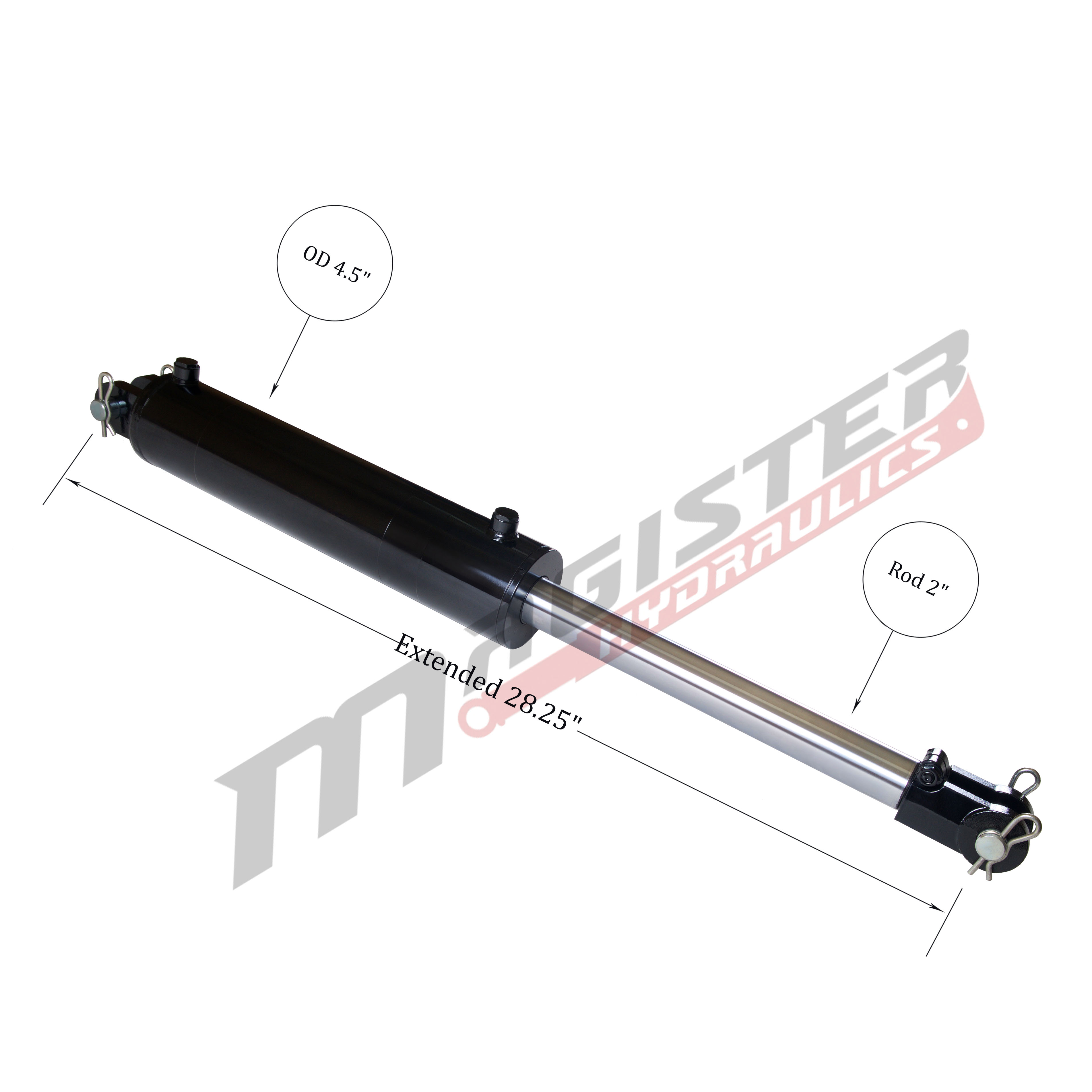

Extended :	28.25 in

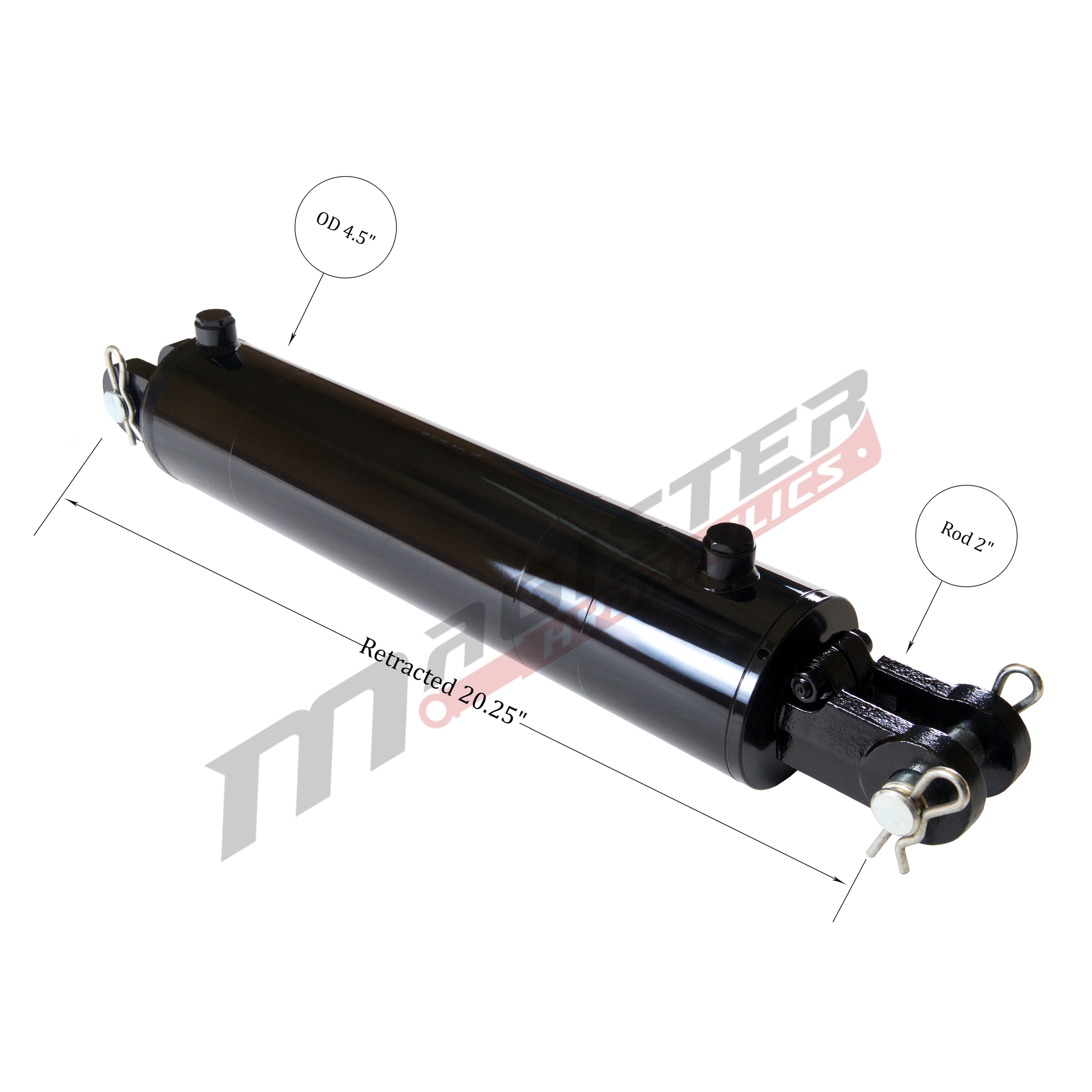

Retracted :	20.25 in
Overall length :	22.25 in
Pressure :	3500 PSI
Column Load :	37,000 LBs
Oil Volume :	1.74 QTs
Brand :	Magister Hydraulics

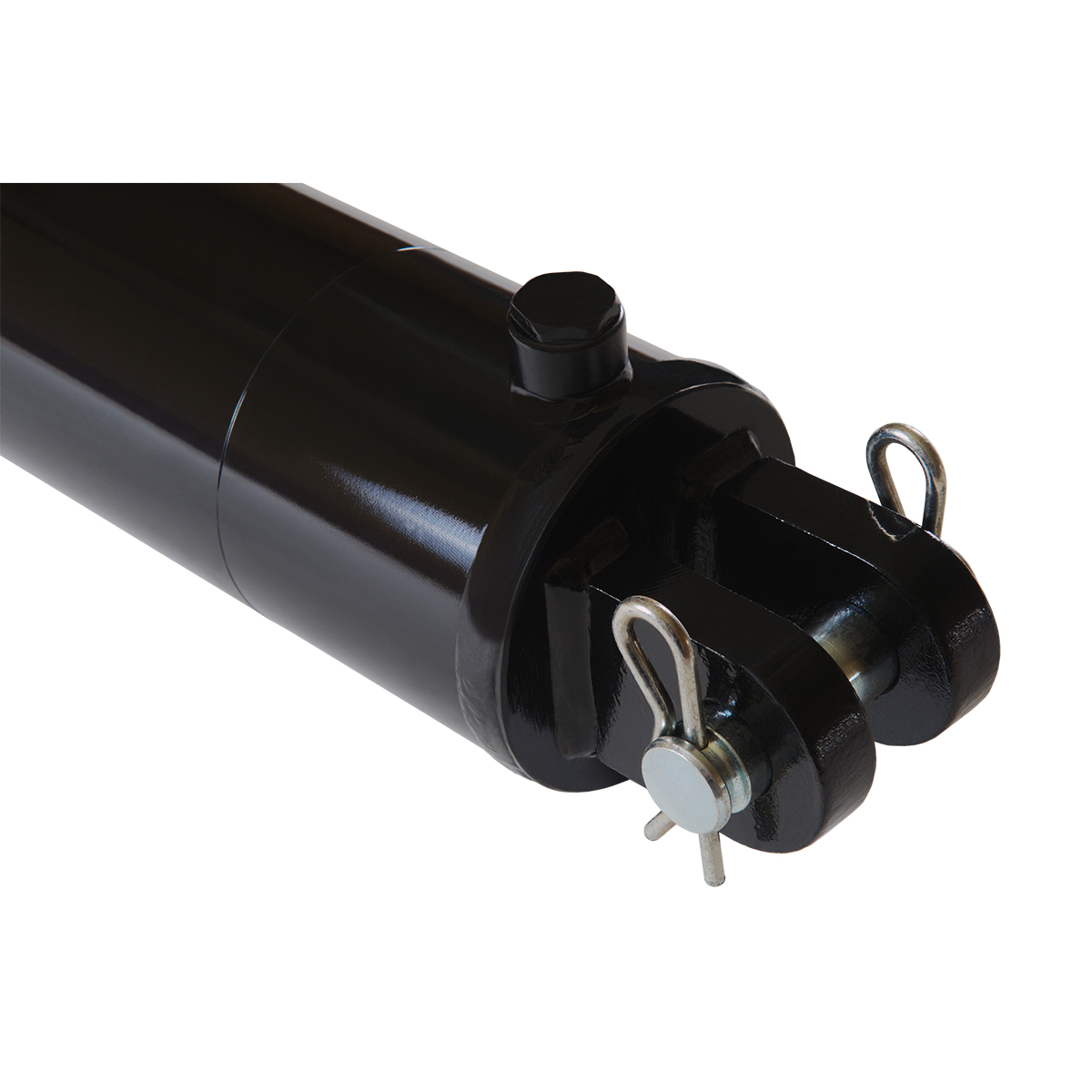

Design :	Welded
Rod Type :	Chrome Plated

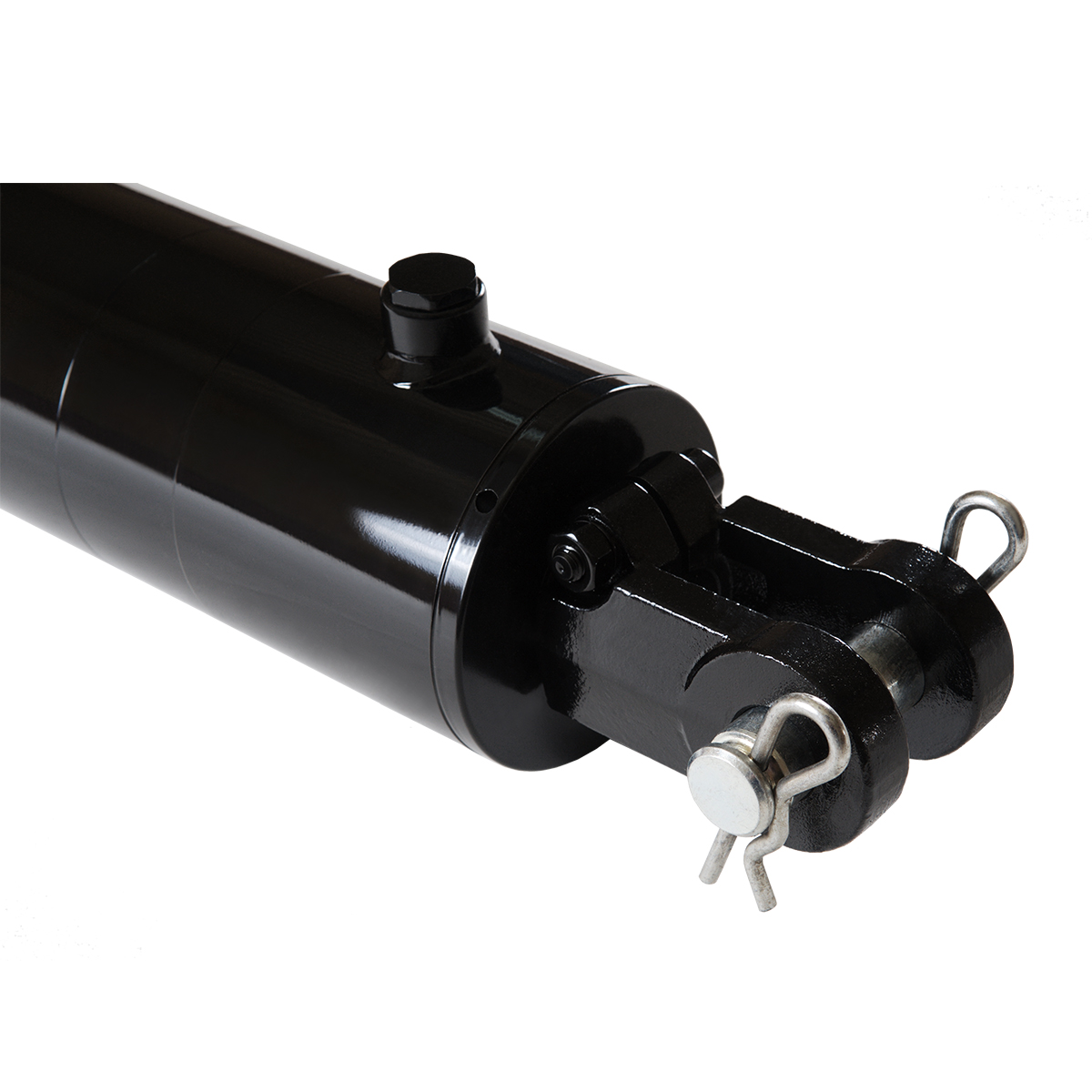

Rod End :	Clevis
Action :	Double Acting
Weight :	45 LBs
GTIN :	850597006646

SKU: WCL 4x8 ASAE Categories: 4" Bore Clevis, Hydraulic Cylinders

Volume discounts

4+ PRICE EA -5%

$304.00

8+ PRICE EA -10%

$288.00

In stock

57 in stock

Description

Experience unmatched power and precision with our high-performance Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 4-inch bore and 8-inch ASAE stroke with clevis ends and 3500 PSI. This cylinder is a best option for heavy-duty hydraulics. Perfect fit to automotive hydraulic applications (vehicle lifts, dump trucks, towing and recovery), construction equipment (excavators, loaders, bulldozers), agricultural machinery (tractors, combine harvesters, sprayers), forestry (tree harvesters, skidders), and mining equipment (drilling rigs, haul trucks).

Key Features:

- – Extreme load capacity: Screw-on ductile iron clevis adjustable rod end, ⌀ 4.5″ honed cold-drawn tubing, ⌀ 2.0″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 8″ ASAE stroke.
- – Wide Range Hydraulic Applications: tractors, harvesters, farming machinery, ensuring reliable operation in harsh environments thanks to the usage of this clevis end cylinder.
- – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
- – High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
- – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
- – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
- – Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
- – 2-year warranty
- – Same Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
- – Made in Europe.

Before purchase, please take the proper measurements:

– The diameter of the bore (please specify inside or outside measurement).
– The diameter of the rod and pin holes.
– The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
– The width on each mounting end of the cylinder where the pins slide through.
