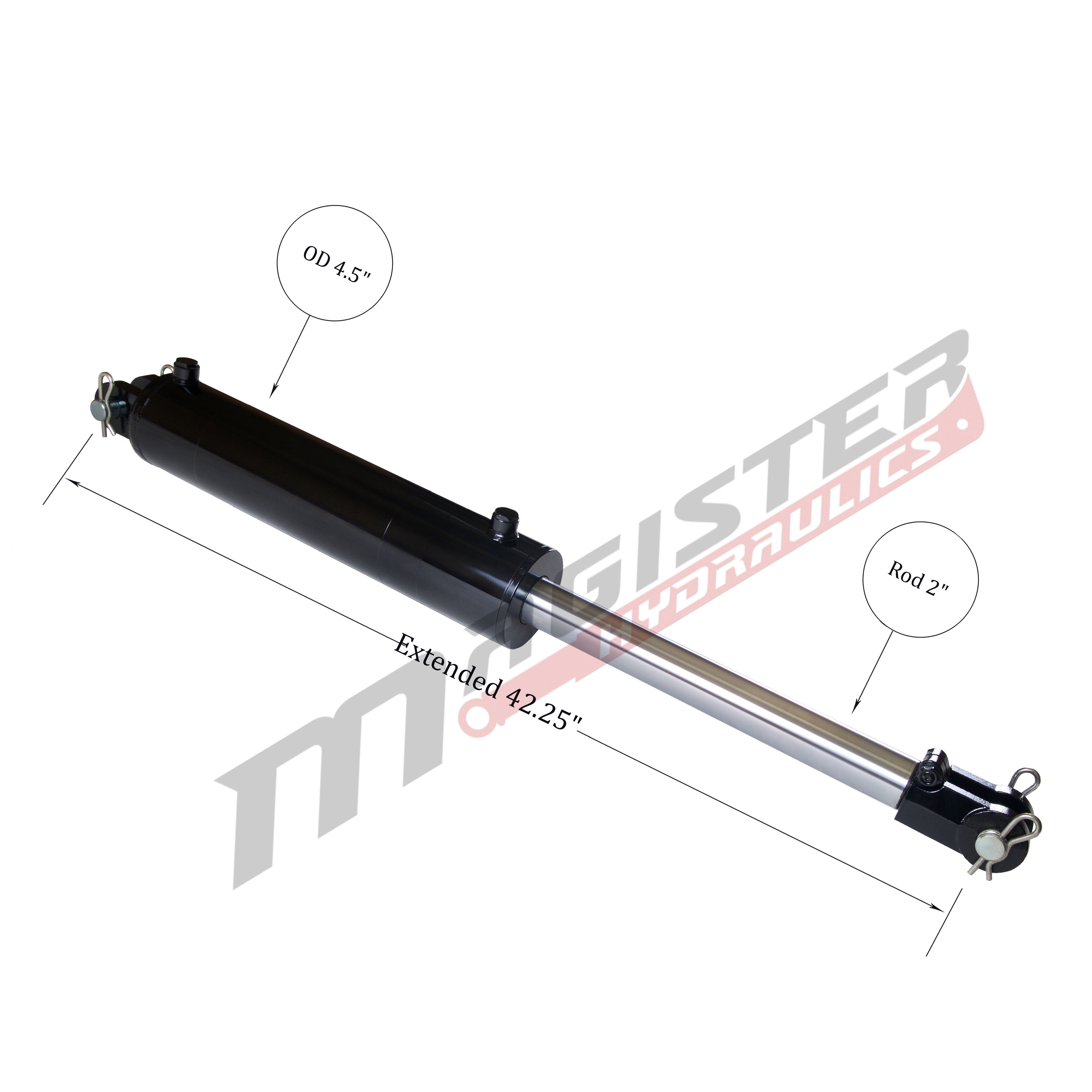

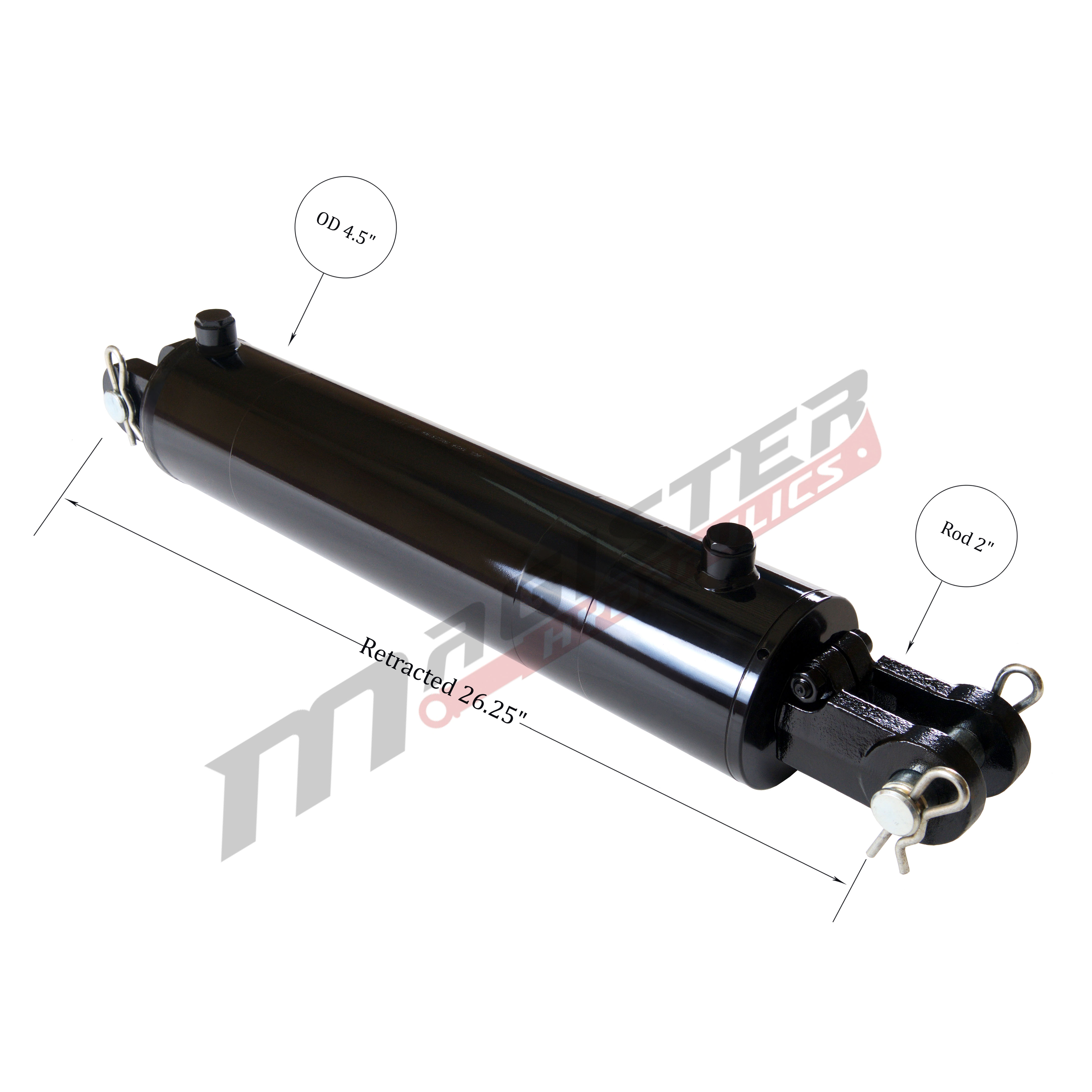

4" bore x 16" stroke clevis hydraulic cylinder

Experience unmatched power and precision with our high-performance Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 4-inch bore and 16-inch stroke with clevis ends and 3500 PSI. This cylinder is a best option for heavy-duty hydraulics. Perfect fit to automotive hydraulic applications (vehicle lifts, dump trucks, towing and recovery), construction equipment (excavators, loaders, bulldozers), agricultural machinery (tractors, combine harvesters, sprayers), forestry (tree harvesters, skidders), and mining equipment (drilling rigs, haul trucks).

Key Features:

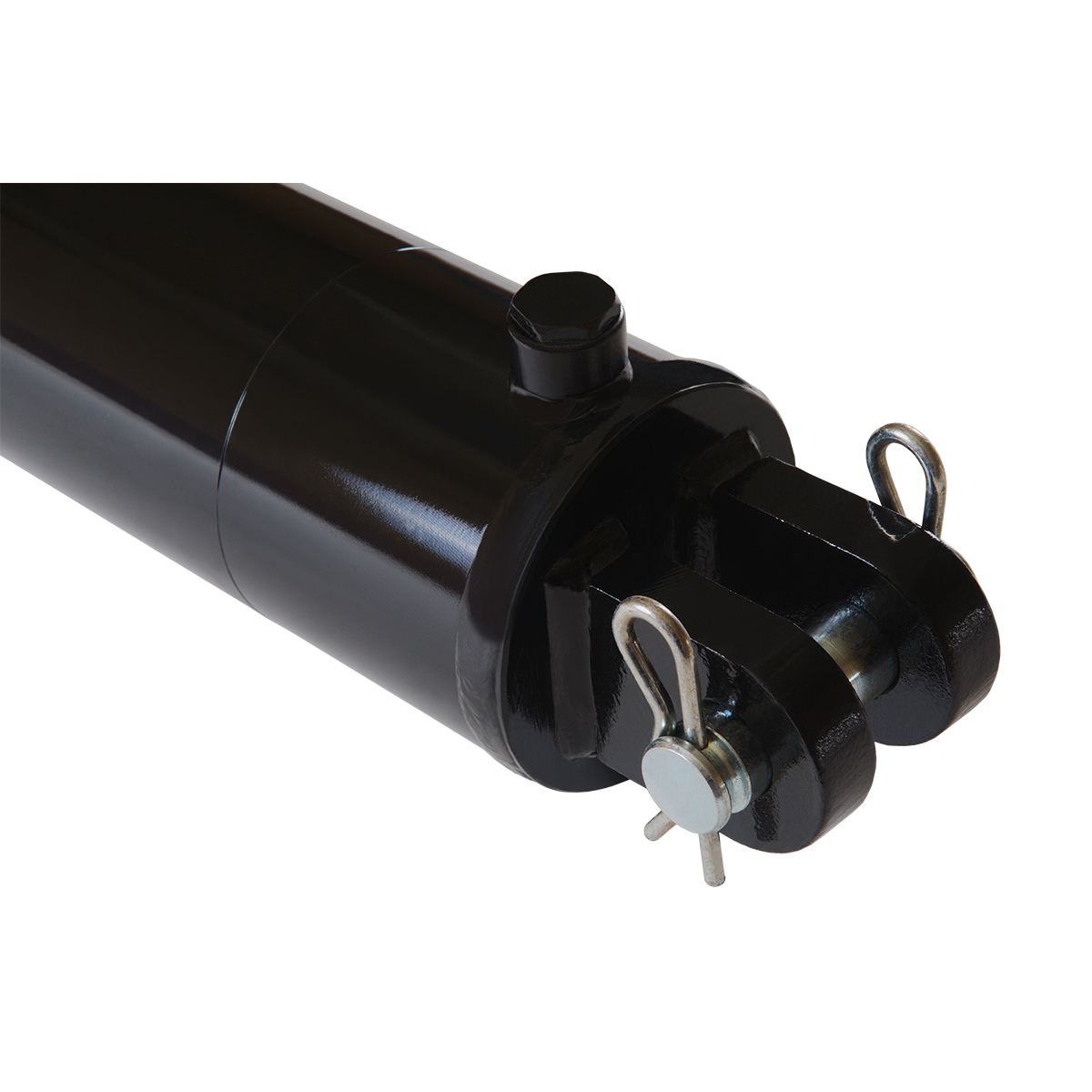

• • – Extreme load capacity: Screw-on ductile iron clevis adjustable rod end, ⌀ 4.5″ honed cold-drawn tubing, ⌀ 2.0″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 16″ stroke.
  • – Wide Range Hydraulic Applications: tractors, harvesters, farming machinery, ensuring reliable operation in harsh environments thanks to the usage of this clevis end cylinder.
  • – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
  • – High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
  • – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
  • – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
  • – Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
  • – 2-year warranty
  • – Same Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
  • – Made in Europe.

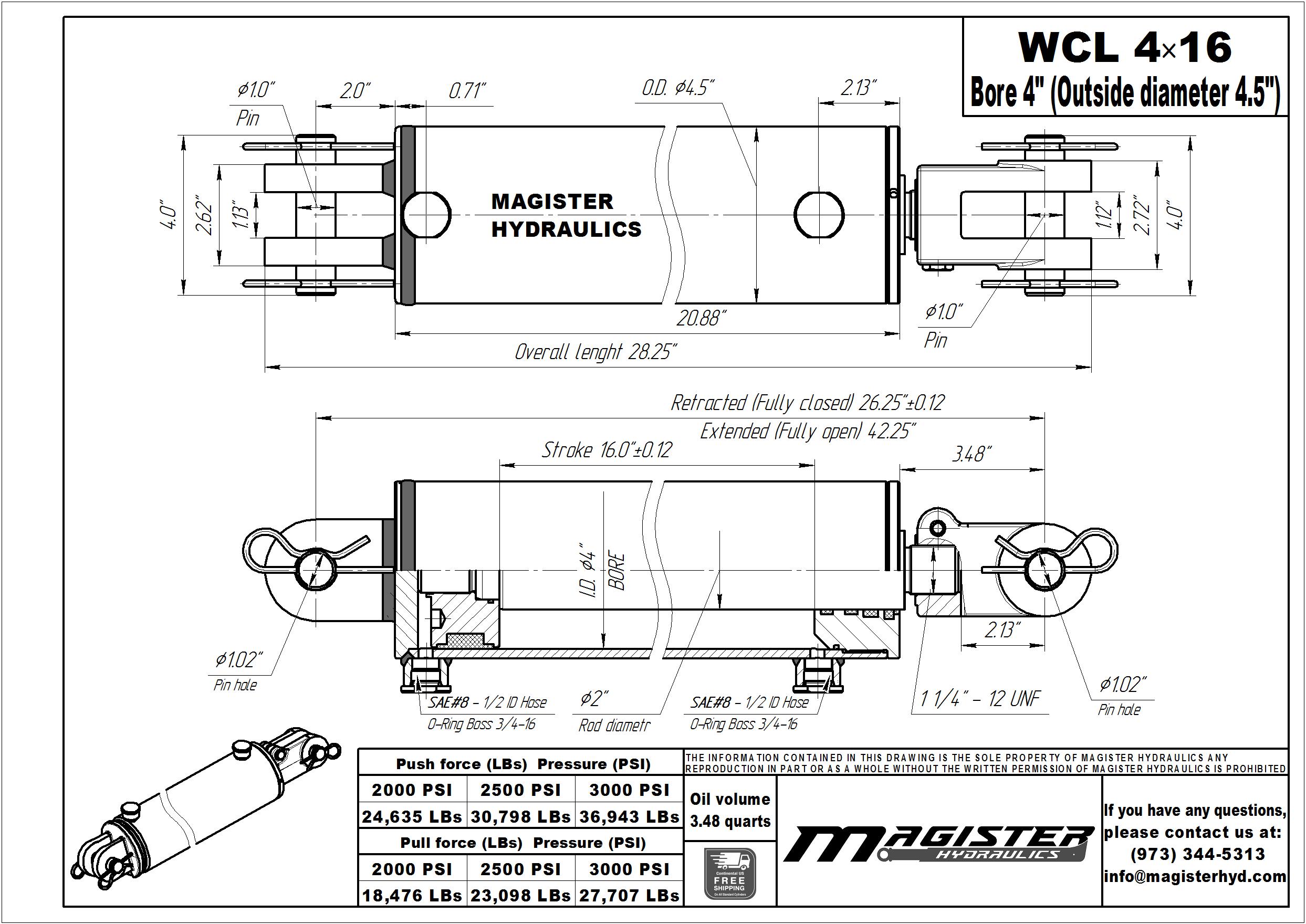

Before purchase, please take the proper measurements:

• – The diameter of the bore (please specify inside or outside measurement).
• – The diameter of the rod and pin holes.
• – The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
• – The width on each mounting end of the cylinder where the pins slide through.
