2.5" bore x 10" stroke clevis hydraulic cylinder

$208.00

Pay in 4 interest-free payments of $52.00
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCL 2.5x10
Bore : 2.5 in
Outer Dia. (⌀) : 2.87 in
Stroke : 10 in
Rod Dia. (⌀) : 1.25 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in
Extended : 30.25 in

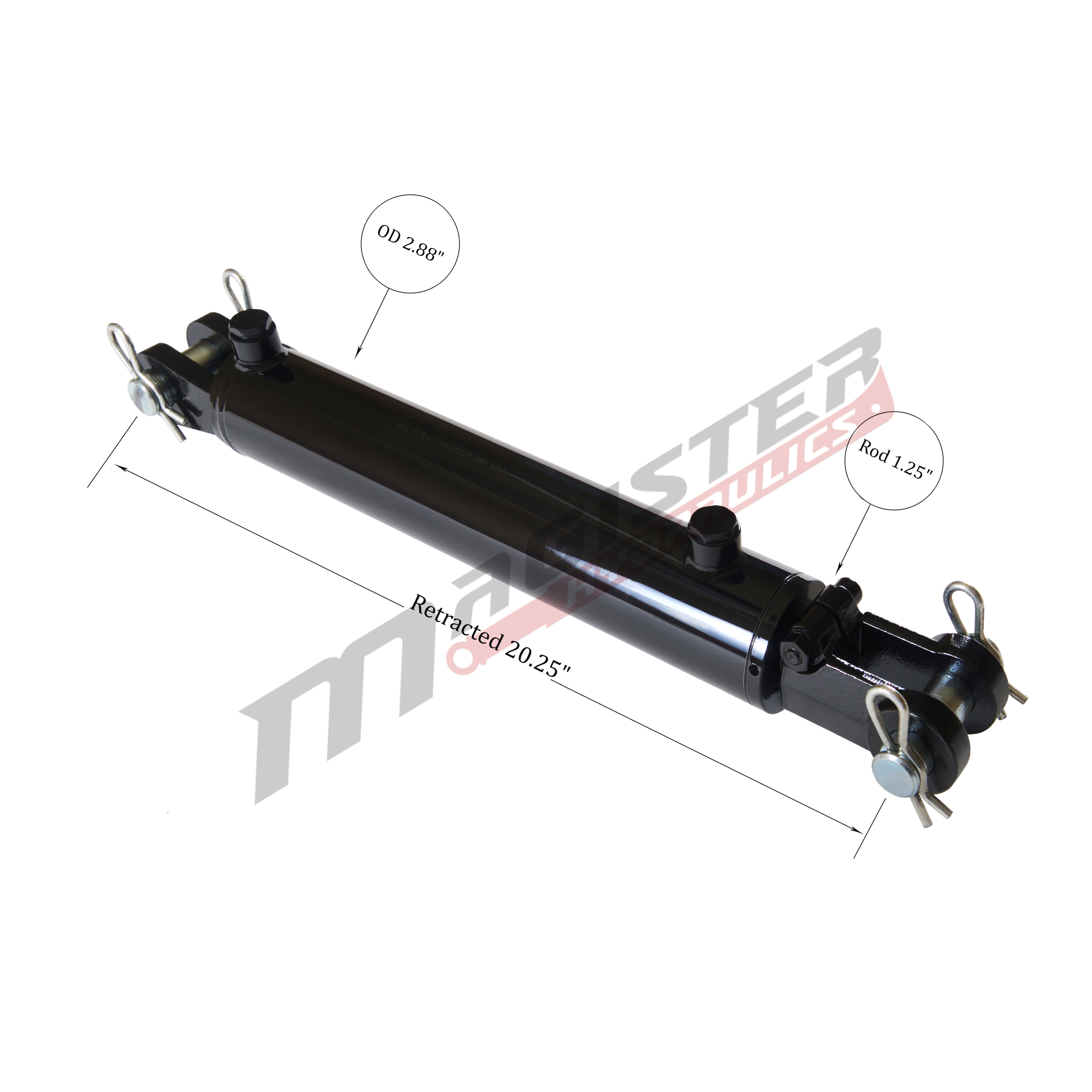

Retracted : 20.25 in
Overall length : 22.25 in
Pressure : 3500 PSI
Column Load : 14,700 LBs
Oil Volume : 0.85 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Clevis
Action :
  • Double Acting
    • Weight : 23 LBs
    GTIN : 850597006448
    SKU: WCL 2.5x10 Categories: ,

    Volume discounts

    1+ PRICE EA
    $208.00
    4+ PRICE EA -5%
    $197.60
    8+ PRICE EA -10%
    $187.20
    In stock

    53 in stock

    Description

    • 2.5″ bore x 10″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.

    If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

    973-344-5313

    WCL 2.5x36
    WCL 2.5x30
    WCL 2.5x24
    WCL 2.5x20
    WCL 2.5x18
    WCL 2.5x16
    WCL 2.5x14
    WCL 2.5x12
    WCL 2.5x8 ASAE
    WCL 2.5x8
    WCL 2.5x6
    WCL 2.5x4
