3" bore x 28" stroke cross tube hydraulic cylinder

$317.00

Pay in 4 interest-free payments of $79.25
* Wholesale Discount is available for this product if you purchase 4 or more products.

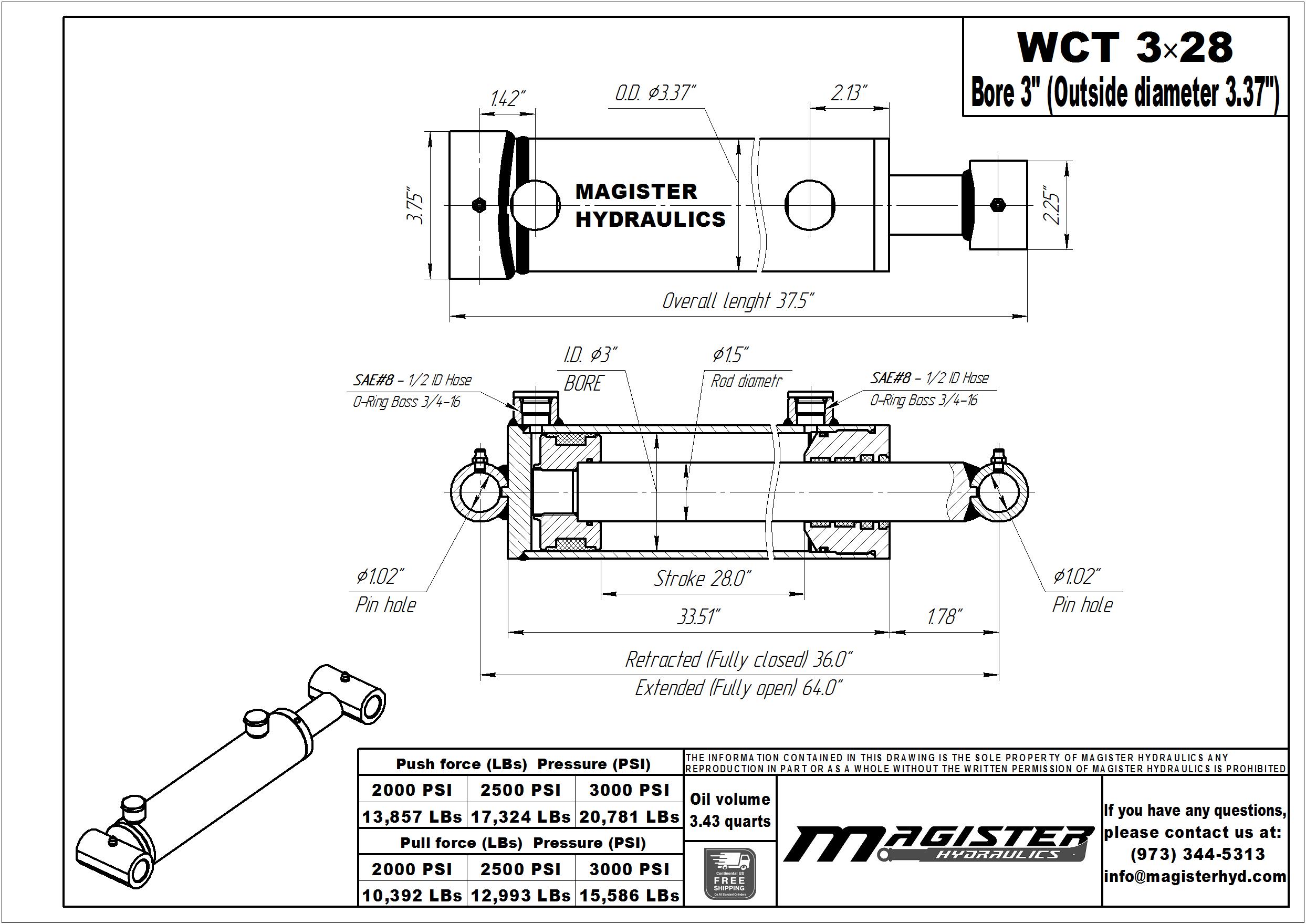

SKU: WCT 3x28
Bore :3” Bore Hydraulic Cylinders
OD :3.37"
Stroke :28” Stroke Hydraulic Cylinders
Rod :1.5"
Port Size :SAE 8
Pin :1"

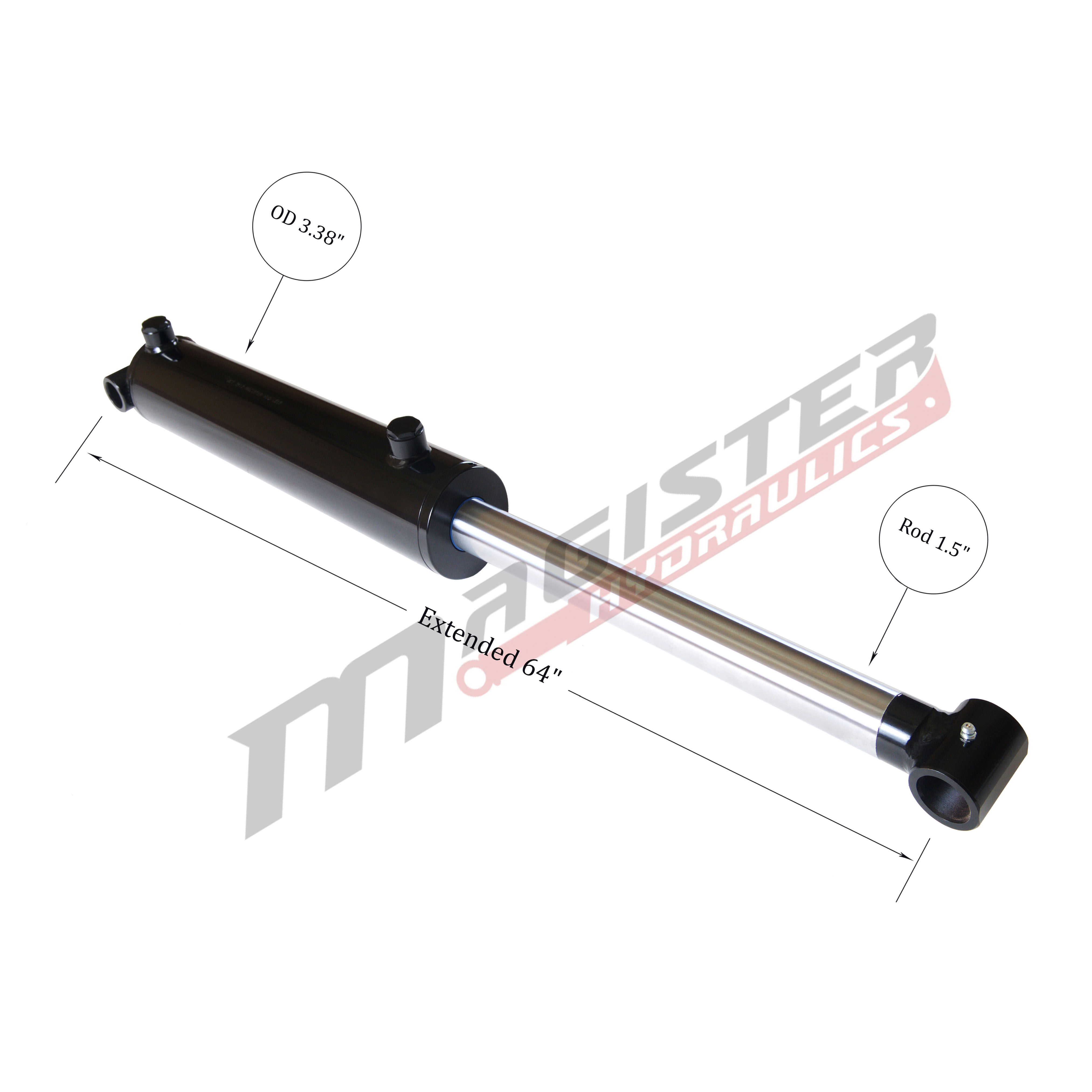

Extended :64"

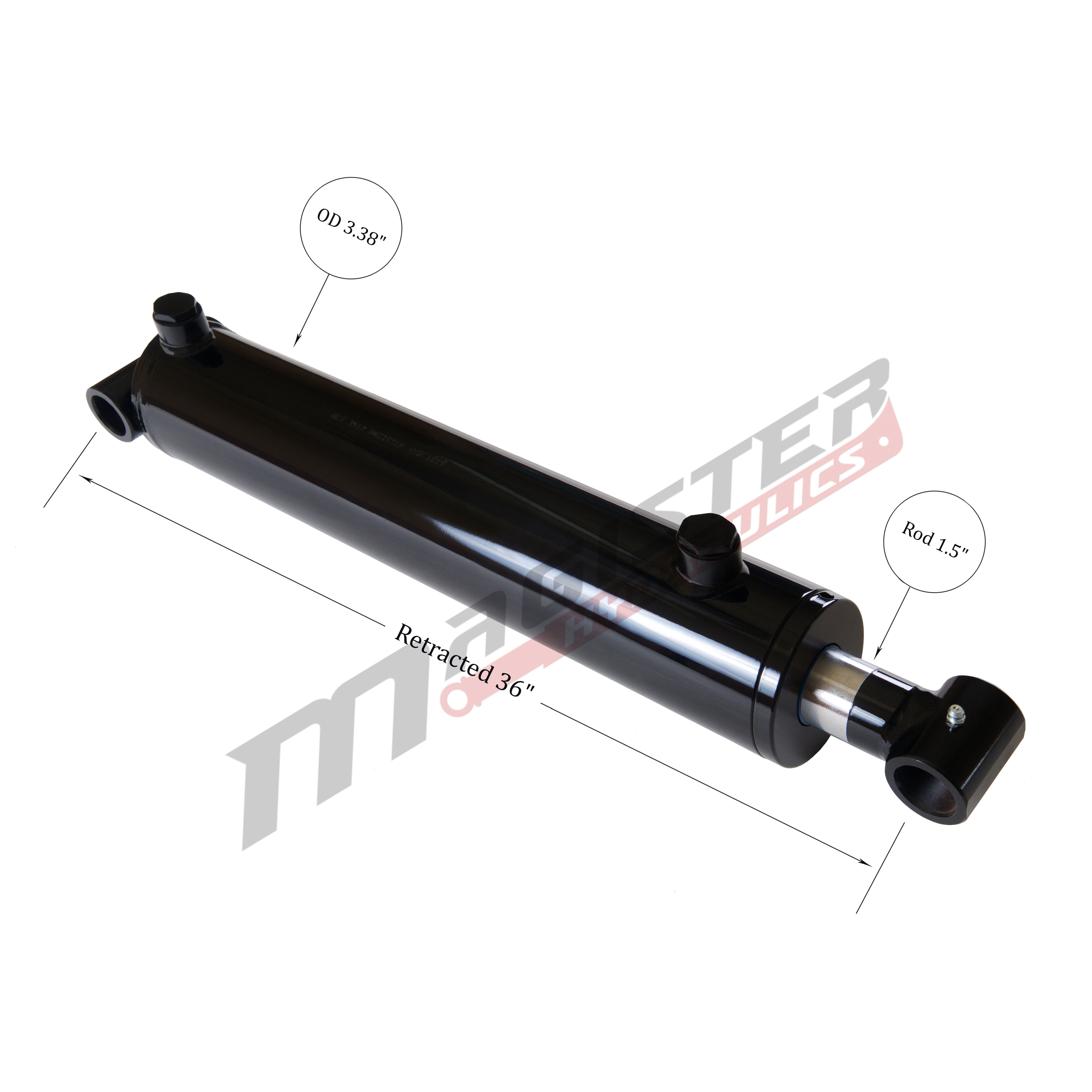

Retracted :36"
Overall length :37.5"
Pressure :Hydraulic Cylinders 3500 PSI
Column Load (LBs) :14,400
Oil Volume (quarts) :3.43
Brand :Magister Hydraulics
GTIN :857743006857
1+ PRICE EA
$317.00
4+ PRICE EA -3%
$307.49
8+ PRICE EA -6%
$297.98
In stock

53 in stock

DESCRIPTION

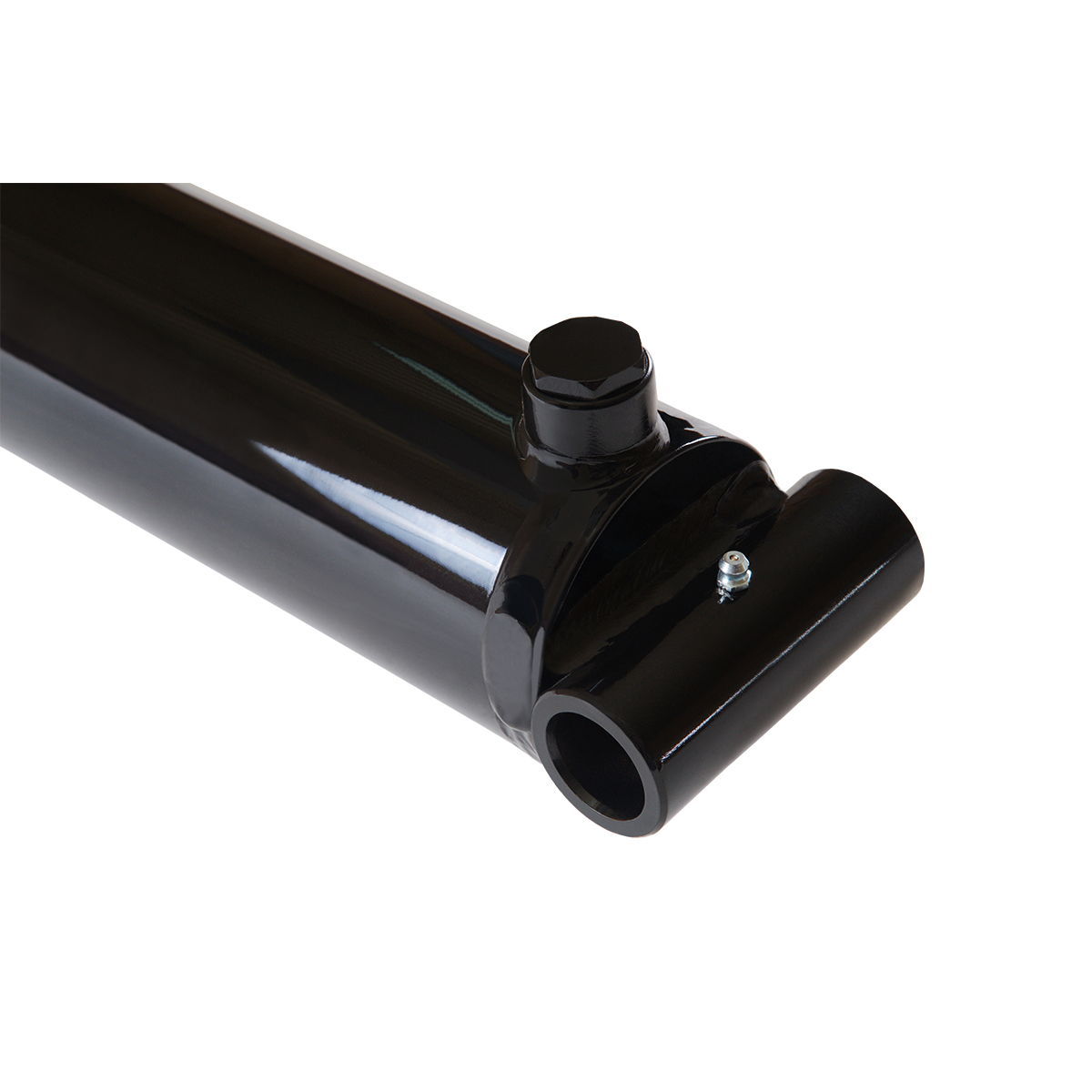

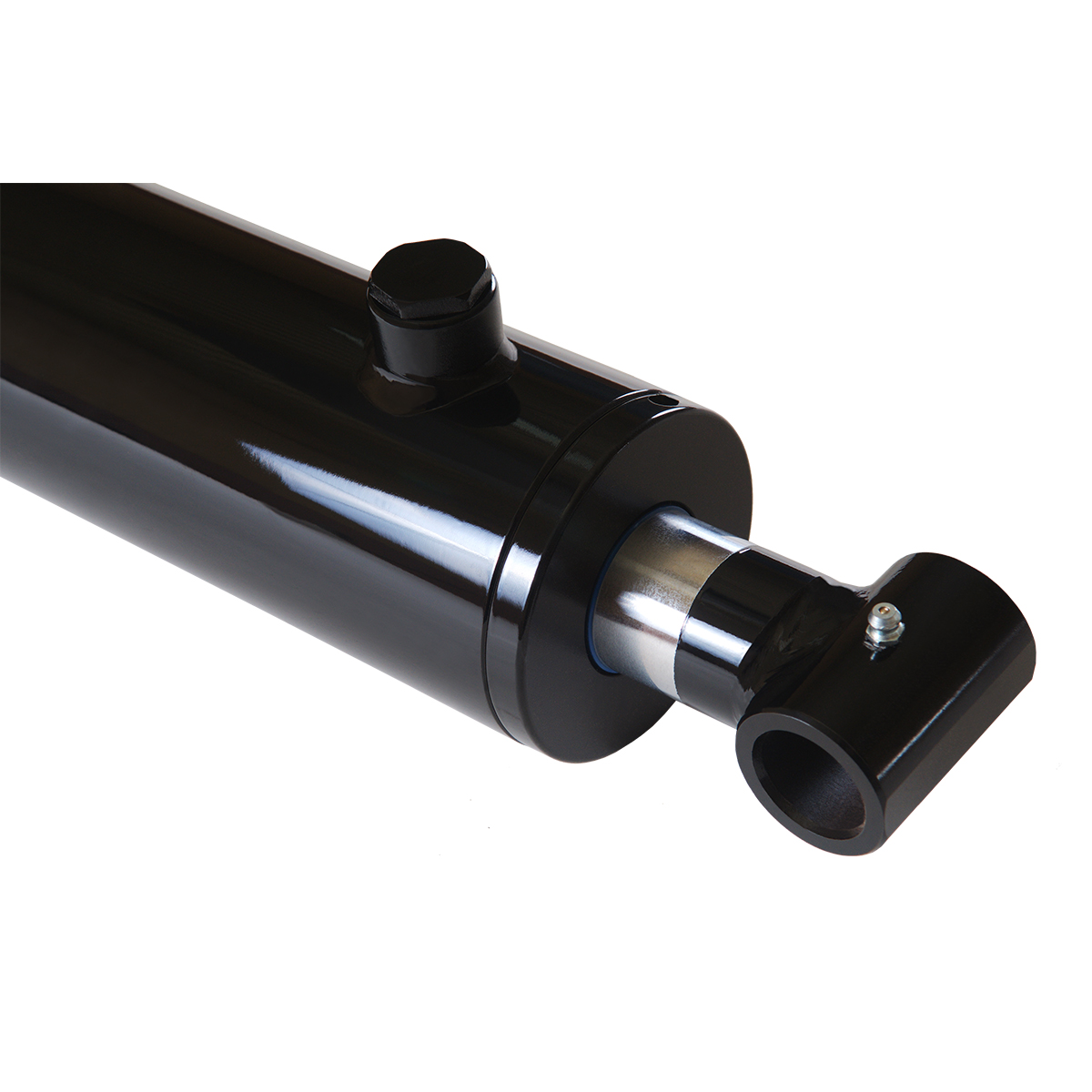

  • 3″ bore x 28″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
