3 bore x 4 stroke hydraulic cylinder, welded cross tube double acting cylinder | Magister Hydraulics
Sale!
On sale!
Zoom

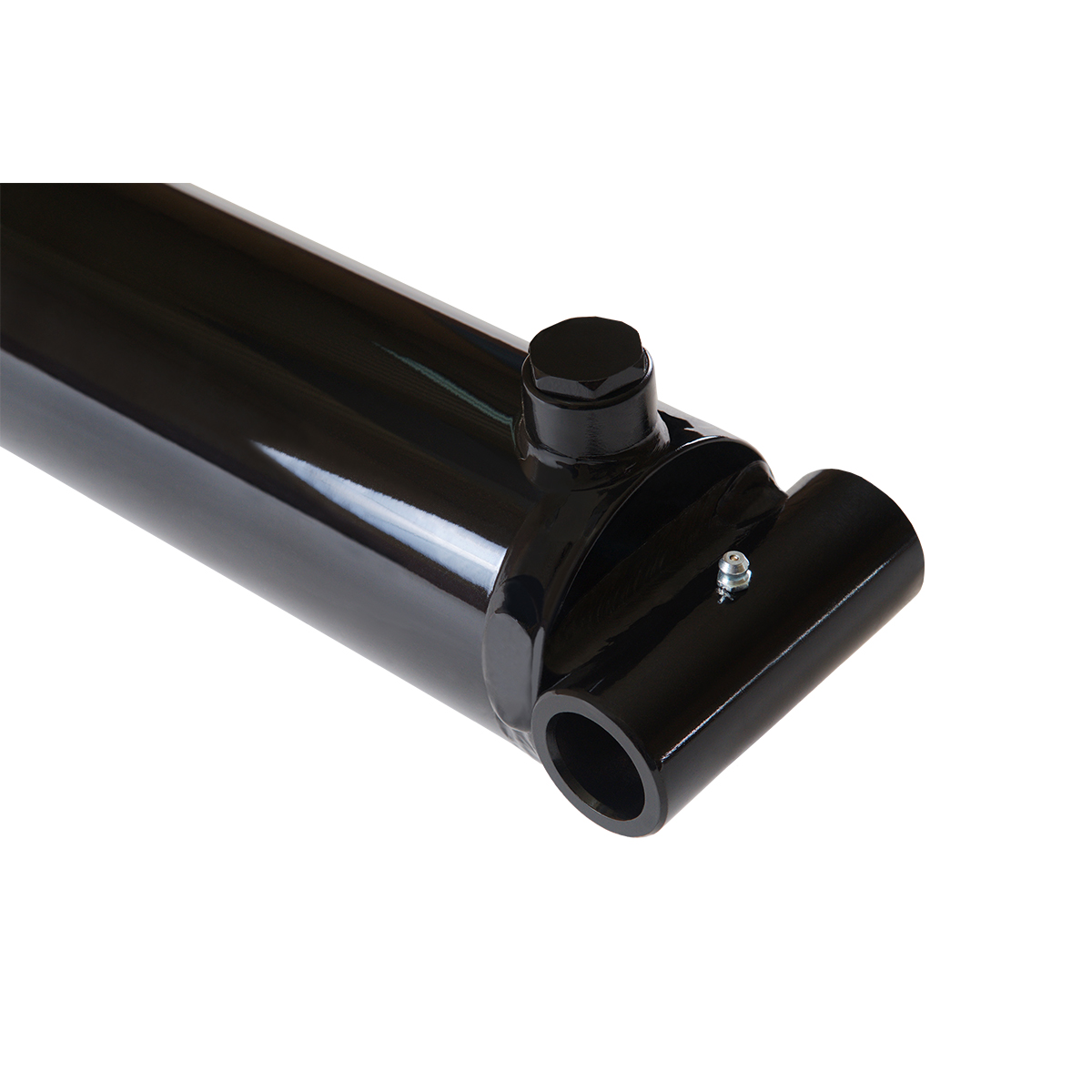

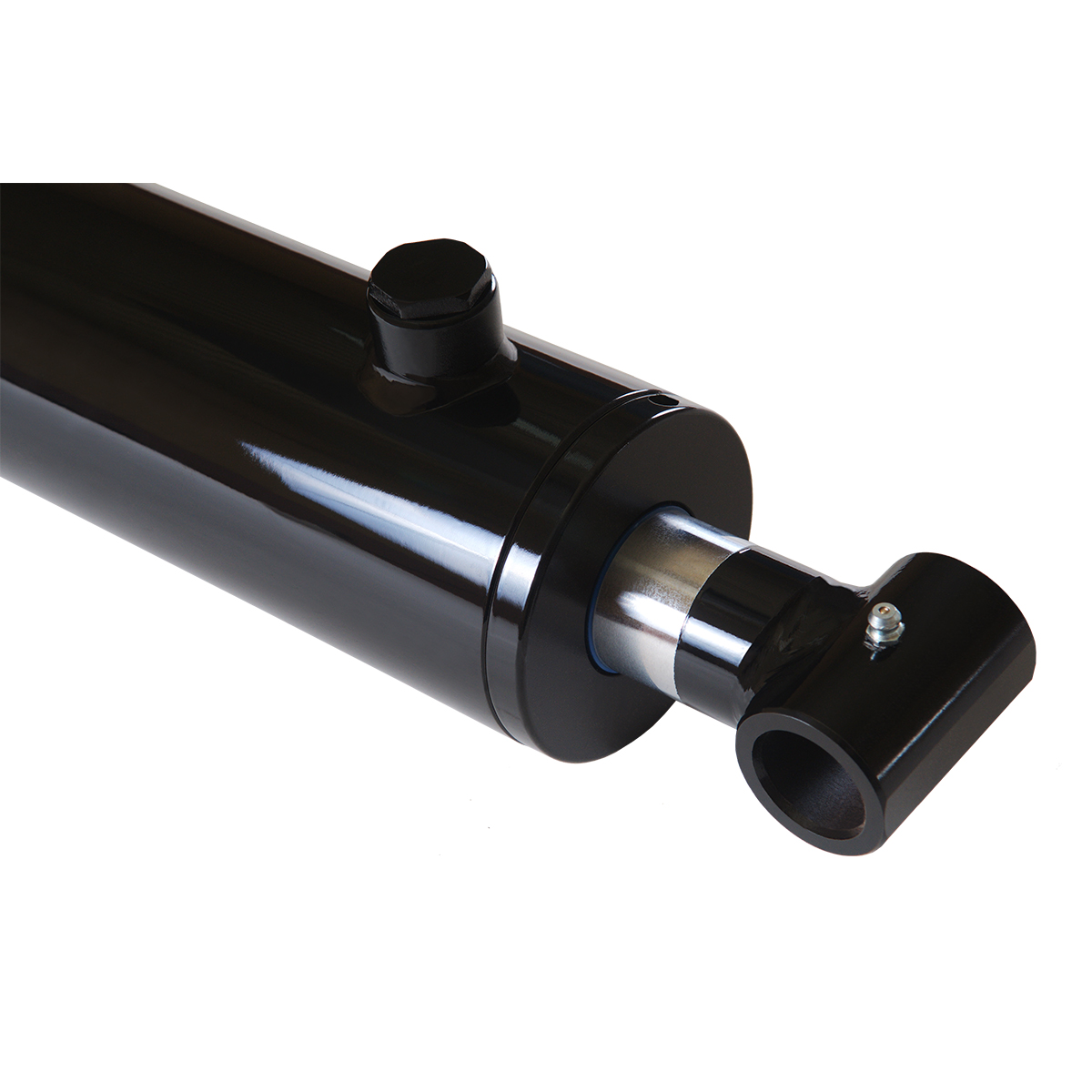

3" bore x 4" stroke cross tube hydraulic cylinder

Original price was: $217.00.Current price is: $184.45.

Pay in 4 interest-free payments of $46.11
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 3x4

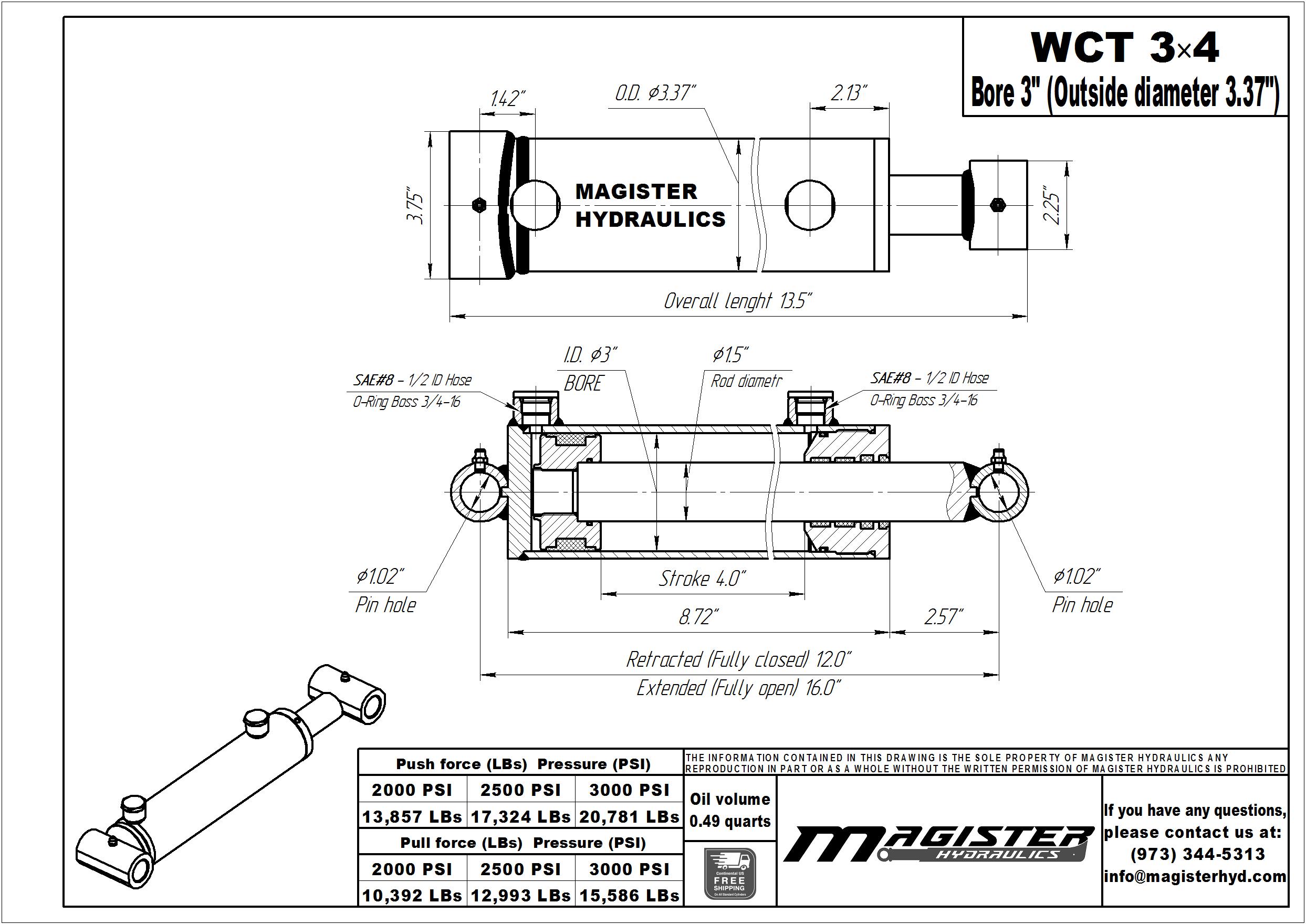

Bore : 3 in
Outer Dia. (⌀) : 3.37 in
Stroke : 4 in
Rod Dia. (⌀) : 1.5 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

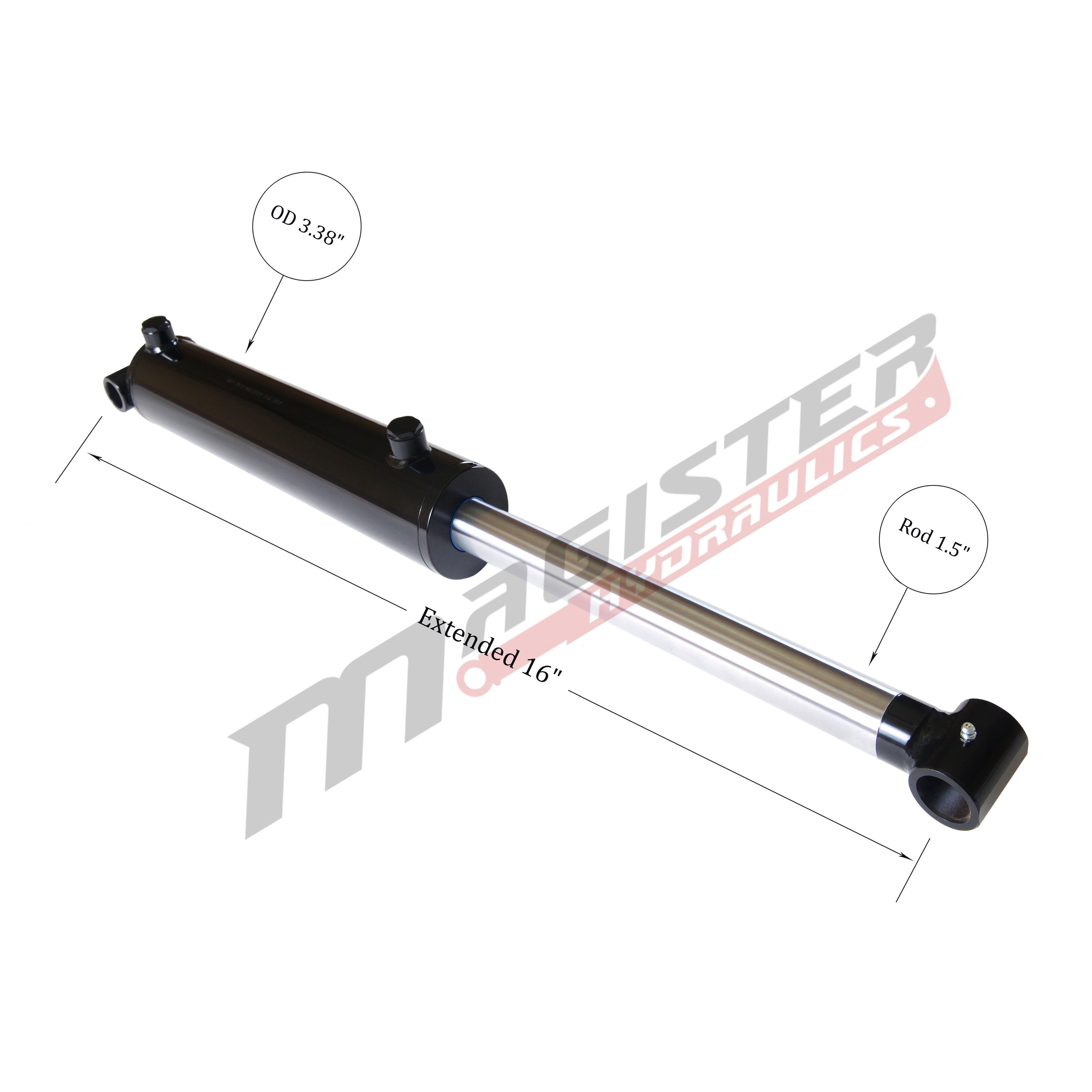

Extended : 16 in

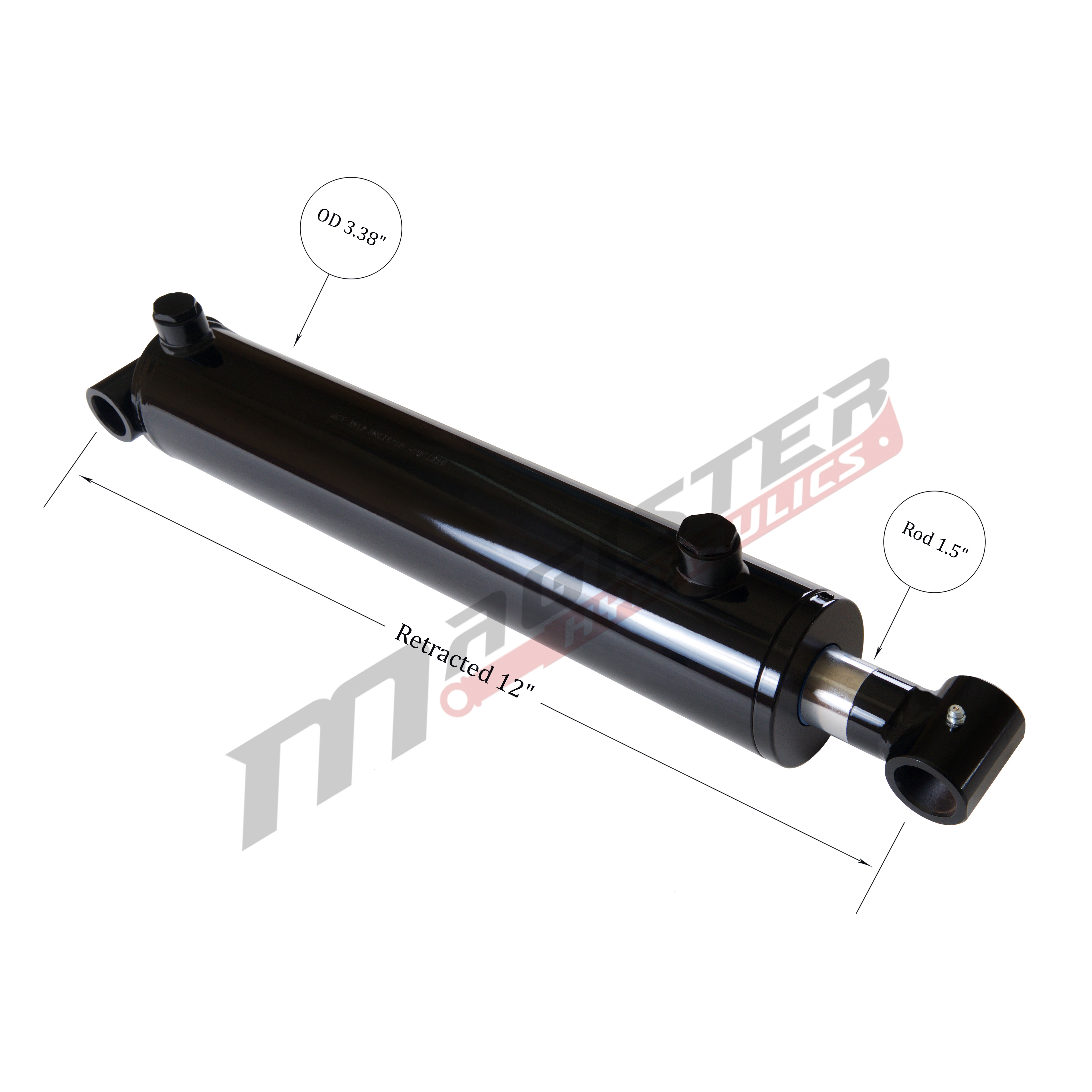

Retracted : 12 in
Overall length : 13.5 in
Pressure : 3500 PSI
Column Load : 21,000 LBs
Oil Volume : 0.49 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Cross Tube
Action :
  • Double Acting
  • Weight : 18 LBs
    GTIN : 857743006031

    Volume discounts

    1+ PRICE EA
    $184.45
    4+ PRICE EA -5%
    $175.23
    8+ PRICE EA -10%
    $166.00
    In stock

    31 in stock

    Description

    • 3″ bore x 4″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.
