3" bore x 20" stroke cross tube hydraulic cylinder


Pay in 4 interest-free payments of $72.00
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 3x20
Bore :3” Bore Hydraulic Cylinders
OD :3.37"
Stroke :20"
Rod :1.5"
Port Size :SAE 8
Pin :1"

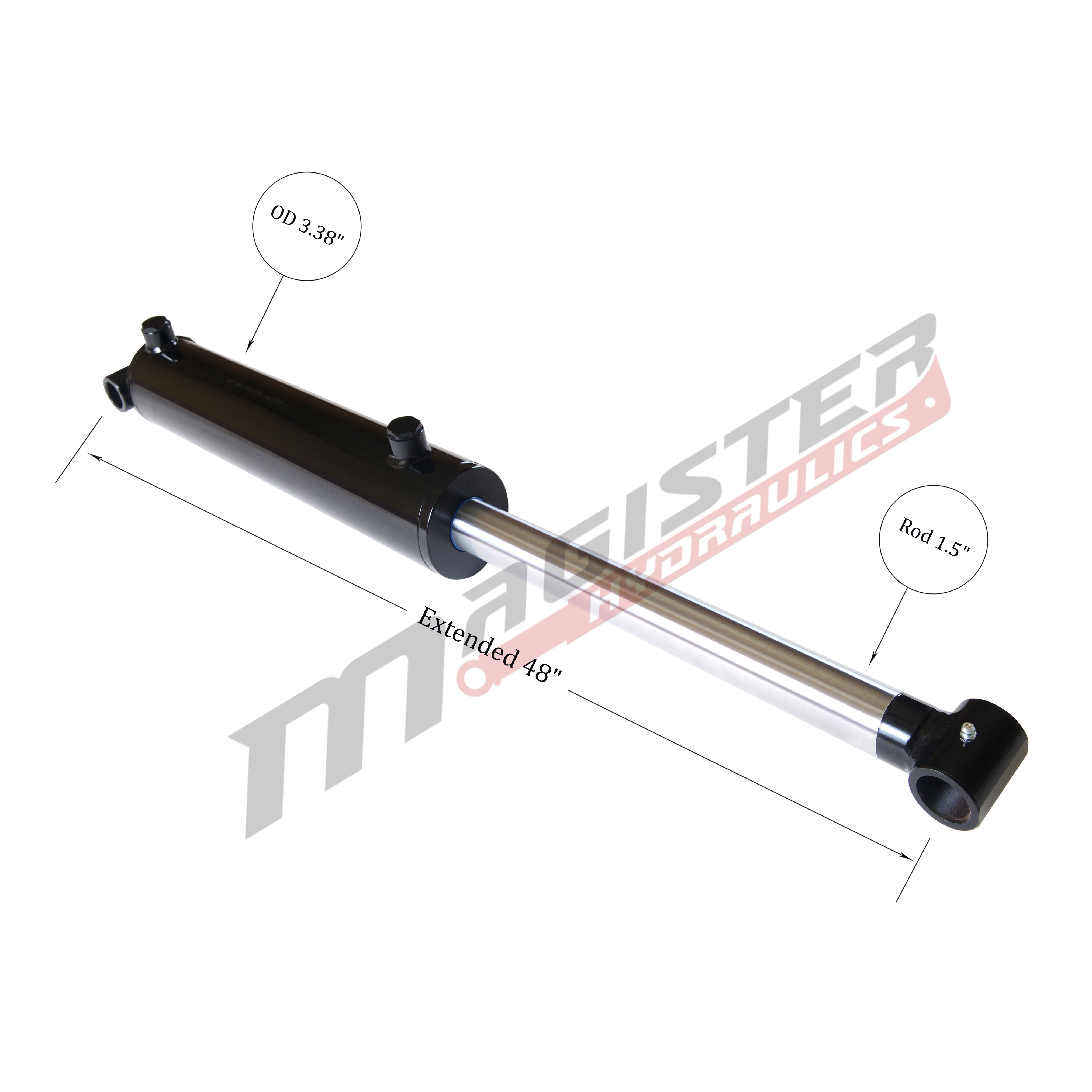

Extended :48"

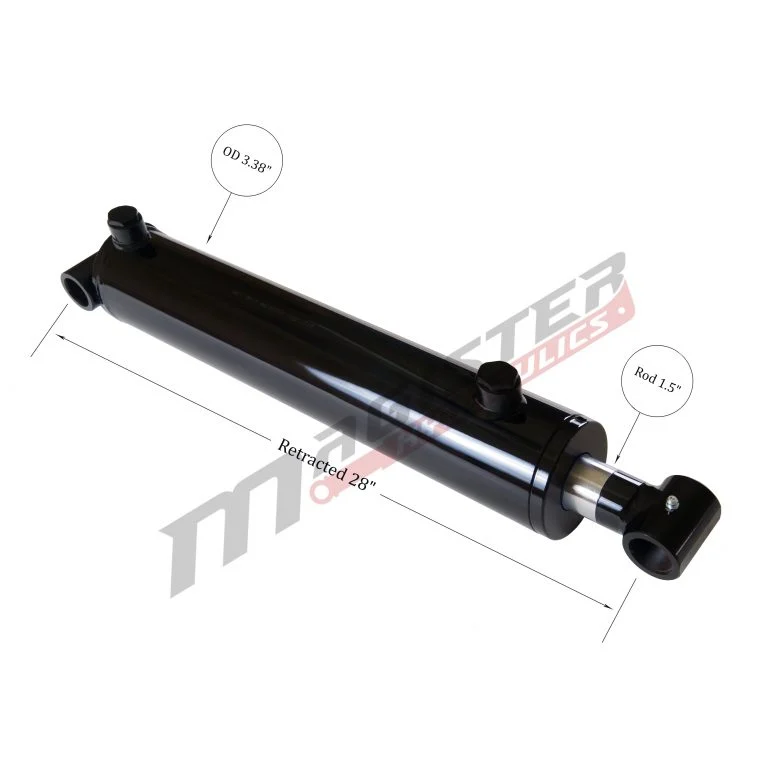

Retracted :28"
Overall length :29.5"
Pressure :3500 PSI
Column Load (LBs) :21,000
Oil Volume (quarts) :2.45
Brand :Magister Hydraulics
GTIN :850597006165
4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

76 in stock

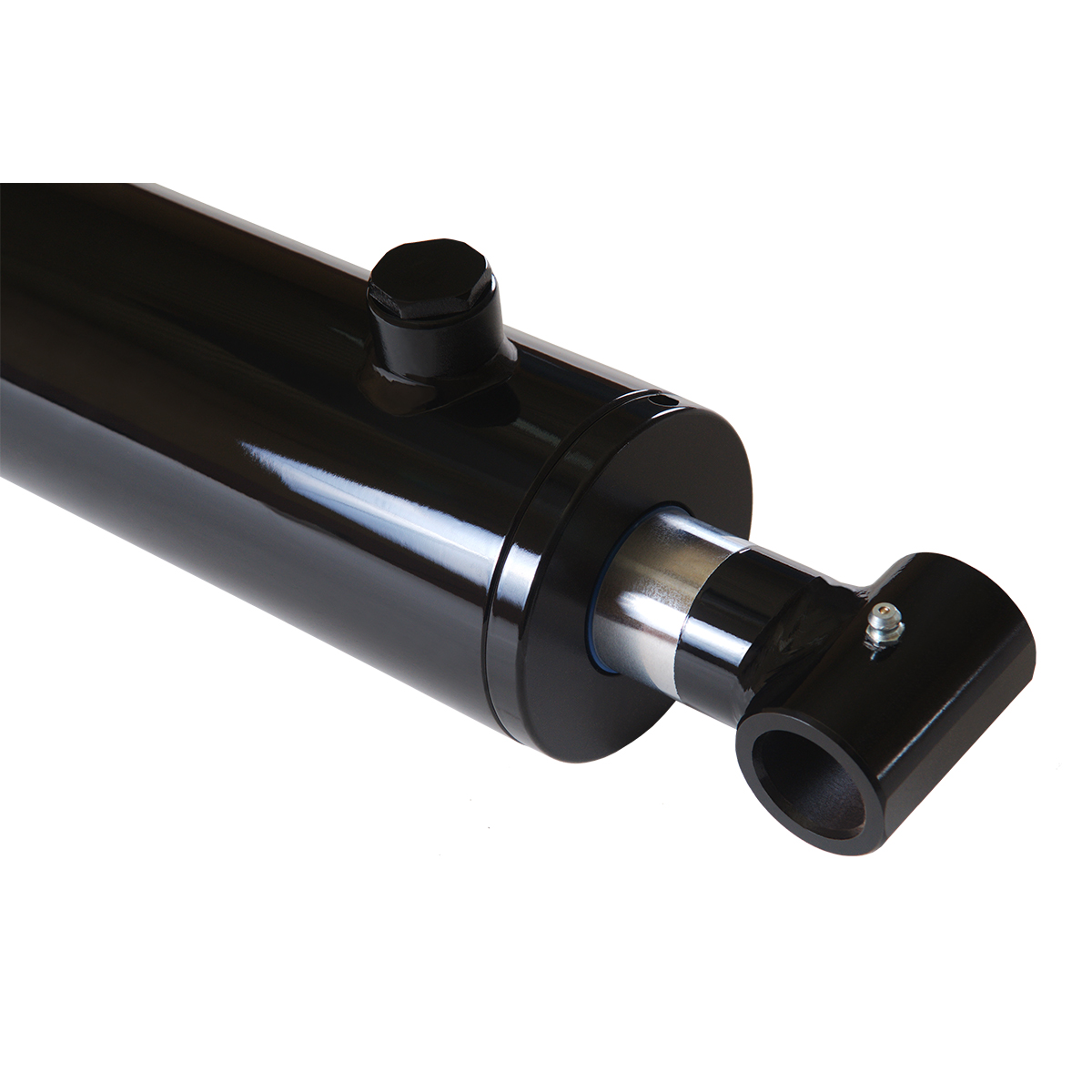

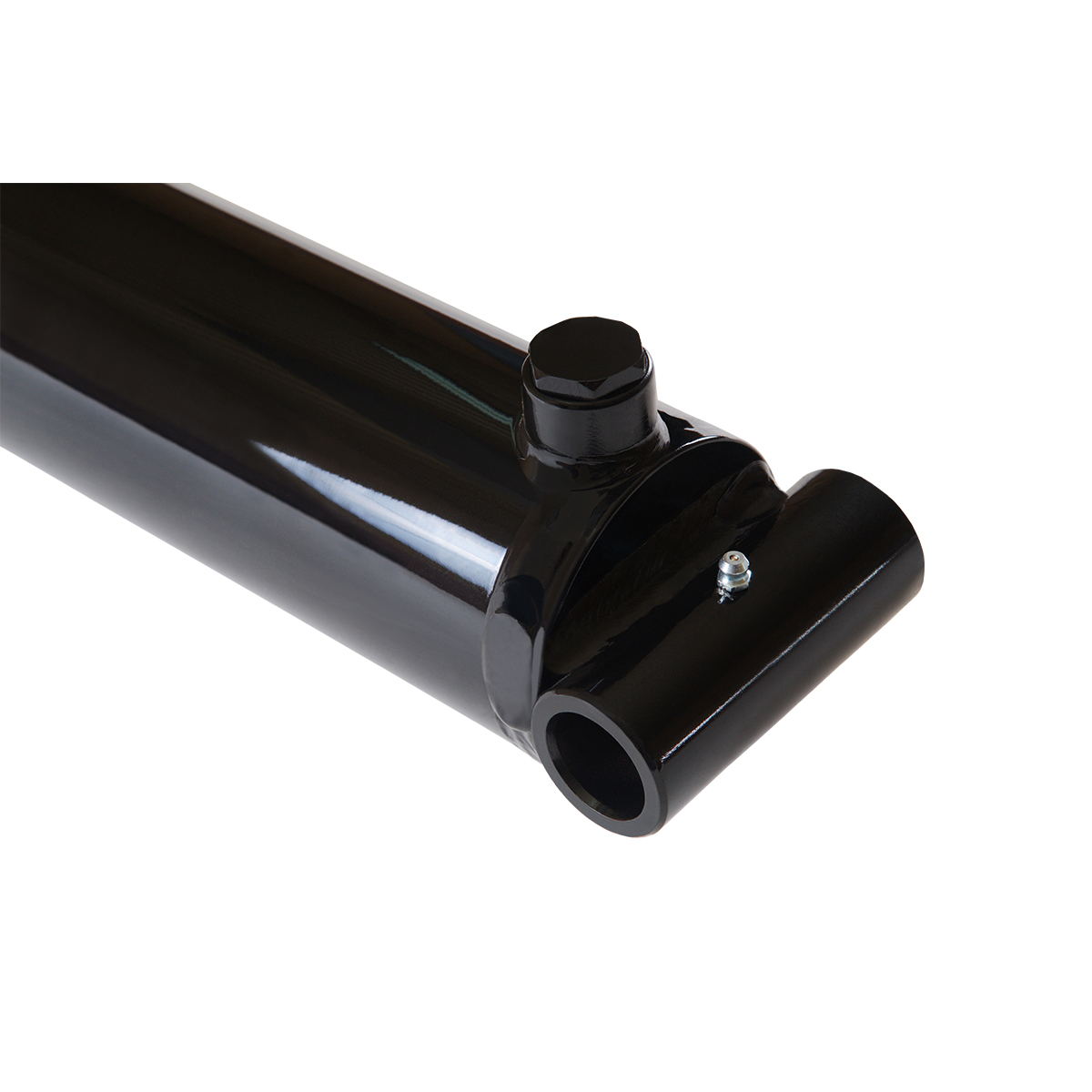

  • 3″ bore x 20″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
