On sale!

3" bore x 26" stroke cross tube hydraulic cylinder

Name: 3" bore x 26" stroke cross tube hydraulic cylinder
SKU: WCT 3x26
Availability: InStock
Rating: 5.00 (10 reviews)

$317.00

Pay in 4 interest-free payments of $79.25

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WCT 3x26

Bore :	3 in
Outer Dia. (⌀) :	3.37 in
Stroke :	26 in
Rod Dia. (⌀) :	1.5 in
Port Size :	SAE 8
Pin Dia. (⌀) :	1 in

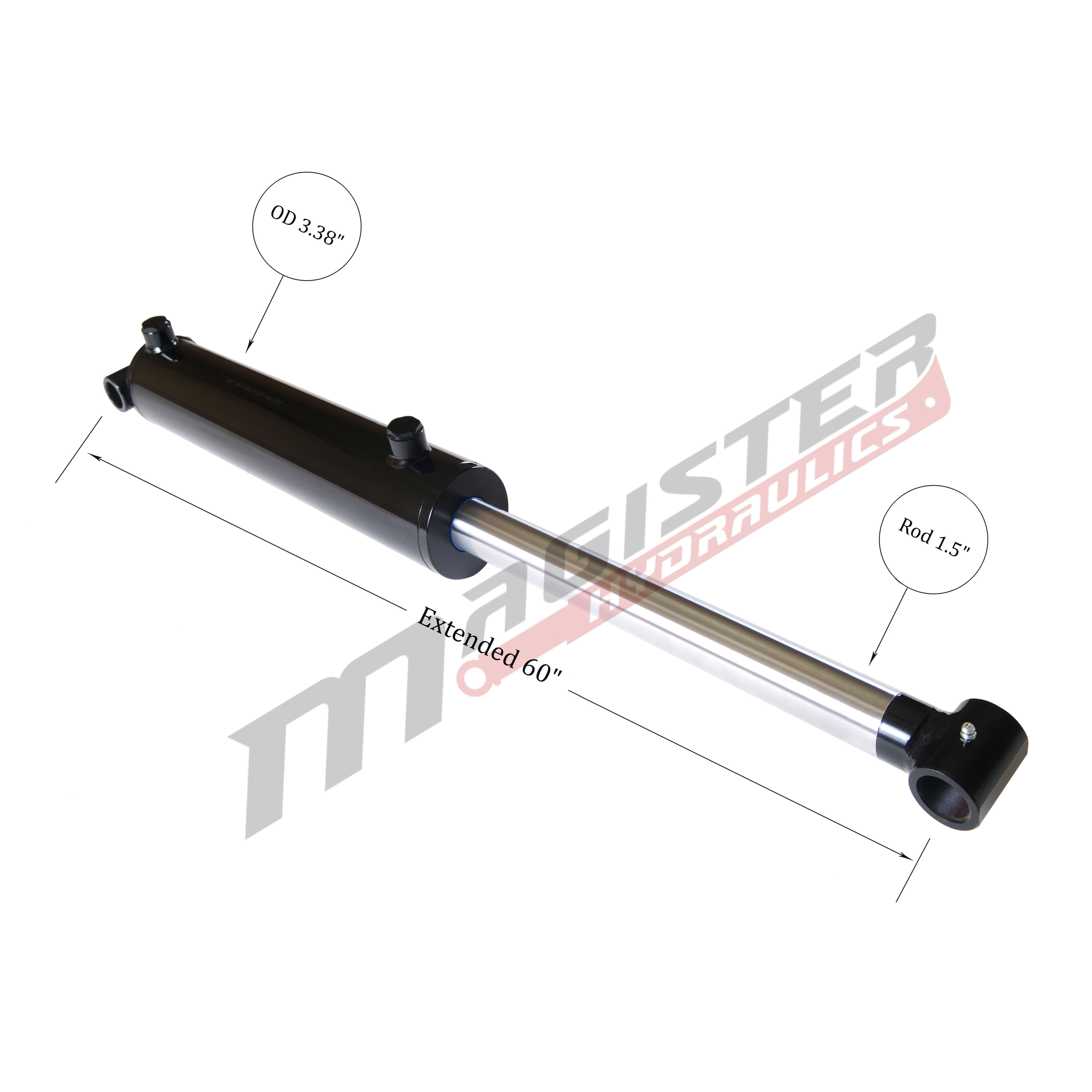

Extended :	60 in

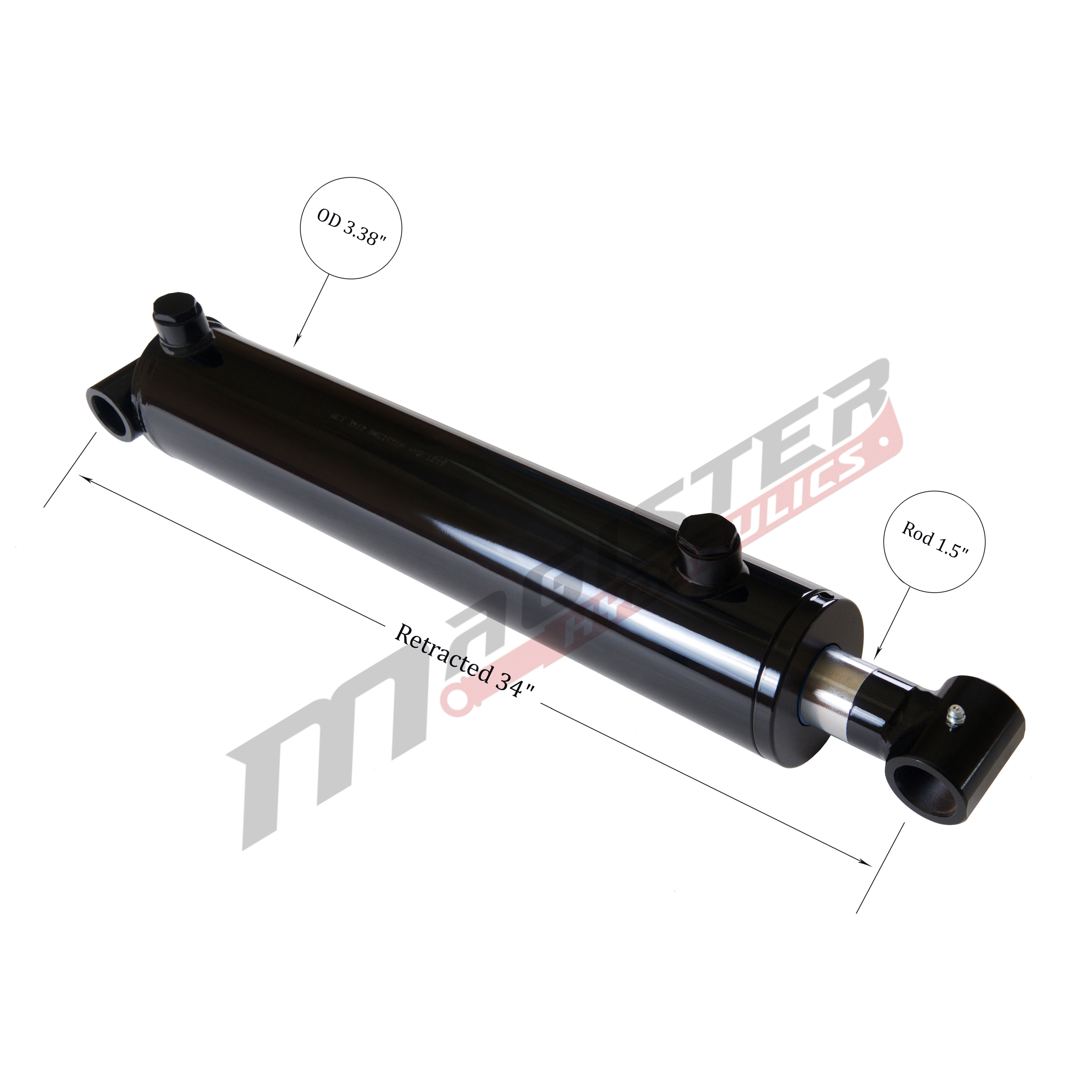

Retracted :	34 in
Overall length :	35.5 in
Pressure :	3500 PSI
Column Load :	16,000 LBs
Oil Volume :	3.19 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Cross Tube
Action :	Double Acting
Weight :	42 LBs
GTIN :	854763008922

SKU: WCT 3x26 Categories: 3" Bore Cross Tube, Cross Tube Hydraulic Cylinders, Hydraulic Cylinders

Volume discounts

4+ PRICE EA -5%

$301.15

8+ PRICE EA -10%

$285.30

In stock

2 in stock

Description

Designed for maximum performance and durability, the heavy-duty welded Cross Tube Hydraulic Cylinder is engineered to handle the toughest jobs in agricultural, industrial, and construction applications. Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 3-inch bore and 26-inch stroke with cross tube ends with 3500 PSI. Due to their construction, these hydraulic rams can efficiently work in all conditions, offering a more affordable and perfect alternative to genuine hydraulic cylinders. The cross-tube cylinders serve as an excellent replacement part for front-end loaders, mainly for John Deere, Kubota, Massey Ferguson, Mahindra, and others.

Key Features:

- - - – Extreme load capacity: Welded cross tube ends, ⌀ 3.37″ honed cold-drawn tubing, ⌀ 1.5″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 26″ stroke.
  - - – Wide Range Hydraulic Applications: forklifts, backhoes, front end loaders, tractors, excavators, ensuring reliable operation in harsh environments thanks to the usage of this cross tube cylinder.
  - - – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
  - - – High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
  - - – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
  - - – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
  - - – Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
  - - – 2-year warranty
  - - – Same Day Free Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
  - - – Made in Europe.
