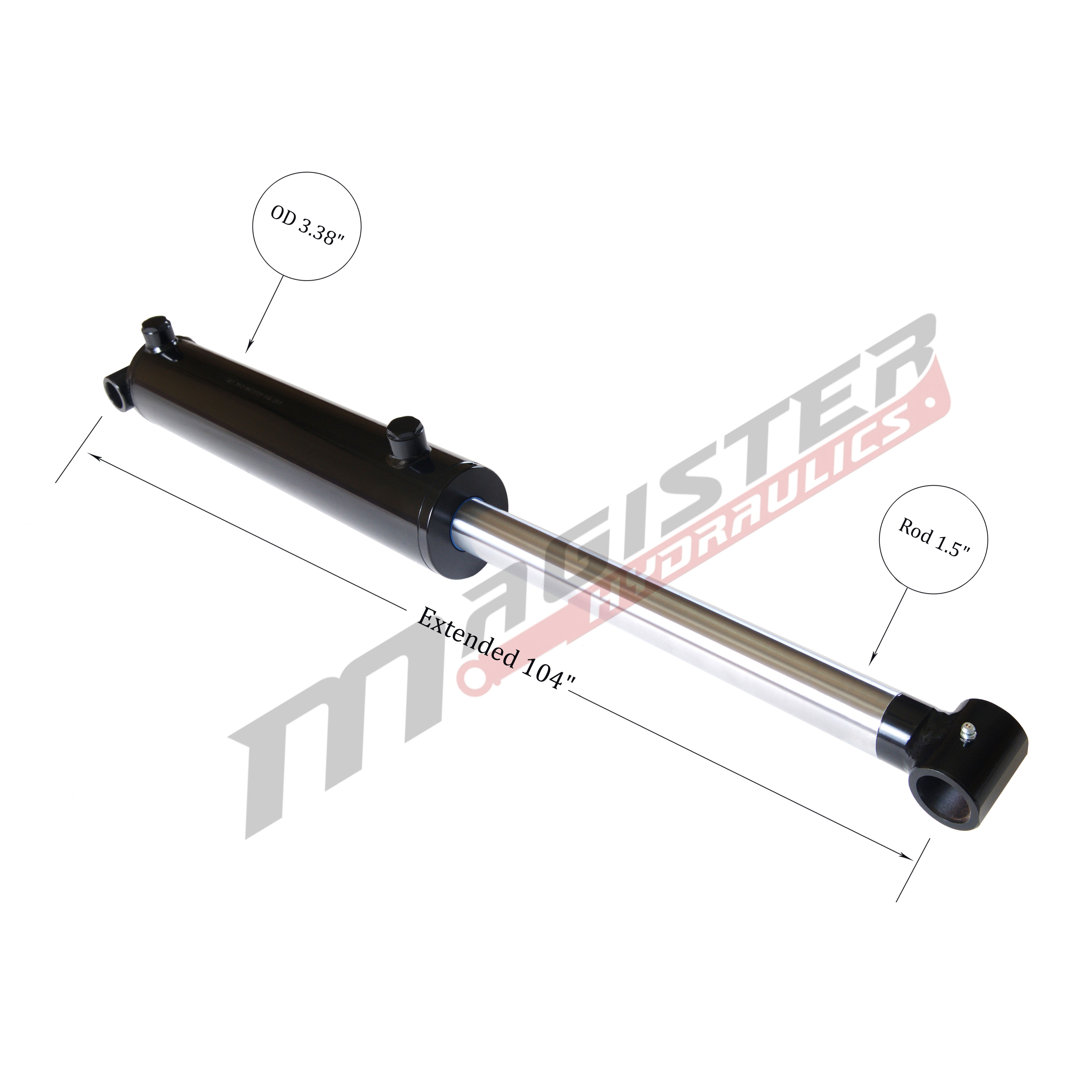

3" bore x 48" stroke cross tube hydraulic cylinder

$422.00

Pay in 4 interest-free payments of $105.50
* Wholesale Discount is available for this product if you purchase 4 or more products.

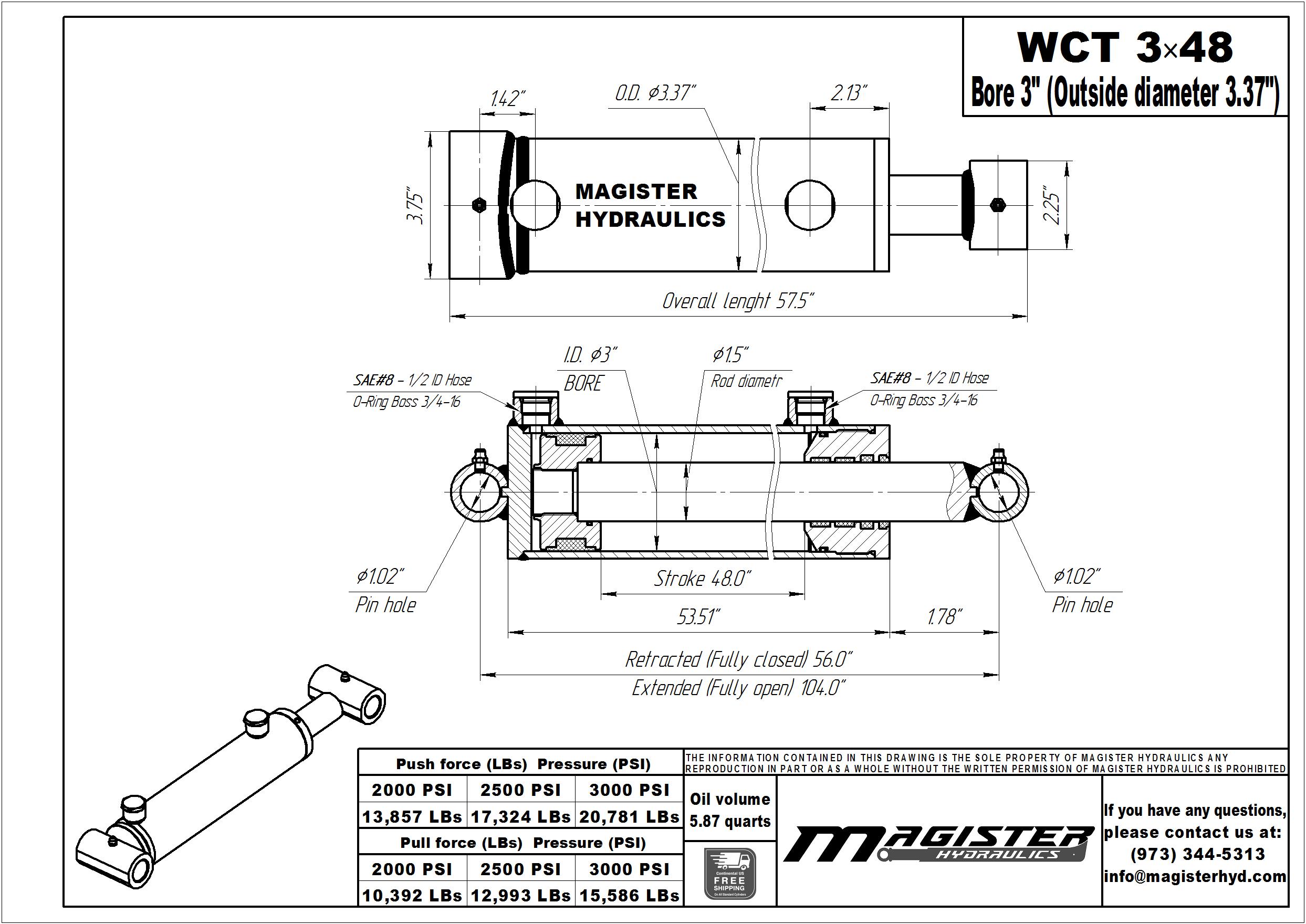

SKU: WCT 3x48
Bore : 3"
OD : 3.37"
Stroke : 48"
Rod : 1.5"
Port Size : SAE 8
Pin : 1"
Extended : 104"
Retracted : 56"
Overall length : 57.5"
Pressure : 3500 PSI
Column Load (LBs) : 6,200
Oil Volume (quarts) : 5.87
Brand : Magister Hydraulics
GTIN : 854335007995
1+ PRICE EA
$422.00
4+ PRICE EA -5%
$400.90
8+ PRICE EA -10%
$379.80
In stock

19 in stock

DESCRIPTION

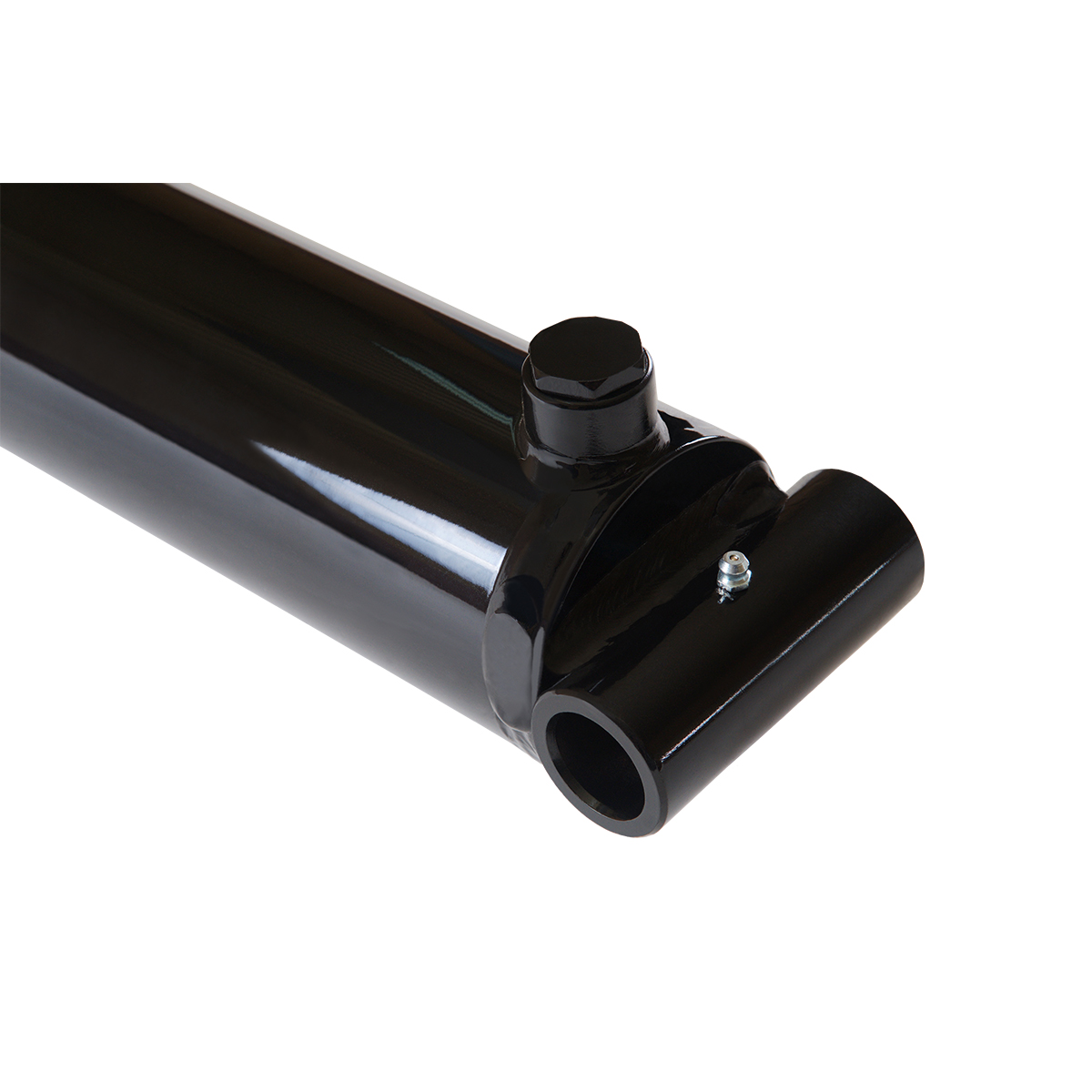

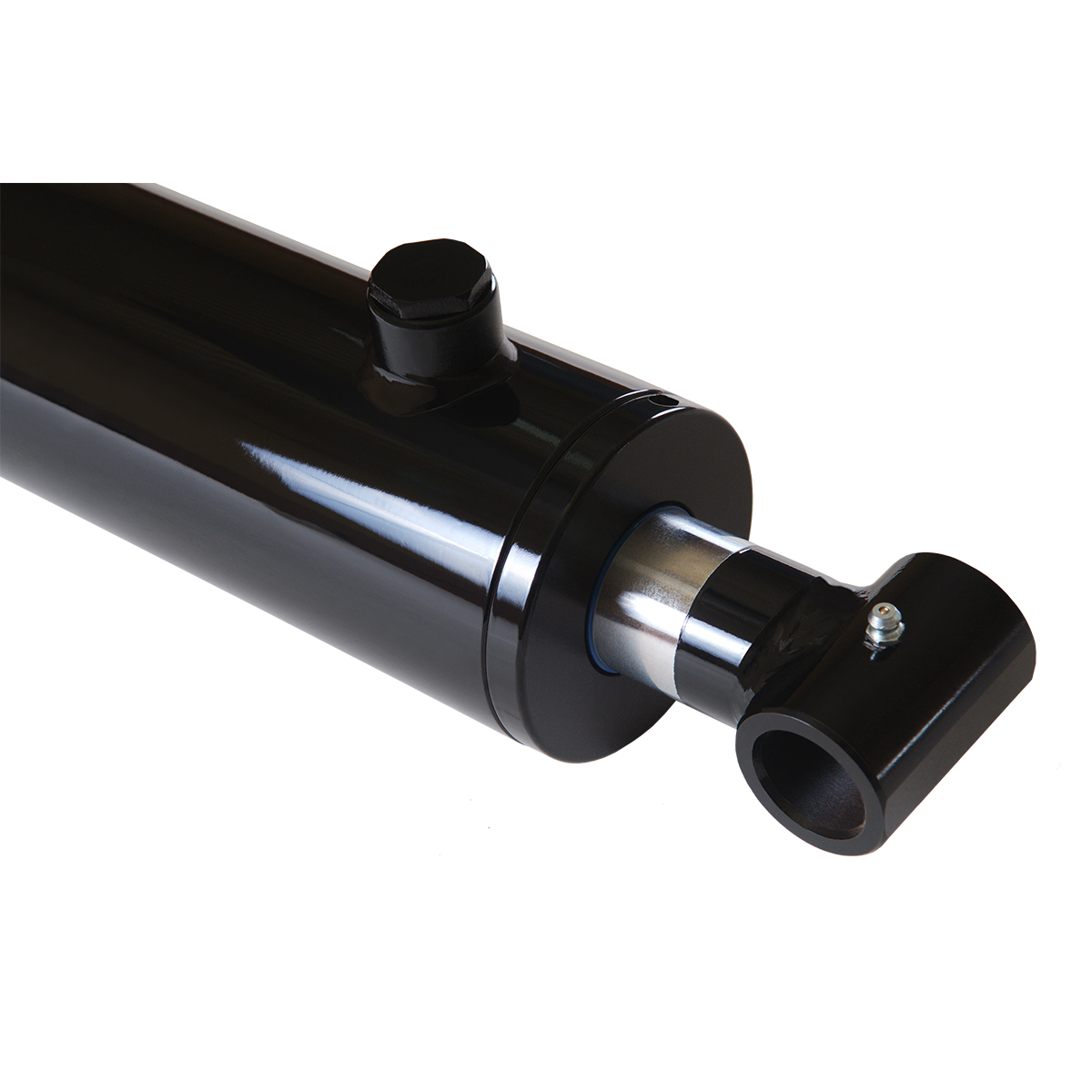

  • 3″ bore x 48″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
