4" bore x 18" stroke cross tube hydraulic cylinder

$277.00

* Wholesale Discount is available for this product if you purchase 4 or more products.
WCT 4x18
Bore :
4 inch
OD :
4.5"
Stroke :
18 inch
Rod :
2"
Port Size :
SAE 8
Pin :
1.5"

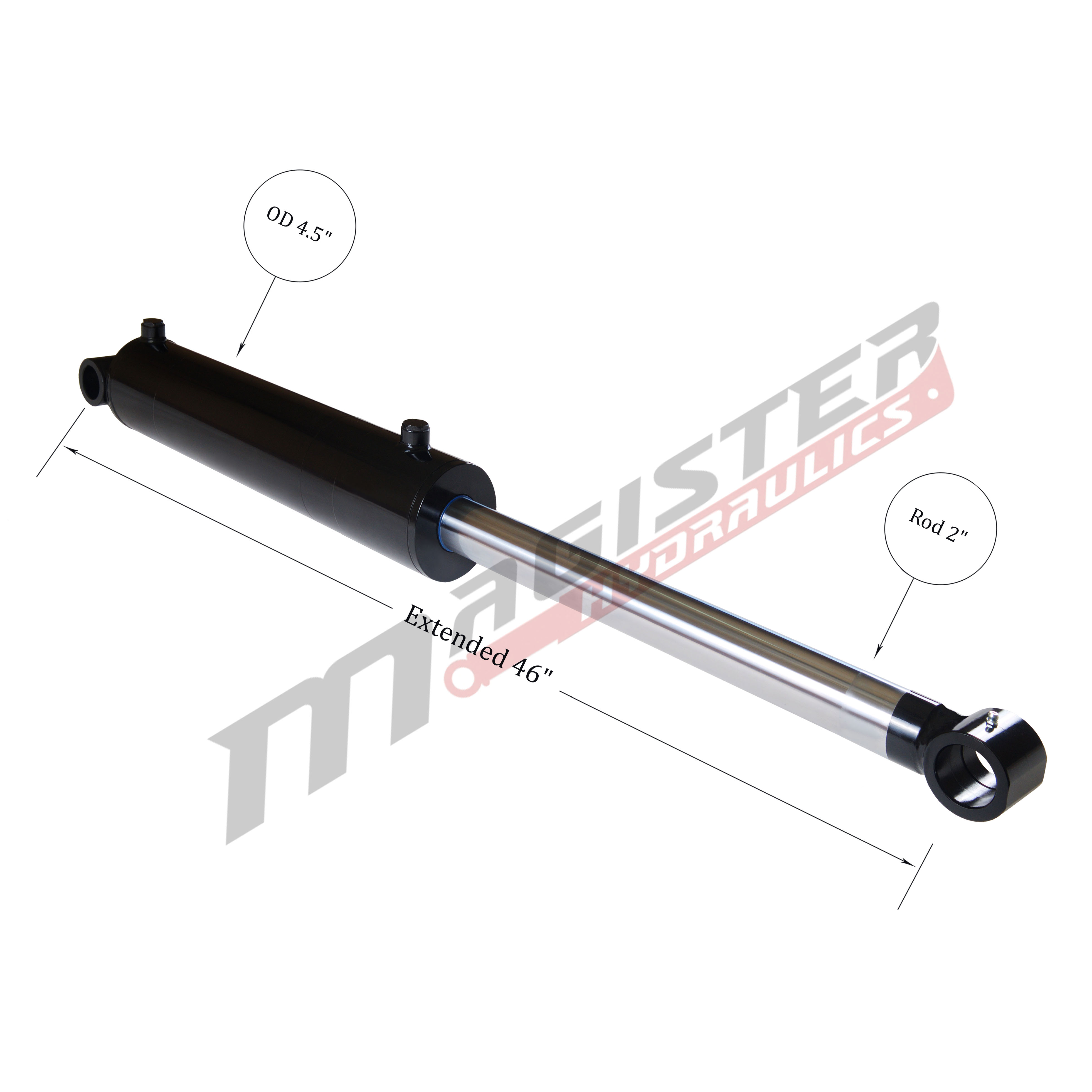

Extended :
46"

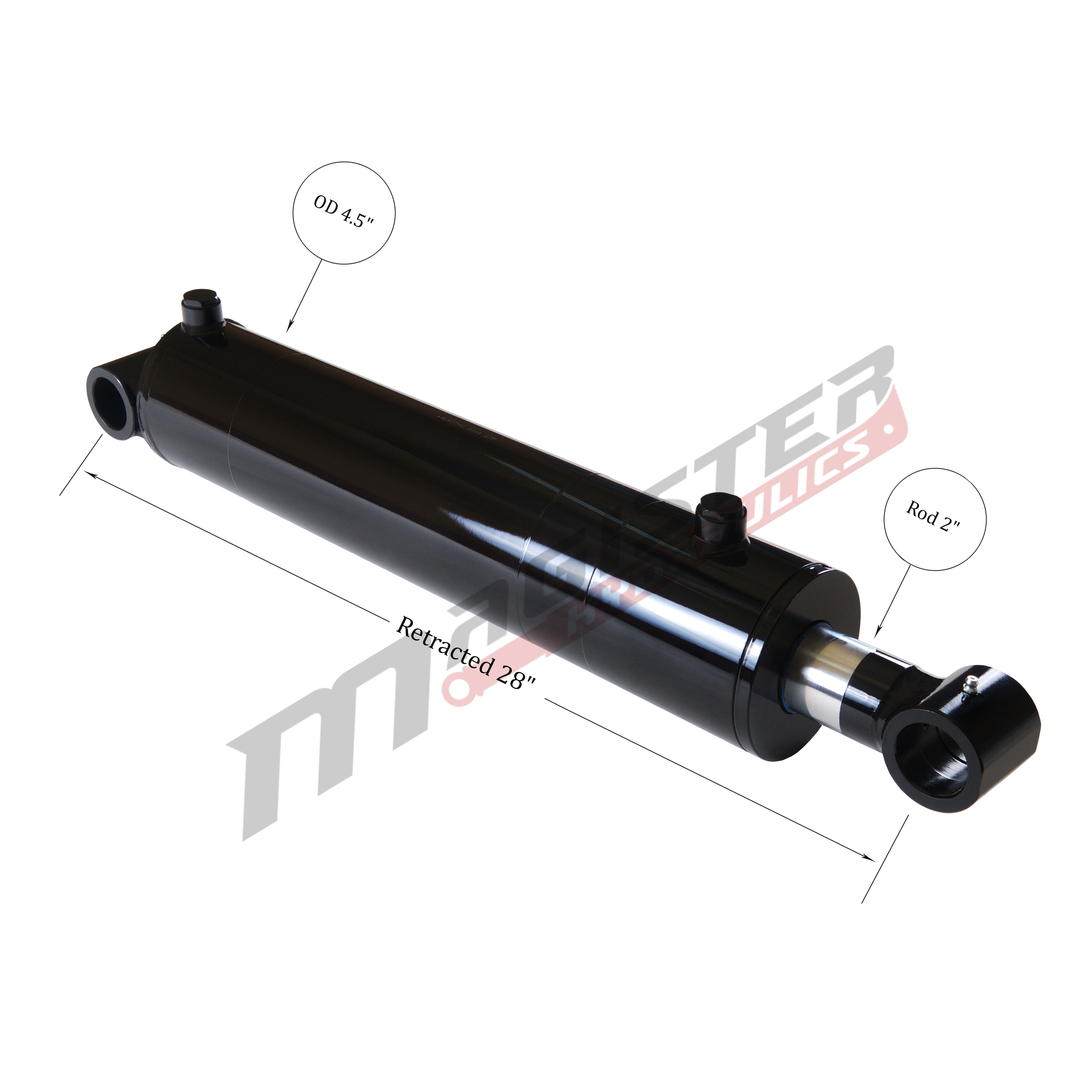

Retracted :
28"
Overall length :
30.25"
Pressure :
3500 PSI
Column Load (LBs) :
37,700
Oil Volume (quarts) :
3.91
Brand :
Magister Hydraulics
GTIN :
857743006116
1+ PRICE EA
$277.00
4+ PRICE EA -5%
$263.15
10+ PRICE EA -10%
$249.30
In stock

10 in stock

DESCRIPTION

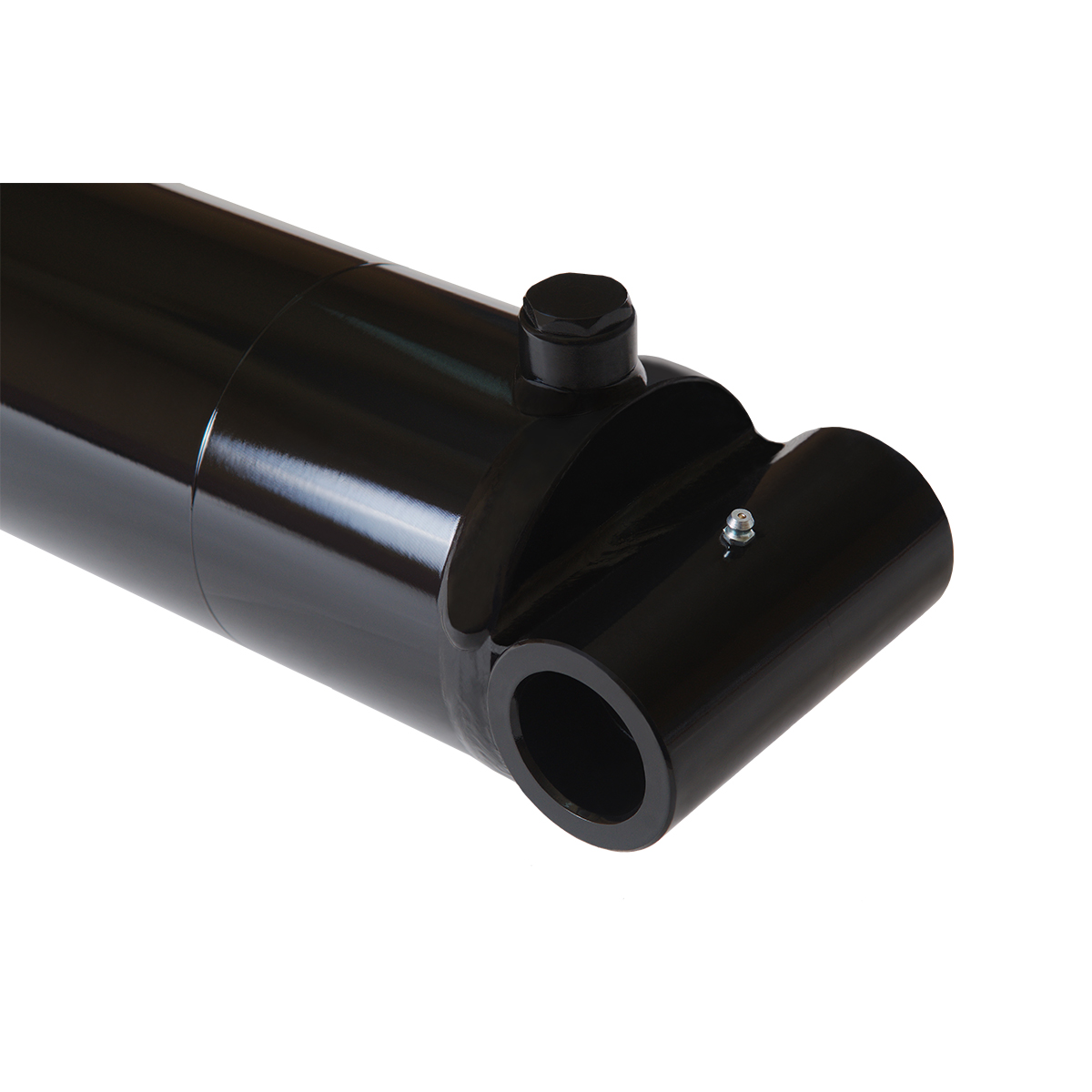

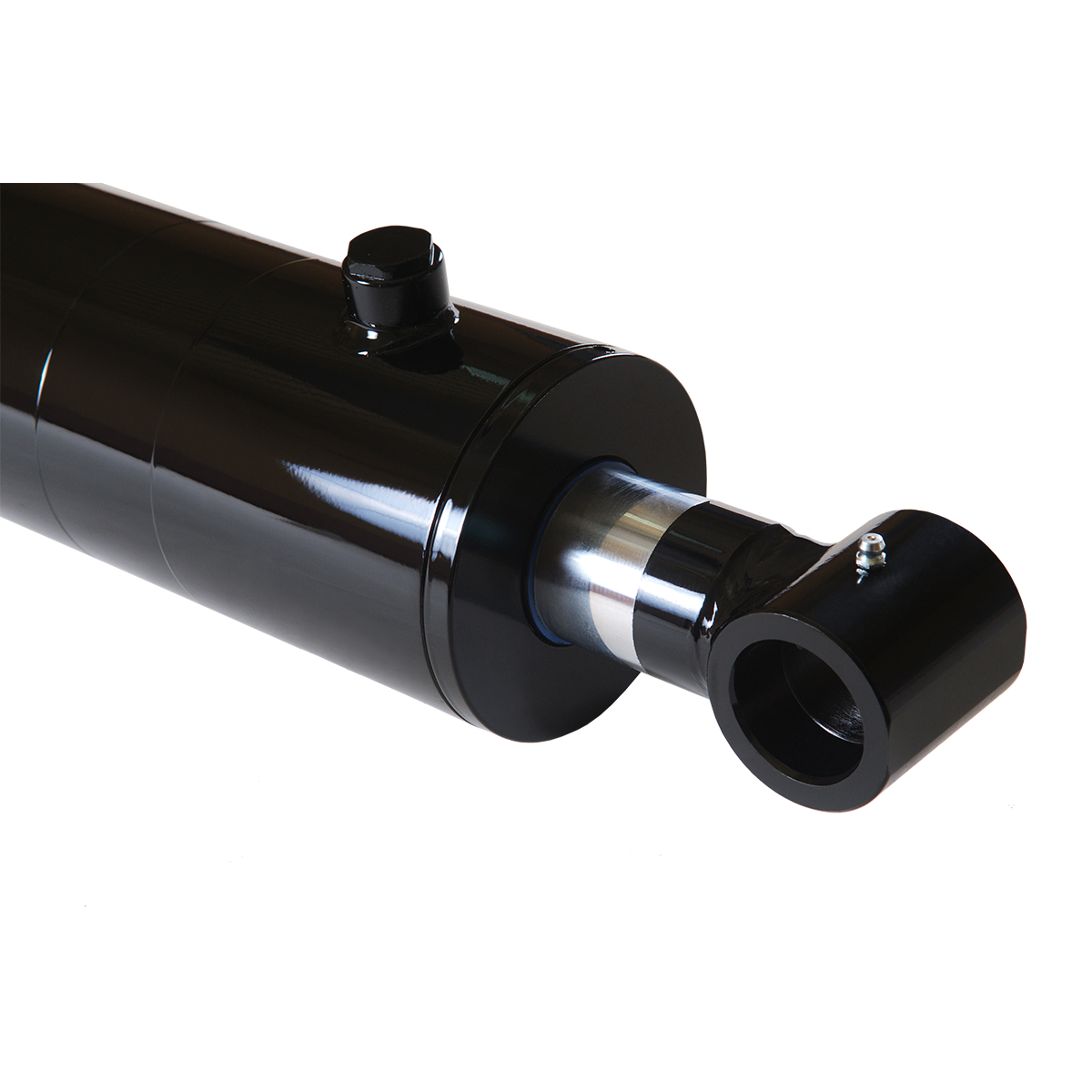

  • 4″ bore x 18″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
