4 bore x 32 stroke hydraulic cylinder, welded cross tube double acting cylinder | Magister Hydraulics

4" bore x 32" stroke cross tube hydraulic cylinder


Pay in 4 interest-free payments of $114.25
* Wholesale Discount is available for this product if you purchase 4 or more products.

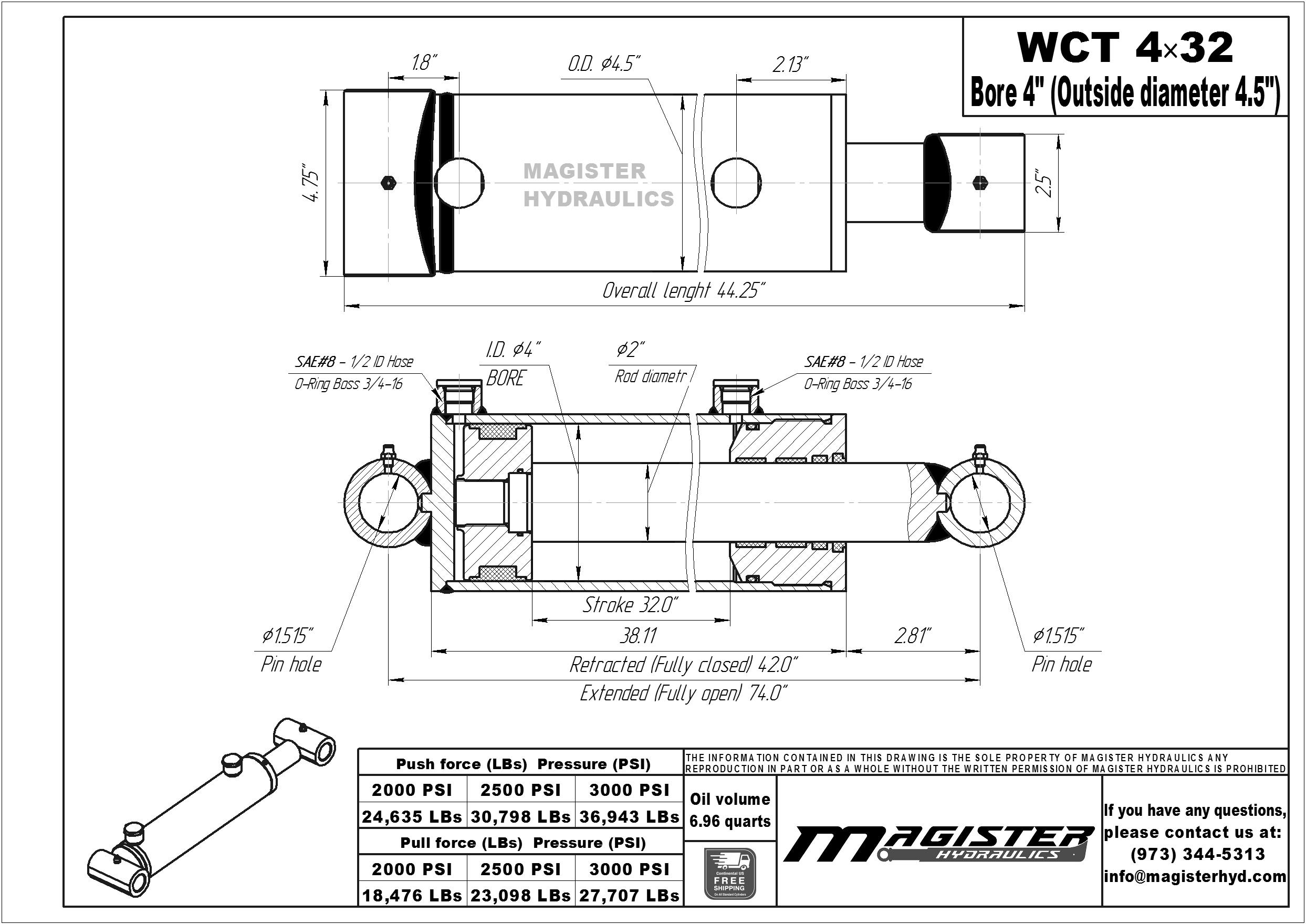

SKU: WCT 4x32
Bore :4” Bore Hydraulic Cylinders
OD :4.5"
Stroke :32” Stroke Hydraulic Cylinders
Rod :2"
Port Size :SAE 8
Pin :1.5"

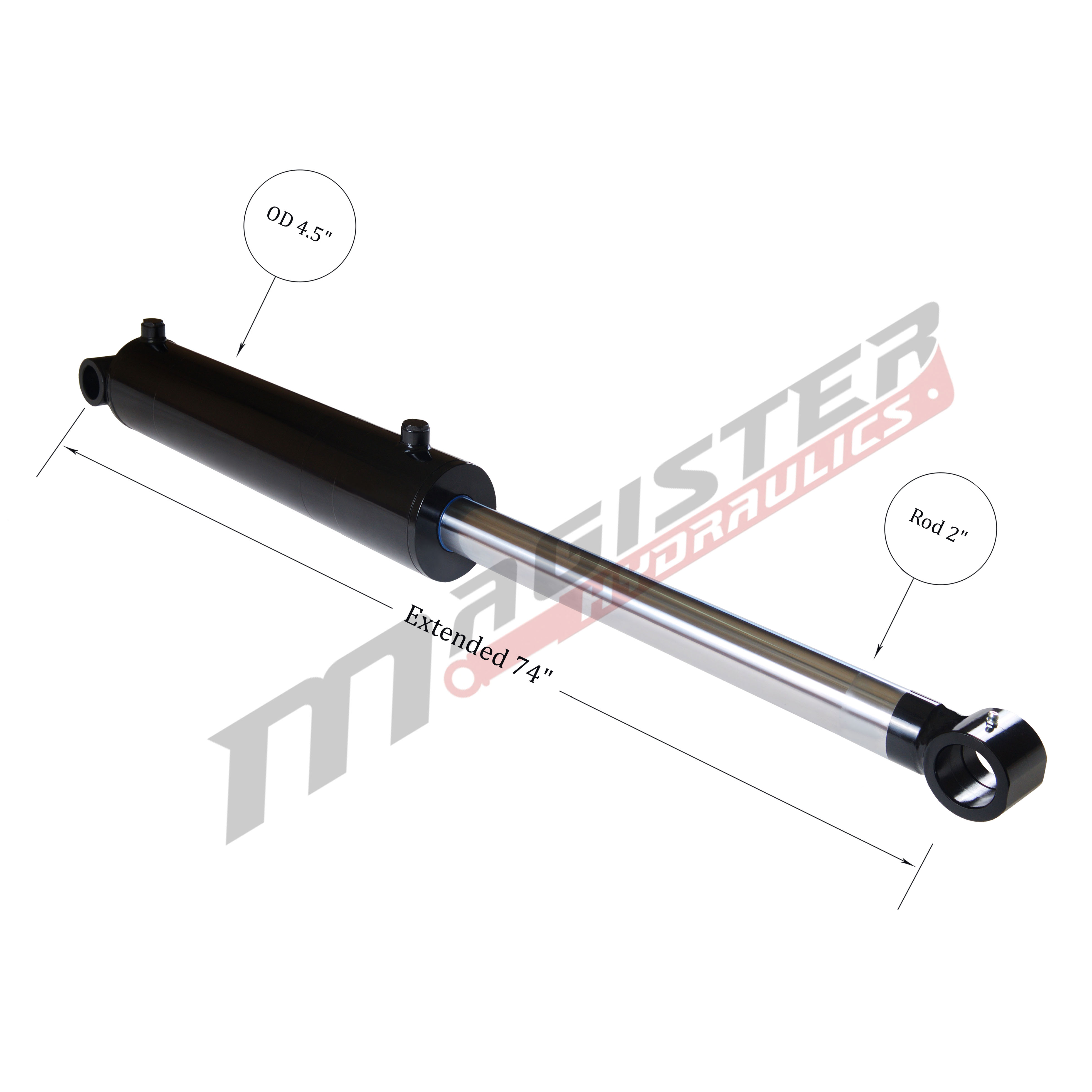

Extended :74"
Retracted :42"
Overall length :44.25"
Pressure :Hydraulic Cylinders 3500 PSI
Column Load (LBs) :32,000
Oil Volume (quarts) :6.96
Brand :Magister Hydraulics
GTIN :850597006950
4+ PRICE EA -3%
8+ PRICE EA -6%
In stock

45 in stock

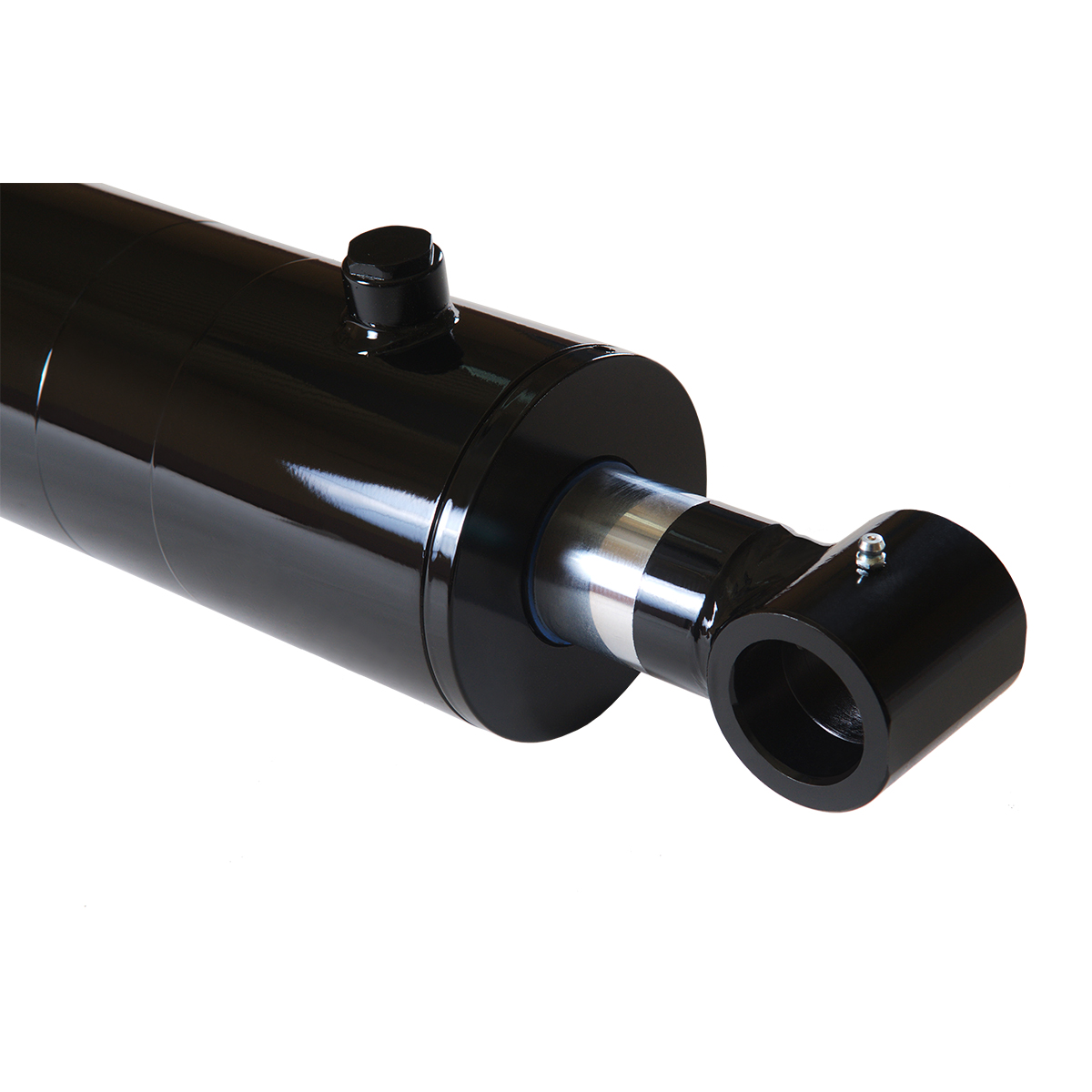

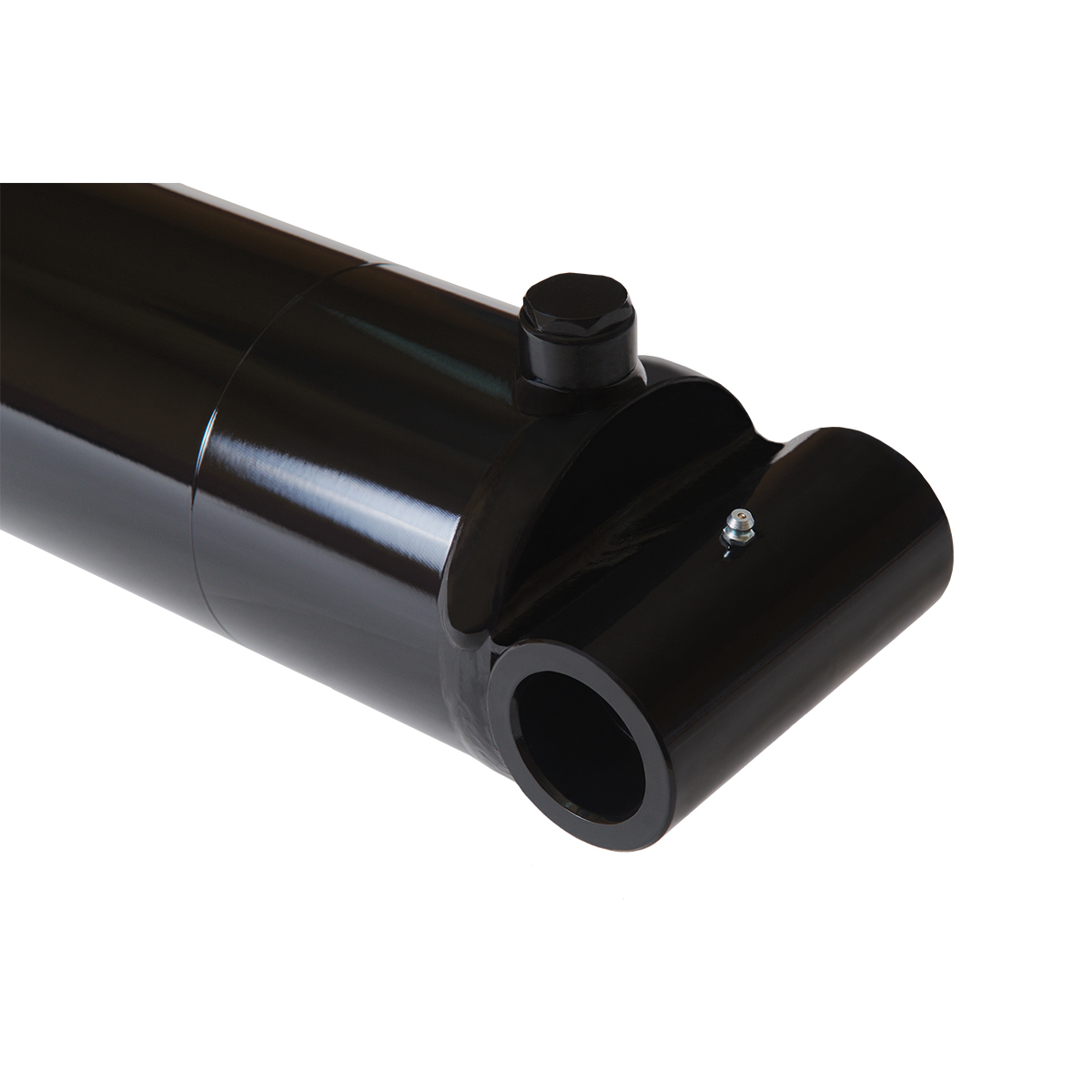

  • 4″ bore x 32″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
