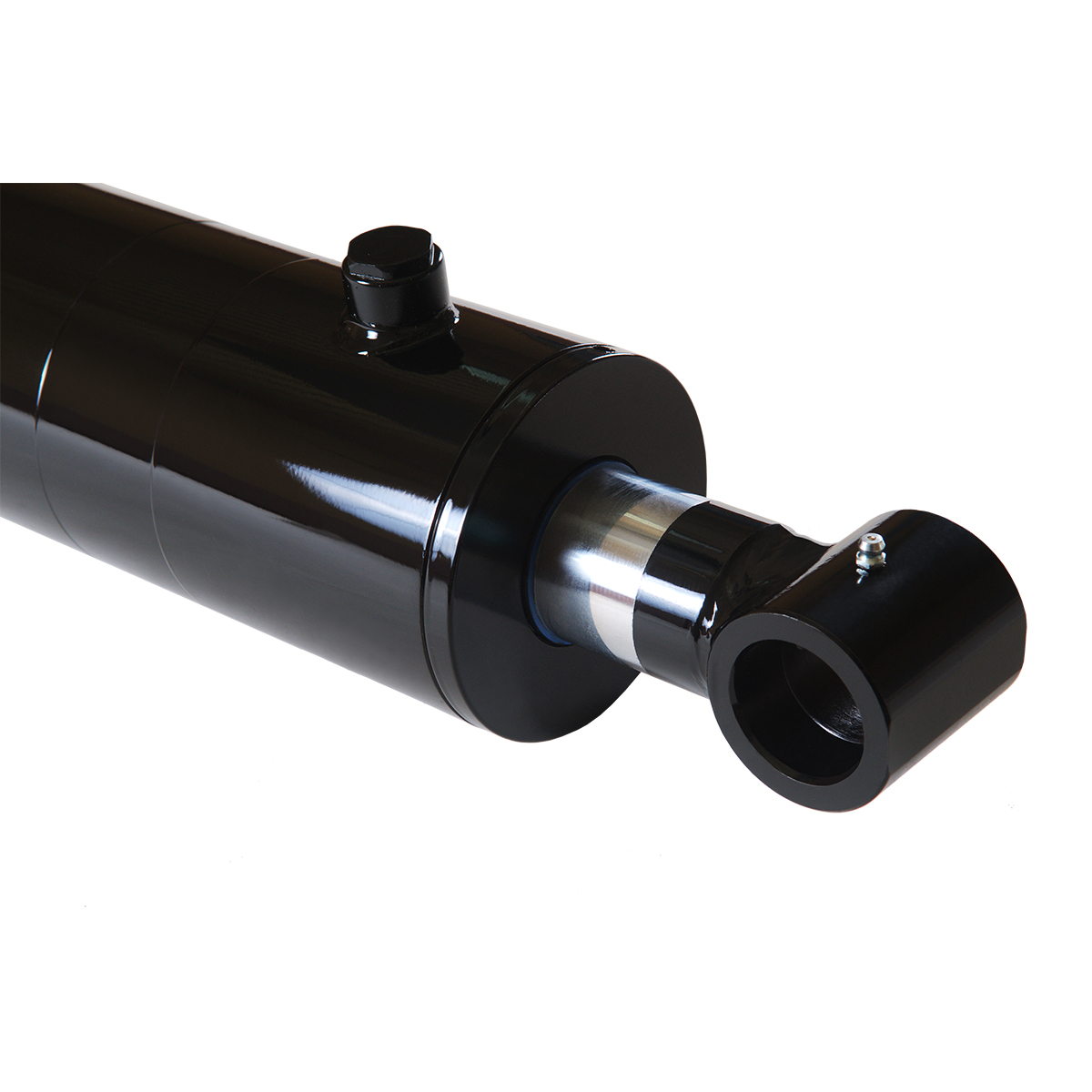

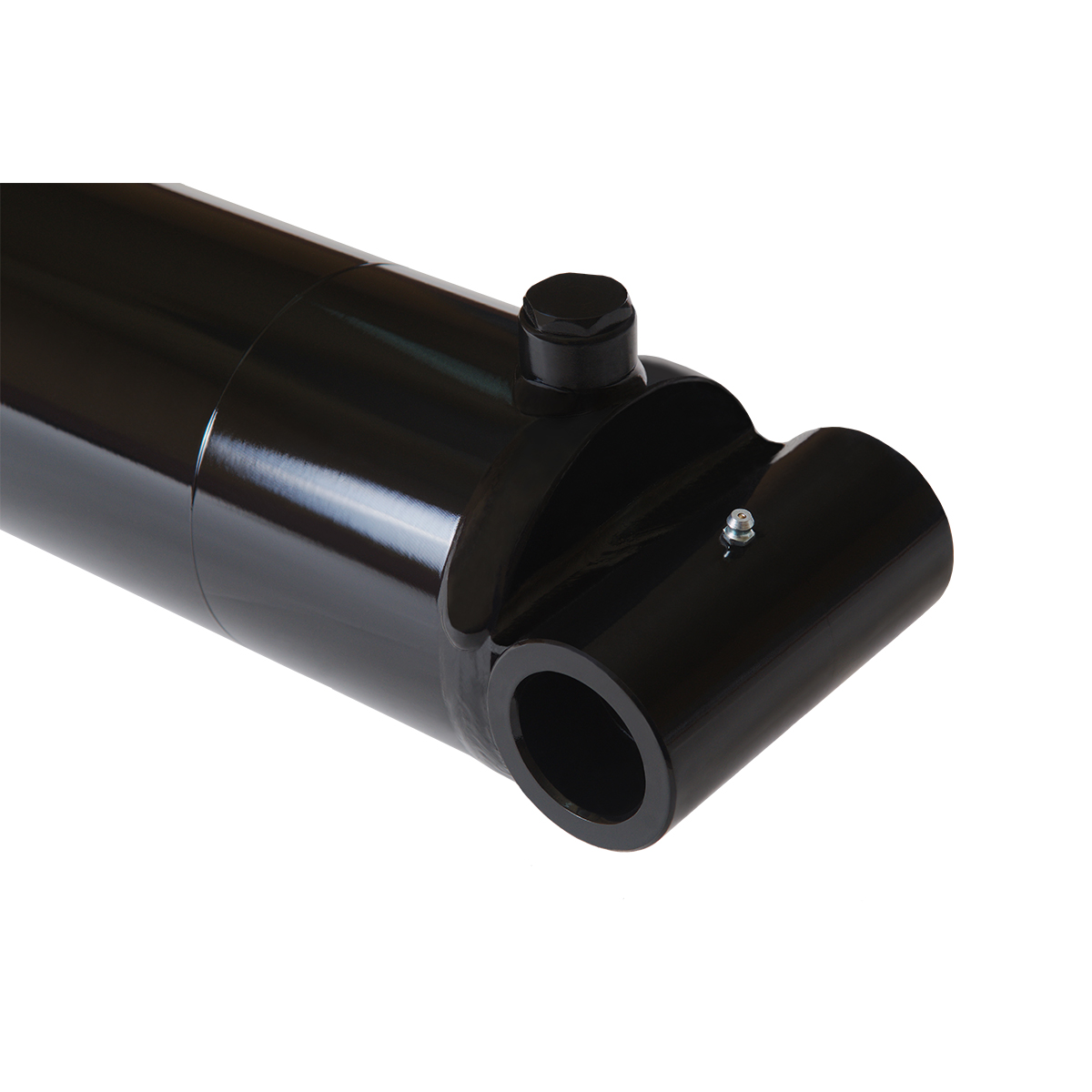

4" bore x 14" stroke cross tube hydraulic cylinder

Name: 4" bore x 14" stroke cross tube hydraulic cylinder
Brand: Magister Hydraulics
SKU: WCT 4x14
Price: 362.00 USD
Availability: OutOfStock
Rating: 5 (10 reviews)

$362.00

Pay in 4 interest-free payments of $90.50

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WCT 4x14

Product SKU	Maxim part number	Prince-Wolverine part number	Eagle part number
WCT 4x14	288368	WWXT4014-S	HBU4014-ORB

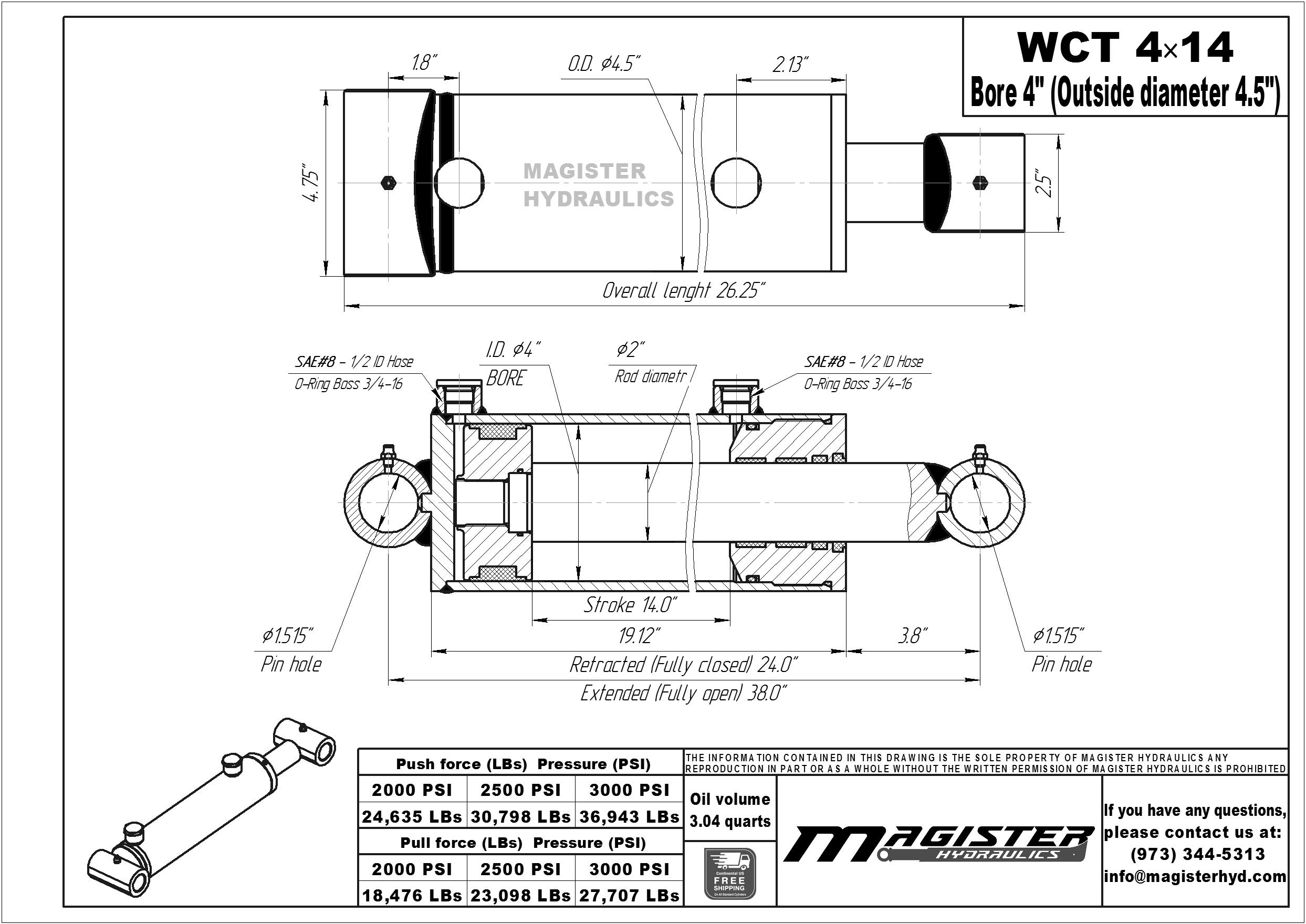

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	4 in
Outer Dia. (⌀) :	4.5 in
Stroke :	14 in
Rod Dia. (⌀) :	2 in
Port Size :	SAE 8
Pin Dia. (⌀) :	1.5 in

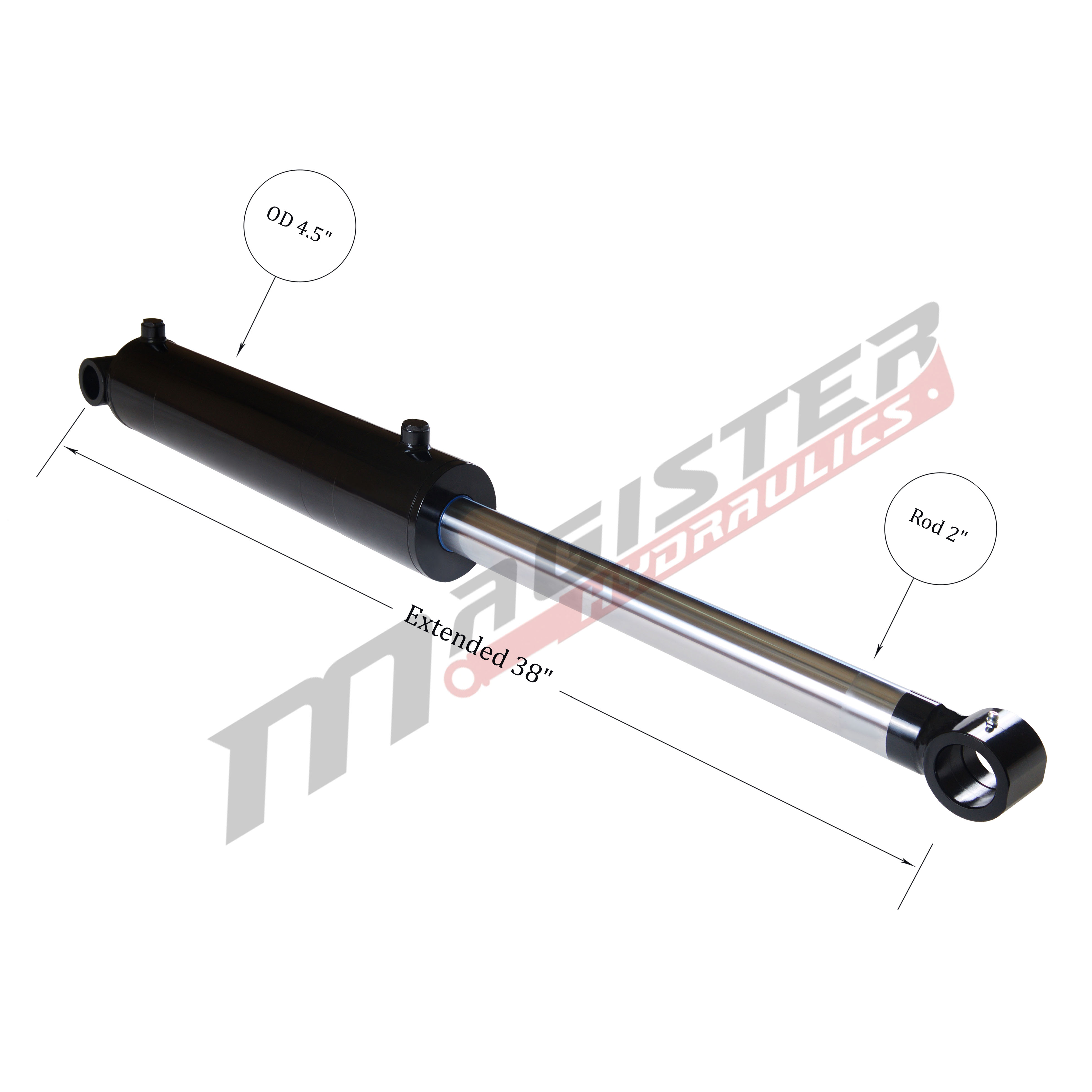

Extended :	38 in

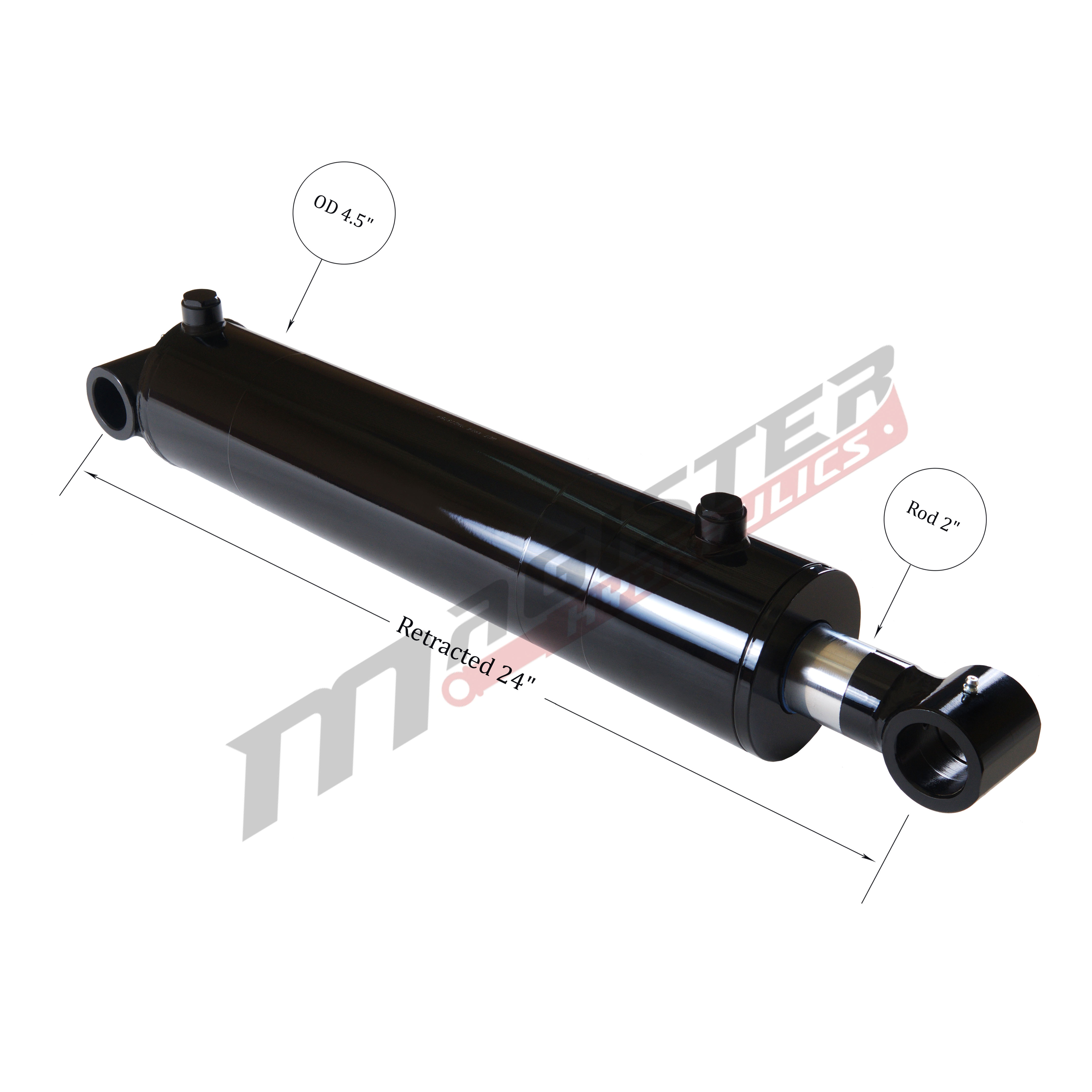

Retracted :	24 in
Overall length :	26.25 in
Pressure :	3500 PSI
Column Load :	37,700 LBs
Oil Volume :	3.04 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Cross Tube
Action :	Double Acting
Weight :	54 LBs
GTIN :	850597006745

SKU: WCT 4x14 Categories: 4" Bore Cross Tube, Cross Tube Hydraulic Cylinders, Hydraulic Cylinders

Volume discounts

1+ PRICE EA

$362.00

4+ PRICE EA -5%

$343.90

8+ PRICE EA -10%

$325.80

Out of stock

Description

4″ bore x 14″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.

Tariff-FREE cylinders.

Made in Europe.
