4" bore x 40" stroke cross tube hydraulic cylinder

Name: 4" bore x 40" stroke cross tube hydraulic cylinder
Brand: Magister Hydraulics
SKU: WCT 4x40
Price: 549.00 USD
Availability: InStock
Rating: 5 (10 reviews)

$549.00

Pay in 4 interest-free payments of $137.25

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WCT 4x40

Product SKU	Maxim part number	Eagle part number
WCT 4x40	288376	HBU4040-ORB

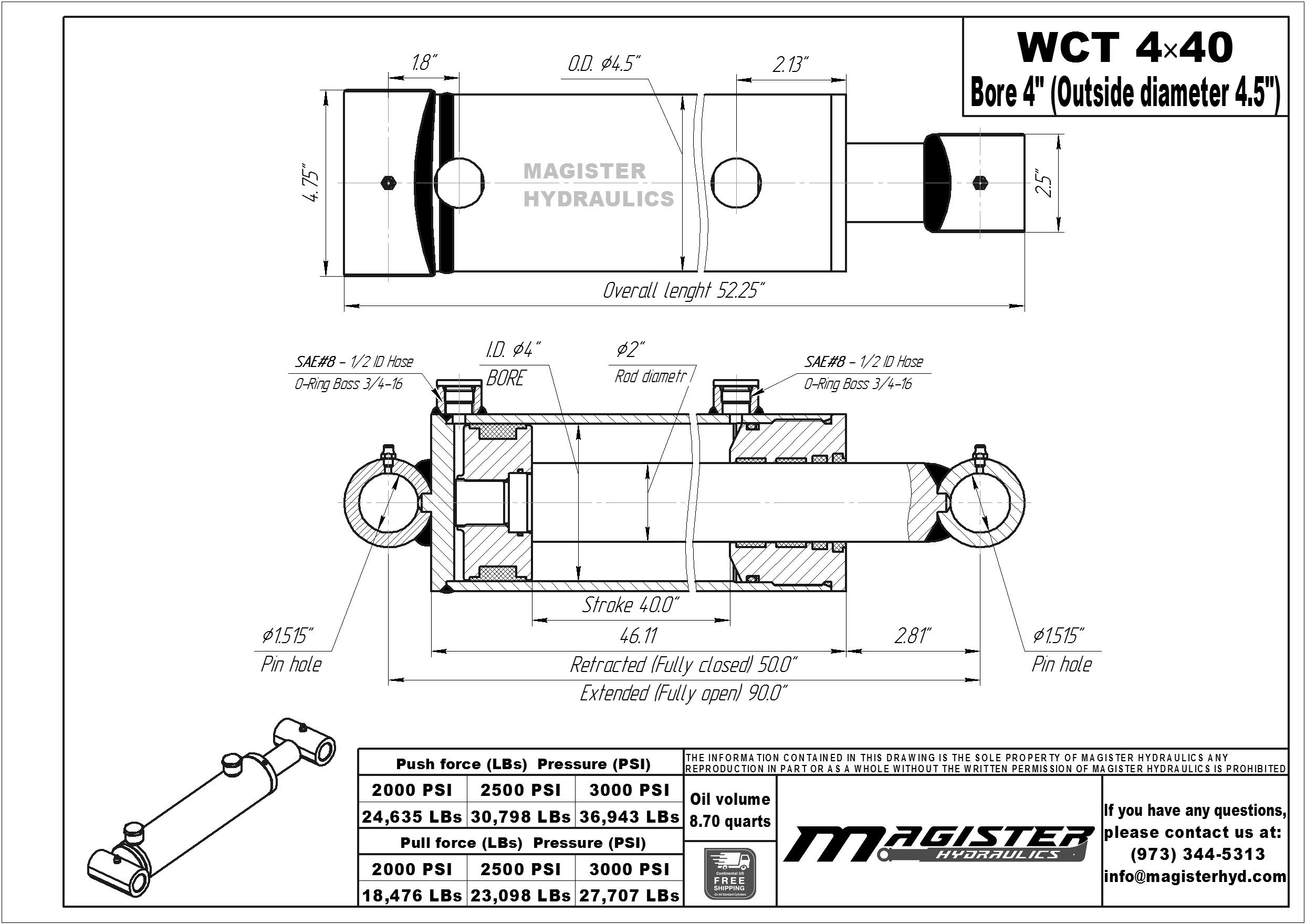

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	4 in
Outer Dia. (⌀) :	4.5 in
Stroke :	40 in
Rod Dia. (⌀) :	2 in
Port Size :	SAE 8
Pin Dia. (⌀) :	1.5 in

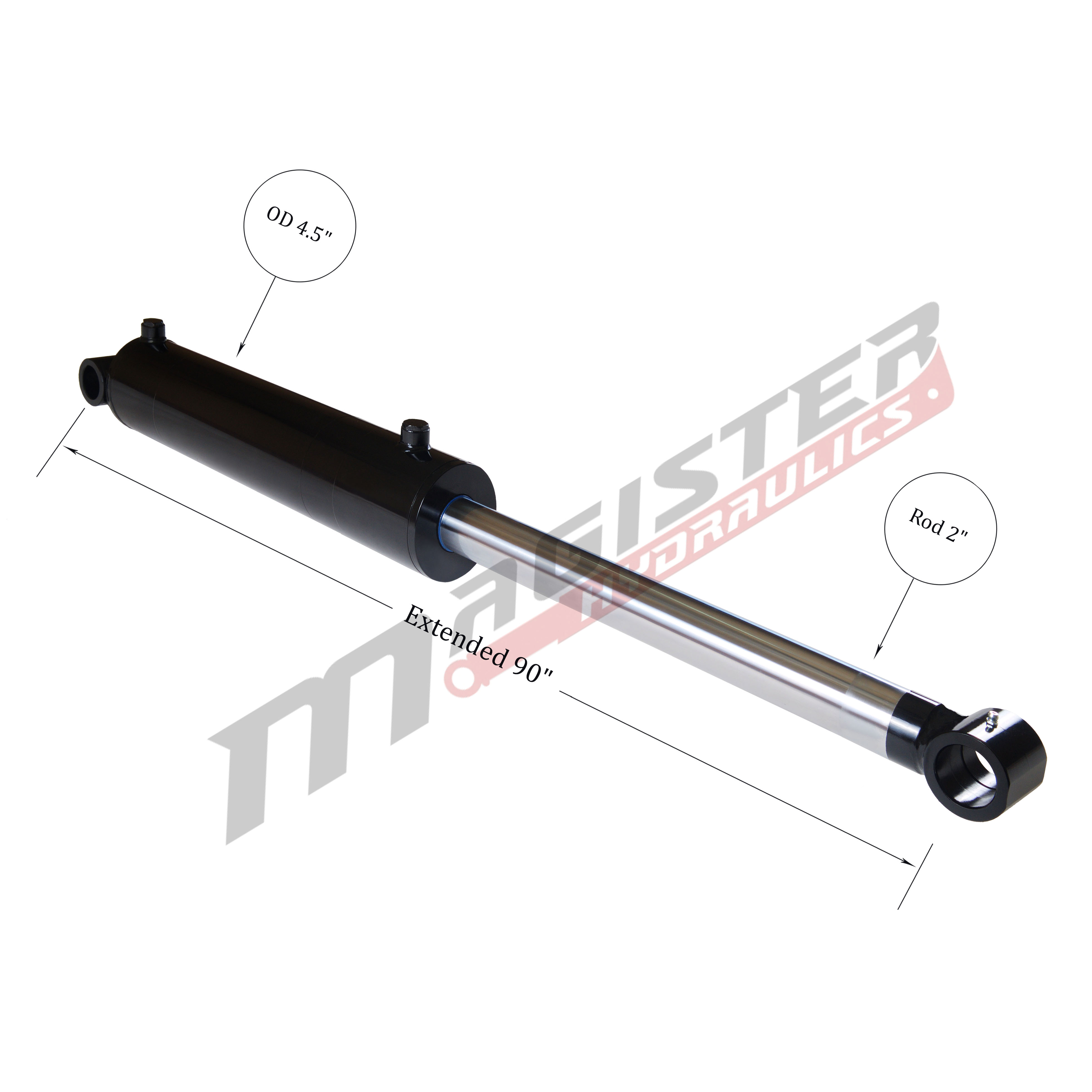

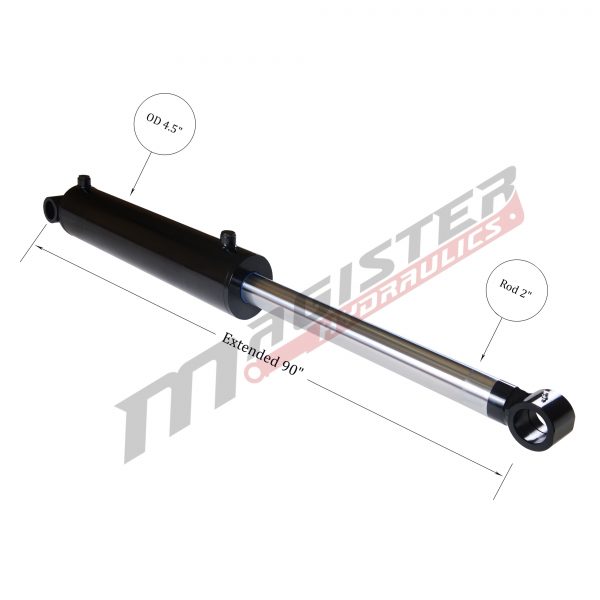

Extended :	90 in

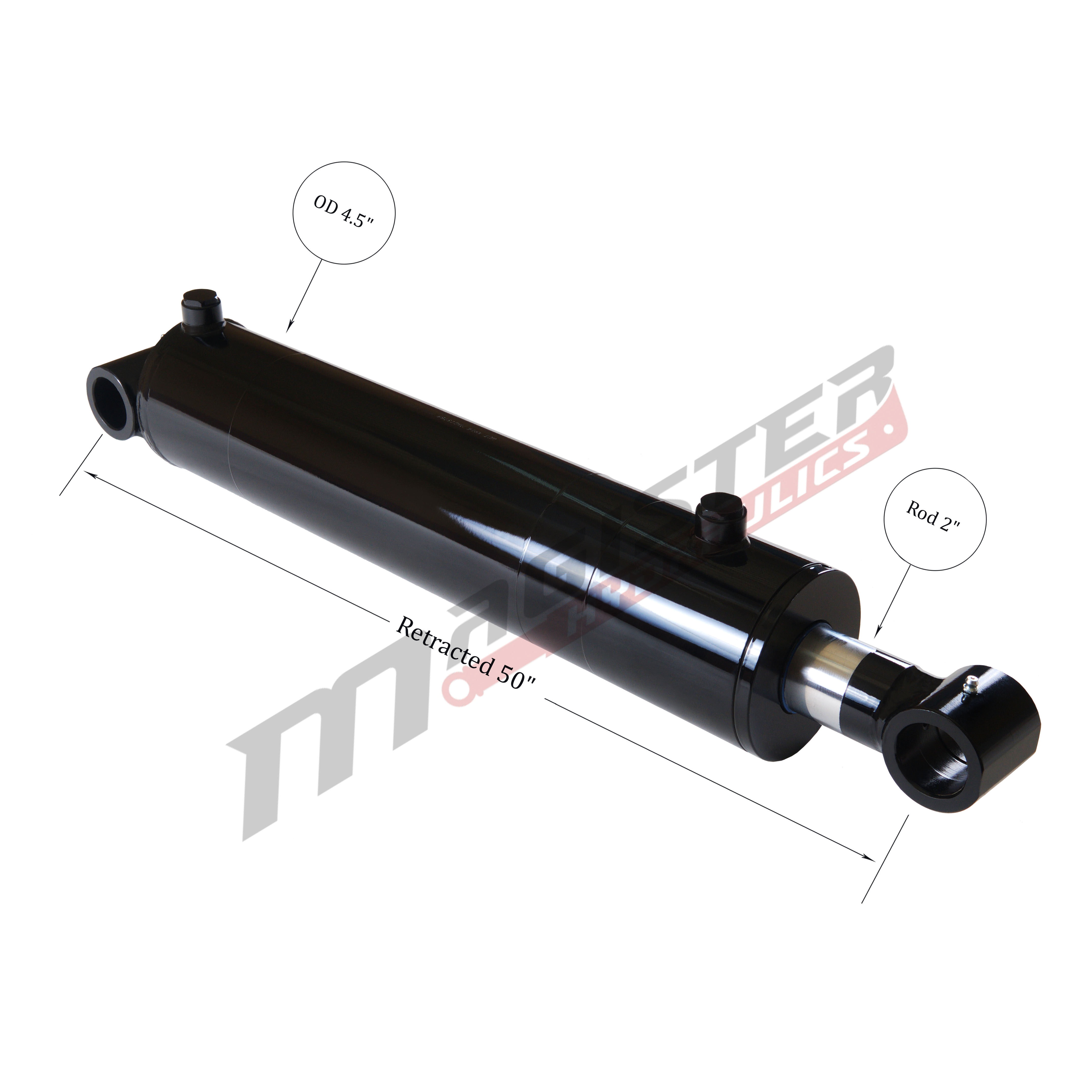

Retracted :	50 in
Overall length :	52.25 in
Pressure :	3500 PSI
Column Load :	21,000 LBs
Oil Volume :	8.7 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Cross Tube
Action :	Double Acting
Weight :	103 LBs
GTIN :	854763008007

SKU: WCT 4x40 Categories: 4" Bore Cross Tube, Cross Tube Hydraulic Cylinders, Hydraulic Cylinders

Volume discounts

1+ PRICE EA

$549.00

4+ PRICE EA -5%

$521.55

8+ PRICE EA -10%

$494.10

In stock

42 in stock

Description

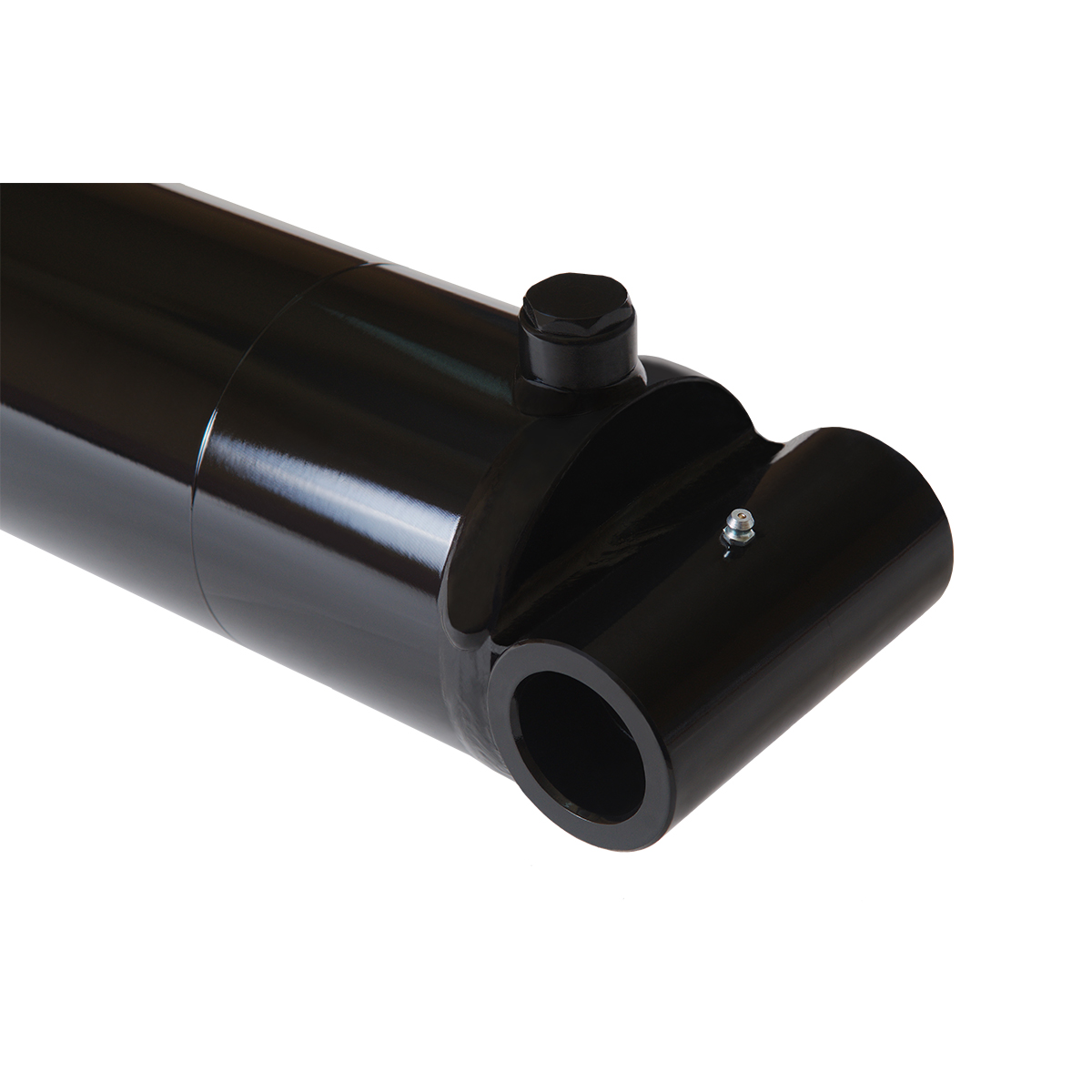

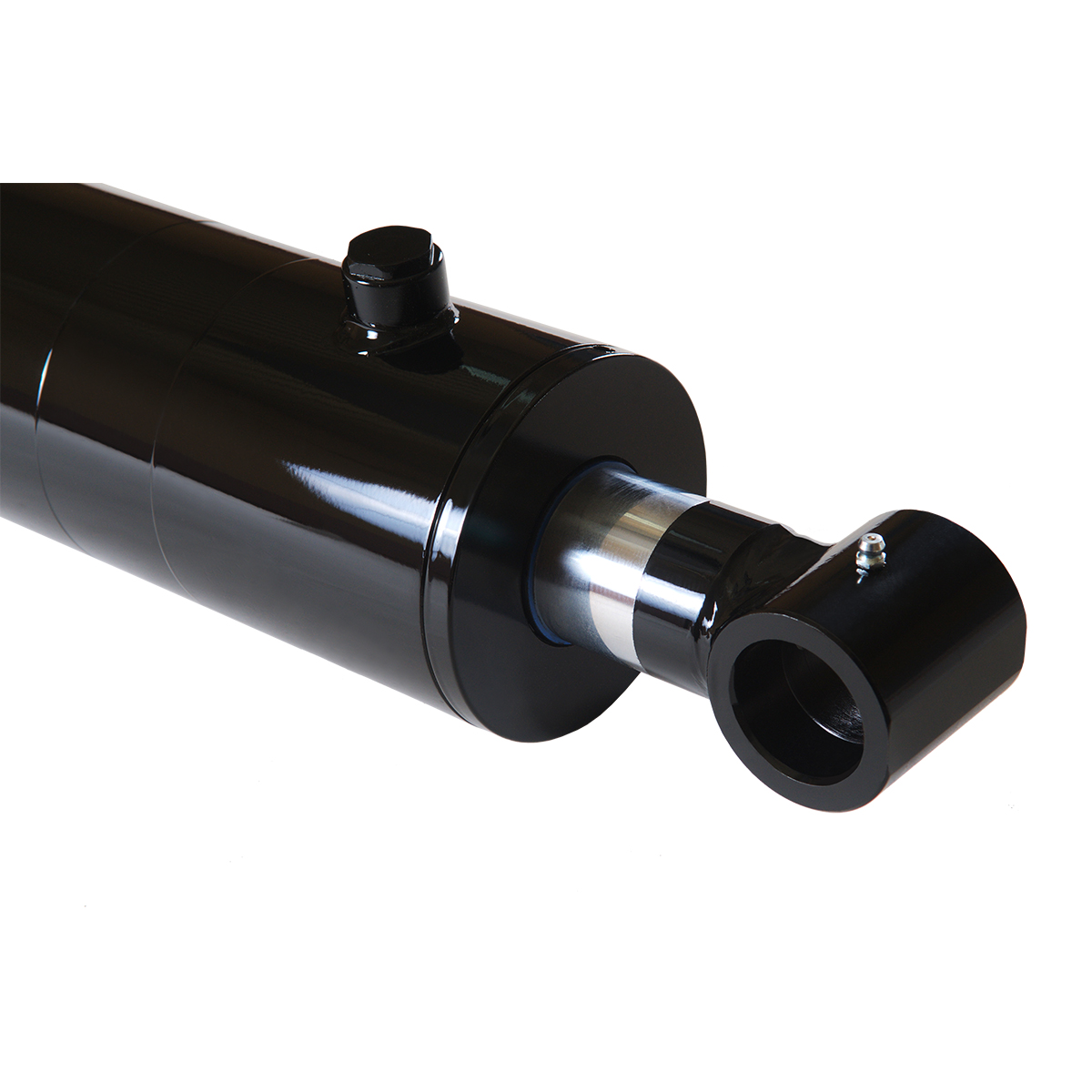

4″ bore x 40″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.

Tariff-FREE cylinders.

Made in Europe.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

973-344-5313
