4 bore x 20 stroke hydraulic cylinder, welded cross tube double acting cylinder | Magister Hydraulics

4" bore x 20" stroke cross tube hydraulic cylinder

$410.00

Pay in 4 interest-free payments of $102.50
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 4x20
Bore : 4 in
Outer Dia. (⌀) : 4.5 in
Stroke : 20 in
Rod Dia. (⌀) : 2 in
Port Size : SAE 8
Pin Dia. (⌀) : 1.5 in

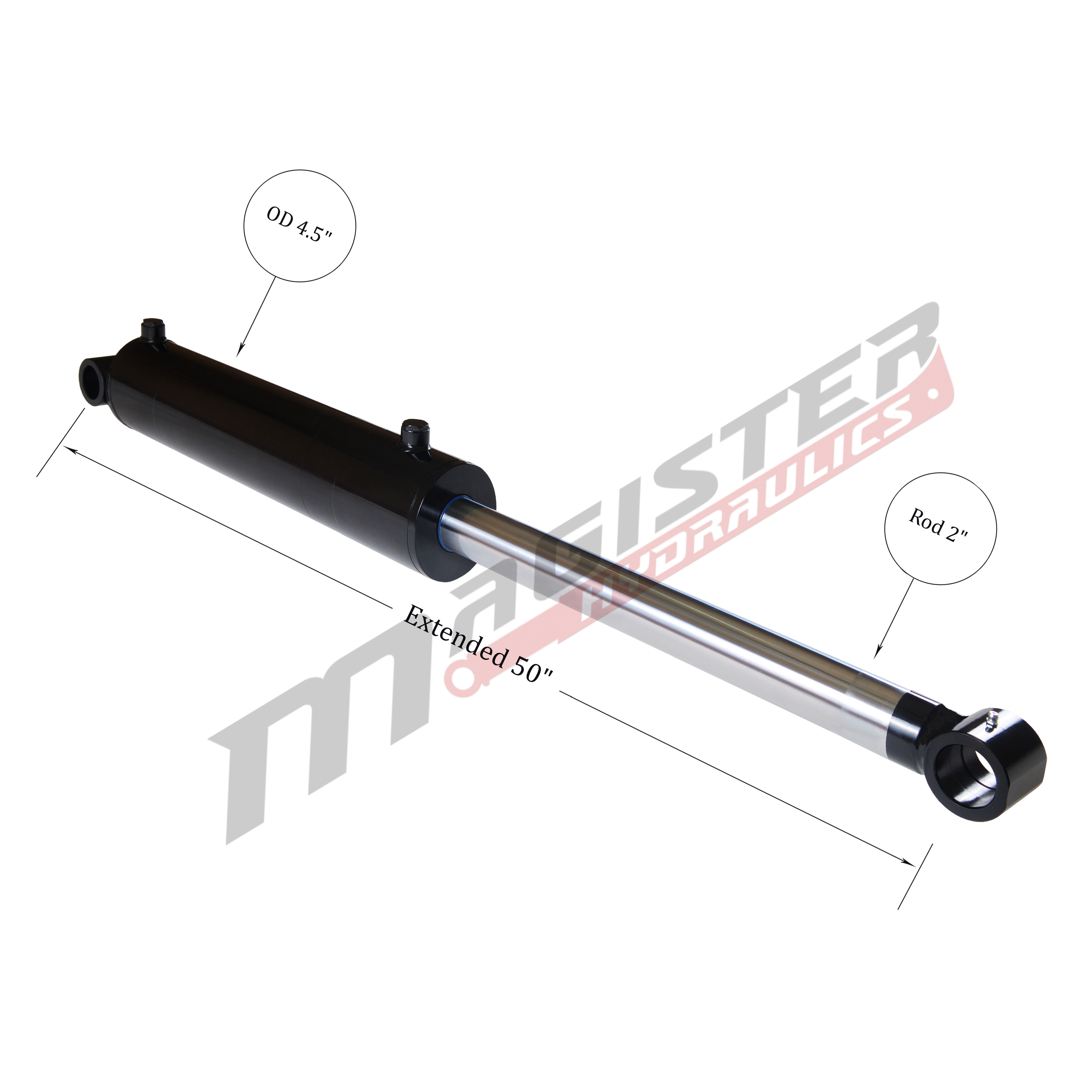

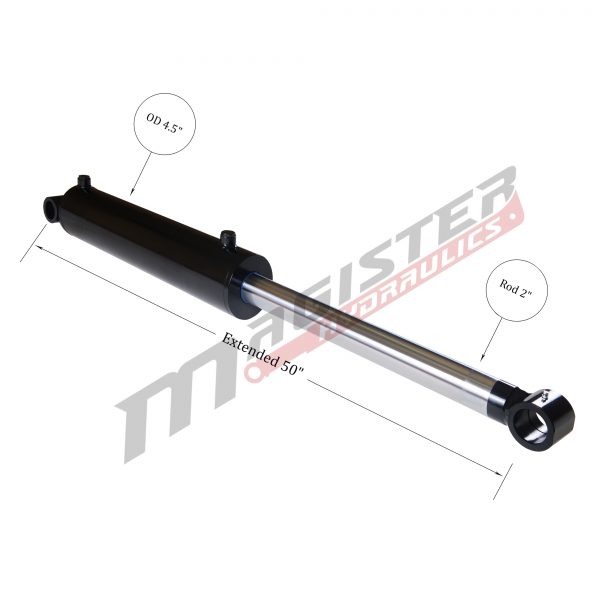

Extended : 50 in

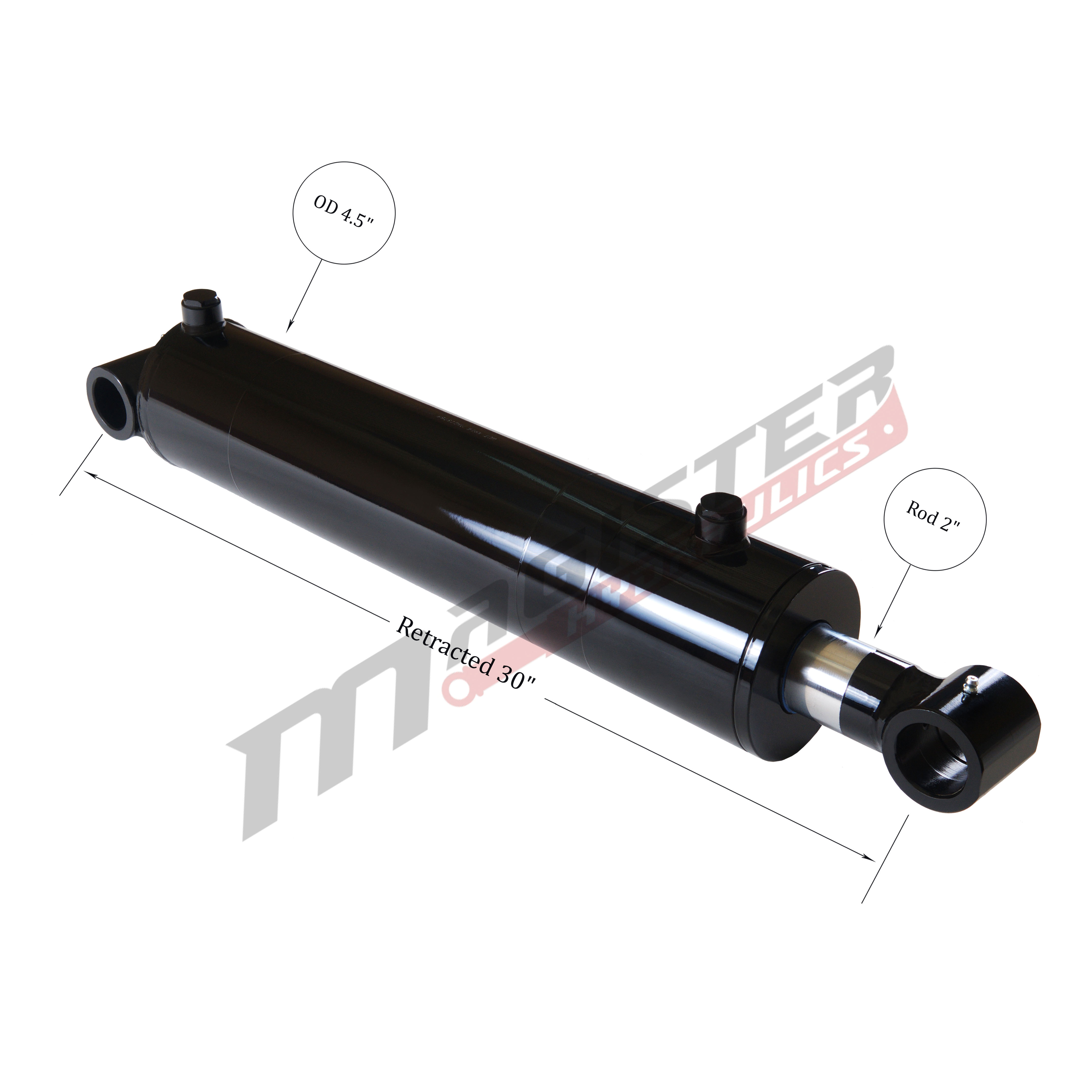

Retracted : 30 in
Overall length : 32.25 in
Pressure : 3500 PSI
Column Load : 37,700 LBs
Oil Volume : 4.35 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Cross Tube
Action : Double Acting
Weight : 65 LBs
GTIN : 850597006318

Volume discounts

1+ PRICE EA
$410.00
4+ PRICE EA -5%
$389.50
8+ PRICE EA -10%
$369.00
In stock

69 in stock

Description

  • 4″ bore x 20″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

Free Ground Continental US Shipping

Tariff-FREE cylinders.

Made in Europe.
