3" bore x 14" stroke clevis hydraulic cylinder

Name: 3" bore x 14" stroke clevis hydraulic cylinder
Brand: Magister Hydraulics
SKU: WCL 3x14
Price: 276.00 USD
Availability: InStock
Rating: 5 (10 reviews)

$276.00

Pay in 4 interest-free payments of $69.00

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WCL 3x14

Product SKU	Maxim part number	Chief part number	Prince-Wolverine part number	Eagle part number
WCL 3x14	288432	287035	WWCL3014-S	HTG3014-ORB

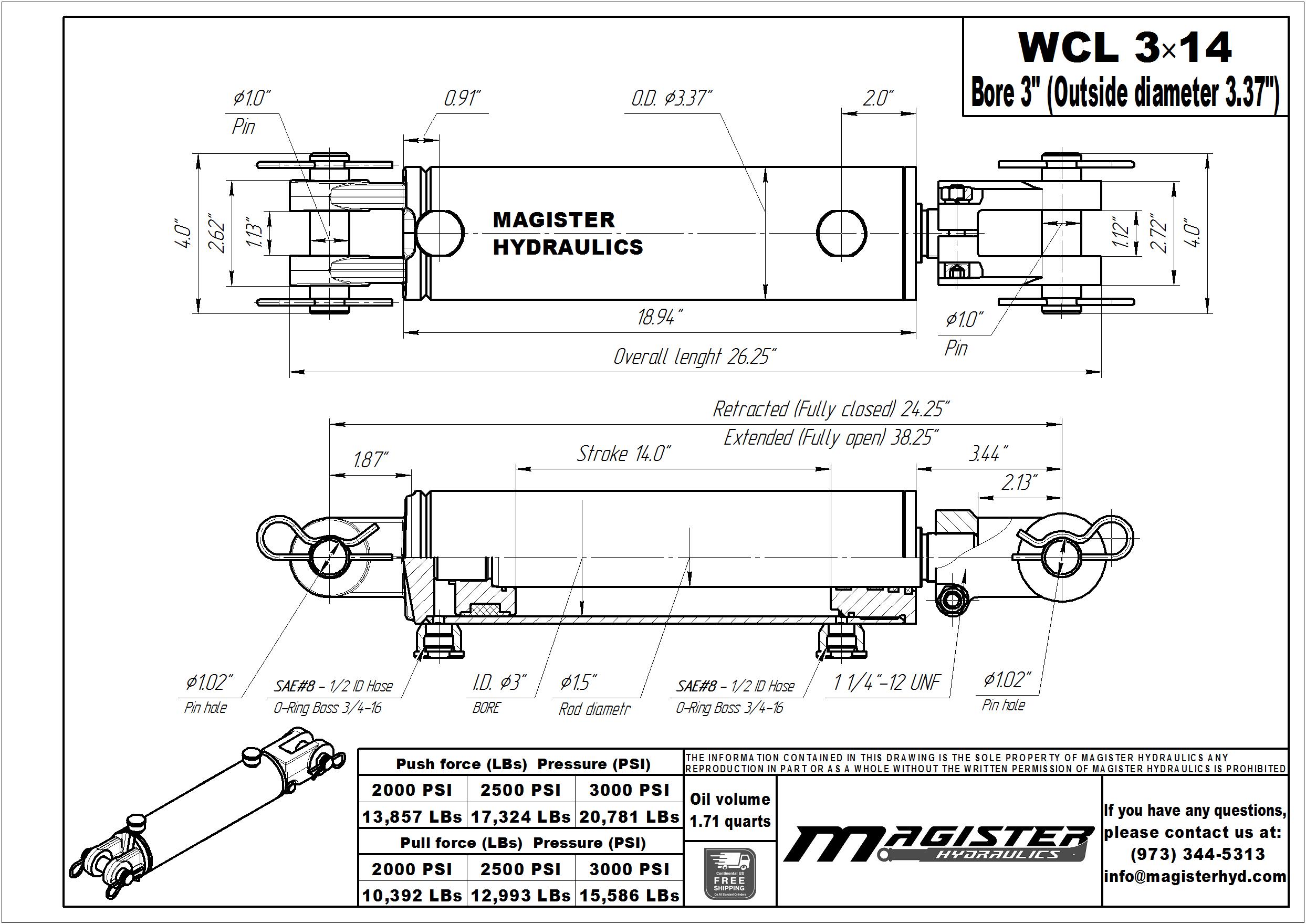

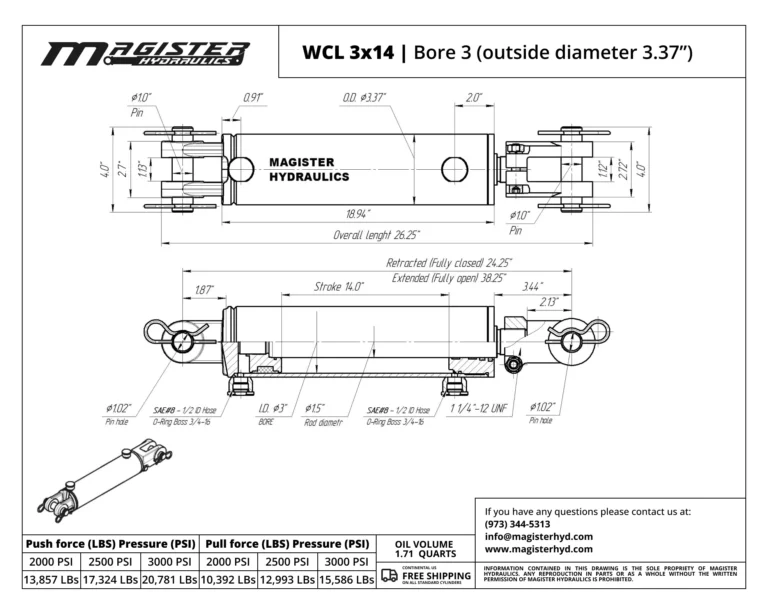

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	3 in
Outer Dia. (⌀) :	3.37 in
Stroke :	14 in
Rod Dia. (⌀) :	1.5 in
Port Size :	SAE 8
Pin Dia. (⌀) :	1 in

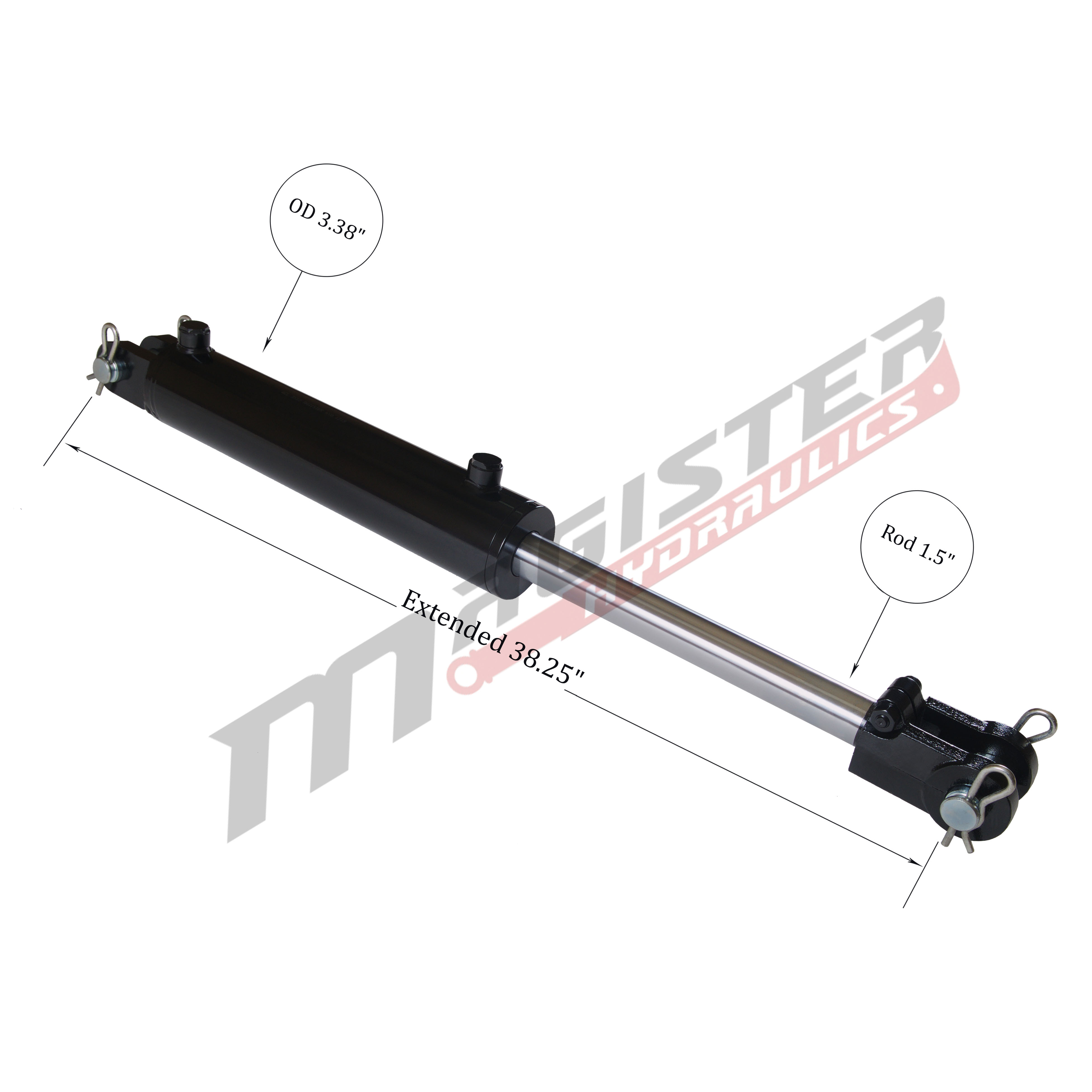

Extended :	38.25 in

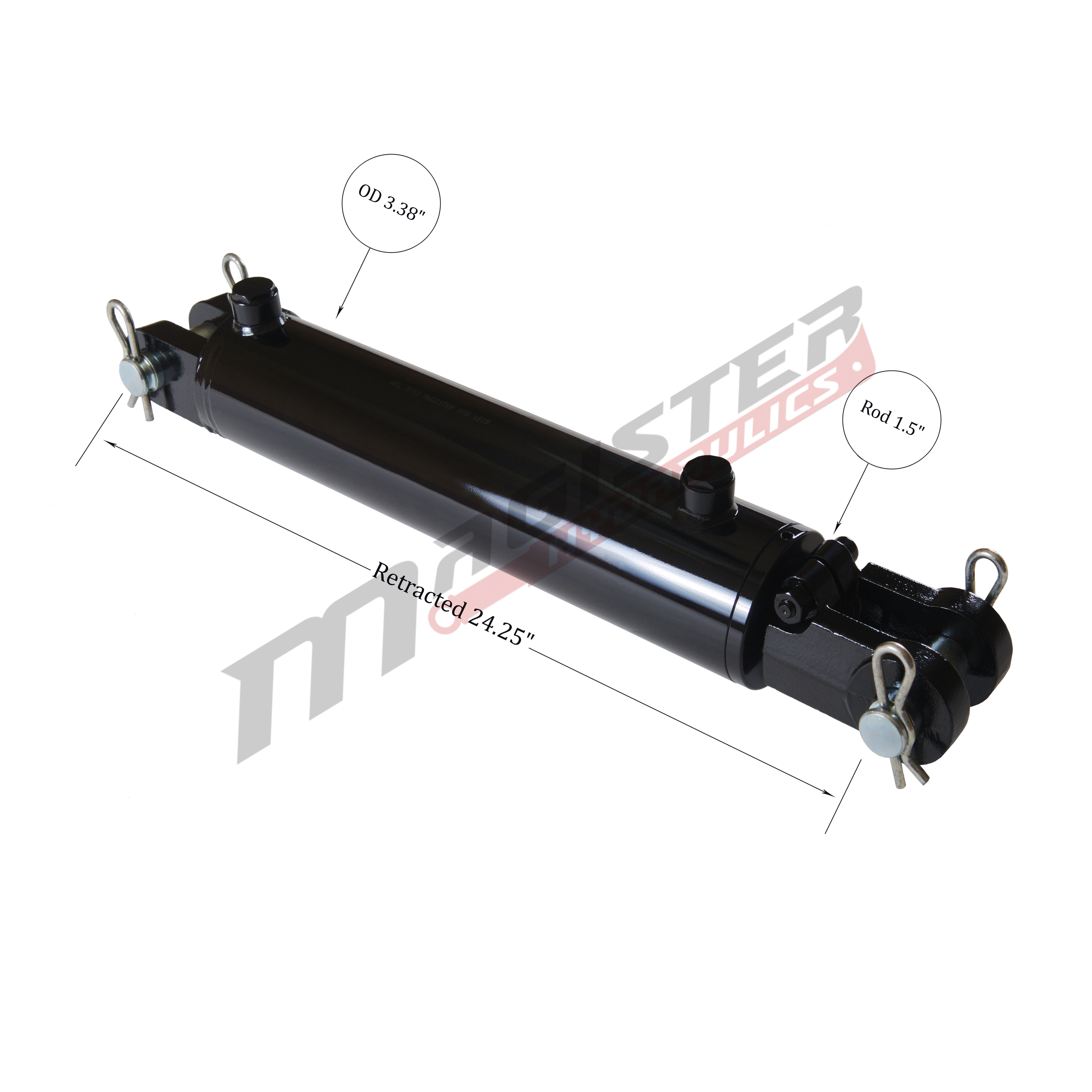

Retracted :	24.25 in
Overall length :	26.25 in
Pressure :	3500 PSI
Column Load :	21,200 LBs
Oil Volume :	1.71 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Clevis
Action :	Double Acting
Weight :	34 LBs
GTIN :	850597006776

SKU: WCL 3x14 Categories: 3" Bore Clevis, Hydraulic Cylinders

Volume discounts

1+ PRICE EA

$276.00

4+ PRICE EA -5%

$262.20

8+ PRICE EA -10%

$248.40

In stock

39 in stock

Description

Applications: Welded Double Acting Hydraulic Cylinder.
Brand Name: Magister Hydraulics
Tube: High tensile honed cold drawn tube.
Rod: High tensile ground & polished hard chrome plated rod.
Gland: Precision threaded gland with wear rings for long life.
Piston: High tensile steel for heavy duty applications.
Base ends: Welded steel mounts with bearings.
Piston seals: Top quality five component compact seals for excellent performance.
Rod seals: Standard U-cup polyurethane rod seal with inner O-ring, POM-C wear rings and polyurethane wiper.
Color: Black.
3″ bore x 14″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Tariff-FREE cylinders.

Made in Europe.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

973-344-5313
