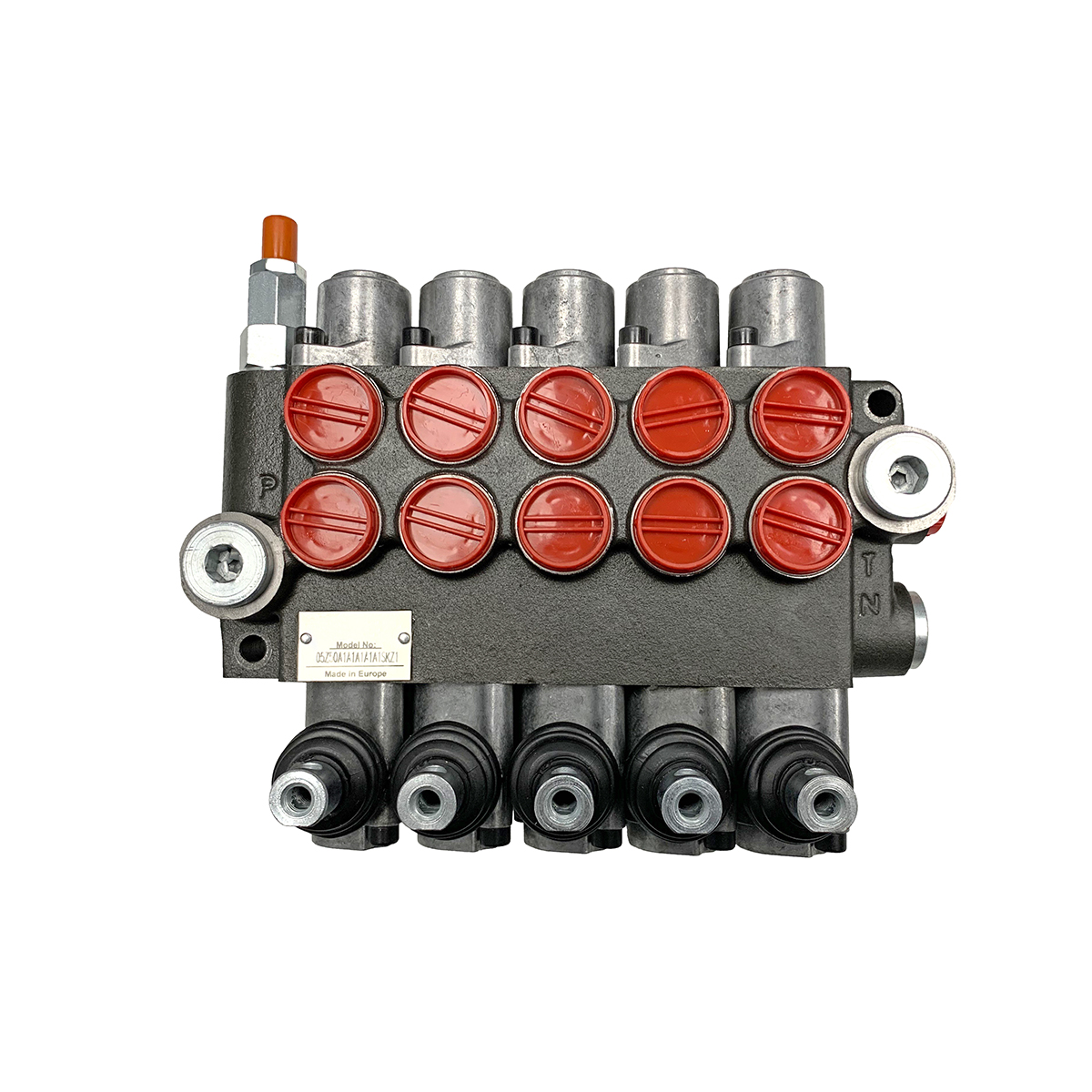

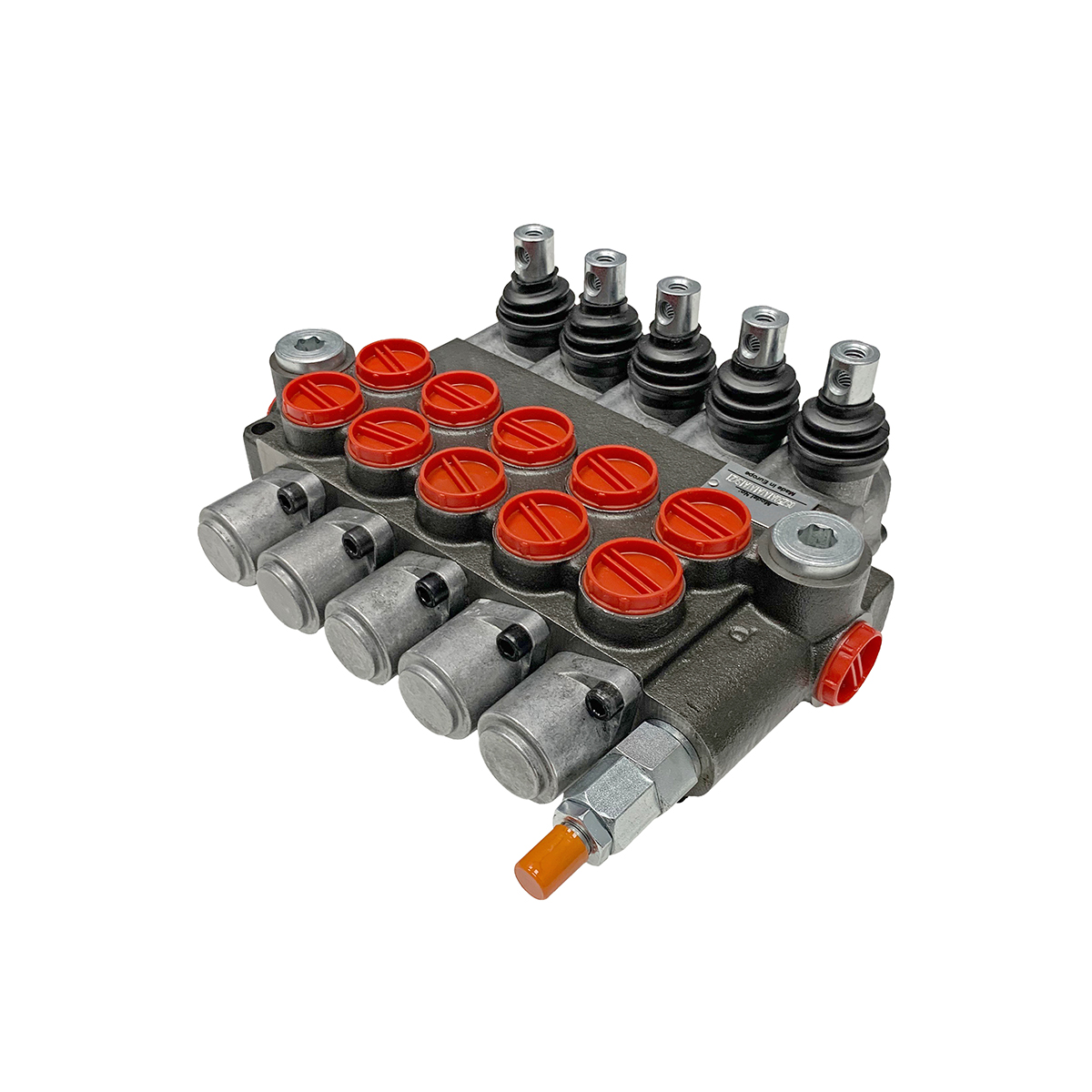

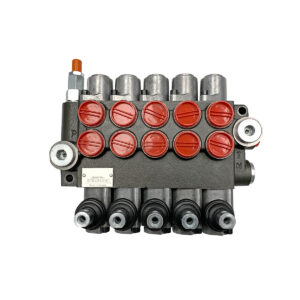

5 spool x 13 GPM hydraulic control valve

Gain reliable control over your equipment with the 5 Spool, 13 GPM Hydraulic Control Valve. Engineered with a heavy-duty cast iron body, this valve directs hydraulic oil between pumps, cylinders, and motors under pressures up to 3600 PSI (4600 PSI max). Crafted in Europe to stringent American standards, it’s a dependable solution for demanding applications in temperatures from -40°F to 140°F.

Built for Demanding Performance

• Robust Construction: Durable, leak-resistant cast iron monoblock body designed for harsh operating environments.
• High-Pressure Operation: Standard operating pressure 3600 PSI; maximum pressure rating 4600 PSI.
• Extreme Temperature Resilience: Reliable performance from -40°F to 140°F for year-round use.

Designed for Versatility & Ease

• Broad Compatibility: Excellent direct replacement for systems in small tractors, tractor loaders, log splitters, forklifts, and tow trucks.

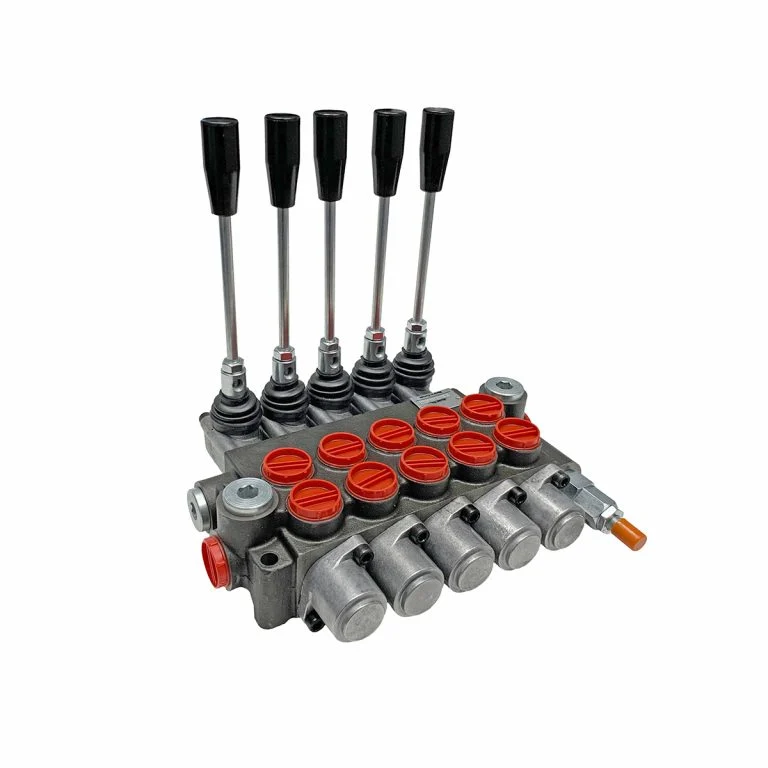

• Flexible Configuration: Includes handles installable vertically or horizontally to match your setup.
• Secure Mounting: Uses 2 M8 mounting bolts for stable installation.
• Advanced Option (Power Beyond): Power Beyond capability available for daisy-chaining multiple valves (requires plug installation into the “N” Port).

Perfect For

Ideal replacement or upgrade for: Small Tractors, Tractor Loaders, Log Splitters, Forklifts, and Tow Trucks.

Note: Power beyond option is available; plug must be installed into the “N” Port.

POWER BEYOND PLUG

PB-HCV-13
