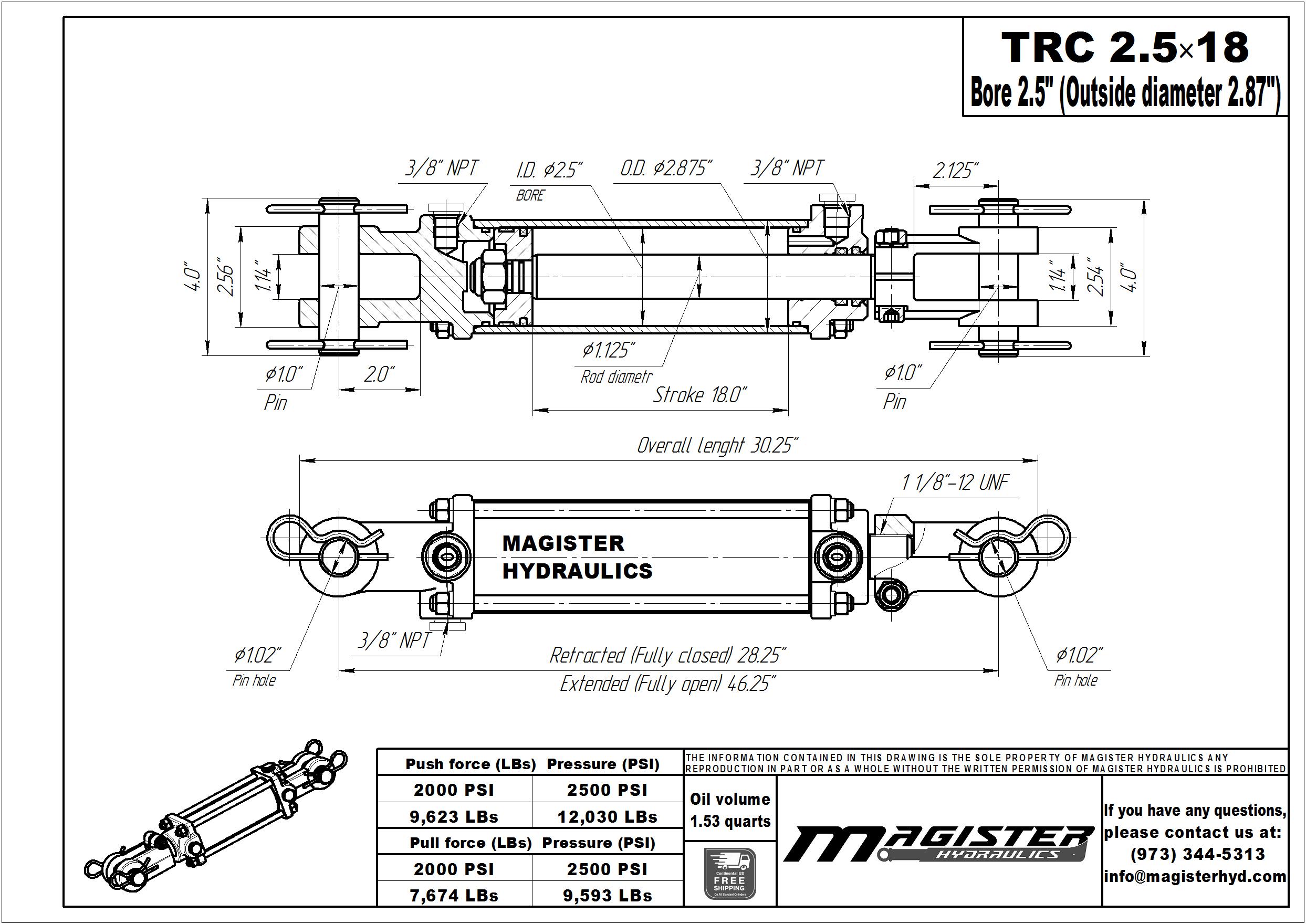

2.5" bore x 18" stroke tie rod hydraulic cylinder


* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: TRC 2.5x18
Bore :2.5” Bore Hydraulic Cylinders
OD :2.87"
Stroke :18 inch
Rod :1.125"
Port Size :3/8" NPT
Pin :1"

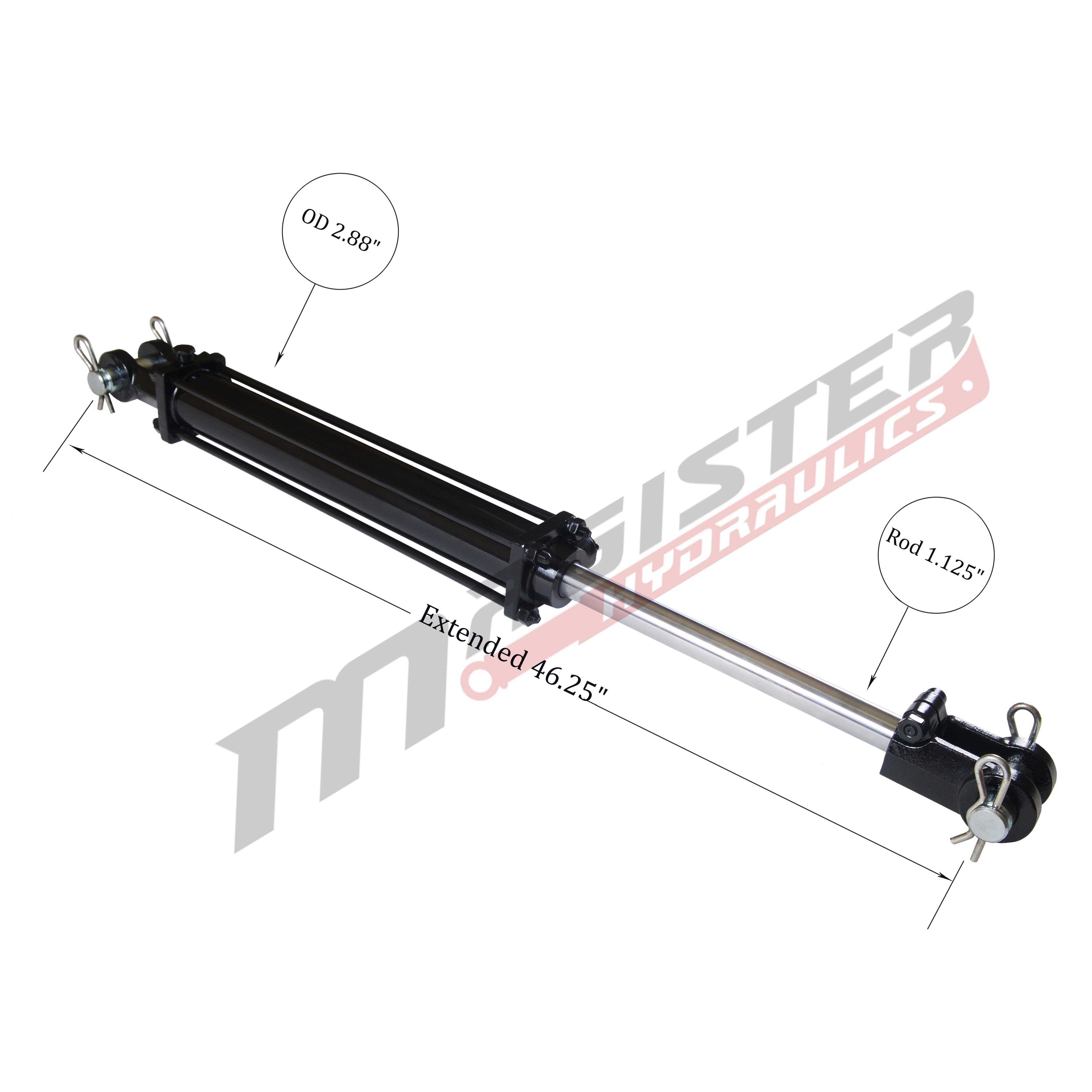

Extended :46.25"

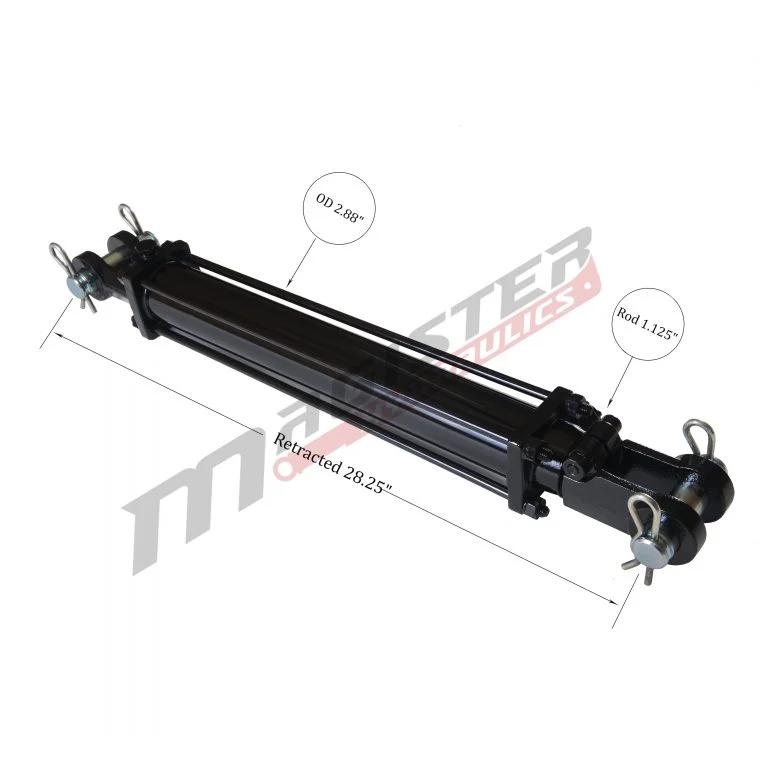

Retracted :28.25"
Overall length :30.25"
Pressure :2500 PSI
Column Load (LBs) :8,370
Oil Volume (quarts) :1.53
Brand :Magister Hydraulics
GTIN :854335007575
SKU: TRC 2.5x18 Categories: ,
4+ PRICE EA -5%
10+ PRICE EA -10%
In stock

28 in stock

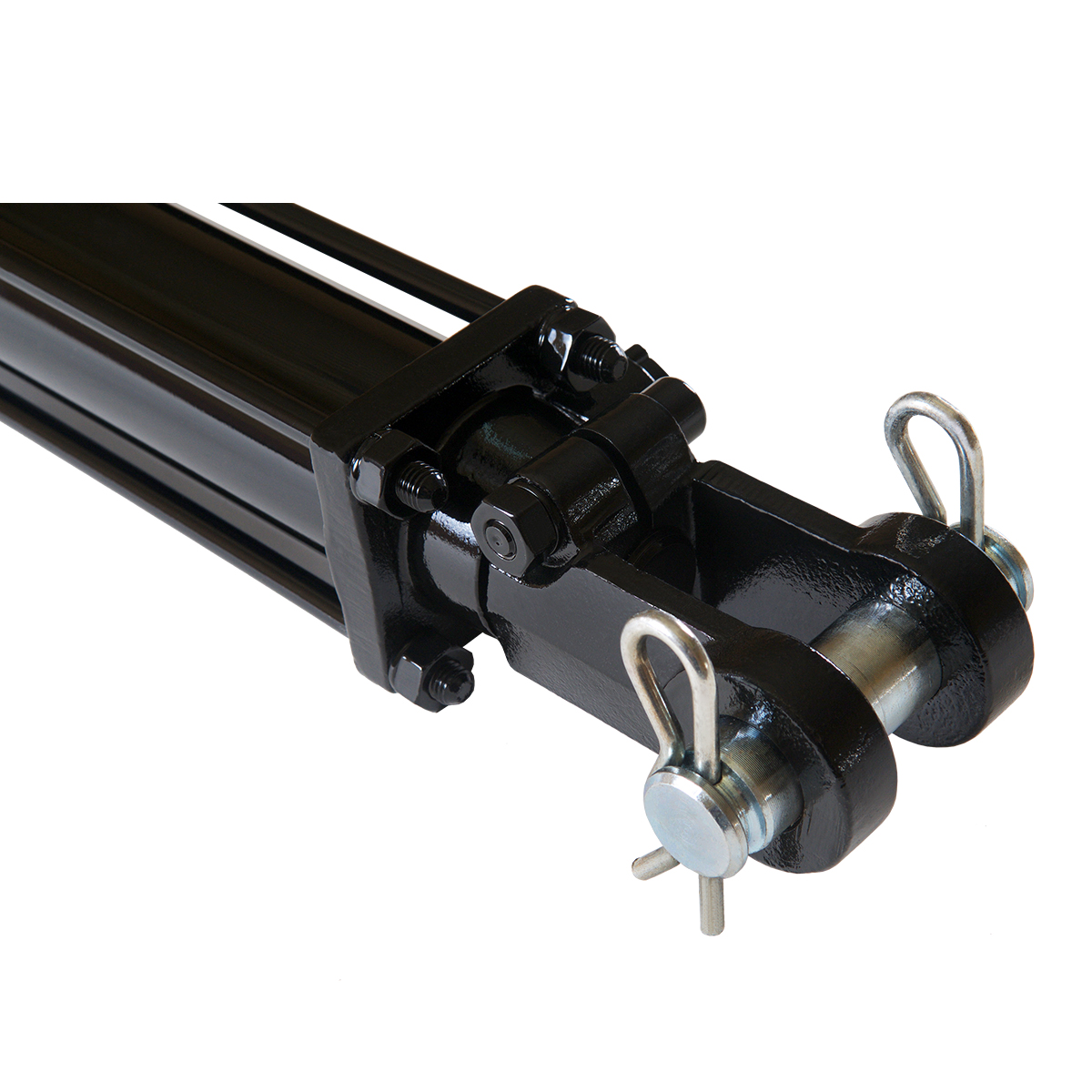

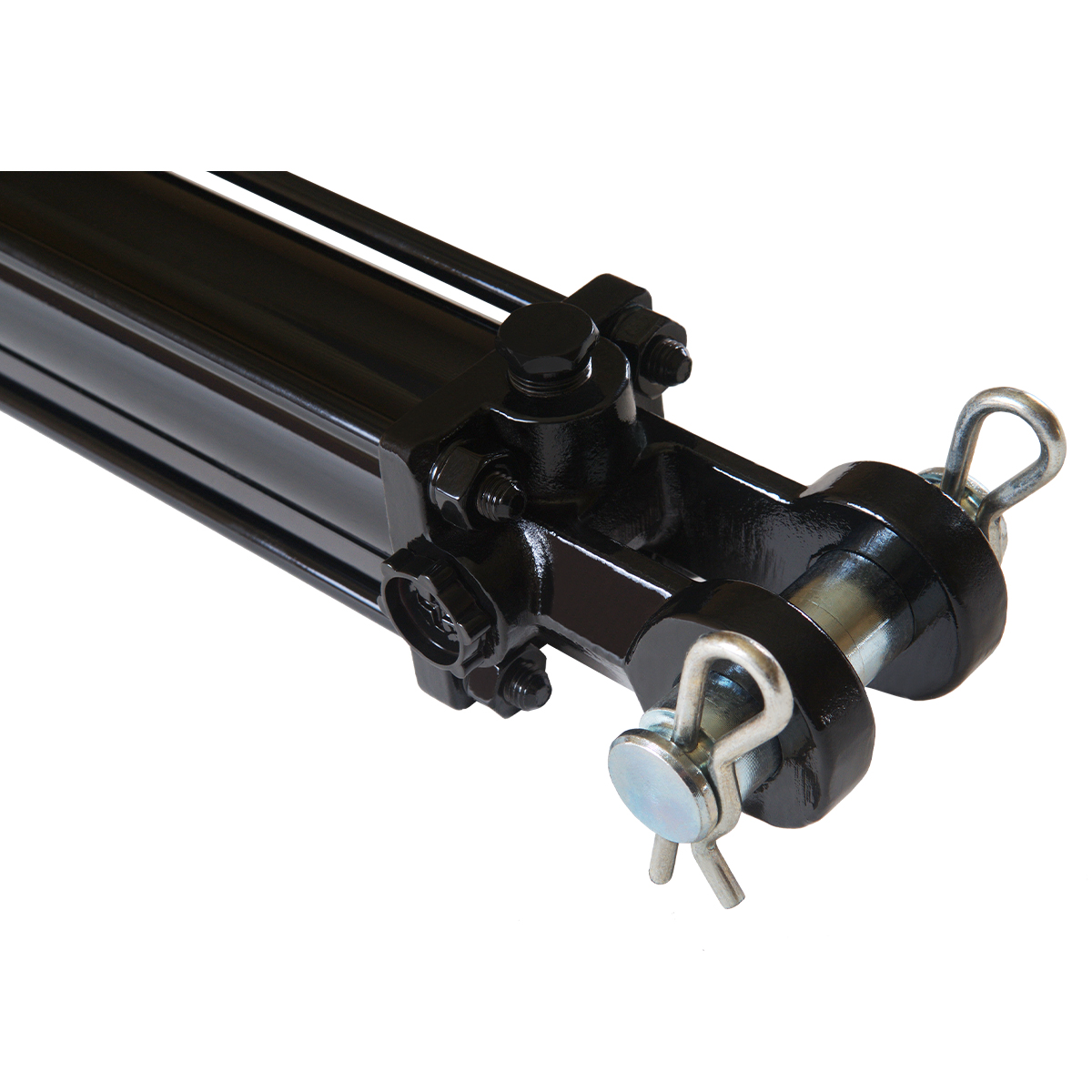

  • 2.5″ bore x 18″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Tie-rod double acting hydraulic cylinder
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
