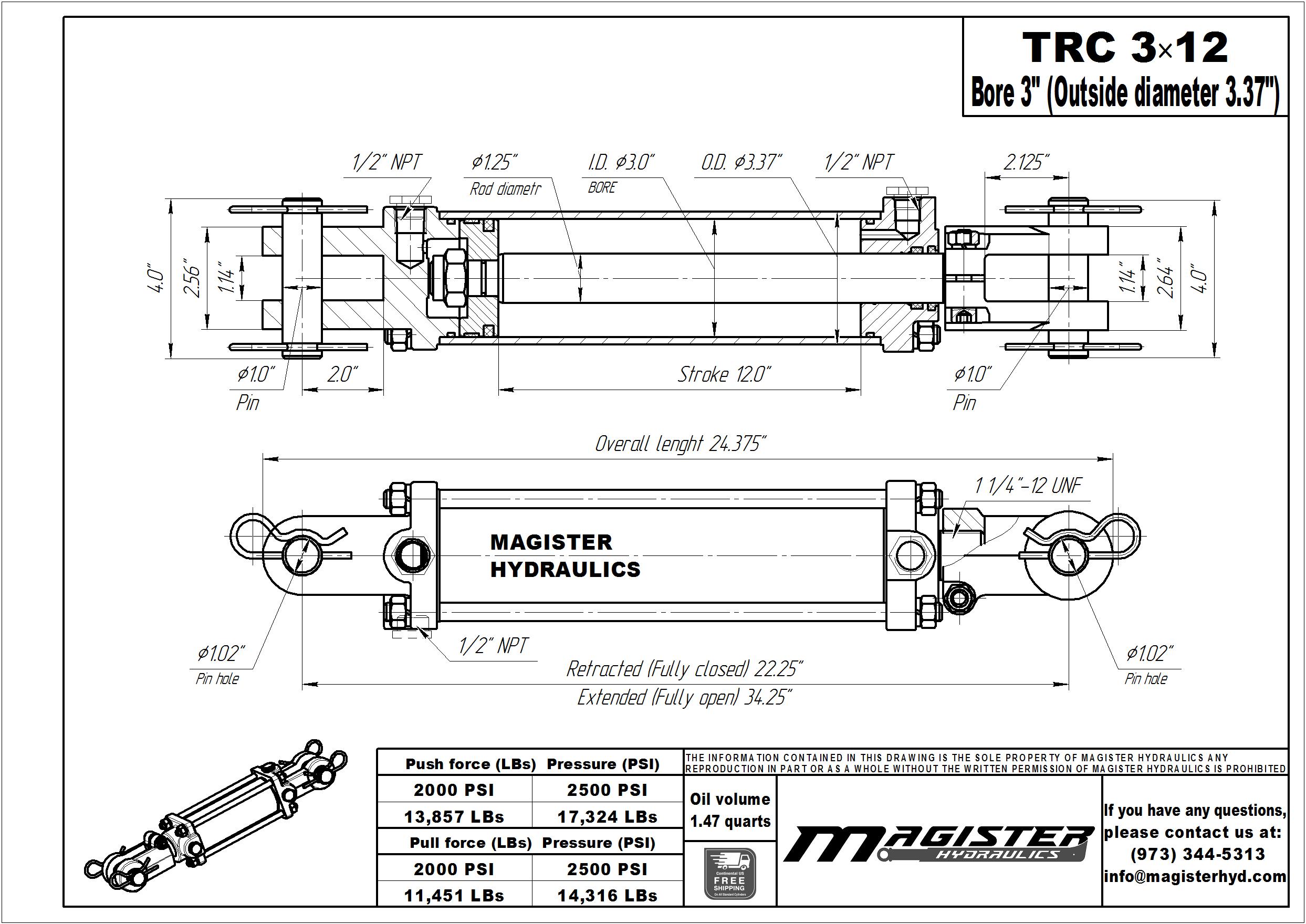

3" bore x 12" stroke tie rod hydraulic cylinder


* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: TRC 3x12
Bore :3” Bore Hydraulic Cylinders
OD :3.37"
Stroke :12” Stroke Hydraulic Cylinders
Rod :1.25"
Port Size :1/2" NPT
Pin :1"

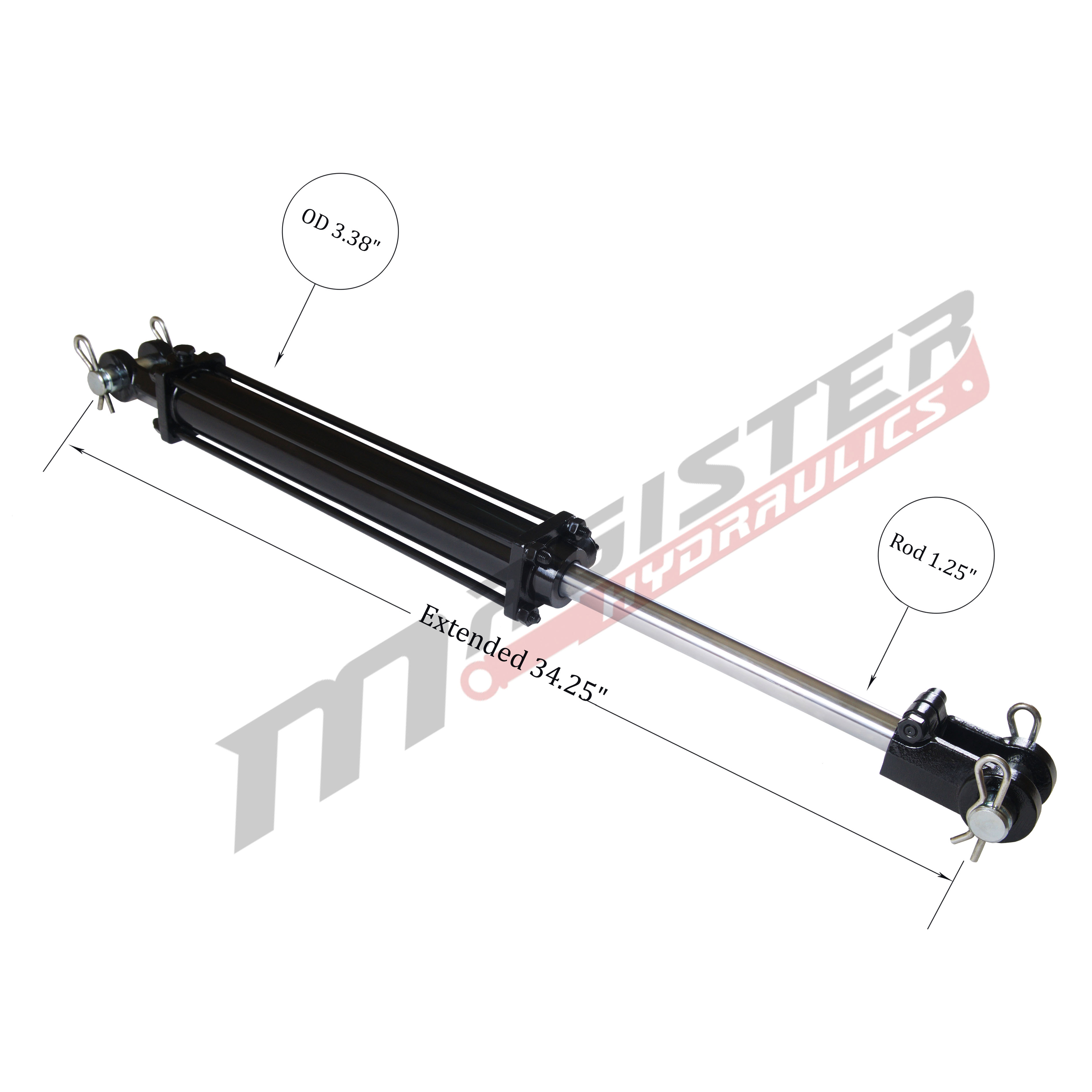

Extended :34.25"

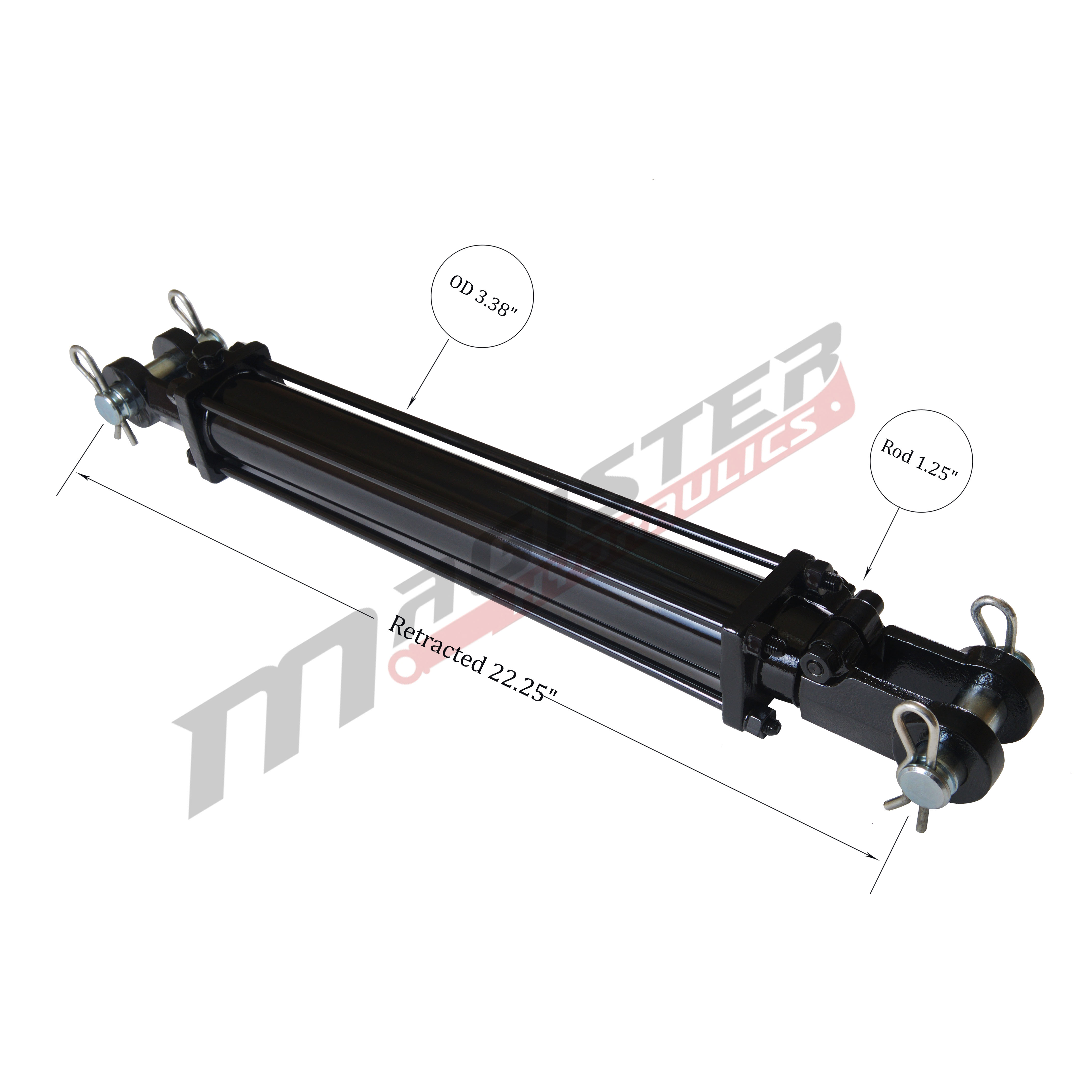

Retracted :22.25"
Overall length :24.37"
Pressure :2500 PSI
Column Load (LBs) :17,670
Oil Volume (quarts) :1.47
Brand :Magister Hydraulics
GTIN :854335007674
SKU: TRC 3x12 Categories: ,
4+ PRICE EA -5%
10+ PRICE EA -10%
In stock

38 in stock

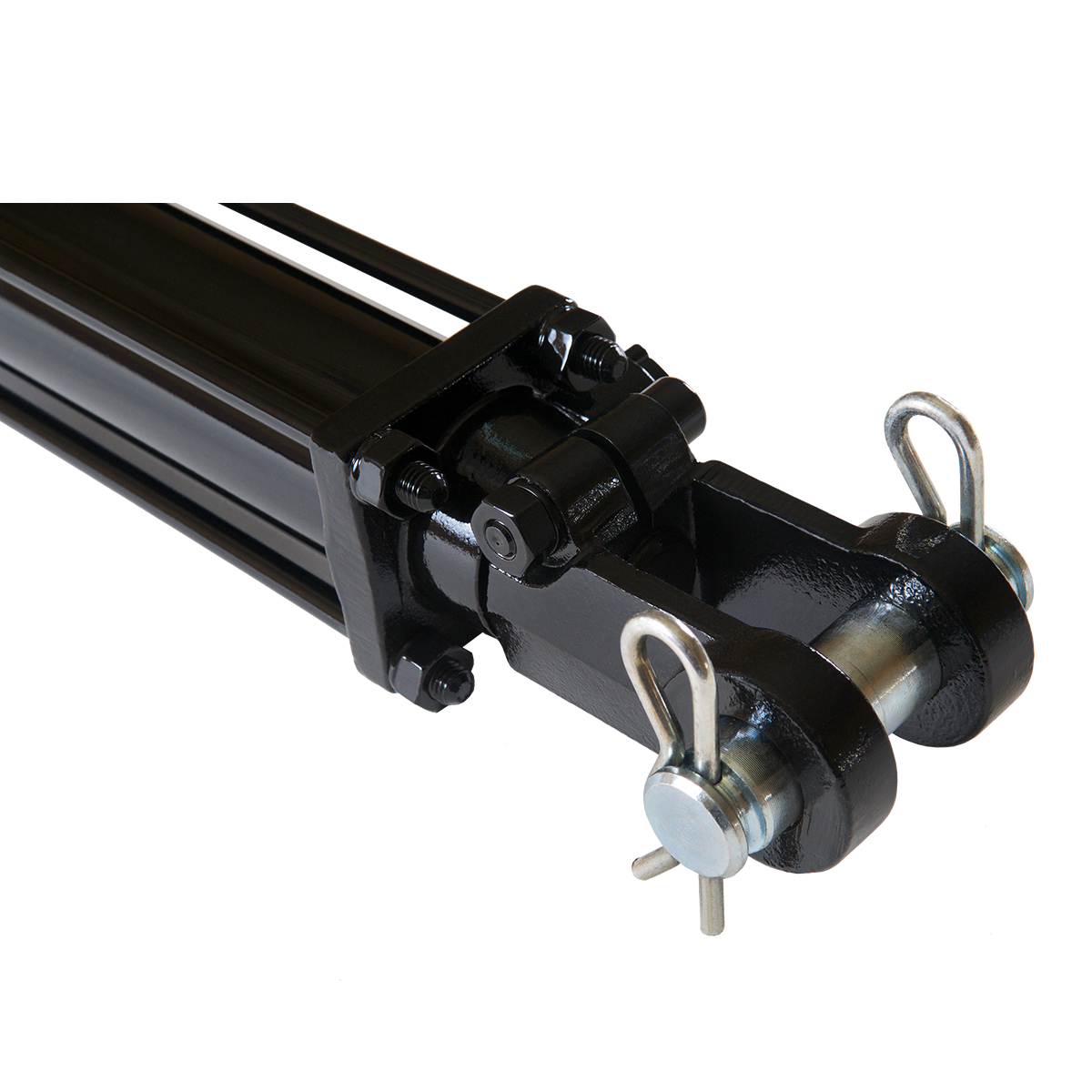

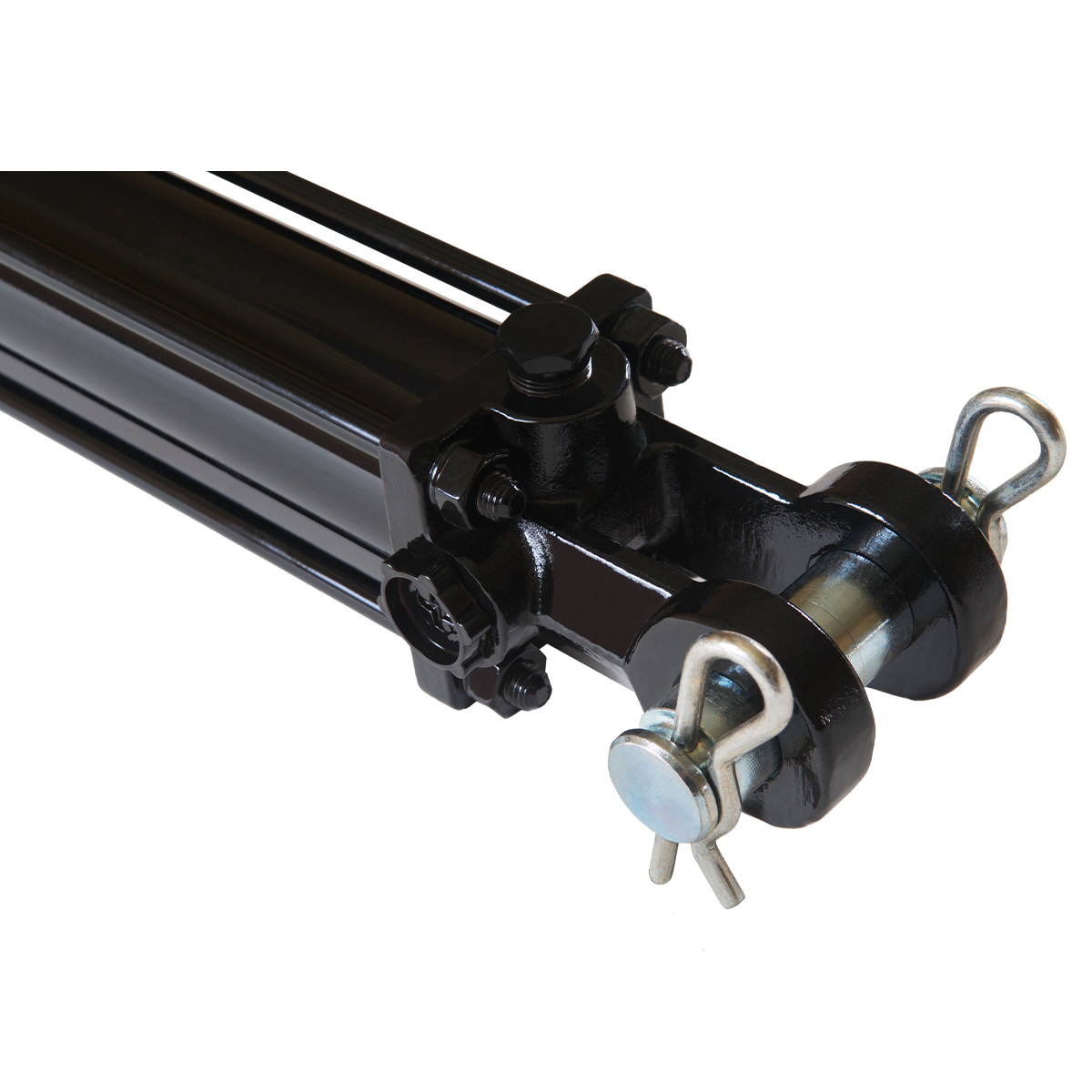

  • 3″ bore x 12″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Tie-rod double acting hydraulic cylinder
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
